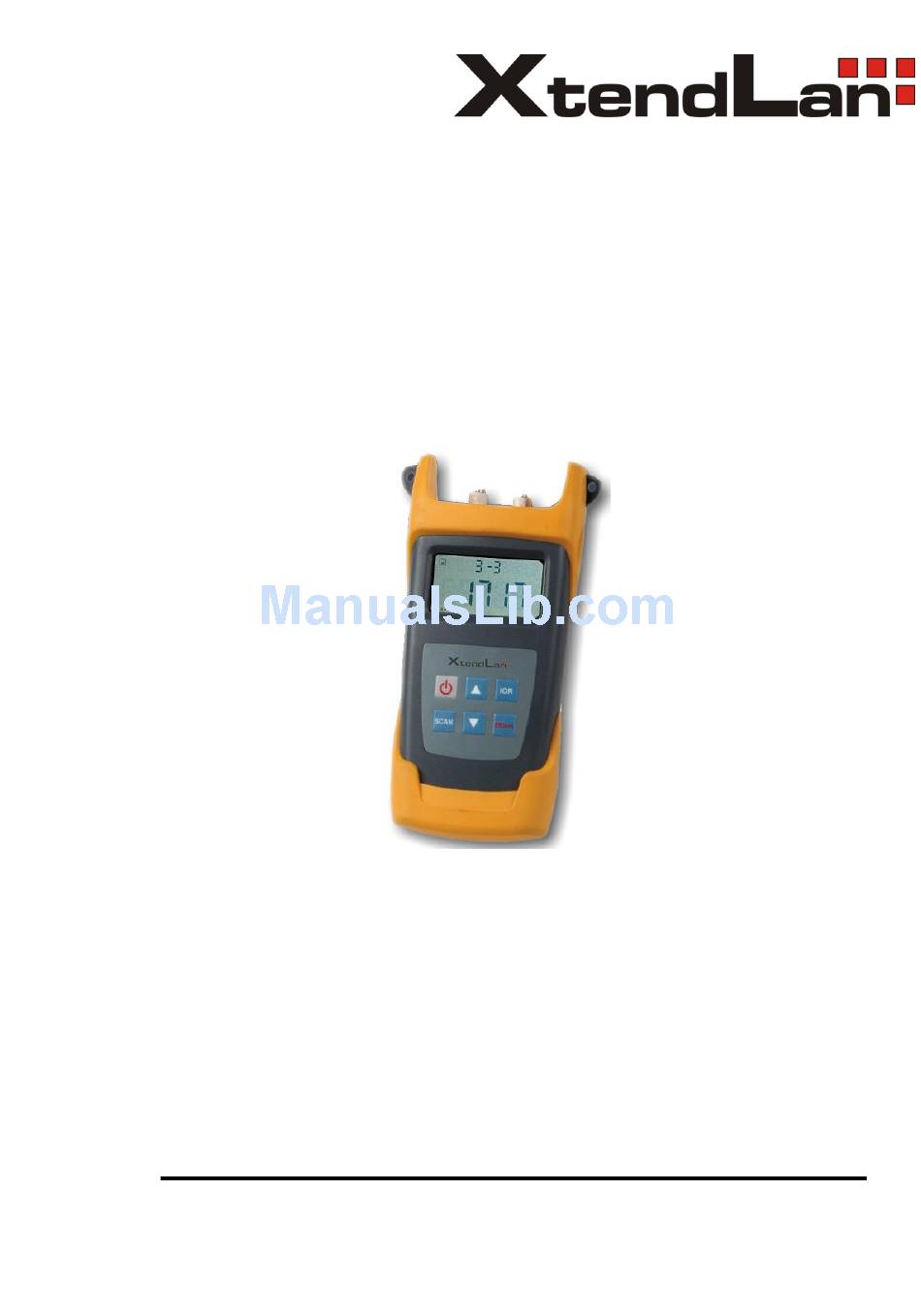

- Page 1 XL-FR330 OTDR fiber ranger User’s Guide...
-
Page 2: Table Of Contents
Content 1、 Overview---------------------------------------3 2、 Specification----------------------------------4 3、 Standard Package--------------------------5 4、 Panel&Function-----------------------------6 5、 Maintenance---------------------------------11 6、 Trouble-shooting--------------------------12 7、 Notices----------------------------------------12 8、 Warranty--------------------------------------13... -
Page 3: Overview
1． Overview XtendLan makes full use of OTDR work principle to design and develop the XL-FR330 fiber ranger and greatly improves the performance from outside design to inside functions. In hardware, it is lightweight, rugged, dustproof and waterproof. In software, it has three brilliant functions. -
Page 4: Specification
2.Specification Model XL-FR330 1550nm（1310nm Optional） Operating Wavelength Fiber Type 9/125um SM Fiber Optical Connector Type FC/PC Detector Type InGaAs ≥60 Peak Power of laser(mW) 60 (≥1dB) Reflection Event(km) Max.Distance Non-reflection 20 (≥2.5dB) Event(km) Measurement Unit Reflection Event Dead Zone(m) Distance Accuracy （Reflection Event） (m) ±... -
Page 5: Standard Package
Standard Package 1. Main Unit----------------------------------1 2. Manual-------------------------------------1 3. Cleaning Swab---------------------------1 4. Strap----------------------------------------1 5. Desiccant----------------------------------1... -
Page 6: Panel&Function
4．Panel&Function VFL Port OTDR Port Battery Capacity LCD Screen Auto-Off Symbol Keypad... - Page 7 OTDR port VFL Port 4.1 Panel&Keypad Press this key to turn on/off.. Under the standby state, press this key to turn on the auto-off function, under which the unit will turn off automatically after 5 minutes idle time. Under the test mode, press this key to test the under- test fiber and display the results in the screen.
- Page 8 4．2．1 T urn on the unit and enter the test mode. Version No. 4．2．2 Clean the under-test fiber and connect it to the OTDR port. Please choose the correct the fiber connect before connecting. 4．2．3 Press“SCAN” to review the fiber and show the scanning progress in the screen.
- Page 9 Total Events Current Event （Reflection Event） Event Value Total Events Current Event （ Offset one decimal digit ： Attenuation Event） Event Value 4． 2． 5 It will show the non-events when the real test range is within the dead zone or beyond test range. Non-Events...
- Page 10 4．2．6 When repairing the fiber, people could use this unit to identify the location of the breaks or do the automatic cycle test. Press “Scan”, unit it shows “Scan” in the screen.。 4．2．7 Show the location of the current break Automatic Cycle Test 4．...
- Page 11 4．2．11 The refractive index ranges from 1.0000-2.0000.Press “▲/▼” keys to change the values and press ”IOR” key to save and exit the changing mode. 4． 2． 12 The VFL could be used for location of the short-distance fiber faults. Before using the function, please make sure that it is not under the automatic cycle test mode.
-
Page 12: Maintenance
5．Maintenance Keep the fiber output ports clean. Please clean them regularly with the pure Alcohol Keep the dust-proof cap clean and cover it after the test. Turn off the unit and keep the output ports inactive when cleaning. -
Page 13: Notices
Caution: Repair it in the field is NOT recommended. 8.1 18 months Warranty for XL-FR330 fiber ranger XtendLan warrants that every Fiber Ranger will be free from defects in material and workmanship for a period of 18 months. This warranty covers the original user only and is not transferable. Should... - Page 14 fax it to us to ensure proper initiation of your warranty term. To return a defective product for warranty coverage, contact us for a written authorization. Failure to properly protect the product during shipping may avoid this warranty. We will pay the return transportation fee for products repaired or replace in warranty.
