D500 Super Dollar Authenticator USER GUIDE wwwAccuBANKER.co www.AccuBANKER.com www.AccuBANKER.com...
Page 2
Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. ®...
Table of Contents Table of Contents ..................... 3 Introduction ...................... 4 Safety Instructions .................... 4 Other Safety Considerations ................5 Box Contents ....................6 Cleaning of the Machine .................. 7 1. General Controls and Parts ................8 1.1 Specific Controls .................. 10 2.

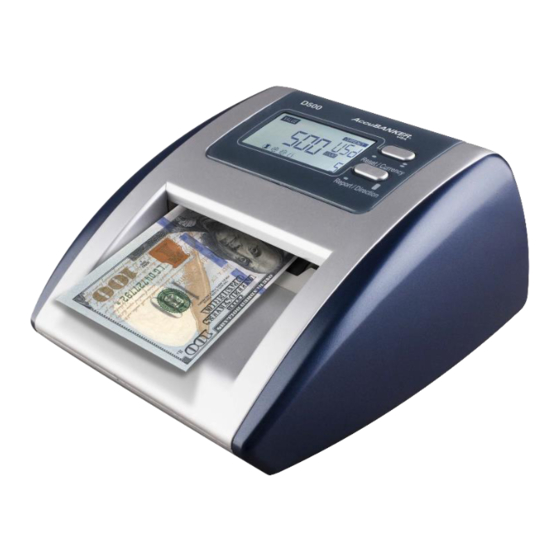

Introduction The D500 Super Dollar Authenticator is part of our next generation in micro-technology. The streamlined design allows for simple banknote processing. Multiple counterfeit detection functions provide added security. Safety Instructions Warning Do not use this product in areas where it may be exposed to water or other liquids.
Other Safety Considerations • Read and understand all the safety instructions. • Follow all warnings and instructions marked on the unit. • Do not place near direct sunlight, heat sources, air conditioners, or in an enclosed space unless proper ventilation is provided. •...
Box Contents When opening the box, verify that all the items described below are included. If any item is damaged or missing, contact the place where the unit was purchased.
Cleaning of the Machine WARNING: BEFORE DOING ANY CLEANING, TURN THE POWER SWITCH OFF AND DISCONNECT THE POWER CORD FROM THE MACHINE. KEEP IN MIND THAT PROBLEMS OR DEFECTS THAT ARISE FROM LACK OF PERIODIC MAINTENANCE ARE NOT COVERED BY THE WARRANTY. A) Cleaning the Optical Sensors Cleaning should be performed by an authorized service center.
1. General Controls and Parts (continued) 1.1 Specific Controls 1. Value Number Display 2. Counting Number Display 3. Currency/Denomination Display 4. Error Code Display...
Banknotes may be ejected from either the back or the front of the machine after processing. 2.3 Report Function The D500 can show a summary report of the value and count for all banknotes processed by denomination. 2.4 Counterfeit Detection The counterfeit detection is performed by four (4) different methods - Illustration (Illus.), Infrared (IR), Ultraviolet (UV), and Magnetic (MG).
3. Operation 3.1 Basic Operation 1. Connect the 12V adapter to a power outlet and the jack on the rear of the machine. Turn the POWER switch ON. The unit will conduct a self- check at start-up. The Value display and Count display will show “0” when the unit is ready.
3. Operation (continued) 3.4 Counterfeit Detection There are four counterfeit detection methods: Illustration (Illus.), Infrared (IR), Ultraviolet (UV), and Magnetic (MG). All four methods work together at all times. 1) Illustration Detection This method checks for the illustration feature on the banknote. If the illustration is not detected the machine will alert with a triple beeping sound and reject the banknote by ejecting it to the front of the machine.
4. Solutions to Operational Problems 4.1 Preventive Measures Avoid strong light or magnetic sources that will disturb the counterfeit detection functions while operating the machine. Keep the sensors clean and free of dust. Unplug the machine when not in use. Pre-select the banknotes to be counted in the machine.
4. Solutions to Operational Problems (continued) 4.2 Jamming • Before beginning operations of the machine, make sure there are no foreign objects in any of the mechanisms such as silica bags, spare parts, etc. • To avoid jamming, ensure that banknotes are placed correctly in the hopper.
5. Error Messages ERROR CAUSE SOLUTION Illustration The banknote is Suspicious banknote for (Illus.) suspected as false for Illus. improper Illus. Infrared (IR) The banknote is Suspicious banknote for IR suspected as false for improper IR markings. Ultraviolet The banknote is (UV) Suspicious banknote for UV suspected as false for...
6. Specifications Ambient Temperature: 50 – 95 °F (10 – 35 °C) Ambient Humidity: 40 - 80% Feeding System: Roller Friction System Display: Graphical LCD screen with backlighting Power Source: 12V DC adapted from 110-220V, 60/50 Hz Power Consumption: < 10W Dimensions: 5.71”...
Page 18
® AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
