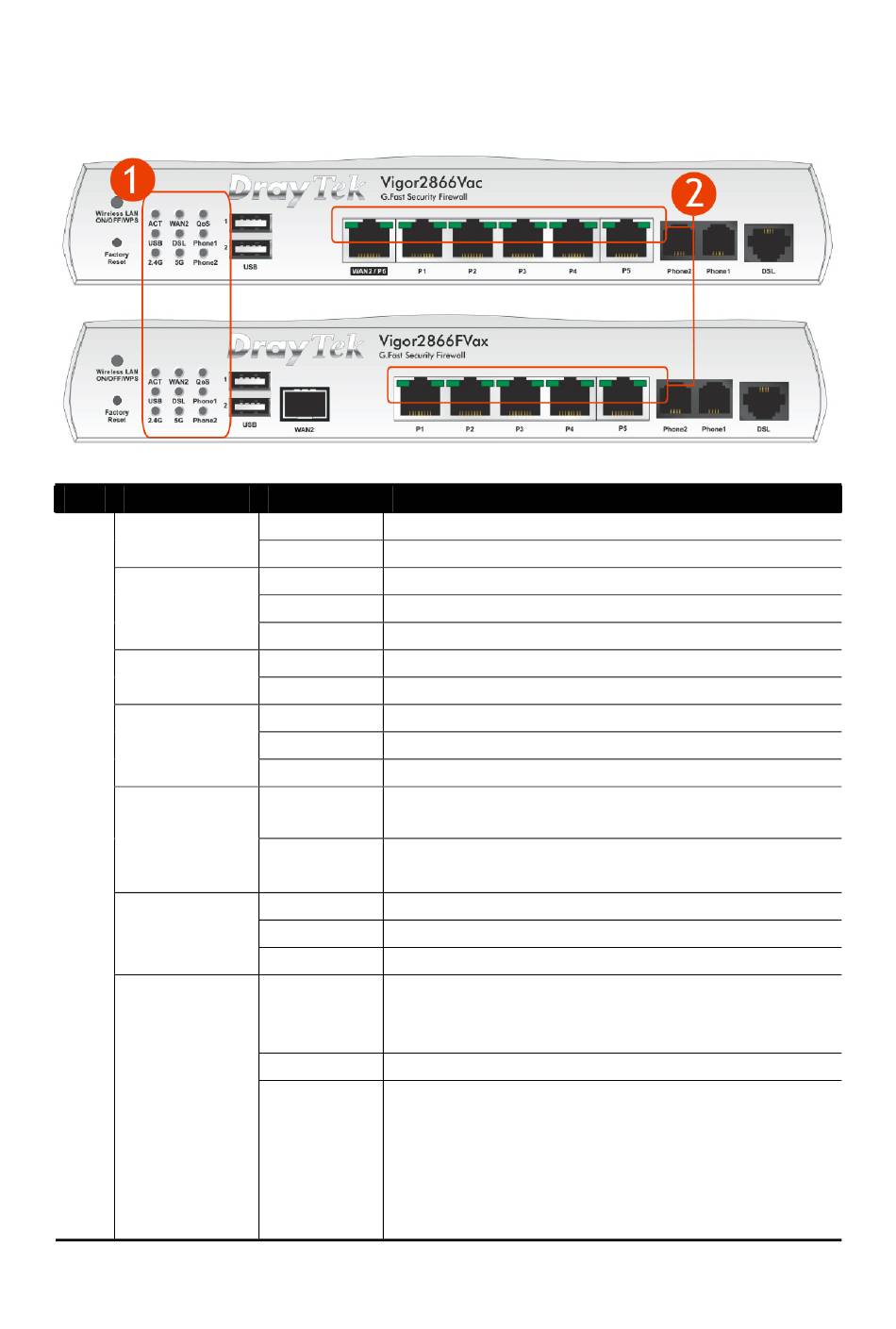

No. LED
ACT
WAN2
QoS
USB
DSL
(1)
Phone1/2
2.4G/5G
6 6 V a c / V i g o r 2
6 6 V a c / V i g o r 2
Status Explanation
Off The router is powered off.
Blinking The router is powered on and running normally.
On Internet connection is ready.
Off Internet connection is not ready.
Blinking The data is transmitting.
On The QoS function is active.
Off The QoS function is inactive.
On USB device is connected and ready for use.
Off No USB device is connected.
Blinking The data is transmitting.
The router is ready to access Internet through
On
DSL link.
Slowly: The DSL connection is ready.
Blinking
Quickly: The connection is training.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Blinking A phone call comes.
2.4G/5G: Wireless access point with
On
bandwidth of 2.4GHz/5GHz is ready.
WLAN: Wireless access point is ready.
Off Wireless function is disabled.
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will
return to normal condition after two minutes.
(You need to setup WPS within 2 minutes.)
