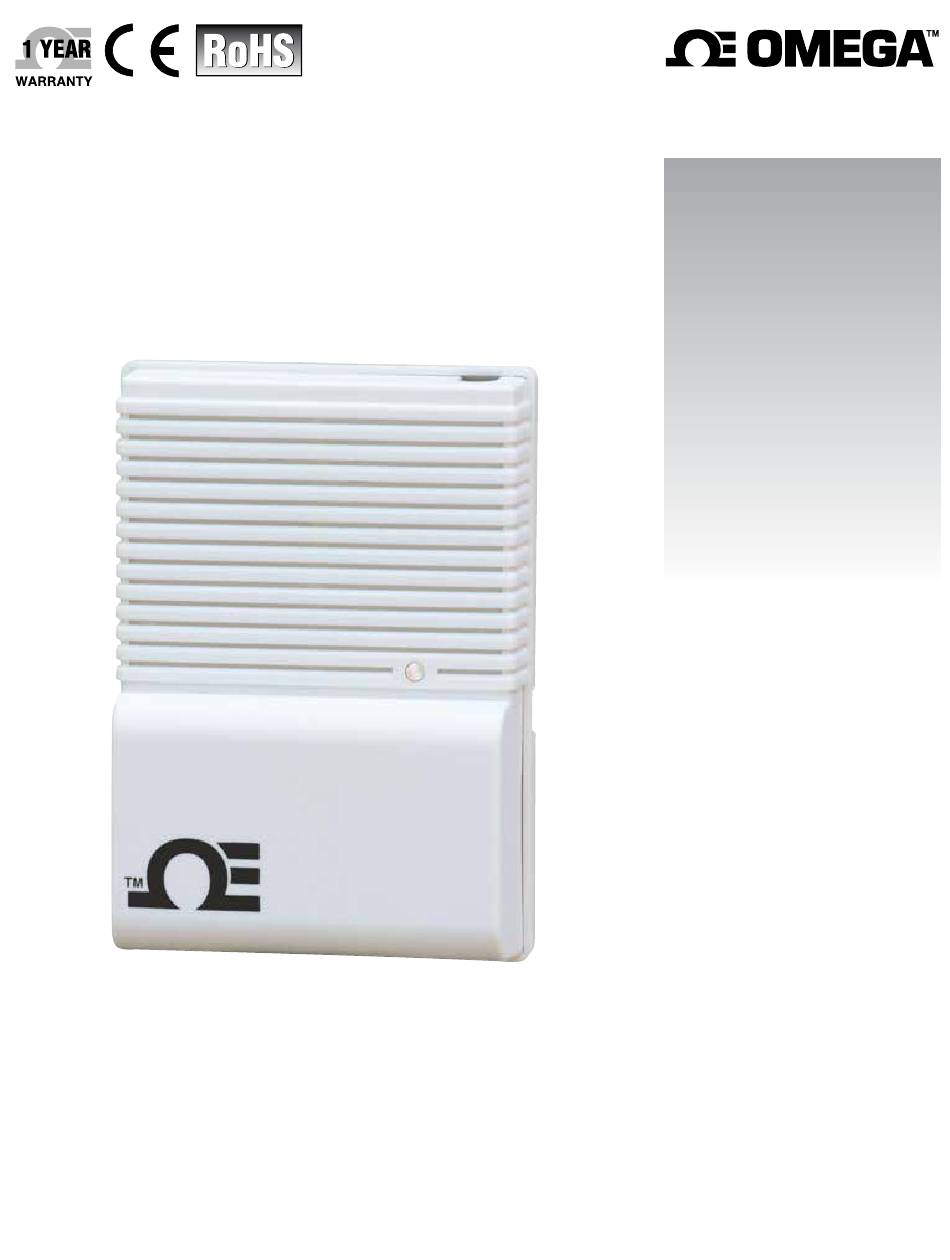

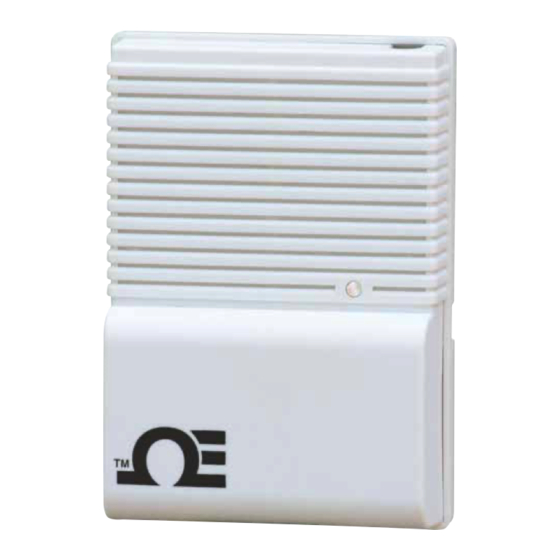

- Page 1 User’s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info ZW-CM Wireless Environmental Sensor...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
Table of Contents NOTES, WARNINGS AND CAUTIONS ........................3 PART 1: INTRODUCTION ............................. 4 .......................... 4 AFETY AND ONSIDERATIONS ESD Warning: ..............................4 EMC Considerations: ............................4 ..............................4 EFORE EGIN Inspecting Your Shipment: ..........................4 Manuals / Software: ............................4 ZW-CM-TH .......................... 5 NCLUDED WITH OUR ................................. 6 ESCRIPTION PART 2: HARDWARE ............................7 ZW-CM ..............................7 IAGRAM Disa s sembly............................... 7 2.3 ............................... 7 WITCHES Setting the Network ID: ............................9... - Page 4 Figure 1.1 – ZW-CM Included Items ........................5 Figure 2.1 – ZW-CM Diagram ..........................7 Table 2.1 – ZW-CM Diagram Key ........................... 7 Figure 2.2 – ZW-CM DIP Switch Detail ........................8 Table 2.2 – Network ID ............................9 Table 2.3 – Device ID (0 – 63) ..........................9 Table 2.4 –...
-
Page 5: Notes, Warnings And Cautions
• TIP NOTE: Provides you with information that is important to successfully setup and use the ZW-CM Wireless End Device. CAUTION or WARNING: Tells you about the risk of electrical shock. CAUTION, WARNING or IMPORTANT: Tells you of circumstances or practices that can affect the instrument’s functionality and must refer to accompanying... -
Page 6: Part 1: Introduction
If you need assistance, please contact the Customer Service Department nearest you. Manuals / Software: The latest User Manual as well as free software including the Omega Enterprise Gateway are available at the website listed on the cover page of this manual. -
Page 7: Included With Your Zw-Cm-Th
Included with Your ZW-CM-BTH/ZW-CM_BTHL Figure 1.1 – ZW-CM-TH / ZW-CM-BTH Included Items (Not to scale) • ZW-CM-TH / ZW-CM-BTH Wireless End Device • Mounting Kit - includes screws and anchors • 2x "AA" Cell Batteries • Quick Start Manual... -
Page 8: Description
300m (1000'). The ZW-CM operates on 2 AA Batteries for up to 7 years. The ZW-CM also offers strong data assurance by verifying the receipt of each reading is confirmed by the Receiver. If communication with the Receiver is lost the ZW-CM continues to record up to 1500 samples for extended loss of communications or if the upstream data logging application is off line. -
Page 9: Part 2: Hardware
PART 2: HARDWARE ZW-CM Diagram Figure 2.1 – ZW-CM Diagram Table 2.1 – ZW-CM Diagram Key DIP switch (under cover), sets the NID and DID of the End Device. See Section 2.3. Power Switch Label for Unit Address, Group No. and Network ID address (NID) Wall mounting holes Label with part and serial numbers Radio module firmware revision location on label Case’s tray, where the PCB, sensor and batteries are mounted Case’s cover Transmit LED (blue) Case’s latch: squeeze sides to pull the cover off Disassembly You may need to open the unit for one of the following reasons: • To turn on or off the power switch • To mount the unit to a wall. Refer Section 2.5 for mounting dimensions. • To replace the two 1.5 Vdc AA alkaline batteries (note the polarity of batteries) -
Page 10: Dip Switches
DIP Switches Figure 2.2 – ZW-CM DIP Switch Detail The ZW-CM has two sets of DIP switched located near the battery holder inside of the unit, for easy configuration. Figure 2.2 shows a close-up view of the switches. To... -
Page 11: Setting The Network Id
The set of 8 switches, labeled Device ID in Figure 2.2, set the Device ID. The Device ID (or DID) uniquely identifies each ZW-CM to its Receiver. If there are multiple End Devices connected to a Receiver each one must have a unique DID. The ZW-CM supports Device IDs 0 to 127. - Page 12 OFF OFF OFF ON OFF ON OFF OFF ON OFF ON OFF ON OFF OFF OFF OFF ON OFF ON OFF ON OFF ON OFF ON OFF OFF OFF ON ON OFF OFF OFF ON OFF ON ON OFF OFF OFF OFF OFF ON ON OFF ON OFF ON OFF ON...
- Page 13 ON OFF OFF ON ON ON OFF ON ON 111 ON OFF ON OFF OFF OFF OFF ON ON ON OFF OFF OFF OFF 112 ON OFF ON OFF OFF OFF ON ON ON ON OFF OFF OFF ON 113 ON OFF ON OFF OFF ON OFF ON ON ON OFF OFF ON OFF 114 ON OFF ON OFF OFF ON...
-
Page 14: Power Button
Mark the location of the top center of the unit. Refer to Figure 2.3 to mark and drill two pilot holes as indicated. Use the included drywall anchors if needed. Open the lid of the ZW-CM to access the mounting points. Use the included screws to secure the ZW-CM. -
Page 15: Part 3: Initial Setup
Ensure your Receiver is set up before setting up your ZW-CM. You will need to know the Network ID of your Receiver before the ZW-CM can be set up. If you power on your ZW-CM before your receiver is setup and running, you may need to reset it to join the network. - Page 16 Receiver. Check that the Receiver is on and configured correctly. Check that the Network ID on both the ZW-CM and the Receiver are the same. After making any changes, turn off the unit for 5 seconds. When power is turned on the unit will rescan for the Receiver.
-
Page 17: Part 4 Specifications
2x AA-Cell Alkaline Environmental -18 to 55°C (0 to 130°F) 90% RH non-condensing General Agency Approvals: ECCN 5A992, EMC 2014/30/EU LVD 2014/35/EU, RED 2014/53/EU Software: Compatible with the OMEGA Dashboard and Omega Enterprise Gateway (OEG). Battery Life Update Time Estimated Battery Life 1 Second 0.1 Years / 1 months... -
Page 18: Relative Humidity
Relative Humidity Accuracy/Range: ±3% for 20 to 80%; ±5% for 5 to 95%; Hysteresis: ±1% RH Non-linearity: ±3% Repeatability: ±0.1% Resolution: 0.1% Barometric Pressure Accuracy/Range: zED-BTH, zED-BT ±4 mbar for 300 mbar to 1100 mbar Resolution: 0.1 mbar... -
Page 19: Appendix A: Rf Topics
This reading can be viewed on your Receiver and indicates how well the ZW-CM can hear the Receiver. The received signal strength is important because each transmission sent by the ZW-CM must be confirmed by the Receiver. If the ZW-CM does not receive a confirmation it will retry sending the data until successful. -
Page 20: Maximizing Range
0.8" (2 cm), although 2.4" (6 cm) is recommended. Objects too close to the antenna may screen the ZW-CM from the Receiver. Reflections off nearby objects can also cause destructive interference reducing received signal strength. -
Page 21: Appendix B: Wireless Certifications
APPENDIX B: Wireless Certifications Federal Communication Commission Interference Statement In order to comply with FCC radio frequencies (RF) exposure limits, dipole antennas should be located at a minimum 7.9" (200mm) or more from the body of all persons. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 22: Appendix C: Safety & Regulatory Compliance
APPENDIX C: SAFETY & REGULATORY COMPLIANCE Safety: EN 61010-1 3 Edition EMC: EN 61326-1:2013 Radio: EN 300 328 V1.8.1:2012-04 The product herewith complies with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, and the Low Voltage Directive 2014/35/EU, and carries the CE-marking accordingly. - Page 23 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
