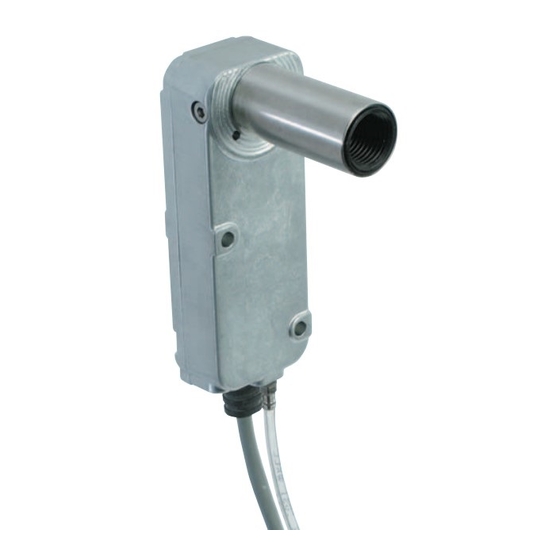

- Page 1 User’ s Guide MADE IN OS35-20 Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info OS35-3 OS35 Series Smart Infrared Temperature Sensors...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Measurement Specifications
-30-70 °C, 0-100 °C & 0-250 °C OS35-3 0-100 °C, 0-250 °C, & 0-500 °C OS35-20 0-1000 °C POWERED SMART OS35 SERIES DATASHEET OS35-3 (3:1 FOV) 3.71” x 1.37” x 0.76” (94.3 x 34.9 x 19.4 mm) MEASUREMENT SPECIFICATIONS Accuracy ±1 °C or 1%... -
Page 4: Error Messages
Infrared Temperature Sensor Installation Instructions 1. Install OS35 as close as practical to view target material to be measured 2. Wire OS35 with Red to Positive Power, Black to Ground, White to Positive Output Signal, and Green to Reference Output Signal 3. -
Page 5: Available Models
24 V power models, change MA to 10 V, no price change. For RS232 output, which is available only on 250°C range with 12 V power, change MA to RS, no price change. Comes with air tubing. Ordering Example: (1) OS35-3-MA-100C-24V Color Brown... -
Page 6: Electrical Specifications
OPTION: Add Ta to any part # to add ambient temperature option to output ambient temperature NOTE: 0-10V only available in 24VDC and RS232 only available in 12VDC Example: OS35-3-24V-420-250C (with 4-20mA output measuring target temperature from 0-250C) or OS35-3-24V-420-250C-Ta (with 4-20mA outputting target temperature and ambient temperature from 0-250C) -
Page 7: Installation Instructions
OS35 OS35-RS Infrared Temperature Sensor INSTALLATION INSTRUCTIONS The following procedure is recommended: Install the SmartIRt/c as close as practical to view the target material to be measured. Wire the SmartIRt/c to the controller, PLC, etc. in standard fashion (see PIN-... - Page 8 Sensing Range Ambient Temperature Range Storage Temperature Range Field of View of Sensing Ele- ment Minimum Spot size Dominant Spectral Response Impedance Emissivity Setting (e) Measurement Type Resolution Update Time Response Time (95% of step change) Bandwidth First Reading in Accuracy (Includes Repeat- ability and Interchangeability) Recommended Power Supply...
- Page 9 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
