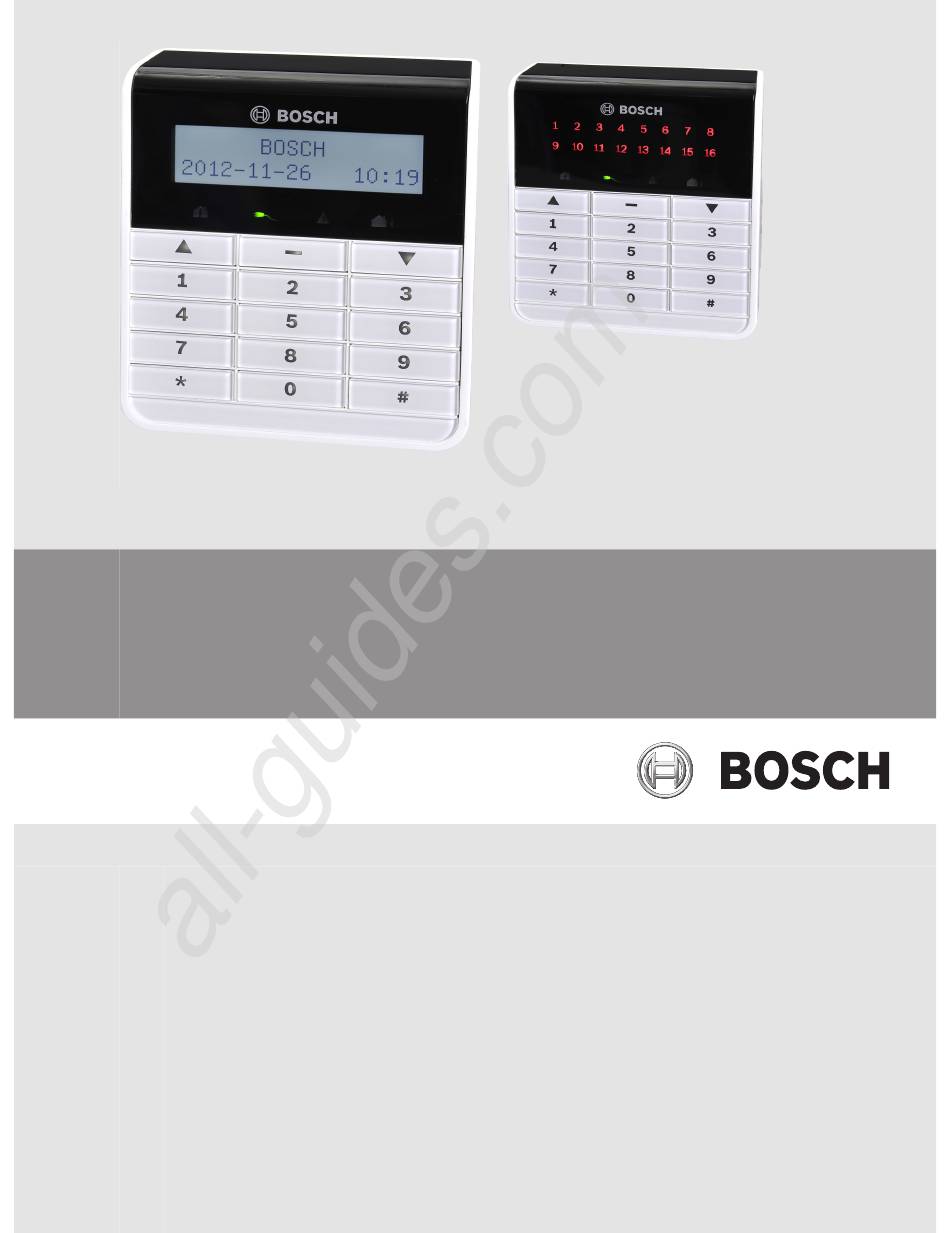

AMAX panel
AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000
en
Quick Start Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch AMAX panel 2100

Summary of Contents for Bosch AMAX panel 2100

  • Page 1 All manuals and user guides at all-guides.com AMAX panel AMAX panel 2100 | AMAX panel 3000 | AMAX panel 3000 BE | AMAX panel 4000 Quick Start Manual...
  • Page 2 All manuals and user guides at all-guides.com...

  • Page 3: Table Of Contents

    Starting the Programming Software 5.5.4 Setting the COM Port 5.5.5 Option: Creating a New Customer 5.5.6 Configuring the Control Panel 5.5.7 Establishing a Direct Connection Menu Programming Technical Data Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 4: Safety

    Damage or contamination of the system is possible if the battery is not handled correctly or if the battery is not replaced on a regular basis. – Only use a non-spillable battery. – Place a label with the last replacement date on the battery. 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 5 It is recommended to test the system once a week. – Make sure to get the system maintained four times a year. – Only qualified installers /service personnel are allowed to maintain this system. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 6: Short Information

    Detailed information about installation of other modules and devices, advanced settings and programming can be found in the Installation Guide. For detailed operation information, please refer to the User Guide. 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...

  • Page 7: System Overview

    LCD / LED Keypad Text Keypad DX2010 Option Bus B450 B426 DX3010 DX4010V2 DX4020G (B442/B443) GSM/ Ethernet GPRS GPRS PSTN Video A-Link Plus Figure 3.2: AMAX 3000 BE / 4000 Overview Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 8 All manuals and user guides at all-guides.com en | System overview AMAX panel Wiring diagrams ≤ 500mA / B450 Figure 3.3: Wiring diagram AMAX 2100 / 3000 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 9 On: Trouble state Off: Trouble state PO-5 1 Tamper Switch 2 Zone Switch 3 EOL 2,2 k 4 NO + NC Figure 3.4: Wiring diagram AMAX 3000 BE / 4000 Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 10: Connecting Modules And Devices

    AMAX panel Connecting Modules and Devices The AMAX panel provides BOSCH option bus 1 and option bus 2 (only for AMAX 3000 BE and AMAX 4000) to connect modules and devices. Each module can be connected to each bus. A maximum of 14 modules (8 keypads) can be connected to each bus.

  • Page 11: Programming And Operating The Amax System

    Selecting a Menu Select the menu and operate according to the menu prompt. Press [▼] or [▲] to navigate to the desired menu. Press [#] to enter a menu. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 12: Programming The Amax System Via Keypad

    Enter 00 for the zone function 00-not used and press [#]. The system displays the next menu item: ZONE IN AREA. There is no need to proceed to the following menu items for deleting a zone. 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...

  • Page 13: Enabling The Rf Receiver For Wireless Communication

    The selected zone is set up for an RF device. Test the zones after finishing programming. Trigger the zone and verify that the keypad indicates the zone as open. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 14: Programming The Amax Sytem Via Pc And Usb

    The installation creates an additional COM device on the PC. 5.5.3 Starting the Programming Software Select Start – All Programs – Bosch Security Systems – A-Link Plus – A-Link Plus vn.n.n. n.n.n = current program version Double-click the A-Link Plus vn.n.n shortcut on your computer desktop.

  • Page 15: Setting The Com Port

    Select File – Communication Settings from the menu bar of the A-Link Plus program. Figure 5.1: Selecting Communication Settings The Communication Settings dialog opens. Set the COM port assigned to the additional COM device (here COM4) as Direct Link Port. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 16 All manuals and user guides at all-guides.com en | Programming and Operating the AMAX System AMAX panel Figure 5.2: Communication Setting – Selecting the direct link port 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...

  • Page 17: Option: Creating A New Customer

    Figure 5.3: Customer Information – Creating a new customer Enter the customer name in the Customer Group entry field to create a new customer. Enter other relevant customer information. The Customer Number is mandatory. Save and close. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 18: Configuring The Control Panel

    Make sure that the value for subscriber number 1 is the same as currently programmed in AMAX panel as receiver 1. The value is 000000, when the firmware of the AMAX panel was upgraded or when the AMAX panel has factory settings. 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 19 Make sure that the value for the parameter Installer code is the same as currently programmed in the AMAX panel. The value is 1234, when firmware of the AMAX panel was upgraded or when the AMAX panel has factory settings. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 20 All manuals and user guides at all-guides.com en | Programming and Operating the AMAX System AMAX panel Figure 5.6: AMAX panel configuration – installer code 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...

  • Page 21: Establishing A Direct Connection

    Click on the Connect button to connect to the AMAX panel. If the connection is successful, the status changes to Connected and the AMAX panel type and version is displayed. Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 22: Menu Programming

    000 = No time limit 001 - 255 = 1 - 255 minutes EN=0 RPT DEL. ENTRY T:s SSI,EN=30 PANIC 2BUTTON AL 0-disabled FIRE 2BUTTON AL 1-report 2-siren MEDICAL 2BUTTON AL 3-all Figure 5.8: Communications and Reporting Manager 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 23 If you call again within 45 sec, the control panel answers the call on the first ring. Figure 5.9: Communications and Reporting Manager (continued) Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 24 0-disable 1-enable ARM/DISARM INSTAL. 0-disable 1-enable MACRO CONFIG INPUT MACRO (1-3) LEVEL 1 ACCESS 0-disable 1-enable REC T.OUT:1-80sec PAUSE T:100ms 1-15 CODE INSIDE MACRO 0-disable 1-enable Figure 5.10: Code Manager 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 25 ZONE PULSE COUNT 00 = disabled 01 - 09 Pulses EN=0 0-disabled ZONE LOCKOUT 1-1 time al. lock EN=0 2-3 time al. lock 3-6 time al. lock Figure 5.11: Zone Manager Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 26 10-dest. 3,4 11-dest 3 /4 b DETECT. T. x100ms PULSE COUNT DURAT. 000 = disabled 1 - 999 sec = Duration EN=0 CROSS ZONE TIMER Figure 5.12: Zone Manager (continued) 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 27 KEYPAD ALARM TONE 0-disable 1-enable AUDIB ENTRY ENABLE 0-disable 1-enable STAY ZONE AL INDIC 0-disable 1-enable BACKL. ON ENTRY T. 0-disable 1-enable KEYPAD LOCKOUT EN=10 Figure 5.13: Keypad and Area Manager Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 28 DEFAULT VOICE NO SYSTEM VIEW FAULT ANALYSIS FW VERSION FACTORY DEFAULT DEFAULT PANEL YES FACTORY DEFAULT DEFAULT PANEL NO DEFAULT OPTION FACT. DEF. ENABLE 0-disable 1-enable Figure 5.14: System Manager 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 29 SIREN SETTINGS SIREN TIME: min Master Timer for Outputs SIREN BEEP ENABLE 0-disable 1-enable INT SIREN INDIC ON 0-disable 1-enable SIREN OFF ANY KEY 0-disable 1-enable Figure 5.15: Output Manager Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 30 3s for MANUAL. Trigger device, RFID will be entered RF SENSOR DIAGNOSE RF ZONE No: RF REPEATER DIAGN. REPEATER No: 1-8 CLEAR CONFIRM CLR ALL RF DEVICES CLEAR CANCEL Figure 5.16: RF Manager 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 31 COPY DATA TO PANEL copy data from blue programming key to Panel COPY DATA TO KEY copy data from Panel to blue programming key Figure 5.17: Address and Key Programming Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...

  • Page 32: Technical Data

    Aux 1 / 2 output Aux 1 / 2 output voltage +12V / GND Aux 1 / 2 nominal output voltage 13.8 (+3% / -5%) under AC line input in VDC 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 33 Option bus 2 maximum current in mA Battery Battery type 12 V / 7 Ah 12 V / 7Ah / 12 V / 18 Ah Bosch D 126 Bosch IPS-BAT12V-18AH Low battery condition in VDC below 11.0 Minimum battery condition in 10.8...
  • Page 34 DSRF = 24, Radion = 128 Zones Zone 1 Single or dual end-of-line 2 wire fire zone, single, or (EOL 2,2KΩ) dual end-of-line (EOL 2,2KΩ) NC, NO NC, NO 2015.05 | 05 | F.01U.309.297 Quick Start Manual Bosch Sicherheitssysteme GmbH...
  • Page 35 EN 60950-1:2006 + A11:2009 EN 50131-3 grade 2 Environmental class II France AFNOR NF a2P 1223400001 NF a2P 1223400002 Environmental class I Belgium INCERT (only for AMAX 3000 BE) Germany Home Bosch Sicherheitssysteme GmbH Quick Start Manual 2015.05 | 05 | F.01U.309.297...
  • Page 36 All manuals and user guides at all-guides.com...
  • Page 37 All manuals and user guides at all-guides.com...
  • Page 38 All manuals and user guides at all-guides.com Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2015...
