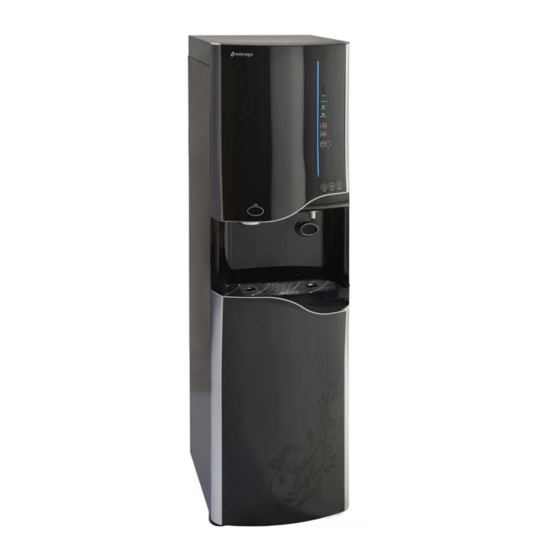

WaterLogic WL900 Quick Start Manual
Hide thumbs
Also See for WL900:
- Service manual (29 pages) ,
- Quick start manual (9 pages) ,
- Installation manual (8 pages)
Advertisement
Quick Links
ADVANCED OPERATIONS: ACCESS THE ICE TEMP SENSOR
In the event of a cold circuit failure, the Ice Temp Sensor may need to be replaced.
Described below is are the steps to access the sensor.
1. To access the Ice Temp Sensor, remove the top cover by removing the two screws at the
rear and sliding the cover back and off the unit. Then, remove the two screws holding
the upper front panel in place, lift and pull away from the unit, and set aside.
2. Remove the screws holding the back-silver panel in place. Remove and set aside.
WL900 Manual
Page 66 – Revision: 5-12-2021
Advertisement
Related Manuals for WaterLogic WL900
Summary of Contents for WaterLogic WL900
- Page 1 Then, remove the two screws holding the upper front panel in place, lift and pull away from the unit, and set aside. 2. Remove the screws holding the back-silver panel in place. Remove and set aside. WL900 Manual Page 66 – Revision: 5-12-2021...
- Page 2 PCB and unplug from the board. When placing the new sensor, wrap with electrical tape to secure it in the tubing sleeve and return all foam pieces to original position. WL900 Manual Page 67 – Revision: 5-12-2021...
