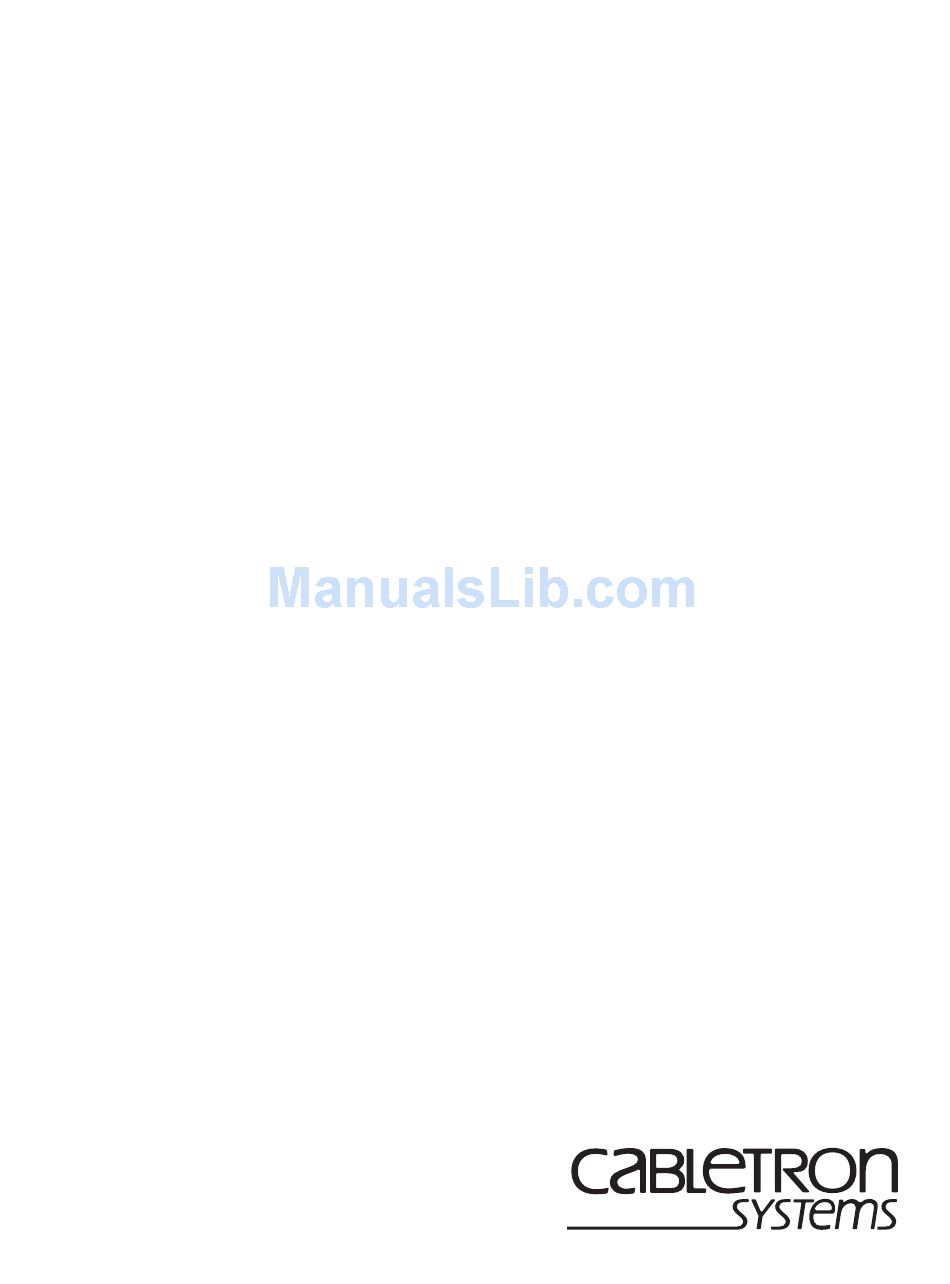

- Page 1 SmartSwitch 9500 9A600 ATM Module Hardware and Installation Guide 9032703...
- Page 3 Notice Cabletron Systems reserves the right to make changes in speciÞcations and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, Þrmware, or software described in this manual is subject to change without notice. IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION...
-
Page 4: Fcc Notice
Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. -
Page 5: Declaration Of Conformity
Declaration of Conformity Application of Council Directive(s): ManufacturerÕs Name: ManufacturerÕs Address: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives. Mr. - Page 6 Notice...
-
Page 7: Table Of Contents
Related Manuals... 1-5 Getting Help ... 1-6 Chapter 2 Installing the 9A600 Module The Reset Switch ... 2-3 The Module Card DIP Switch ... 2-4 Installing an ANIM ... 2-5 Chapter 3 Operation ATM Cell TrafÞc Flow in the 9A600 ... 3-2 Cabletron Systems ASICs ... - Page 8 Contents Chapter 4 LANVIEW LEDs ANIM LEDs ... 4-3 Chapter 5 General Specifications Operating SpeciÞcations ... 5-1 Environmental Requirements ... 5-1 Regulatory Compliance... 5-1 Service ... 5-1 Physical ... 5-2 Device SpeciÞcations ... 5-2 ANIM SpeciÞcations ... 5-2 ANIM-21/3 ... 5-3 ANIM-29/3 ...
-
Page 9: Chapter 1 Introduction
Prior to installing the 9A600, you should have a working knowledge of ATM networking principles. In this document, the Cabletron Systems SmartSwitch 9000 chassis is referred to as the “SmartSwitch 9500 chassis” which indicates a SmartSwitch 9000 chassis NOTE with one or more 9A600 modules installed. -
Page 10: Overview
The 9A600 (shown in Figure 1-1) is a 5.4 Gbps, single slot module for the SmartSwitch 9500 chassis. Up to four ATM Network Interface Modules (ANIMs) of any type can be plugged into the 9A600 to provide front panel connectivity to the network. - Page 11 Overview Figure 1-1. The 9A600...
-
Page 12: Features
SmartSwitch 9500 chassis IP address assignment ¥ Ability to conÞgure the in-band management LAN Emulation Client ¥ SmartSwitch 9500 chassis SNMP community names and trap IP address assignment ¥ Ability to access Local Management screens of any module installed in the... -
Page 13: Early Packet Discard (Epd) And Partial Packet Discard (Ppd)
Early Packet Discard (EPD) and Partial Packet Discard (PPD) The 9A600 supports early and partial packet discard to help ensure that quality of service parameters are met for all connections. EPD and PPD, in conjunction with trafÞc policing, discard ATM cells that the end device would have to retransmit (due to buffer overload, line loss, line bit errors, faulty cells etc.) thereby limiting the amount of bad trafÞc present on the ATM network. -
Page 14: Getting Help
Introduction Getting Help For additional support related to this device or document, contact the Cabletron Systems Global Call Center: Phone Internet mail Login Password For additional information about Cabletron Systems or its products, visit the World Wide Web site: http://www.cabletron.com/ To send comments or suggestions concerning this document, contact the Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com... -
Page 15: Installing The 9A600 Module
Installing the 9A600 Module SmartSwitch 9500 modules can be installed in any of the slots that are available. To install a module, proceed as follows: Observe all antistatic precautions when handling sensitive electronic equipment. CAUTION Remove the blank plate covering the slot in which the 9A600 will be installed. - Page 16 Installing the 9A600 Module Plastic Locking Tab Plastic Locking Tab Circuit Card Metal Back-Panel Card Guides Figure 2-1. Installing the 9A600...
-
Page 17: The Reset Switch
CAUTION performs specific management functions. The Reset switch is located on the front panel, under the top plastic tab as shown in Figure 2-2. It serves two functions: ¥... -
Page 18: The Module Card Dip Switch
CAUTION Do not toggle Switch 7 unless you intend to reset the user parameters to the factory default settings. Refer to the 9A656-04 and 9A600 Configuration Guide for instructions on the parameters that may be configured by the user via Local/Remote Management. -
Page 19: Installing An Anim
ATM Network Interface Modules (ANIMs). Figure 2-3 also shows the location of the Module Card DIP Switch. i960 Processor ANIM Connectors (4) Standoff Screws (16) 2031_04 DIP Switch Figure 2-3. ANIM Connector Locations and Module DIP Switch Location... - Page 20 The 9A600 module is shipped without ANIMs. To install the ANIMs proceed as follows: Remove the module if it is installed in the SmartSwitch 9500 chassis. To remove a module, release (rotate outward) the top and bottom plastic locking tabs, then slide the module out of the chassis.
- Page 21 When installing or removing an ANIM make sure to always use the cut outs on the board to handle the ANIM. See Figure 2-6 for the location of the cutouts. CAUTION When connecting the ANIM pins to the motherboard connector take extra precaution that the pins do not enter the connector at an angle as this will damage both the ANIM and the motherboard connector.
- Page 22 Installing the 9A600 Module...
-
Page 23: Chapter 3 Operation
Operation The 9A600 provides switching between the front panel interfaces (ANIMs). Figure 3-1 shows the trafÞc ßow of ATM cells in the 9A600. The following sections brießy describe the functions of the i960 Processor, the ASICs, and how they relate to ATM cell trafÞc ßow. -
Page 24: Atm Cell Trafþc Flow In The 9A600
Operation ATM Cell Traffic Flow in the 9A600 The 9A600 SmartSwitch utilizes several innovative features that result in a completely redundant, fault-tolerant design. The most important hardware facets of the 9A600 features are the Cabletron Systems ASICs, and the i960 HD RISC Processor. -
Page 25: System Management Buses
These buses provide out-of-band management and inter-module management communication. SMB-1 Bus The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9500 chassis. This bus is used by all diagnostic controllers in the system, including the following: ¥... -
Page 26: System Diagnostic Controller
Operation System Diagnostic Controller This diagnostic controller is composed of a Z-80 microprocessor and its supporting logic. The diagnostic controller performs the following: ¥ Controls the power-up sequencing of modules ¥ Monitors the 9A600 input and output power parameters ¥ Keeps watch over the main host processor ¥... -
Page 27: Lanview Leds
Chapter 4 LANVIEW LEDs The front panel LANVIEW LEDs indicate the status of the module and may be used as an aid in troubleshooting. Shown in Figure 4-1 are the LANVIEW LEDs of the 9A600 module. Refer to Table 4-1 for the full deÞnitions of 9A600 LED states. 9A600 System Status SMB Status... - Page 28 LANVIEW LEDs LED Color Green Amber Amber/Green Red (Flashing) Table 4-1. SMB and CPU LEDs State Functional Fully operational No database synchronization with the Fault Environmental Module or SMB. Power off Module powered off Booting LED blinks amber and green while booting Failed Fatal error has occurred Power off...
-
Page 29: Anim Leds
ANIM LEDs The front panel LANVIEW LEDs indicate the status of the ANIM and may be used as an aid in troubleshooting. Shown in Figure 4-2 are the LANVIEW LEDs of all ANIMs. Although there are several types of ANIMs, all share the same LANVIEW LEDs. - Page 30 LANVIEW LEDs...
-
Page 31: General Specifications
General Specifications The speciÞcations for the 9A600 are detailed in the sections that follow. Operating Specifications Environmental Requirements Operating Temperature: Storage Temperature: Operating Relative Humidity: Regulatory Compliance Safety This equipment meets the safety requirements of UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950 and 73/23/EEC. -
Page 32: Physical
General Specifications Physical Dimensions 35.0 D x 44.0 H x 3.0 W centimeters (13.8 D x 17.4 H x 1.2 W inches) Weight Unit: 1.36 kg. (3lb) Shipping: 1.81 kg. (4lb) Device Specifications Processor Intel i960HD RISC processor control Dynamic Random Access Memory (DRAM) 64 MB FLASH Memory 8 MB... -
Page 33: Anim-21/3
ANIM-21/3 The ANIM-21/3 provides a multimode Þber connection using a Duplex SC connector and a line rate of 155.52 Mbps. The speciÞcations for the ANIM-21/3 are listed in Table 5-1. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range Loss Budget... -
Page 34: Anim-29/3
General Specifications ANIM-29/3 The ANIM-29/3 provides a single mode Þber connection using a Duplex SC connector with a line rate of 155.52 Mbps. The speciÞcations for the ANIM-29/3 are listed in Table 5-2. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range... -
Page 35: Anim-29/3Lr
ANIM-29/3LR The ANIM-29/3LR provides a single mode Þber connection using a Duplex SC connector with a line rate of 155.52 Mbps. The speciÞcations for the ANIM- 29/3LR are listed in Table 5-3. Table 5-3 .ANIM-29/3LR Specifications Parameter Number of Interfaces Line Rate Interface Type Media Type... -
Page 36: Anim-31/2
General Specifications ANIM-31/2 The ANIM-31/2 provides a multimode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-31/2 are listed in Table 5-4. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range... -
Page 37: Anim-39/2
ANIM-39/2 The ANIM-39/2 provides a single mode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-39/2 are listed in Table 5-5. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range Loss Budget... -
Page 38: Anim-39/2Lr
General Specifications ANIM-39/2LR The ANIM-39/2LR provides a single mode Þber connection using a Duplex SC connector with a line rate of 622 Mbps. The speciÞcations for the ANIM-39/2LR are listed in Table 5-5. Table 5-6 .ANIM-39/2LR Specifications Parameter Number of Interfaces Line Rate Interface Type Media Type... -
Page 39: Anim-67/2
ANIM-67/2 The ANIM-67/2 provides a coaxial cable connection using BNC connectors with a line rate of 45 Mbps. The speciÞcations for the ANIM-67/2 are listed in Table 5-7. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range Table 5-7 .ANIM-67/2 Specifications SpeciÞcation... -
Page 40: Anim-77/2
General Specifications ANIM-77/2 The ANIM-77/2 provides a coaxial cable connection using BNC connectors with a line rate of 34 Mbps. The speciÞcations for the ANIM-77/2 are listed in Table 5-8. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range 5-10... -
Page 41: Anim-22/4
ANIM-22/4 The ANIM-22/3 provides a Category 5 UTP connection using four RJ45 connectors with a line rate of 155.52 Mbps. The speciÞcations for the ANIM-22/4 are listed in Table 5-9. Parameter Number of Interfaces Line Rate Interface Type Media Type Frame Type Typical Range Table 5-9 .ANIM-22/4 Specifications... - Page 42 General Specifications 5-12...
