MOUNTING INSTRUCTIONS
WALL MOUNTING UNIT FOR PLASMA MODELS
MODEL
WB-PW1
(Horizontal mount)
We recommend that you first thoroughly read this manual to familiarize
yourself with the use of this unit as well as proper installation and safety
precautions. Retain this manual in an easily accessible location for future
reference.
Features`
• Adaptable to be used for KZ-32 / KZ-42
Plasma models.
• 16" or 24" stud mounting points
• Easy installation
• Flat to 10° tilt (no tool required)
• Lateral movement from center for better viewing position
Consult authorized service personnel for the
installation of this unit. Instructions must be followed
precisely for safe and stable installation. We are not
liable for any damage or injury caused by
mishandling or improper installation.
MOUNTING POINTS FOR PLASMA MODELS
KZ-32 / KZ-42
®
• Check for missing parts after opening.

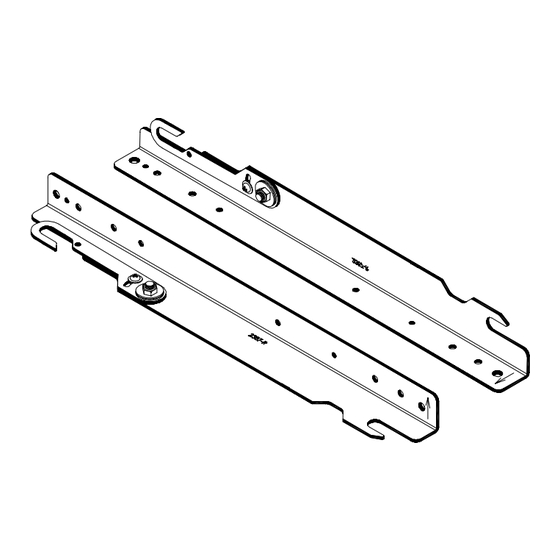

(A) Left and right mounting arms for the KZ-32
KZ-42 plasma displays...1pc (left) 1pc (right).
(Note: Mounting points for the plasmas differ.
Please see diagram for mounting point
specifications).
(B) Mount wall brackets...2 pc.
(C) Cardboard template for 9" accurate
separation of the wall brackets...1pc.
(D) 6 mm x 12 mm Safety knobs ...2 pc.
(E) 5/16" Flat washers ...8 pc.
(Note: used with the 5/16" Lag bolts)
(F) 5/16" Lag bolts to secure wall brackets...8 pc.
(Note: Used with the 5/16" Flat washers)
(G) 1" Nylon spacers...4 pc.
(H) 5 mm x 50 mm Phillip screws...4 pc.
(I) 5 mm Nylon spacers...8 pc.
(J) 4 mm x 30 mm Phillip screws...4 pc.
Advertisement
Related Manuals for Sony WB-PW1
Summary of Contents for Sony WB-PW1
- Page 1 (Note: Mounting points for the plasmas differ. Please see diagram for mounting point specifications). MODEL WB-PW1 (B) Mount wall brackets…2 pc. (Horizontal mount) We recommend that you first thoroughly read this manual to familiarize yourself with the use of this unit as well as proper installation and safety precautions.
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Read the following safety information prior to installation. Failure to follow directions may result in serious bodily injury or damage to the unit. • Assemble properly in the instructed order. • Do not remove backing or bolts after mounting the display. •... - Page 3 Caution: Installation of units is to be carried out by qualified technicians only. Install in appropriate location by checking ceiling structure and durability for safety and accident prevention. 1. ATTACH BRACKET ARMS TO MONITOR Model KZ-32: Invert the plasma display and lay it on a soft and flat surface. Remove all the screws securing the back cover to the chassis to have access to the screws securing the base.
- Page 4 2. FASTEN LOWER PLATE TO WALL The wall plates must be secured to wall studs capable of supporting at least four (4) times the weight of the unit. To determine the center viewing height of the plasma display. Temporarily position the rod of the lower wall plate to the bottom hook of the secured mounting brackets and determine and note the distance between the bottom of the plasma display to the bottom of the wall plate (See Fig 3 and 4).
- Page 5 4. MOUNT THE PLASMA TO THE WALL BRACKETS With the upper tilt hooks on the plasma brackets in the flat position, raise the plasma display with brackets attached (2 people minimum recommended) and place the plasma display flat against wall with the upper and lower plasma bracket attaching slots slightly higher than the steel receiving rods of the upper and lower wall plates, see Fig 7.
