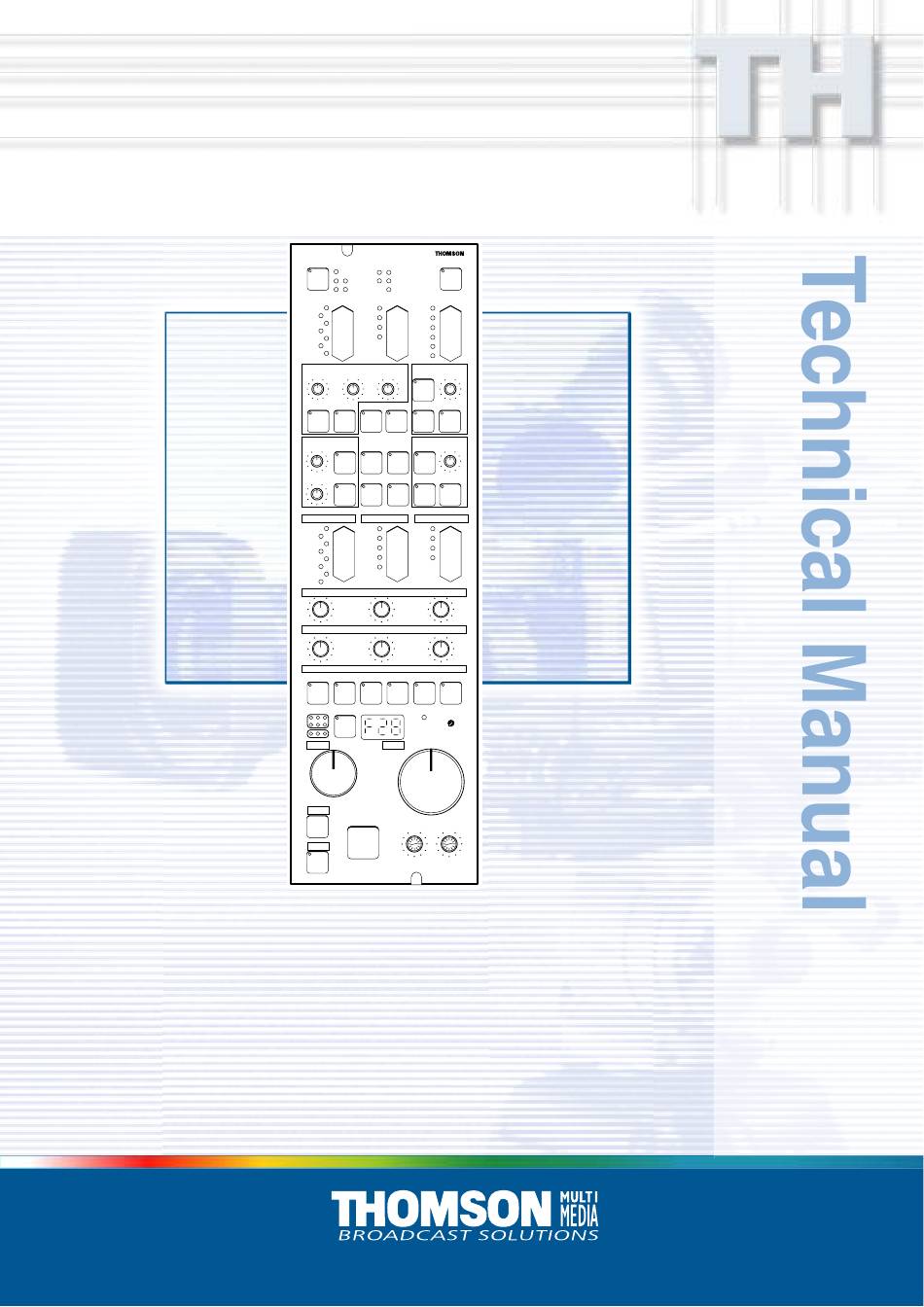

LDK 4628/01
LDK 4628/01
LDK 4628/01
LDK 4628/01
LDK 4628/01
Operational Control Panel
3922 496 48361 St.00
OCP
Series 9000
Cam pwr
Pan lock
OCP pwr
Gen lock
Camera
Triax
Base St
Non standard
Exposure
Gamma
Monitoring
1
R
Preset
60 Hz
2
G
50 Hz
B
Var
Nom
Lin
Sup
1/200
1/500
CVBS
1/1000
Seq
Variable
Saturation
Gamma
Flare
Saw
Blk str
Blk str
Wh clip
Knee
Contour Var
Slope
Var
Bars
Contour
Lev dep
Point
Auto
Auto wh
Auto blk
V-level
Level
Filter
Col Temp
Gain
1/Clr
Aw 1
++
2
+
Aw 2
3
7500 K
0
4
5600 K
-
5
6
3200 K
7
8/Cap
Gain
Black
Scene file
1
2
3
4
Standard
Store
On air
Auto iris
F-Number
Extender
Cam select
8
1 15
M black
Iris
Free
Preview
Centre
Range
Call
Advertisement
Table of Contents
Related Manuals for Technicolor - Thomson LDK 4628/01
Summary of Contents for Technicolor - Thomson LDK 4628/01
- Page 1 LDK 4628/01 LDK 4628/01 LDK 4628/01 LDK 4628/01 LDK 4628/01 Operational Control Panel Series 9000 Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 1/500 CVBS...
- Page 2 Declaration of Conformity We, Thomson Broadcast Solutions Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands declare under our sole responsibility that this product is in compliance with the following standards: EN60065 : Safety EN55103-1 : EMC (Emission) EN55103-2 : EMC (Immunity) following the provisions of: a.
-
Page 3: Table Of Contents
LDK 4628/01 Operational Control Panel Technical Manual Contents Safety Summary ............2 Internally Selectable Functions ........10 Cautions and Warnings ..........2 Replacing the fuses ............ 11 Earthing ................ 3 Interconnections ............12 Packing/Unpacking ............4 Two-wire Data Control Bus ........14 Opening the Operational Control Panel ...... -
Page 4: Safety Summary
Safety Summary Cautions and Warnings This informaton is intended as a guide for trained and When performing service, be sure to read and comply with qualified personnel who are aware of the dangers involved the warning and caution notices appearing in the manuals. in handling potentially hazardous electrical/electronic Warnings indicate danger that requires correct procedures equipment. -
Page 5: Earthing
Earthing The rear of a CPU has two separate screw terminals for Symbol Colour Explanation protective earth (PE) and video earth (VE). High voltage terminal at which a voltage, with respect to an other terminal, exists or may be Metal adjusted to 1000V or more. -
Page 6: Packing/Unpacking
Packing/Unpacking Inspect the shipping container for evidence of damage If the original packing can no longer be used, the following general instructions should be used for immediately after receipt. If the shipping container or cushioning material is damaged, it should be kept until repacking with commercially available materials: the contents of the shipment have been checked for completeness and the camera has been checked... -
Page 7: Opening The Operational Control Panel
Opening the Operational Control Panel 02.33.2 Technical Manual LDK 4628 - Operational Control Panel... -
Page 8: Mounting In A Desk
Mounting in a Desk Mounting Plate Series 9000 THOMSON Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 1/500 CVBS 1/1000 Variable Saturation Gamma Flare Blk str Blk str Wh clip Knee... - Page 9 350.7 Series 9000 THOMSON Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 Mounting Plates 1/500 CVBS 1/1000 Variable Saturation Gamma Flare Blk str Blk str Wh clip 3.
-
Page 10: Mounting In A 19 Inch Rack
Mounting in a 19 inch Rack Mounting Plate Series 9000 THOMSON Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 1/500 CVBS 1/1000 Variable Saturation Gamma Flare Blk str Blk str... - Page 11 19" module rail with mounting strip Series 9000 THOMSON Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 1/500 CVBS 1/1000 Variable Saturation Gamma Flare Blk str Blk str Wh clip Knee...
-
Page 12: Internally Selectable Functions
Internally Selectable Functions LED intensity general Reset button bit6 bit7 bit6 bit7 bit5 bit4 bit4 bit3 bit5 bit2 bit1 bit0 Data Subboard BUTTON CLICK LED intensity ONAIR YELLOW LED intensity ONAIR RED TICKER Call Buzzer Watchdog The call buzzer can be disabled by repositioning a The function Watchdog On/Off can be selected by the jumper which is located on the side of the control panel jumper S1 on the Data Subboard. -
Page 13: Replacing The Fuses
Replacing the fuses 02.33.2 Technical Manual LDK 4628 - Operational Control Panel... -
Page 14: Interconnections
Interconnections LDK 6000HD Base Station LDK 4502 Clear Clear Star 4P ND1/4 Star 6P ND1/16 Smart card Soft Focus ND1/64 Prod Triax Cable HDTV Prog THOMSON Std. Ext. Cam +Floor Save File Iris Tracker Maximum Camera Base Station Length 1,000 m (3,300 ft) with 14 mm cable LDK 6000HD with LDK 4482 SuperXPander Data Cable... - Page 15 Data Cable (2-wire) Data Cable (2-wire) Data Cable (2-wire) Maximum total Length 310 m (1,118 ft) LDK 4607 MCP II LDK4609 Operational Control Panels Data Cable (2-wire) Data Cable (2-wire) Remote Control Interface Multicore Cable 25 p 1 - 4 Maximum Length 350 m (1,150 ft) RS 232...
-
Page 16: Two-Wire Data Control Bus
Two-wire Data Control Bus The two-wire data bus is used to connect all control units in the Series 9000 control system. The data cable loops-through from one unit to the other. The order of connection is not important, however, the total length of the cables must not exceed 310 meters (1,118 ft). -
Page 17: Connectors And Cables
Connectors and Cables MCP Rear Connector Panel X 897 Mains input connector X 1 X 890 X 878 not used X 891 Rear view of OCP Mains Input Connector Eurostyle 3-pin male 1. Neutral 2. Line 3. Earth Mains input voltage: Between 230 Vac and 115 Vac + 15% Mains frequency: 47 to 63 Hz Fuses: 1 A slow, 250 Vac... - Page 18 Preview Connector 9-pin male, shielded cable 1. Preview 1A 2. Preview 1B 3. Preview 1C 4. Not used 5. Not used 6. Not used 7. Not used 8. Not used 9. Shield Shield of cable directly to the pin marked shield. A 9-pin female cable connector is available under part number 2422 022 06216.
-
Page 19: Dimensions
Dimensions 100.00 mm 60.00 mm 58.94 mm Series 9000 THOMSON Cam pwr Pan lock OCP pwr Gen lock Camera Triax Base St Non standard Exposure Gamma Monitoring Preset 60 Hz 50 Hz 1/200 1/500 CVBS 1/1000 Variable Saturation Gamma Flare Blk str Blk str Wh clip... - Page 20 Technical Manual LDK 4628 - Operational Control Panel 02.33.2...
