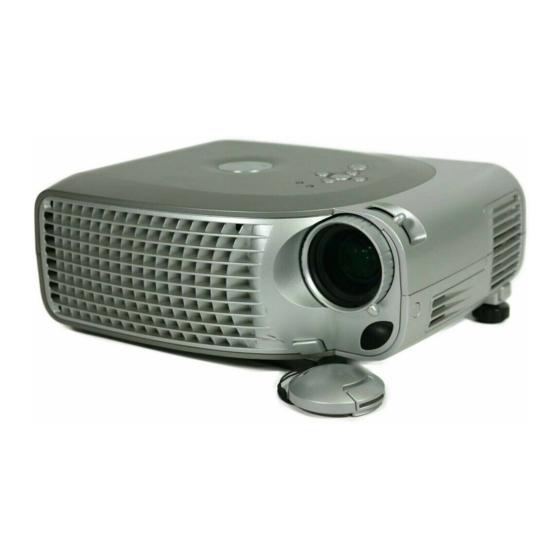

Dell 1200MP Reference Manual
Rs232 protocol pin assignment (facing projector)
Hide thumbs
Also See for 1200MP:
- Owner's manual (904 pages) ,
- Setup manual (2 pages) ,
- Specifications (2 pages)
Advertisement
Quick Links
Dell™ 1200MP RS232 Protocol Pin Assignment (Facing Projector)
RS232 Protocol
•
Communication Settings
Connection settings
Baud Rate:
Data Bits:
Parity
Stop Bits
•
Control command Syntax (From PC to Projector)
[H][AC][SoP][CRC][ID][SoM][COMMAND]
•
Example: power on the projector
Enter the following code: 0xBE 0xEF 0x10 0x05 0x00 0xC6 0xFF 0x11
0x11 0x01 0x00 0x01
NOTE:
Send least significant bytes first.
Value
19200
8
None
1
July 2006
Advertisement
Related Manuals for Dell 1200MP
Summary of Contents for Dell 1200MP
- Page 1 Dell™ 1200MP RS232 Protocol Pin Assignment (Facing Projector) RS232 Protocol • Communication Settings Connection settings Baud Rate: Data Bits: Parity Stop Bits • Control command Syntax (From PC to Projector) [H][AC][SoP][CRC][ID][SoM][COMMAND] • Example: power on the projector Enter the following code: 0xBE 0xEF 0x10 0x05 0x00 0xC6 0xFF 0x11...
- Page 2 NACK System Status - Projector OFF (Standby Mode) NOTE: When the projector is in the standby mode, no acknowledgement (NACK) response is sent by the projector. Projector Response Lamp Hour The values for projector response hour are Byte0, Byte1, and Byte2...
- Page 3 • Control Commands List Control Address Size of the Commands Code Payload List (BYTE) (WORD) 0xefbe 0x10 0x0005 CRC16 for MsG ID MsG size the entire (WORD) (WORD) packet (WORD) 0xffc6 0x1111 0x0001 0xbfc7 0x7e07 0x3fc5 0xfe05 0xbe04 0x7fc4 0x3fc0 0xfe00 0xbe01 0xffc3...
- Page 4 Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. ® Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and the DLP logo are registered trademarks of Texas Instruments; Microsoft and Windows are registered trademarks of Microsoft Corporation;...
