Summary of Contents for Rack Solutions 104-2323
Page 1

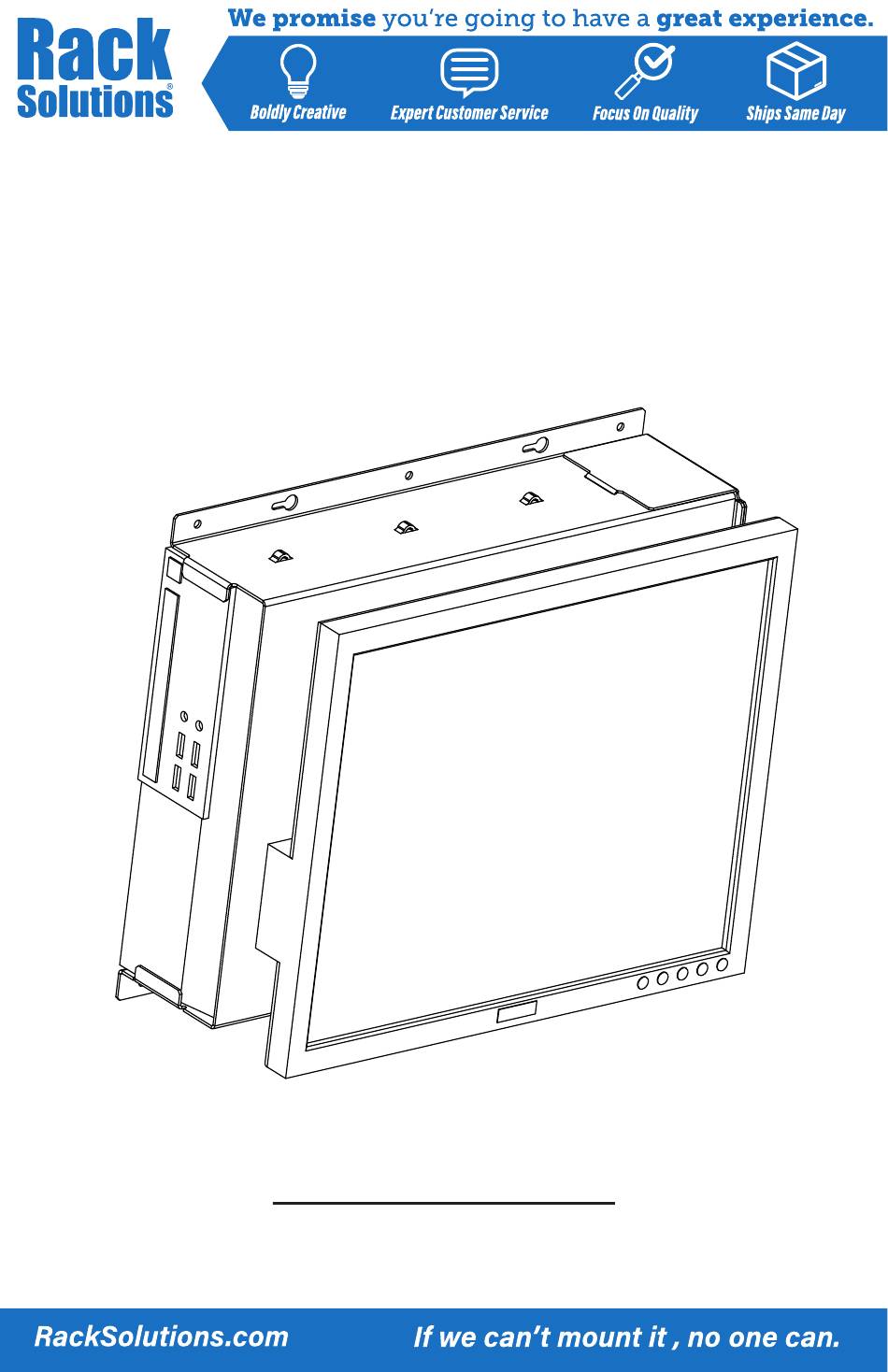

Patent(s) Pending Dell OptiPlex SFF and Monitor Wall Mount Installation Instructions Kit P/N: 104-2323...
Page 2
Kit Contents Wall Mount Hardware Package: Assembly Components: (4) Pan Head Screw (1) Main Bracket (4) Anchors (1) Cover Monitor Hardware Package: (8) Nylon Spacers (5) M4 x 10mm Flat Head Screws (5) M4 x 12mm Flat Head Screws (5) M4 x 20mm Flat Head Screws PC Wall Mount Installation Instructions Step 1.
Page 3
Installation Instructions Step 4. Monitor Attachment: the four VESA mounting holes on the rear of the monitor. a. Determine if spacers are required: Some monitors have a "recess" on the rear options. b. Determine Screw Length: Only use the metric M4 screws provided. Screw length is determined by the spacers used (see Table A).
Page 4
Installation Instructions Step 5. Computer and Cover Attachment: Slide the computer into the Main Bracket. Main Bracket Cover Captive Screw Dell OptiPlex SFF Step 6. Attach Mount Base: Attach the base to the wall using the 4 screws that were installed in 3b.
