Sealey EH30001 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
imporTAnT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! ElEcTricAl insTAllATion of ThE hEATEr

To A 3-phAsE 415VolT supplY musT onlY bE
cArriEd ouT bY A quAlifiEd ElEcTriciAn.
make sure the power supply cable is correctly connected
to the earth. it is the user's responsibility to read,
understand and comply with the following:
You must check all electrical equipment and appliances to
ensure they are safe before using. You must inspect power
supply leads, plugs and all electrical connections for wear and
damage. You must ensure the risk of electric shock is
minimised by the installation of appropriate safety devices. An
rccB (residual current circuit Breaker) should be
incorporated in the main distribution board. You must also read
and understand the following instructions concerning electrical
safety.
1.1.1. the Electricity At Work Act 1989 requires all portable
electrical appliances, if used on business premises, to be tested
by a qualified electrician, using a Portable Appliance tester
(PAt), at least once a year.
1.1.2. the health & safety at Work Act 1974 makes owners of
electrical appliances responsible for the safe condition of the
appliance and the safety of the appliance operator. if in any
doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure insulation on all cables and the product itself is safe
before connecting to mains power supply.
1.1.4. Ensure that cables are always protected against short circuit
and overload.
1.1.5. regularly inspect power
supply, leads, plugs and all
electrical connections for
wear and damage,
especially power
connections, to ensure that
none are loose.
1.1.6. important: Ensure the
voltage marked on the
product is the same as the
electrical power supply to
be used. A three phase
plug must be fitted to this
machine.
© Jack sealey Limited
InstructIons for:

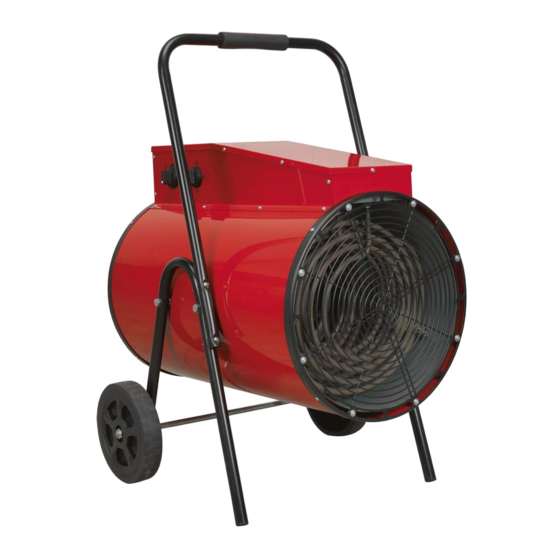

INDUSTRIAL FAN HEATER 30kW 415V 3ph
EH30001
MoDEL no:
1.1.7. DO NOT pull the powered appliance by the power cable.
1.1.8. DO NOT pull power plugs from sockets by the power cable.
1.1.9. DO NOT use worn or damage leads, plugs or connections.
Immediately replace or have repaired by a qualified electrician.
1.1.10. This product must be fitted with a 3-phase plug according
to the diagram, and will require a minimum of 63Amps
per phase of electrical supply.
You must contact a qualified electrician to ensure an
appropriately fused supply is available.
Connect GREEN/YELLOW wire to earth (E) terminal
Connect the live wires to live 1, 2 and 3.
When completed, check that there are no bare wires, that all
wires have been connected correctly, that the cable external
insulation extends beyond the cable restraint and that the
restraint is tight.
1.2. GENERAL SAFETY
1.2.1. MAINTENANCE PRECAUTIONS
WARNING! Disconnect the heater from the mains power

supply, before servicing or performing any maintenance.
servicing or maintenance must only be carried out by an
authorised service agent.
check that the heater is in sound condition and good working

order. take immediate action to repair or replace damaged
parts.
use recommended parts only. unapproved parts may be

dangerous and will invalidate the warranty.
DO NOT attempt to repair a damaged heater, contact an

authorised service agent.
1.2.2. POSITIONING OF HEATER
WARNING! DO NOT use the heater near flammable material,

liquids, solids, gases or compressed gas cylinders etc.
DO NOT place the heater close to a bath, wash basin, shower,

swimming pool or any other water-filled area or wet surface.
DO NOT place the heater up against any surface such as a

wall, door or furniture etc.
DO NOT place the heater immediately below any electrical

outlet.
Position the heater at least a minimum of 0.5mtr at the rear

and sides, and 2mtr at the front, from any walls or objects.
DO NOT place the heater on a raised surface or anywhere

where it could topple over.
1.2.3. OPERATIONAL PRECAUTIONS
the heater must only be used by people who have read these

instructions and have been trained in its use.
DO NOT obstruct the air inlet and outlet sections of the heater.

DO NOT cover the heater.

DO NOT touch the heater casing or grille when first switched

off, as these will be very hot and will take time to cool.
DO NOT get the heater wet or use in areas of high

condensation.
DO NOT allow the power lead to touch hot surfaces.

DO NOT connect the heater to a timer device or other

equipment than can automatically switch the heater on or off.
If an extension cable is required it must be of the same cross

section as the heater cable. It must be as short as possible
and fully unwound.
DO NOT connect other appliances to the same mains socket as

the heater.
Original Language Version
.
EH30001 Issue: 3(L) - 10/06/14
