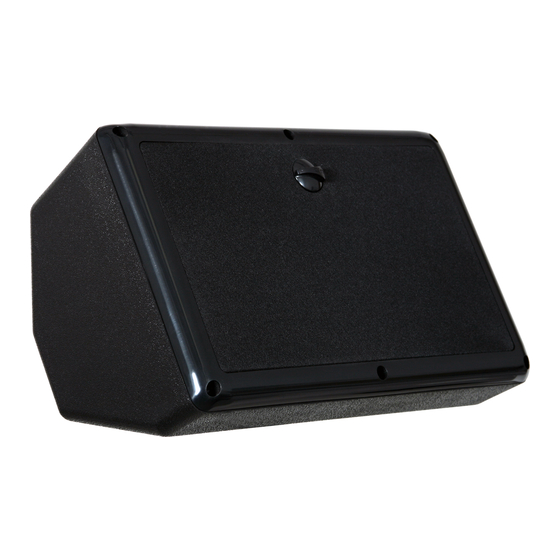

- Page 1 GALAXY AUDIO ™ OWNER’S MANUAL 1998 Galaxy Audio, Inc.
-
Page 2: Table Of Contents
!"Expose the HOT SPOT to rain or moisture !" !" !" !" !"Plug-in or unplug the HOT SPOT while it is operating (doing so may damage your amplifier) !" !" !"Attempt to make any repairs (call your Galaxy Audio dealer for service) !"... -
Page 3: Sound Reinforcement Basics
MONITOR PLACEMENT The HOT SPOT should be positioned within arm’s reach of the performer. The closer it is, the louder it is. The HOT SPOT should be placed to the rear of the microphone being used by the performer. -
Page 4: Maximizing Gain
The 5 inch driver will not reproduce tones lower than 200 Hz. If the speaker begins to distort, reduce the low frequencies by adjusting the LOW tone control. As a monitor the HOT SPOT does a great job in conjunction with the house stack where the low frequencies are reproduced. - Page 5 Figure 1.3 shows a typical example of how speakers and a microphone may be positioned to adequately cover the lis- tening area while maximizing the gain before feedback. Figure 1.3...
- Page 6 Figure 1.4 shows a monitor speaker on-stage in very close proximity to a microphone. If powered by the same channel of the amplifier used to power the main speakers, this monitor may set into motion a “domino effect” of feedback, limiting the gain of the entire system to that of the monitor.
-
Page 7: Ohm's Law And The Hot Spot
OHM’S LAW AND THE HOT SPOT Most professional-type speakers (like the HOT SPOT) have two jacks which are wired in parallel (meaning the signal can travel into one jack and out of the other). Think of each speaker as a “load” added to the amplifier. The greater the num- ber of speakers, the heavier the load. - Page 8 As long as all of the speakers have the same impedance rating, the equivalent impedance of the system is the rated im- pedance of one speaker divided by the number of equivalent speakers. The HOT SPOT’s impedance is 16 ohms.
-
Page 9: Hot Spot Vc Impedance Chart
The impedance of the HOT SPOT VC is determined by the position of its volume control. Use the table below to deter- mine the actual impedance. dB REDUCTION POSITION IMPEDANCE Full Clockwise 16 ohms 23 ohm 33 ohms 46 ohms... -
Page 10: Specifications
SPECIFICATIONS HOT SPOT HOT SPOT VC Speaker Compliment: Two ferro fluid cooled 5-inch drivers Two ferro fluid cooled 5-inch drivers Magnet Structure Weight: 80 oz. (2.2kg) total 80 oz. (2.2kg) total Power handling capacity: 200 watts continuous above 150 Hz... -
Page 11: Architect And Engineer Specifications
6. Damage to any GALAXY AUDIO product which has been altered, or on which the serial number has been effaced or removed. If your unit requires service, it must be returned, shipping charges prepaid to an authorized GALAXY AUDIO service center in the United States. (This warranty is not enforceable outside the U.S.) If you are not able to locate an authorized service center in your area, please call or write GALAXY AUDIO, 601 E. - Page 12 G AL A XY A XY A XY AUDIO XY A UDIO UDIO UDIO XY A UDIO 601 E. Pawnee Wichita, KS 67211 316. 263.2852 FAX 316.263.0642 www.galaxyaudio.com Distributed outside the United States and Canada by E and E Exports, Inc. 17922 Sky Park Circle, Suite P, Irvine, CA 92714 949.440.0760 FAX 949.440.0766 Distributed in Canada by A.C.
