© 2008-2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Cisco SGE2010P 48-Port Gigabit Switch: PoE
Cisco Small Business Managed Switches
Performance and Reliability to Support Small Business Networks
Highlights
48 high-speed ports optimized for the network core or to support bandwidth-intensive
●
applications
Power over Ethernet easily and cost-effectively powers wireless access points, video
●
cameras, and other network-connected endpoints
Resilient clustering provides the ability to manage several switches as a single switch to
●
support growing businesses
Strong security protects network traffic to keep unauthorized users off the network
●
Simplified, web-based management for easy installation and configuration
●

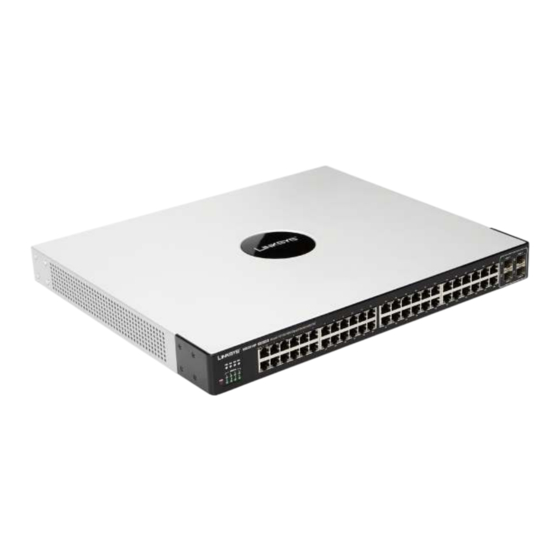

Figure 1.
Cisco SGE2010P 48-Port Gigabit Switch: PoE
Product Overview
®
The Cisco
SGE2010P 48-Port Gigabit Switch (Figure 1) allows you to expand your network
securely. Web-based configuration of the switch is secured using SSL. The Cisco SGE2010P is
optimized for maximum system availability, with fully redundant stacking, redundant power options,
and dual images for resilient firmware upgrades. The switch helps secure the network through
IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control lists (ACLs), denial-of-
service (DoS) prevention, and MAC-based filtering. The enhanced quality of service (QoS) and
traffic-management features help ensure clear and reliable voice and video communications.
For wireless or voice over IP (VoIP) deployments, the Cisco SGE2010P supports the IEEE 802.3af
standard for Power over Ethernet (PoE). Automatic load sensing enables the circuitry to detect
PoE on the end device before providing power. For safety, each port has independent overload
and short-circuit protection, along with LED indicators to show power status. It provides 15W of
available PoE power on up to 24 of the Gigabit Ethernet ports for powering PoE-enabled wireless
access points or VoIP handsets. The maximum PoE available per device for all ports is 360W.
Data Sheet
Page 1 of 5

Advertisement

loading

Related Manuals for Cisco SGE2010P

Summary of Contents for Cisco SGE2010P

  • Page 1 For wireless or voice over IP (VoIP) deployments, the Cisco SGE2010P supports the IEEE 802.3af standard for Power over Ethernet (PoE). Automatic load sensing enables the circuitry to detect PoE on the end device before providing power.

  • Page 2: Specifications

    The Cisco SGE2010P provides resilient stacking for up to four units, or 192 ports. A stack of units is managed as a single switch with one web management interface. The Cisco SGE2010P can coexist in a stack with the Cisco SGE2000 and SGE2000P 24-Port Gigabit Switches, and the Cisco SGE2010 48-Port Gigabit Switch, for a maximum of 192 ports in a stack.
  • Page 3 Availability Link aggregation © 2008-2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. ● IEEE 802.3af PoE on delivered over any of the 48 10/100/1000 ports ● Maximum power of 15.4W to an Ethernet port - 360W total available to all ports with...
  • Page 4 5-year limited hardware warranty with return to factory replacement and 90-day limited software warranty Cisco Limited Warranty for Cisco Small Business Series Products This Cisco Small Business product comes with a 5-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase.
  • Page 5 For More Information For more information on Cisco Small Business products and solutions, visit: http://www.cisco.com/smallbusiness. Printed in USA © 2008-2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Data Sheet C78-502075-01 08/09 Page 5 of 5...
