Cisco SD208 Datasheet

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Cisco SD208 8-Port 10/100 Switch
Cisco Small Business Unmanaged Switches
Easy-to-Use, Flexible Switching for Small Businesses
Highlights
Designed for small businesses that require speed, reliablity, and simple management
●
Connects up to eight devices - PCs, printers, and wireless access points, with auto-sensing ports
●
Works right out of the box with no software to configure
●
Compact size provides multiple placement options for areas with limited space
●

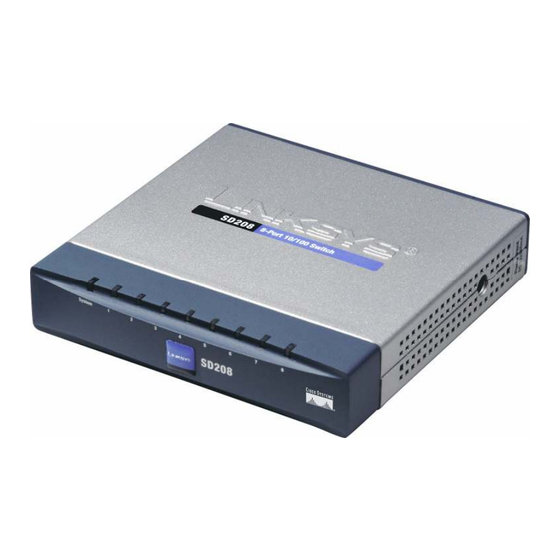

Figure 1. Cisco SD208 8-Port 10/100 Switch
Product Overview
®
The Cisco SD208 8-Port 10/100 Switch can significantly increase the speed of your network
traffic. A switch serves the same function as a hub in a network design, tying your network
equipment together. But unlike a simple-minded hub, which divides the network's bandwidth
among all the attached devices, a switch delivers full network speeds at each port. Installing this
cost-effective 8-port 10/100 switch can potentially give you eight times your current network speed.
It's also the perfect way of integrating 10-Mbps Ethernet and 100-Mbps Fast Ethernet devices. All
eight ports are auto speed negotiating and have automatic medium dependent interface (MDI) and
MDI crossover (MDI-X) detection, so you don't have to worry about the cable type. Each port
independently negotiates for best speed and half- or full-duplex mode, for up to 200 Mbps of
bandwidth per port. Fast store-and-forward switching prevents damaged packets from being
passed on to the network.
The ultra-compact case design is sure to fit into your workgroup environment. Let the Cisco SD208
8-Port 10/100 Switch kick your 10/100 network into high gear.
Data Sheet
Page 1 of 3
