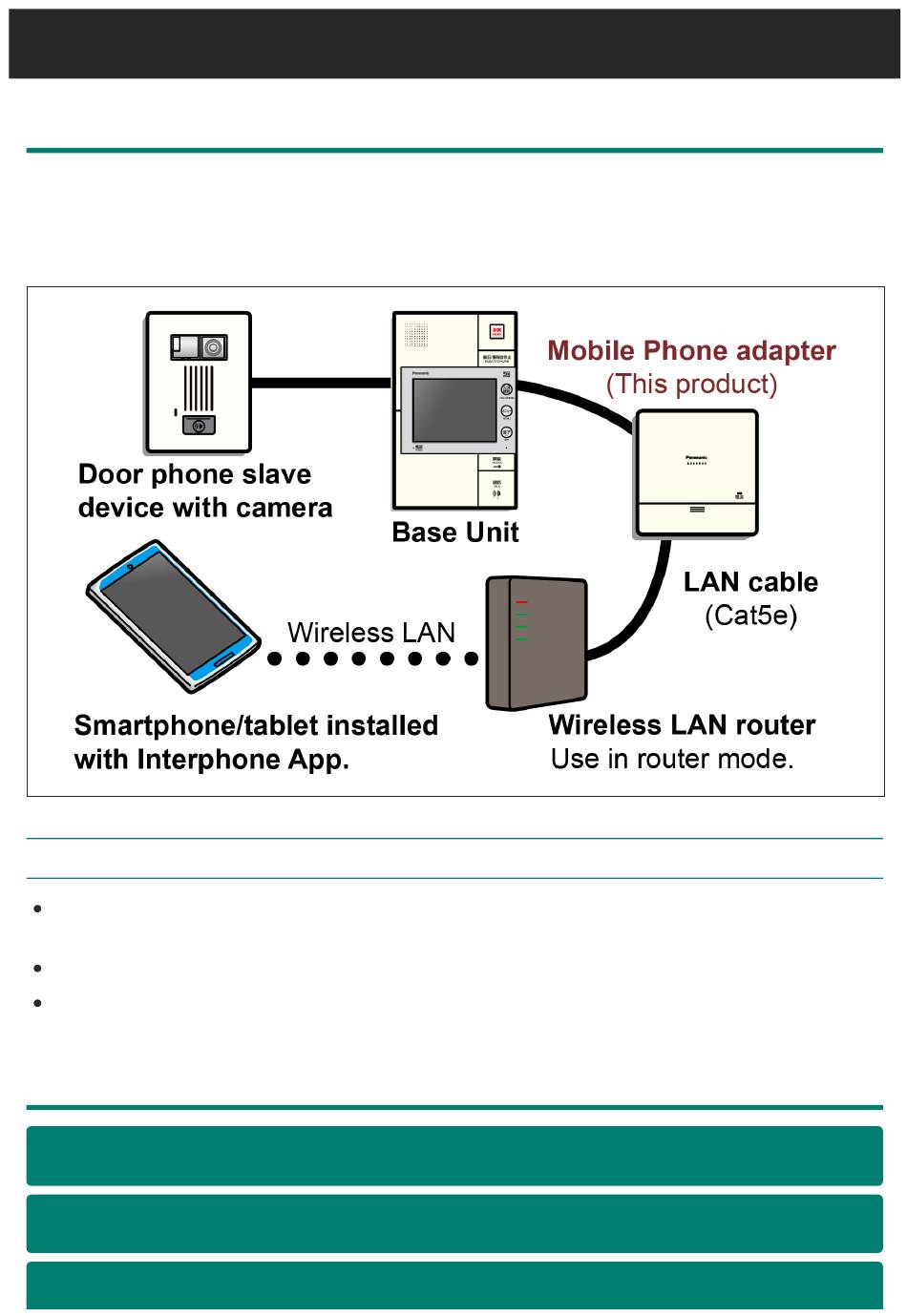

Introduction
This is the Instruction Manual for customers who have installed the security intercom 1
M type Base Unit (Part number: VGDT, VGDB, VGW) for the Condominiums HA D serie
s, the extension adapter for home (VGD8210), and the mobile phone adapter with the f
ollowing configuration.
Things you can do with the mobile phone adapter
Forward calls to the Base Unit on to your smartphone/tablet to talk.
* Depends on the Mansion HA system settings.
Unlock the condominium entrance in response to a call from the Main Entrance.
Receive notification of alarms and notices.
* For details, confirm on the Base Unit.
How-Tos
Using the mobile phone adapter
Confirming the recommended device/wireless LAN router
Registering a smartphone/tablet
How to Use D Series
Advertisement
Related Manuals for Panasonic Condominiums HA D Series
Summary of Contents for Panasonic Condominiums HA D Series
- Page 1 How to Use D Series Introduction This is the Instruction Manual for customers who have installed the security intercom 1 M type Base Unit (Part number: VGDT, VGDB, VGW) for the Condominiums HA D serie s, the extension adapter for home (VGD8210), and the mobile phone adapter with the f ollowing configuration.
- Page 2 Answering a call Confirming an alarm Confirming a notice Setting up the application Deleting a registered device Initializing the registered devices Making an inquiry Using the mobile phone adapter Required devices and environment Base Unit 1M Type Security Intercom Base Unit for Mansion HA D S eries (Product No.
- Page 3 Smartphone Android or iOS device Installation of Interphone App required. Tablet Home wireless LAN environment required. LAN environment Internet connection environment not required. The wireless LAN router is required for connecting the s Wireless LAN router martphone/tablet. *1: For information on recommended devices and devices whose operation are confirmed, please refer to ou r companyʼs website.
- Page 4 Your smartphone/tablet must be connected to the same network as the mobile pho ne adapter. Registering a smartphone/tablet with the mobile phone adapter 1. Press the MENU button on the Base Unit. 2. Put the mobile phone adapter into registration mode. Put the Base Unit into registration mode by following the procedure below.
- Page 5 4. Enter the information to register the smartphone/ tablet. Enter the following information and touch “REGISTRATION”. Registration Name: Name to identify the smartphone/tablet you are operating. MAC Address/Device Code: Information confirmed on the Base Unit.
- Page 6 5. When a registration complete message displays, touch “Confirm”. Repeat steps 3 to 5 to register multiple smartphones/tablets.
- Page 7 6. Touch “Finish Registration” on the Base Unit to finish the registration. Reboot the mobile phone adapter. Wait for the reboot to finish (about 1 minute). Th e service is ready for use when the following icon displays on the smartphone/tablet screen.
- Page 8 On Android devices, the registration status is displayed on the status bar as follows: Icon Status Description Initial statu Status after Interphone App installation. Proceed to register the smartphone/tablet. (Unregister Normal stat The smartphone/tablet can communicate normally with the Base Unit. The Interphone App is available for use.
- Page 9 If the MAC address you entered is incorrect, the following screen will be displayed. C onfirm the content and touch “Confirm”. Confirm the MAC address. If the device code you entered is incorrect, the following screen will be displayed. Co nfirm the contents and touch "Confirm".
- Page 10 Confirm the device code. If the wireless communication with the wireless LAN router is unstable and a commu nication error occurs, the following screen will be displayed. Confirm the contents an d touch "Confirm".
- Page 11 This may occur if WEP (a type of encryption method) is set to connect to the wireles s LAN router. For details, refer to the instruction manual of the wireless LAN router. Control Answering a call (a visitor) 1. The ringtone sounds and an incoming call screen displays when a call is received fro m the Main Entrance intercom or door phone slave device.
- Page 12 2. Touch “Talk” to answer the call. The screen changes to the talking screen.
- Page 13 If you talk while looking at the screen, touch " Speaker". Regarading tablets, you can change the size of the image by touching the display ed visitor image. Caution Regarding smartphones, the size of the image cannot be changed. The speaker button does not display on a tablet. Due to iOS restrictions, the banner will always be displayed when an incoming call is received while the Interphone App is running in the background.
- Page 14 When talking in speaker mode is difficult due to background noise 1. Touch “Press talk” while also touching “Speaker”. Touching “Press talk” displays a confirmation screen; touch “OK”. Touching “B ack” cancels the press talk. Touching “OK (Do not show again)” stops the confirm ation screen from displaying from the next time.
- Page 15 The voice of the person on the other side cannot be heard while “You can tal k, while you keep pressing” is down. The indication on the display changes to “You can hear, while you release”. 3. To listen to the other end, release “You can hear, while you release”.
- Page 16 n hearing the person on the other side. (This is normally unnecessary since it is done automatically.) A delay in the received call time or decrease in picture refresh rate may oc cur depending on the network status. If the Main Entrance intercom or door phone slave device with camera is e xposed to direct sunlight or strong illumination, white vertical lines and/or black spots, or a light reflective pattern may show up on the picture but thi s is normal.
- Page 17 Confirming an alarm The smartphone/tablet sounds an alarm and displays the Alarm screen. Confirm the alarm details on the Base Unit. The vibrator turns on along with the alarm sound. The Interphone App is preset to vibrate along with a sound emitted by the smartpho ne/tablet.
- Page 18 Confirming a notice The smartphone/tablet sounds a beep and displays the Notice screen. The vibrator turns on along with the beep sound. The Interphone App is preset to vibrate along with a sound emitted by the smartpho ne/tablet. However vibration may not be available depending on the device. Confirm the contents of the notice by pressing the Menu button on the Base Unit wh ose perimeter will be blinking in blue.
- Page 19 Setting up the application Caution The shown screen is just an example. It may vary depending on the model of sm artphone/tablet. For the operating procedure, please refer to your smartphone/tablet operating in structions. 1. Launch the Interphone App. 2. Touch “Setting” on the portal screen. The Setting screen displays.
- Page 20 Choosing “Visitor Notification” ON/OFF Visitor notification is disabled when this is “OFF”. The default setting is “ON”. Choosing “Alarm Notification” ON/OFF...
- Page 21 Alarm notification is disabled when this is “OFF”. The default setting is “ON”. Choosing “Notice Notification” ON/OFF...
- Page 22 Notice notification is disabled when this is “OFF”. The default setting is “ON”. Choosing “Press Talk” ON/OFF...
- Page 23 For use when a call is choppy due to noisy background. Setting Press Talk to ON disp lays “Press Talk” during calls. The default setting is “ON”. Choosing a “Notification Sound”...
- Page 24 For Visitor Notification...
- Page 25 Touch the notification ringtone to change (visitor notification, alarm notification, noti ce notification) and choose a notification ringtone from the displayed screen. There are six tones for visitor notification and notification of notice, and two tones fo r alarm notification to choose from. Caution The notification ringtone may be hard to hear depending on the smartphone/tabl et model.
- Page 26 This feature adjusts the speech volume due to the smartphone/tablet model. The default setting is “ON”. Normally use the smartphone/tablet with this feature set to “ON”. When “OFF” is chosen, you can manually change the “Volume adjustment for trans mission” to talk hands-free or normally with the smartphone (handset call).
- Page 27 For handset talk Caution The outgoing speech volume cannot be adjusted while talking on the smartphon Tablets only support hands-free talking. Adjusting the “Volume for speaker”...
- Page 28 Adjust the “Volume for speaker” for hands-free. The volume of the speech can also be adjusted from your smartphone/tablet sound system volume settings. Choosing “Talk Correction” ON/OFF...
- Page 29 This is normally unnecessary. Use this feature when various settings fail to adjust the speech quality of calls. It ma y improve the speech quality of calls. Deleting a registered device If you are disposing of your smartphone/tablet, delete its registration from the mobile phone adapter in advance.
- Page 30 2. Choose the device to delete from the displayed list. Touch “Delete”.
- Page 31 3. Touch “Yes”. The operation up to this step deletes other than the device from which you are oper ating.
- Page 32 4. Touch “Yes”. The device is deleted and becomes unregistered. * This step deletes the device from which you have performed the above-described steps 1 to 3.
- Page 33 Initializing the registered devices If you move out, perform “Registered device initialization” and delete all the registered i nformation of the mobile phone adapter in advance. 1. Put the mobile phone adapter in “registration mode” by operating the base unit 2.
- Page 34 4. The message “If you do this operation, you will not be able to use the service on all devices.” displays. Touch “Confirm”.
- Page 35 5. Enter the "MAC address" and "Device code" confirmed on the base unit, and Touch “Initialization”.
- Page 36 6. When the initialization is completed, the message “Re-registration is required to use the service” displays. Touch “Confirm”.
- Page 37 7. Touch “Registered” on the base unit. Initialization is complete. When initializing from the base unit 1. Press the MENU button on the base unit.
- Page 38 2. Touch “Setting”. 3. Touch “Mobile Device Adapter Settings”. Depending on the setting status of the intercom system, it may be displayed on the first page in the settings. 4. Touch “Unregister All Cell Phones”. 5. Touch “Yes” to complete the delete operation...
- Page 39 Initialization is complete. Making an inquiry (When in problem) Repair inquiries How to use and maintenance inquiries Specifications such as the Base Unit shape may vary depending on your condominiu m facilities, practical configuration, etc. Thank you for your understanding. It may not be displayed correctly depending on the font settings of your device.
