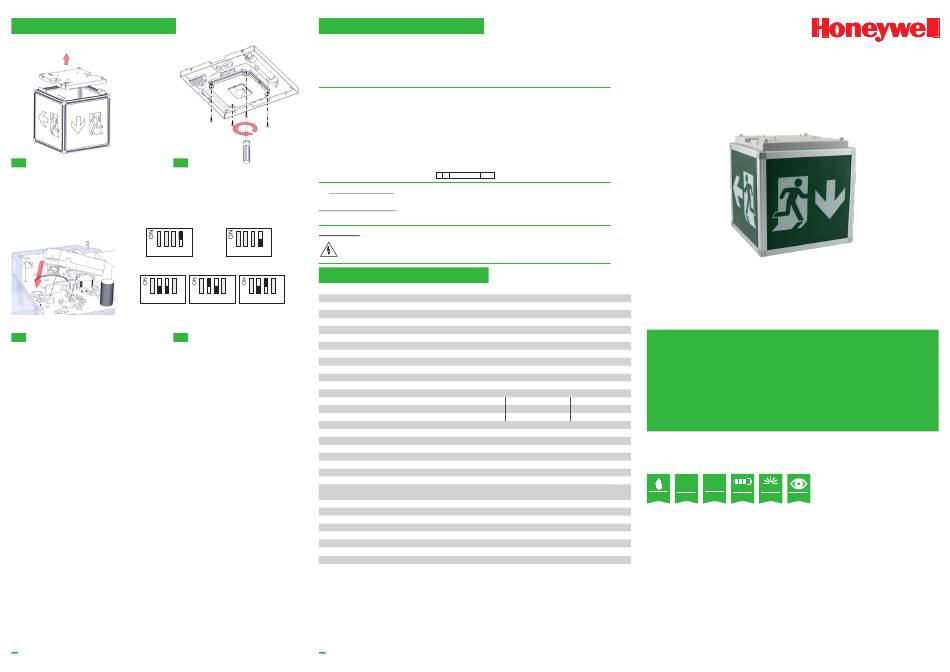

Honeywell Cube M ST LED Manual

Module Connection & Dip Switch
1 2
Dip Switch (DS1) Settings
Module connection
1 2 3 4
Maintained operation
(default position)
1 2 3 4
1h
(default position)
3 4
Autonomy duration selection
The user can select one of the 3 available minimum autonomy durations: 1 hour, 3 hours and 8 hours. The selection
must be done while the luminaire is disconnected from AC and battery supplies. The selection is achieved through
Switches 2 & 3 of DS1. Switch 1 is not used.
Technical label installation
Two additional labels are included in the package, one for 3 hours duration (180) and one for 8 hour duration (480).
Depending on the selected duration, the installer must cover the default 1 hour (60) printing with one that has the
required duration. Please take notice of the orientation of the label.
Changing the operating mode
The control of maintained or non maintained operation of the luminary is achieved through Switch 4 of DS1. For
maintained operation, switch number 4 must be in ON position. For non-maintained operation,switch number 4
must be in OFF position.
4
Battery Replacement
It can be done only by a competent person and after the mains interruption.
1. Remove the top cover (Step 1 of hanging or ceiling installation).
2. Unscrew the 2 screws that hold the battery to its base.
4. Remove the old battery and place a new one of the same type and characteristics.
3. Replace the removed parts.
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
1: Maintained operation (*)
A: Including test device
B: Including remote test mode
C: Including inhibiting mode
E: With non-replacable lamp(s) and/or battery
60: 1 hour duration
180: 3 hours duration
480: 8 hours duration
(*) Maintained operation: The luminaire lights its illumination source, when it is powered by the
mains power supply or not.
Non Maintained operation: The luminaire lights its illumination source, only in mains power supply's
failure.
ATTENTION!!!
The light source of this luminaire is not replaceable when the light source reaches its end of
1 2 3 4
life the whole luminaire shall be replaced.
Non-maintained operation
Technical Characteristics
1 2 3 4 1 2 3 4
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
3h 8h
MAXIMUM SUPPLY CURRENT
U-OUT
Prated
Irated
MAX OPEN CIRCUIT VOLTAGE
WIRE CROSS SECTION
MINIMUM POWER FACTOR
BATTERY (Ni-MH)
INSULATION BETWEEN SUPPLY & CONTROL TERMINALS
INSULATION BETWEEN SUPPLY & BATTERY CIRCUIT
BATTERY PROTECTION
MINIMUM DURATION
LIGHT SOURCE LUMINOUS FLUX (MAINS / EMERGENCY)
MIN MAX. DISCHARGE CURRENT
MIN MAX. DISCHARGE VOLTAGE
MIN MAX. CHARGE CURRENT
TRICKLE CHARGE VOLTAGE/CURRENT
MAX CHARGE VOLTAGE
INDICATIONS/CONTROLS
CHARGE TIME
LIGHT SOURCE
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
CONTROL GEAR MAX.TEMPERATURE: tc
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
EXTERNAL DIMENSION (L x W x H)
WEIGHT
GUARANTEE
Controlgear classification in accordance with IEC 62034: with automatic test function.
5
X 1 A E 6 0
Cube
220-240V AC / 50-60Hz
6.4W / 6.6VA
29.2 mA
33V
1h: 2.2W 3h: 1.5W 8h: 0.6W
1h: 200 mA 3h: 141mA 8h: 57mA
33V
2 2
0.5mm - 2.5mm
0.92
4.8V/2Ah
Basic insulation
Basic insulation
Deep discharge and overcharge protection / the control gear will recharge the battery normally after the test of 22.3
1 hour 3 hours 8 hours
370/370lm 370/270lm 360/110lm
438-700mA 310-490mA 170-191mA
4-6V
190-210mA
5.8V/70mA
6V
LED Charge, Lamp Fault LED, Battery Fault LED/Test BUTTON
16h
16 power LEDs
IP40
EN 60598-1, EN 60598-2-22, EN 55015, EN 61547,
EN 61000-3-2, EN 61000-3-3
o
5 to 40 C
o
53 C at PSU1
Up to 95%
Aluminium, ABS/PC, PC, Acrylic Plate
310 x 310 x 330 mm
2326gr.
4 years
Honeywell Life Safety AS
Po. Box 3514, N-3007 Drammen, Norway
http://www.hls-nordic.com
Cube M ST LED
SELFTESTING MAINTAINED
EMERGENCY LUMINAIRE
Μ NM
Duration
Light output
IP40 50m
Maintained Non-Maintained
1h/3h/8h
370/270/110lm
