MA-MNT-MR-H3 Installation Guide
Overview
The MA-MNT-MR-H3 is a wall mount accessory designed to be used with the MR30H Access Point. The accessory is meant to be used in installations where
physical cable security is needed to prevent individuals from attempting to connect or disconnect wired devices to/from the MR30H LAN Access Ports. This
allows for organizations to securely implement wired guest services with ease of mind knowing that the physical cabling infrastructure will not be tampered with.
Package Contents

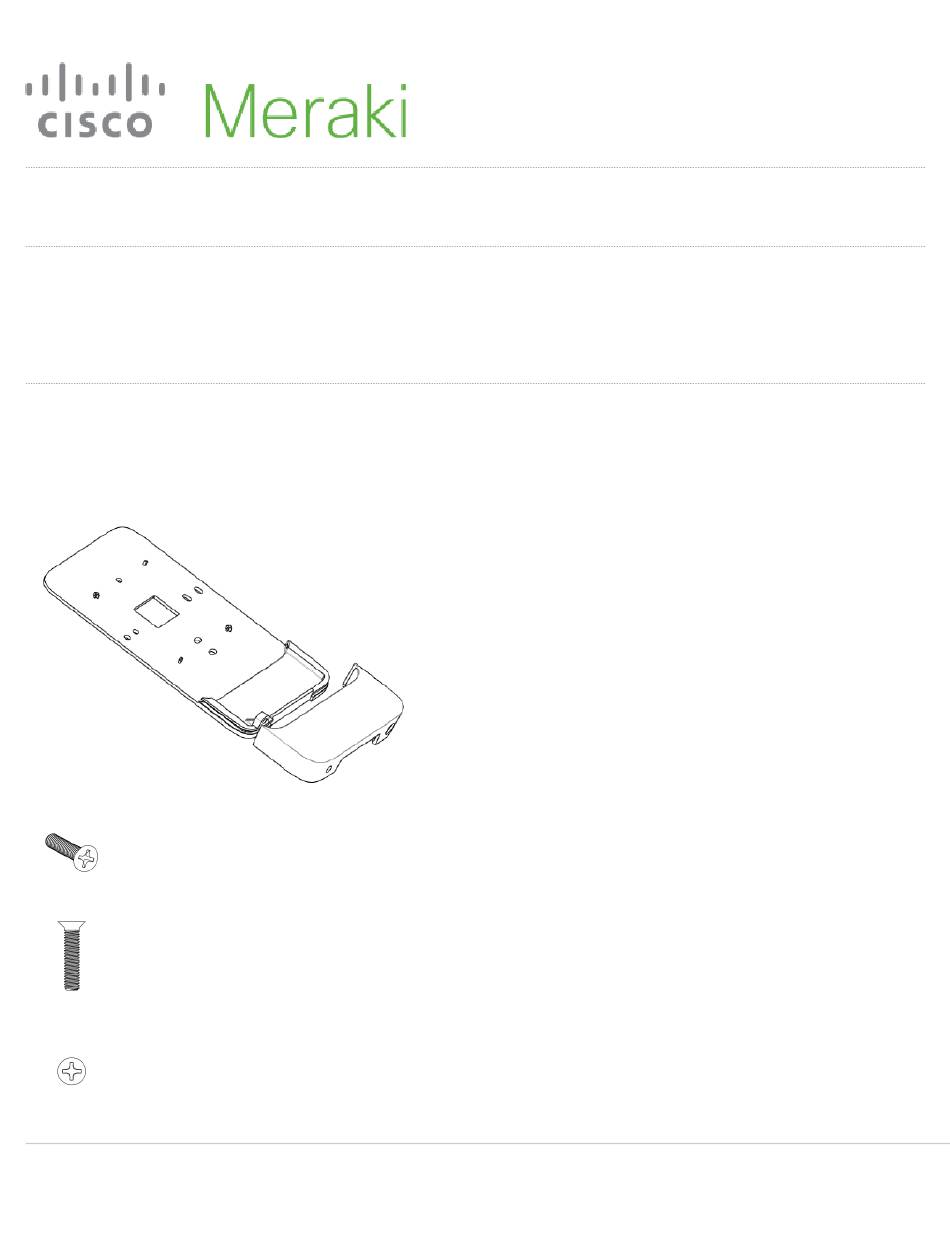

MA-MNT-MR-H3 includes the following equipment in its packaging:
