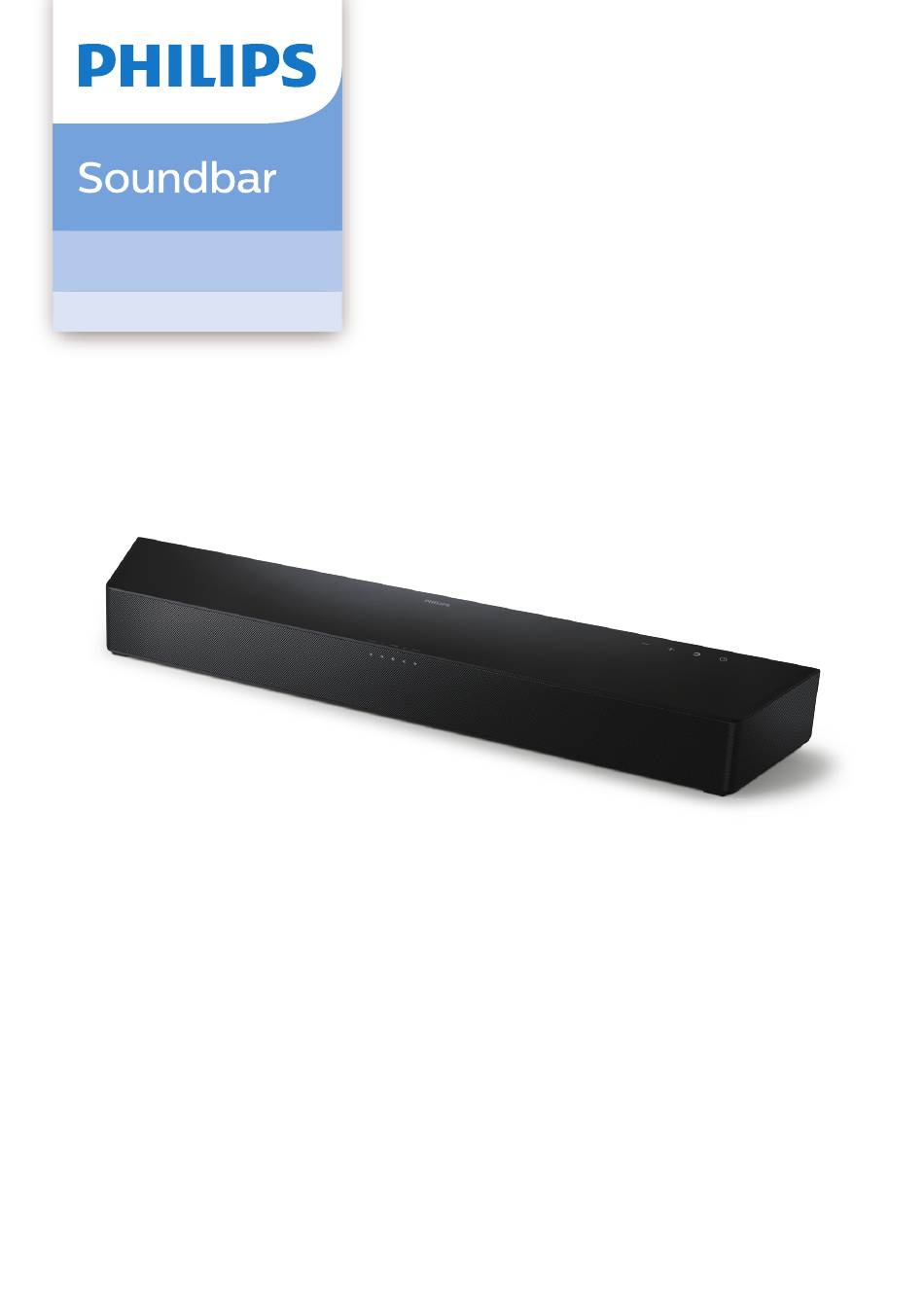

- Page 1 5000 Series TAB5706 User manual Register your product and get support at www.philips.com/support...
-
Page 2: Table Of Contents
Contents Select Source 1 Important Select Equalizer (EQ) Effect Safety Adjust the Volume Care for your product Factory Reset Care of the environment Bluetooth Operation Compliance USB Operation Help and support AUX / OPTICAL / HDMI ARC 2 Your Soundbar Operation What’s in the Box 5 Product specifications... -
Page 3: Important
1 Important Risk of short circuit or fire! • For identification and supply ratings, see the type plate at the back or bottom of the product. Read and understand all instructions • Before you connect the product to before you use your product. If damage the power outlet, ensure that the is caused by failure to follow instructions, power voltage matches the value... -
Page 4: Care For Your Product
Replace only with the same or Care for your product equivalent type. • Remove batteries if they are Use only microfiber cloth to clean the exhausted or if the remote control is product. not to be used for a long time. •... -
Page 5: Compliance
Compliance This product complies with the radio Congratulations on your purchase, and interference requirements of the welcome to Philips! To fully benefit from European Community. the support that Philips offers, register Hereby, TP Vision Europe B.V. declares your Soundbar at that this product is in compliance with the www.philips.com/support. -
Page 6: Main Unit
Remote Control Sensor Main unit Built-in Subwoofer This section includes an overview of the main unit. Connectors This section includes an overview of the connectors available on your Soundbar. 2 3 4 +/- (Volume) Increase or decrease volume. Connect to the power supply. (Source) Select an input source for the OPTICAL IN... -
Page 7: Remote Control
Remote control This section includes an overview of the remote control. (Standby-On) Switch the Soundbar on or to standby. Source buttons AUX: Switch your audio source to the AUX connection (3.5mm jack). BT / Pair: Switch to Bluetooth mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. -
Page 8: Placement
• Remove the battery from the Replace the Remote Control remote control when not in use for Battery a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire. •... -
Page 9: Wall Mount
Drill 2 parallel holes (diameter Wall mount 3-8mm each according to wall type) on the wall. The distance between the holes should be Note 646mm / 25.4”. » Secure the dowels and screws in • Improper wall mounting may result in accident, injury or damage. -
Page 10: Connect
3 Connect • The HDMI ARC connector on the TV might be labeled differently. For details, see the TV user manual. This section helps you connect your Using a High Speed HDMI cable, Soundbar to a TV and other devices, connect the HDMI ARC connector and then set it up. -
Page 11: Connect To Aux Socket
Connect to AUX Socket Connect to Power • Use a 3.5mm to 3.5mm audio cable Before connecting the AC power • cord, ensure you have completed all Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV’s other connections. -
Page 12: Use Your Soundbar
4 Use your Select Source Soundbar Press the button repeatedly on the unit or press the AUX, OPTICAL, HDMI ARC, BT/Pair, USB buttons This section helps you use the on the remote control to select the Soundbar to play audio from connected desired mode. -
Page 13: Adjust The Volume
Vol- • Stadium (2 LEDs blink): Create an Adjust the built-in Subwoofer’s Mute atmosphere as if watching a sports Volume game in a stadium. Press +/- (subwoofer) to increase or decrease the built-in Subwoofer’s volume. Movie Music bass Voice Stadium bass Adjust the Volume Vol+... -
Page 14: Bluetooth Operation
Soundbar, on Bluetooth, search for and select such as wall, metallic casing that covers the Philips TAB5706 to start connection device, or other devices nearby that operate in (see the user manual of the the same frequency. -
Page 15: Usb Operation
USB Operation AUX / OPTICAL / HDMI ARC Operation Enjoy audio on a USB storage device, such as an MP3 player and USB flash Ensure that the unit is connected to the memory, etc. TV or audio device. Insert the USB device. Press the button repeatedly on the unit or press the AUX, OPTICAL,... -
Page 16: Product Specifications
5 Product Remote Control • Distance/Angle: 6m / 30° specifications • Battery Type: AAA (1.5V X 2) Supported Audio formats Note • HDMI ARC • Specifications and design are subject to Dolby Digital, Dolby Digital plus, change without notice. LPCM 2ch •... -
Page 17: Troubleshooting
You have not enabled the Bluetooth before you request service. If you function of the device. See the user still have a problem, get support at manual of the device on how to www.philips.com/support. enable the function. • The device is not correctly Main unit connected.Connect the device... -
Page 18: Trademarks
This is a 15 mins power off Trademarks: function, one of the ERPII standard requirement for saving power The terms HDMI, HDMI High-Definition • When the unit’s external input Multimedia Interface, and the HDMI signal level is too low, the unit Logo are trademarks or registered will be turned off automatically trademarks of HDMI Licensing... - Page 19 Specifications are subject to change without notice. Please visit www.philips.com/support for the latest updates and documents. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N. V . and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited.
