User Manual
Preparation
This Quick Setup Guide will quickly and easily guide through installing this product.
For advanced setup and confi guration instructions, please refer to the Online
Manual on the AirNavigator CD-ROM or the Buffalo Support Web Page.
Package Contents Checklist
◗

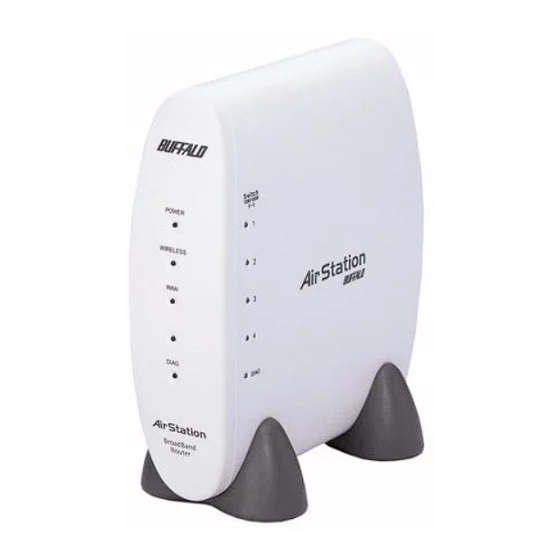

Wireless CABLE/DSL Router-b (WBR-B11)
◗
Utility CD-ROM w/ User Manual
◗
Quick Setup Guide
◗
AC Adapter
◗
7ft. Ethernet Cable
◗
Warranty Statement
If any of the contents are missing or damaged, please contact the retailer or
reseller from which this product was purchased.
www.buffalotech.com/wireless
Quick Setup Guide
Wireless CABLE/DSL
Router-b
WBR-B11
PY00-29013-DM20
Advertisement
Related Manuals for Buffalo WBR-B11
Summary of Contents for Buffalo WBR-B11
- Page 1 This Quick Setup Guide will quickly and easily guide through installing this product. For advanced setup and confi guration instructions, please refer to the Online Manual on the AirNavigator CD-ROM or the Buffalo Support Web Page. Package Contents Checklist ◗...
- Page 2 Step 1 - Gathering Information Depending on the type of broadband internet service you are subscribed to, different types of information may be needed to complete the setup. Acquiring this information in advance will make the setup of your AirStation router simple and quick.
- Page 3 AirStation router, wait one full minute, and then power on the computer which will be used to confi gure the AirStation. If the red DIAG light on the AirStation is lit or fl ashing after several minutes of being powered on, please consult Buffalo Technology Technical Support.
- Page 4 ◗ Wired Confi guration Buffalo recommends using a wired connection, meaning your computer is physically connected to the AirStation with a CAT5 straight cable plugged into one of the four LAN ports. This type of setup will eliminate possible setup problems due to any issues with the wireless adapter on the computer being used to confi...
- Page 5 ◗ Wireless Confi guration ■ NOTE: If confi guring via a Wired Confi guration, please skip to the next page! Windows 2000/XP If there is no Ethernet adapter available on the computer being used to confi gure the AirStation, a wireless confi guration may be performed using a correctly installed 802.11b or 802.11g wireless adapter.
- Page 6 Step 4 - Confi gure your Computer’s IP Address For Windows 98SE/ME - Right-click on Network Neighborhood or My Network Places and select Properties. - Select the Confi guration tab, scroll down to TCP/IP and press Properties. - Select Obtain IP address automatically and Obtain DNS Server address automatically.
- Page 7 Step 5 - Access the AirStation Confi guration Pages Launch your Web browser and type 192.168.11.1 in the address fi eld of the Web browser window and click “Go.” ■ NOTE: If you have previously modifi ed the AirStation and changed the LAN IP address, enter the custom LAN IP address to access the AirStation confi...
- Page 8 Select this option for advanced settings of your AirStation. For more information on confi guring advanced settings of your AirStation, please refer to the User Manual on the AirNavigator CD or the Buffalo Wireless Support Web Site: http://www. buffalotech.com/wireless/support ◗...
- Page 9 This completes the basic AirStation Confi guration. To change advanced settings, please consult the Online Manual on the CD-ROM or go to the Buffalo Support Web Site: http://www.buffalotech.com/wireless/support. The AirStation can be re-confi gured anytime via a Web browser using a wired or wireless connection by entering 192.168.11.1 in the URL address fi...
- Page 10 Equipment and the mutual recognition of their conformity (R&TTE). Copyright © 2004 Buffalo Technology, Inc. All Rights Reserved. - Buffalo Technology (USA) Inc., is part of MELCO INC., the global manufacturers of IT peripherals, including memory, networking, and multimedia products, inside many of the world’s computers.
