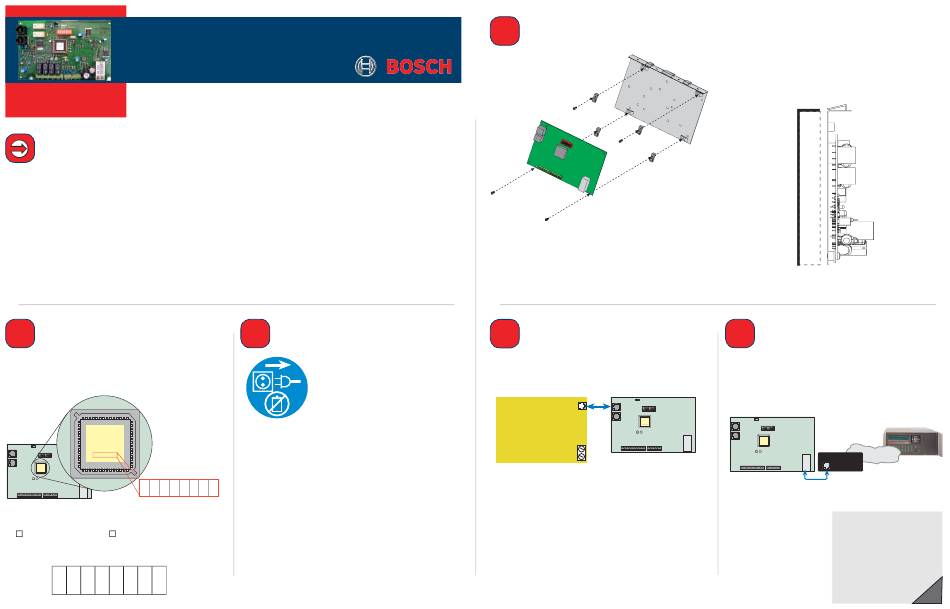

Bosch C900V2 Quick Start Manual

C900V2 Dialer Capture Module
Quick Start Guide
Start Here
This is the Quick Start Guide for the C900V2 Dialer Capture Module. The C900V2 links the digital dialer (data output) from your
security control panel to an Ethernet connection on a local-area network (LAN). This allows communication over the Internet.
If you encounter any problems during this installation, refer to the C900V2 Dialer Capture Module Installation Guide
(P/N: F01U003472).
Contact the
1 1
Central Station
Before installing the C900V2, contact your central station.
Locate the eight-character NNC number on the label of the
C900V2 EEPROM, and give that number to the central station.
BOSCH 2003
34296K
L H
V1.11
000000AA
Record your NNC
BOSCH 2003 number here.
34296K
V1.11
000000AA
Ask your central station for its preferred supervision poll
period.
75 seconds 240 seconds
Ask your central station for your eight-digit application ID
number, and record it here.
2 2
Disconnect Power
Before installing the C900V2,
disconnect all power to the control
panel.
+
3 3
Mount the C900V2
1.
Connect to the
4 4
Control Panel
Connect a telephone cord from the C900V2 RJ-45 (PANEL)
jack to the digital dialer connector on the control panel.
Control Panel C900V2
L H
BOSCH 2003
34296K
V1.11
000000AA
-
+
2. Slide the tabs at the top of the mounting plate over
the top lip of the control panel enclosure door.
3. Position the mounting plate on the side farthest from
the door hinge.
5 5
Connect to the Router
Connect an Ethernet cable from the RJ-45 Ethernet jack
on the C900V2 (marked ETHERNET) to a port on a router
that provides a connection to the Internet.
For compatible router information:
www.C900V2.com/faq.html
L H
BOSCH 2003
34296K
V1.11
000000AA
C900V2 Router
www.boschsecuritysystems.com
© 2005 Bosch Security Systems
F01U013273B
