Honeywell 2000 Series Quick Start Manual

Q385A
APPLICATION

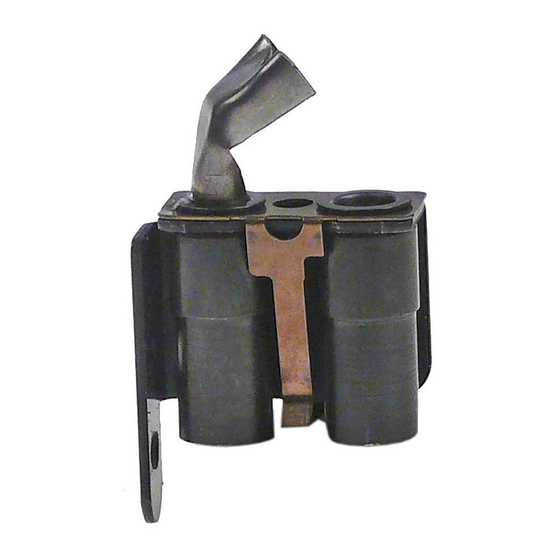

Q334A and Q385A non primary aerated target type pilot
burners provide main burner ignition for gas appliances using
manufactured, natural or LP gas.
Q334A and Q385 pilot burners are used in conjunction with a
Honeywell thermocouple which has to prove the presence of
pilot flame before main gas is admitted into the appliance.
SPECIFICATIONS
Models
Q334A: non primary aerated large target type pilot burner.
Q385A: non primary aerated small target type pilot burner.
Q334A pilot burners are available with three mounting
brackets. and with target position K (right handed) or L (left
handed). See fig. 4.
Q385A pilot burners are available with three mounting
brackets. and with target position K (right handed), F (straight)
or L (left handed). See fig. 5.
Q385A pilot burners are provided with a clip for easy
mounting of an ignition electrode.
Dimensions
Q334A: see fig. 4.
Q385A: see fig. 5.
Consumption
Q334A: approximately 250 Watt
Q385A: approximately 100 Watt
Q334 AND Q385 "2000" series
Q334A
Maximum operating temperatures
At target tip:
Q334A: 815 _C
Q385A: 730 _C
At orifice assy: 340 _C
Recommended thermocouple
Q334A pilot burner is designed for use with Q309A and
Q335C thermocouple.
Q385A pilot burner is designed for use with Q309A
thermocouple
Recommended pressure adjustment
Type of gas
Manufactured (I
)
1
Natural (
I )
2H
Natural (I
)
2L
LP (I
)
3
Accessories
To be ordered seperately, see Product Handbook
EN2R--9002
INSTALLATION
IMPORTANT
Installer must be a trained, experienced service man.
Turn off gas supply before starting installation.
An important requirement for the Q334A and Q385A
pilot burner is that it must be installed carefully.
Consult Honeywell application engineers when
considering using these devices.
Locating pilot burner
· Position for easy access and observation.
· Position so that pilot flame will not touch adjacent parts or
main burner flames.
· Position so that pilot flame will ignite main burner when
pilot gas pressure just exceeds safety shut--off pressure.
· Ensure that pilot flame has an ample supply of dust free
air.
· Do not expose to draughts which will extinguish pilot flame.
· Pilot burner should not extinguish when main burner is
switched ON and OFF.
· Pilot burner shall be mounted in a preferably upright
position.
Mounting pilot burner
Fix pilot burner to main burner at selected location. Mounting
surfaces other than main burner should be avoided as much
as possible since they may shift, bend or deform due to close
proximity of main burner.
PILOT BURNERS
INSTRUCTION SHEET
Pressure adjustment
Max.
Max.
Max.
Max.
EN1R- -9095 0002R5- -NE
