Honeywell PRO 2000 Series Product Information

Programmable
Thermostat
Product
Information

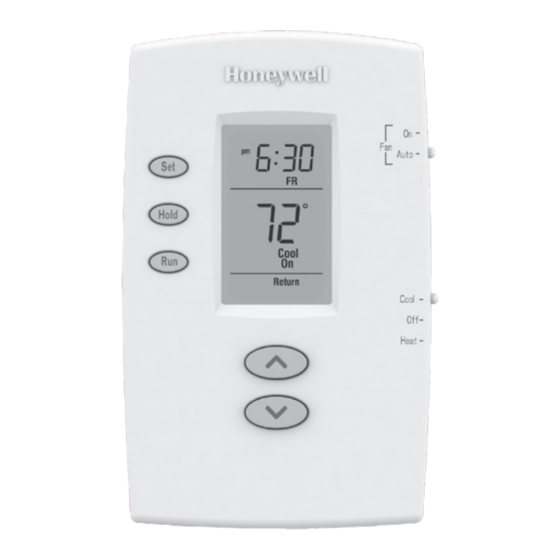

Quick reference to controls

Screen
Set: Press to set
time/day/schedule.
Hold: Press to
Set
override programmed
Hold
temperature control.
Run
Run: Press to resume
program schedule.
Temperature
adjustment

Quick reference to display screen

Current day/time
6 : 30
am
Setpoint indicator
WE
Appears when the
Temporary
75
Set
setpoint temperature is
Lo
displayed.
Batt
Low battery warning
Heat
On
Current program period
Wake
Wake/Leave/Return/Sleep
Set Schedule
Set Schedule

Set the time and day

Press SET, then adjust time.
Set Time
6 : 30
Set
am
Hold
Run
Press SET, then select current day.
Set
Set
Hold
WE
Run
Product Manuals
Search online for Honeywell 69-2799EFS for the Owner's Guide.
Need Help?
For assistance please visit http://yourhome.honeywell.com, or
call toll-free: 1-800-468-1502.
Lit for 12 seconds when you press any button.
Fan Switch
On: Fan runs continuously.
On
Fan
Auto Auto: Fan runs only when
heating or cooling system is on.
System Switch
Cool
Off
• Cool: Cooling system control.
Heat
E.M. Heat
• Off: All systems off.
• Heat: Heating system control.
• Em Heat: Emergency & Auxiliary
Heat control. Compressor is
M34678
locked out. (Select models only.)
Temperature
The ambient (measured)
temperature is normally displayed.
To view the setpoint temperature,
press the Up or Down button once.
The setpoint temperature will
appear for five seconds.
System status
Cool On: Cooling system is on.
Heat On: Heating system is on.
Aux On: Auxiliary heat is on. (Only
for heat pumps with this capability
[select models only].)
M34803 When Heat On or Cool On is
flashing, compressor protection is
engaged.
1. Press the SET button, then
press s or t to set the
clock time.
2. Press the SET button, then
press s or t to select the
day of the week.
3. Press RUN to save & exit.
M34811
Note:
If the clock flashes, the
thermostat will follow your settings
for the Monday "Wake" time period
until you reset the time and day.
Day
M34812
PRO 2000 Series
For 1 Heat/1 Cool systems
TH2110DV:
For 2 Heat/1 Cool heat pump systems only
TH2210DV:
Select the system and fan setting
Set FAN switch to choose whether the fan runs
continuously or only as needed.
On
Fan
Auto
Set
Hold
Run
Cool
Set SYSTEM switch to control the
Off
Heat
E.M. Heat
heating or cooling system.
M34678
Battery replacement
On On
Fan Fan
Auto Auto
Set
77
Set
Hold
Cool
On
Run
Replace batteries once a year, or when you will
Cool
Off
Heat
be away for more than a month.
E.M. Heat
Most settings are stored in non-volatile
(permanent) memory. Only the clock and the
M34679
day must be set after you replace the batteries.
Pull at bottom to remove
thermostat from wallplate.
To adjust program schedules
3 times
Press SET , then adjust time.
6 : 30
am
MO TU WE TH FR
Set
75
Set
Hold
Run
Wake
Set Schedule
Press SET, then set desired temperature.
CAUTION
Equipment damage hazard
To prevent possible compressor damage, do not
operate cooling system when outdoor temperature is
below 50°F (10°C).
Turn thermostat over, insert
fresh AAA alkaline batteries,
then reinstall thermostat.
Install two fresh AAA batteries
when Lo Batt flashes on the
screen. Lo Batt appears for 60
days before the batteries are
depleted.
M34673
1. Press SET until Set
Schedule is displayed.
s t
2. Press or to set your
weekday Wake time (Mo-Fr), then
press SET.
s t
3. Press or to set the
temperature for this time period,
then press SET.
4. Set time and temperature for the
next time period (Leave). Repeat
steps 2 and 3 for each weekday
time period.
5. Press SET to set weekend time
periods (Sa & Su), then press RUN
to save & exit.
Note: Make sure the thermostat
M34813
is set to the system you want to
program (Heat or Cool).
33-00310EFS-01
