Page 1

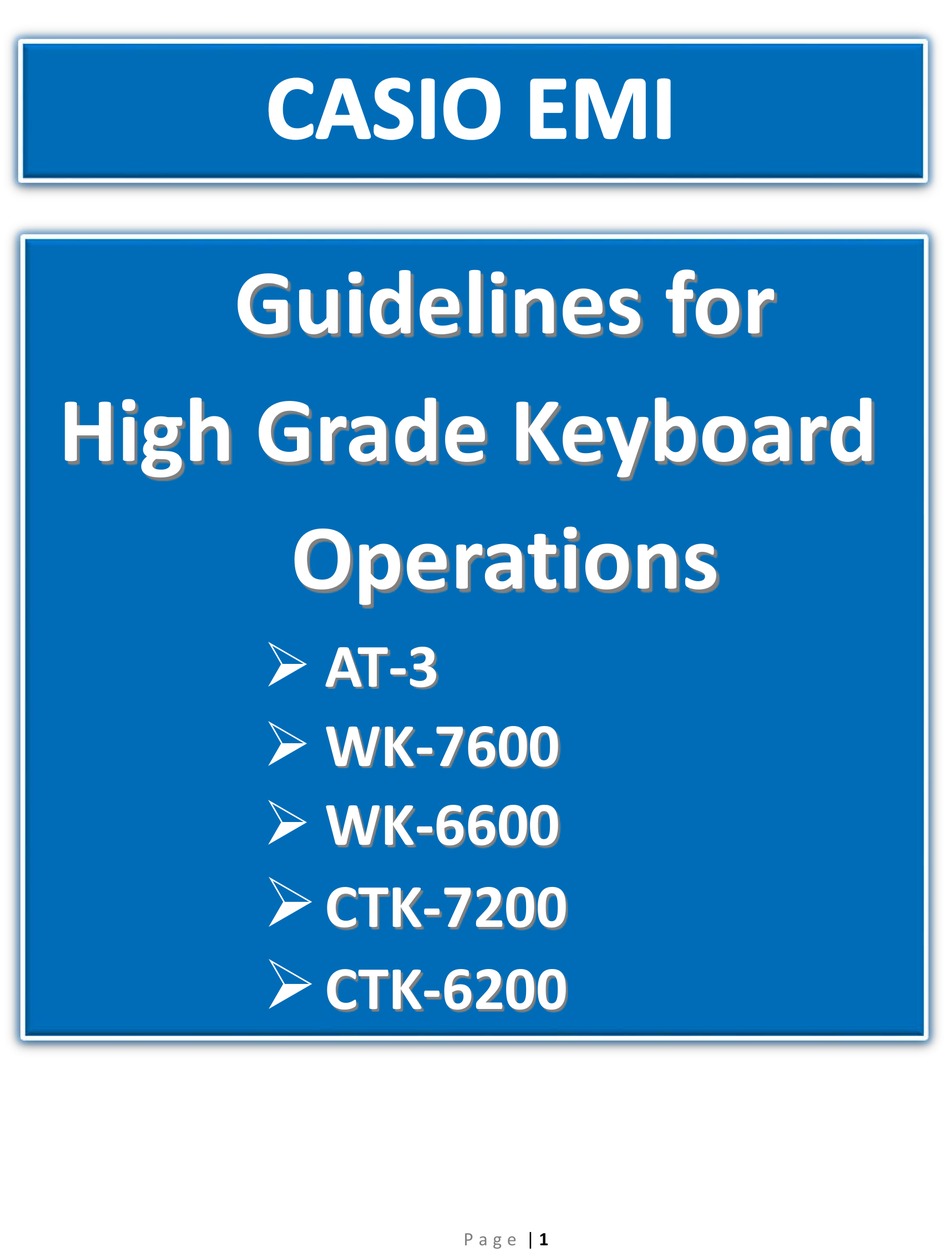

Guidelines for High Grade Keyboard Operations AT-3 WK-7600 WK-6600 CTK-7200 CTK-6200 P a g e...
Page 2
This section explains how to record to the system track and how to record to tracks 01 through 16. 1. Press the C-5 (SONG SEQUENCER) button to enter the song sequencer mode. 2. Press the C-6 (RECORD) button. R-14 (-,+) 3.
Page 3
5. Press the L-17 (START/STOP) button to start recording and start playing on the keyboard after the precount. 6. To stop the recording, press the L-17 (START/STOP) button. 7. For recording the next track 2, press C-6 (RECORD) button. 8. Then press R-17 ( ˃ ) button to select to track 2 or next track for another track recording. 9.
Page 4
1. Press the C-5 (SONG SEQUENCER) button to enter the song sequencer mode. Use the dial or R-14 (-,+) buttons to select a song area number. For Example ( as shown above previous recording “ User Song 1” *1 = which means data recording is done.) Hold the R-13 (FUNCTION) button as you press the C-17 (MENU) button.
Page 5
R-14(-,+)button or use the dial to select “No 1. Press the L-9 (USER RHYTHMS) button. Press Data”. 2. Press the C-4 (PATTERN SEQUENCER) button to enter the pattern sequencer mode. 3. Press the C-6 (RECORD) button. 4. Steps to configure the beat: ...
Page 6
8. Press the C-6 (RECORD) button. use the dial or R-14 (-,+) 9. Then press R-17 ( ˃ ) button to select to “PART: BASS”. Then press R-4 button to select your favorite Bass tone. Ex. “Fretless Bs1 ( D:069)” 10.
