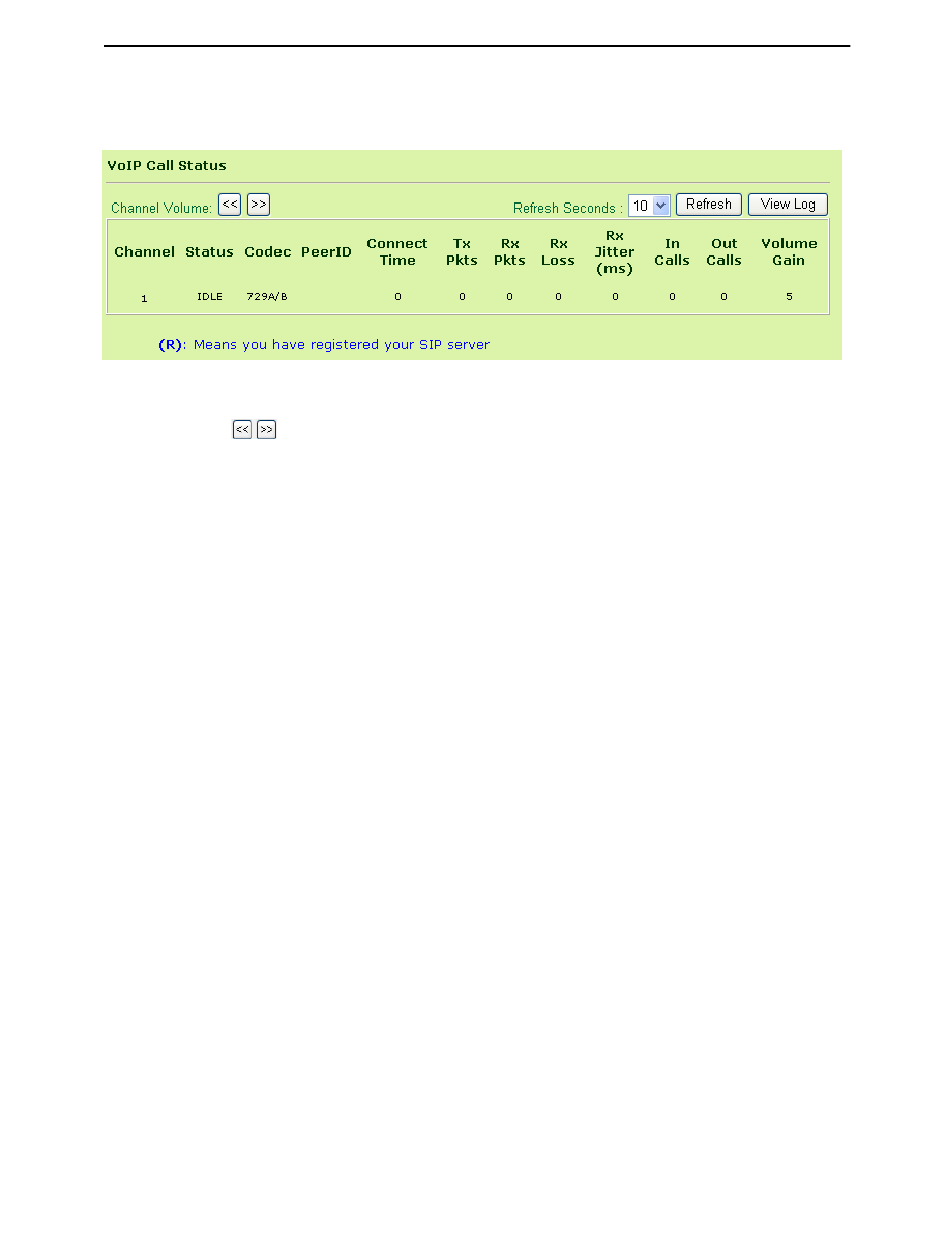

12.4 Voice Call Status
Channel Volume: To adjust the volume of your VoIP calls. Use these two
buttons
Refresh Seconds: Specify the interval of refresh time to obtain the latest VoIP
calling information. The information will update immediately when the
Refresh button is clicked.
Status: To show the VoIP connection status.
IDLE : Indicates that the VoIP function is idle.
HANG_UP : Indicates that the connection is not established (busy
COLLECTING : Indicates that the user is calling out.
WAIT_ANS : Indicates that a connection is launched and waiting for
ALERTING : Indicates that a call is coming.
ACTIVE : Indicates that the VoIP connection is launched.
CODEC: The voice CODEC employed by present channel.
PeerID: The present in-call or out-call peer ID (the format may be IP or
Domain).
Connect Time: The format is represented as seconds.
Tx Pkts: Total number of transmitted voice packets during this connection
session.
Rx Pkts: Total number of received voice packets during this connection
session.
Rx Loss: Total number of lost packets during this connection session.
Rx Jitter: The jitter of received voice packets.
VoIP
to obtain appropriate Volume Gain.
tone).
remote user's answer.
12-13
