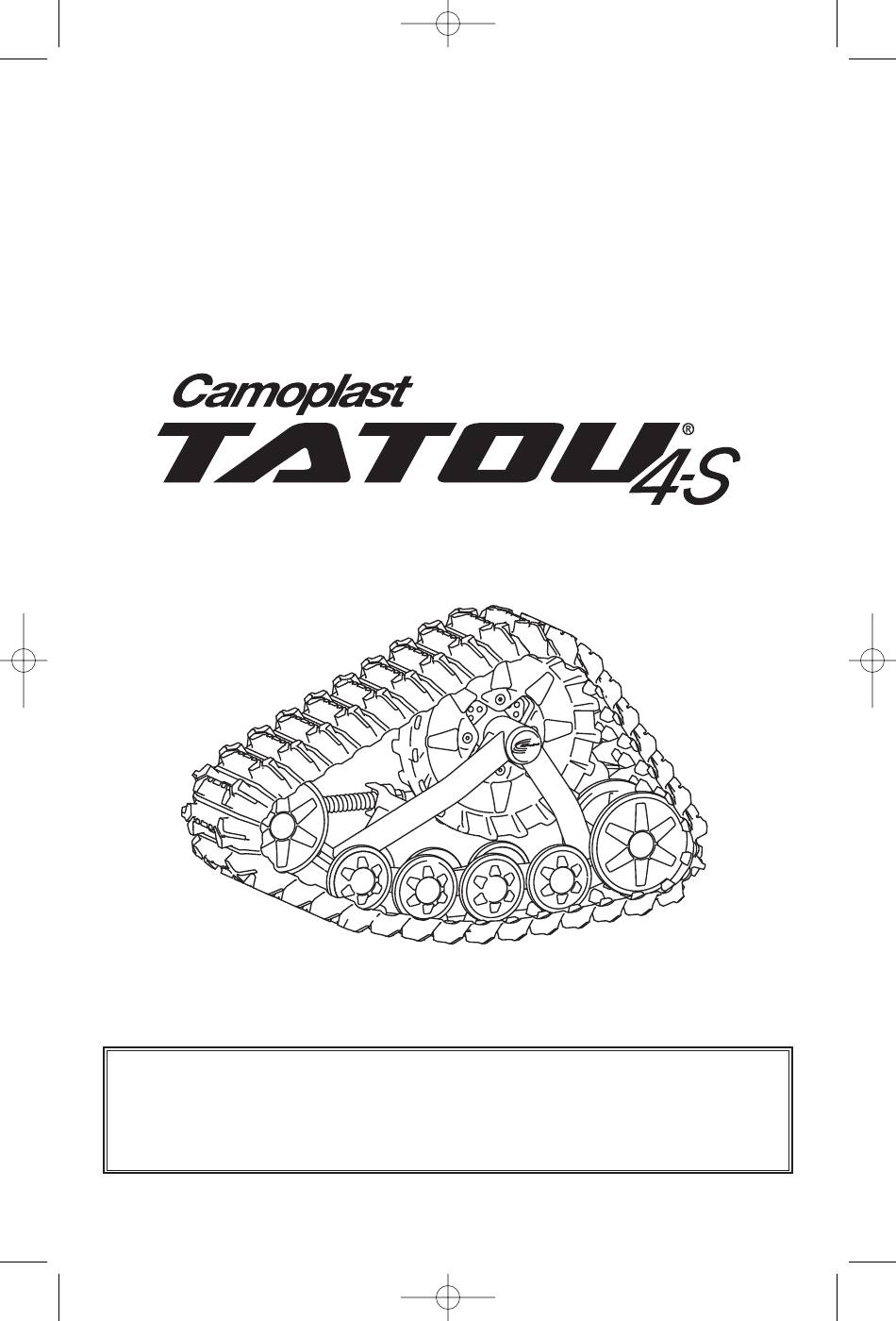

- Page 1 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 40 USER’S MANUAL IMPORTANT! Please read carefully each part of this document as well as the model specific annex prior to assemble, ® install and use the Tatou 4S System.
-
Page 2: Table Of Contents
Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 39 TABLE OF CONTENT INTRODUCTION ........3 GENERAL INFORMATION . -
Page 3: Introduction

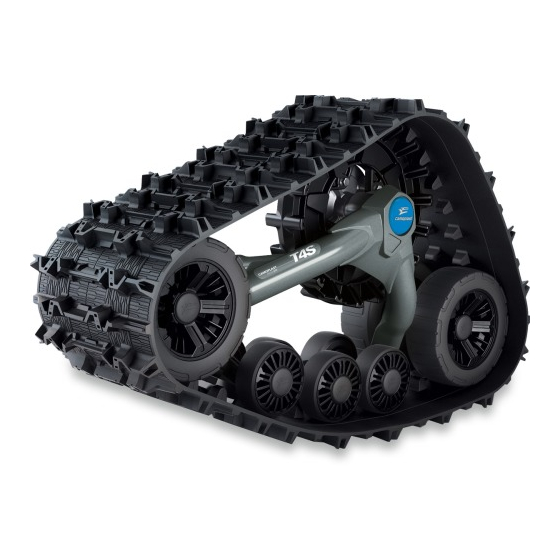

10:57 AM Page 38 INTRODUCTION ® Thank you for choosing Tatou 4S , an ATV Track System by Camoplast (hereinafter referred to as the “System”). You have made the right choice. This System will provide you with all the traction, performance, and durability that you need for your recreational needs or to properly complete your work all year round. -
Page 4: Installation
Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 37 Consult legal authorities where you drive your ATV equipped with the System before usage to ensure you that you respect all appli- cable laws and regulations. ATV Track Systems are designed to reduce ground pressure and increase vehicle’s traction. - Page 5 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 36 Once you have sorted contents, frames and the wheels have been removed, mount the frame directly on the flange or vehicle by the hub using the same studs used to bolt the wheel. Afterwards re-tighten each nut to the torque specified by the manufacturer of your ATV.
- Page 6 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 35 • TUNING Before the tuning, roll the ATV forward for about 3 meters (10 feet) and force the suspension to bounce a few times to stabilize the frame. 1. ALIGNMENT (PARALLELISM) The parallelism should be adjusted with a negative opening of ½ inch (13 millimeters).
- Page 7 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 34 3. TRACK TENSION Correct/adjust the deflection (D) to the tracks (1) with a strap tension gauge (2), measure the tension (T), correct as needed by turning the nut of the tensioner. D = 3/4 in (19 mm) T = 20 lb (9 kgf)
-
Page 8: Application
Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 33 APPLICATION The driving characteristics of your ATV will change with the installation of the System. Always observe your ATV manufacturer’s rules and regulations Example: Carrying passengers, loading charge limit, ect. Before departure, make sure the wheels are not stuck or jammed in place. -
Page 9: Storage
Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 32 Elements to check and maintain Frequency Breaking- in After period breaking-in Track tension 1 hr, 4 hrs 20 hrs Check tightening of bolts 1 hr 4 hrs Adjustement of anti-pivots 4 hrs 20 hrs Check alignment (parallelism) Not applicable... -
Page 10: User Notice And Disclaimer
System, the user must obtain all documentation related to the System including manuals and guides related to the ATV on to which the System is installed. If need be, contact the Camoplast products dealer nearest to you to obtain any additional information. - Page 11 Excessive speed remains one of the main causes of severe accidents on ATVs. Camoplast is proud to offer ATV conversion kits within its wide range of products, ATV Track Systems are not only reliable, but safe.
-
Page 12: Conditions Of Warranty
® with the conditions described below. In operating a new Tatou 4S System, the user agrees that the present form is applicable and exclusive, that they have been signified and that they have been accepted by him/her at the time of purchase. - Page 13 (original receipt or sale contract) and work or repairs must be made by an official Camoplast authorized. All claims not previously approved and authorized by Camoplast will be denied. The following situations and items are not under any circumstances covered by the Warranty: 1) Damage resulting from faulty installation;...
- Page 14 (12) months from date of orignal System purchase. In all cases, the Warranty is limited to a maximum of the original purchase price or the fair market value of the System. Camoplast will have final authority in determining the fair market value of a used System.
- Page 15 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 30 indications of the System manufacturer and the indications from the vehicle manufacturer fixed by law, notably when age restrictions exist and ATV base equipment are required (headlights, flashers and break lights, rearview mirror, etc.). The user must always wear adequate safety equipment, such as a helmet, safety glasses (or visor), protective clothing, boots and gloves.
-
Page 16: Technical Support
Postal Address: 1701, 3 Avenue, Grand-Mère, Qc (Canada) G9T 2W6 ©2007 Camoplast Inc. All rights reserved. ® and ™ are trademarks of Camoplast Inc. Camoplast Inc. reserves the right to change or discontinue any specifications, designs, features, models or accessories. - Page 17 Manuel Utilisateur:Layout 1 8/31/07 10:57 AM Page 17 LISTE DE PIÈCES / PARTS LIST...
