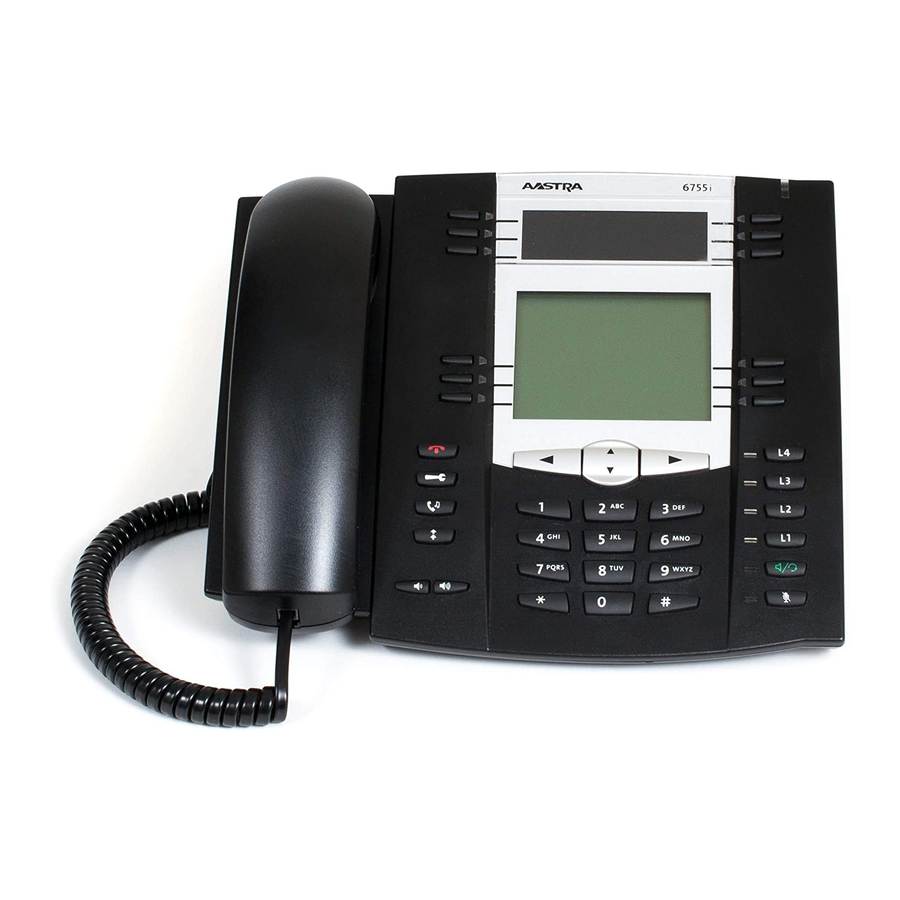

Aastra 55i Manual
  1. Manuals
  2. Brands
  3. Aastra Manuals
  4. IP Phone
  5. 55I
  6. Manual

Aastra 55i Manual

Hide thumbs Also See for 55i:

Advertisement

Quick Links

Download this manual
Home
PBXware
SERVERware
TELCOware
SIPmon
SIPProt
Desktop & Mobile
BRM
UADs
Appliances
EOL
From Bicom Systems Wiki
Contents
1 How to use Aastra 55i with PBXware
How to use Aastra 55i with PBXware
This "How to" is written as general guide on how to use Aastra 55i with PBXware using SIP
Version 2.2 Aastra 55i firmware. It covers the most common tasks that are required to have your
Aastra 55i working efficiently.

Advertisement

loading

Related Manuals for Aastra 55i

Summary of Contents for Aastra 55i

  • Page 1: Table Of Contents

    How to use Aastra 55i with PBXware This "How to" is written as general guide on how to use Aastra 55i with PBXware using SIP Version 2.2 Aastra 55i firmware. It covers the most common tasks that are required to have your...

  • Page 2: Registering Aastra 55I

    Registering Aastra 55i Requirements 1. Aastra 55i firmware. - Make sure that device is loaded with SIP Version 2.2, up to 3.3.1.4053 firmware. 2. DHCP server. - Fully configured and operational DHCP server. Manual Configuration UAD Settings STEP ONE: PBXware IP address.
  • Page 3 1. Make sure the UAD is enabled. To check the UAD status, navigate to "Settings:UAD", and click on the "edit" icon corresponding to "Aastra 55i". 2. Make sure "Status" is set to "active", "Auto provisioning" is set to "No" and "DHCP" is set to...
  • Page 4 Creating Extension 2. The standard options window will be shown below. Creating Extension/Extensions Add 3. Select Aastra 55i from "UAD" select box. 4. Select Location: "Local" or "Remote". Note: -"Local" is for all extensions registered on LAN. -"Remote" is for all extensions registered from remote networks, WAN, Internet etc.
  • Page 5 Creating Extension/Extensions Add 5. Click on the "Next" button. STEP TWO: Extension values. 1. Enter values into the required field text boxes. REQUIRED FIELDS: Name: Enter a name for the extension being created. Example: John Smith. E-mail: Enter the e-mail address associated with this extension. This e-mail address will receive all system notification messages.
  • Page 6 5. The IP address of your PBXware displays in the "IP Address" field. STEP THREE: Aastra 55i Web Interface. 1. Open a new browser window and enter the IP address in order to access the Aastra 55i administration interface. Example: http://192.168.1.101/...
  • Page 7 IP address 2. Hit "Enter" on your keyboard. 3. Login to the Aastra 55i Web Interface. You'll be prompted to enter a username and password. The factory default username is lower case "admin" and password is "22222".

  • Page 8: Auto Provisioning

    4. Click on "Reset" link. Registering Phone 5. Click on the "Restart" button to restart Aastra 55i so that the changes take effect. - Conclusion: If everything is done as above described you should have successfully registered your Aastra 55i to PBXware. Dial *123 to verify registration.
  • Page 9 STEP THREE: UAD status. 1. Make sure the UAD is enabled. To check the UAD status, navigate to "Settings:UAD", and click on the "edit" icon corresponding to "Aastra 55i". UAD Settings 2. Make sure "Status" is set to "active", "Auto provisioning" is set to "Yes" and "DHCP" is set to...
  • Page 10 Creating Extension 2. The standard options window will be shown below. Creating Extension/Extensions Add 3. Select Aastra 55i from "UAD" select box. 4. Select Location: "Local" or "Remote". Note: -"Local" is for all extensions registered on LAN. -"Remote" is for all extensions registered from remote networks, WAN, Internet etc.
  • Page 11 Enter the e-mail address associated with this extension. This e-mail address will receive all system notification messages. Example: john@domain.com Auto provisioning: Set to "Yes". MAC Address: Aastra 55i MAC address. Example: 001646f5f797 Creating Extension an example with details filled in 2. Click on the "Save" button. Creating Extension an example with details filled in 3.
  • Page 12 5. The IP address of your PBXware displays in the "IP Address" field. STEP THREE: Aastra 55i Web Interface. 1. Open a new browser window and enter the IP address in order to access the Aastra 55i administration interface. Example: http://192.168.1.101/...

  • Page 13: Paging

    3. Click on the "Save Settings" button. 4. Click on "Reset" link. Registering Phone 5. Click on the "Restart" button to restart your Aastra 55i so the changes take effect. Paging 1. Navigate your Internet browser to the phone's IP address (for example http://192.168.1.1).

  • Page 14: Glossary

    Paging 3. Make sure that Auto-Answer box is checked. Microphone Mute box is not checked. Paging 4. Navigate to the bottom of the page and click on the "Save Settings" button. Paging 5. Reboot the phone to apply the new settings. NOTE: At the time, the paging option is set for all lines and works once the handset is picked up.
  • Page 15 - LAN = Local Area Network. - PIN = Personal Identification Number. - Remote = Network devices that are managed or controlled from a network system other than the system to which they are directly connected. - Router = A device that forwards data packets from one local area network (LAN) or wide area network (WAN) to another.
