HIKVISION Rosario Seguridad DS-K1T331 Series Quick Start Manual

DS-K1T331 Series Face Recognition Terminal
Quick Start Guide
UD15536B-A
ventas@rosarioseguridad.com.ar ventas@rosarioseguridad.com.ar
+54 9 341 6708000 +54 9 341 6708000
+54 9 341 6799822 +54 9 341 6799822
rosarioseguridadok rosarioseguridadok
Rosario Seguridad Rosario Seguridad
Rosario Seguridad Rosario Seguridad
https://www.facebook.com/groups/591852618012744/ https://www.facebook.com/groups/591852618012744/
+54 9 341 6591429 +54 9 341 6591429
© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates
+54 9 341 4577532 +54 9 341 4577532
(hereinafter referred to as "Hikvision"), and it cannot be reproduced, changed, translated, or
distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
Unless otherwise expressly stated herein, Hikvision does not make any warranties, guarantees or
representations, express or implied, regarding to the Manual, any information contained herein.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvi-
sion.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the
Product.
Trademarks Acknowledgement
and other Hikvision's trademarks and logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND
"WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A
PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To protect data,
the development of Hikvision devices incorporates privacy by design principles. For example, for
device with facial recognition features, biometrics data is stored in your device with encryption
method; for fingerprint device, only fingerprint template will be saved, which is impossible to
reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with
the applicable data protection laws and regulations, including without limitation, conducting
security controls to safeguard personal data, such as, implementing reasonable administrative and
physical security controls, conduct periodic reviews and assessments of the effectiveness of your
security controls.
Avenida Presidente Perón 3998 - Rosario - Santa Fe - Argentina
1

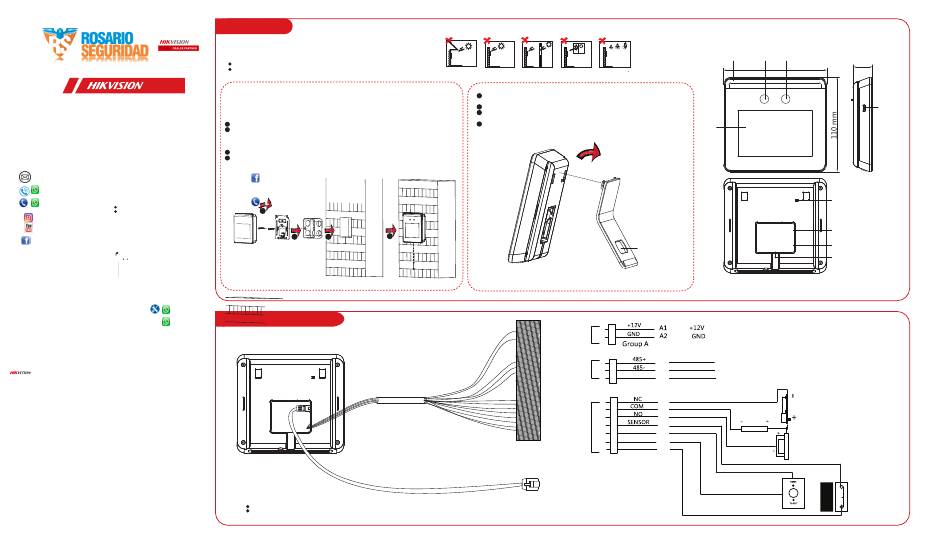

Installation
Installation Environment:
Avoid backlight, direct sunlight, and indirect sunlight.
For better recognition, there should be light source in or near the installation environment.
Installation with Gang Box:
Before you start:
According to the baseline on the mounting template, stick the mounting template on the wall or other
surface, 1.45 meters higher than the ground.
Note: Make sure the output of external power supply fulfils LPS.
Steps:
Drill holes on the wall or other surface according to the mounting template and install the gang box.
1
Use two supplied screws (SC-KM4x25-SUS or KA4×22-SUS) to secure the mounting plate on the
2
gang box.
Route the cables through the cable hole of the mounting plate, and connect the terminals with the
external devices' cables.
Align the device with the mounting plate and hang the device on the mounting plate.
3
Use one supplied screw to secure the device and the mounting plate.
4
Notes:
The installation height here is the recommended height. You can change it according to your actual needs.
Grupo Instaladores
For easy installation, drill holes on mounting surface according to the supplied mounting template.
3
2 1 4
Mounting Gang
Device Plate Box Wall
2
Device Wiring (Normal)
Notes:
The power input should be 12 VDC, 1.5 A, 18 W.
Do not wire the device to the electric supply directly.
Backlight Direct Sunlight Direct Sunlight Indirect Sunlight Close to Light
through Window through Window
Base Mounting:
Route the cables through the cable hole of the bracket, and connect the terminals
1
with external devices' cables.
Align the device two holes with the two buckles on the bracket.
2
Hang the device on the bracket and make sure the buckle in the middle of the bracket
3
is inserted in the groove on the device back.
Place the assembled device and bracket on the desk or other flats.
4
Power Input
RS-485
Group B
Door Lock
Group C
Network Interface
Appearance and Dimension:
White Light Camera Camera
120 mm
Screen
Cable Hole
The figures are for reference only.
Note:
Red
Black
Yellow
B1
Blue
B2
GND Black
B3
Orange (NC)
C1
Green (COM) Electric Dropbolt
C2
Grey (NO)
C3
Power
White
C4
BTN Purple
C5
GND Black
C6
Electric Strike
GND Black
C7
Exit Button
23 mm
microUSB
Interface
Tamper
Network Interface
Wiring Terminal
Debugging Port
Door
Contact
(Sensor)
