CA-HM-UNI-EVO.002

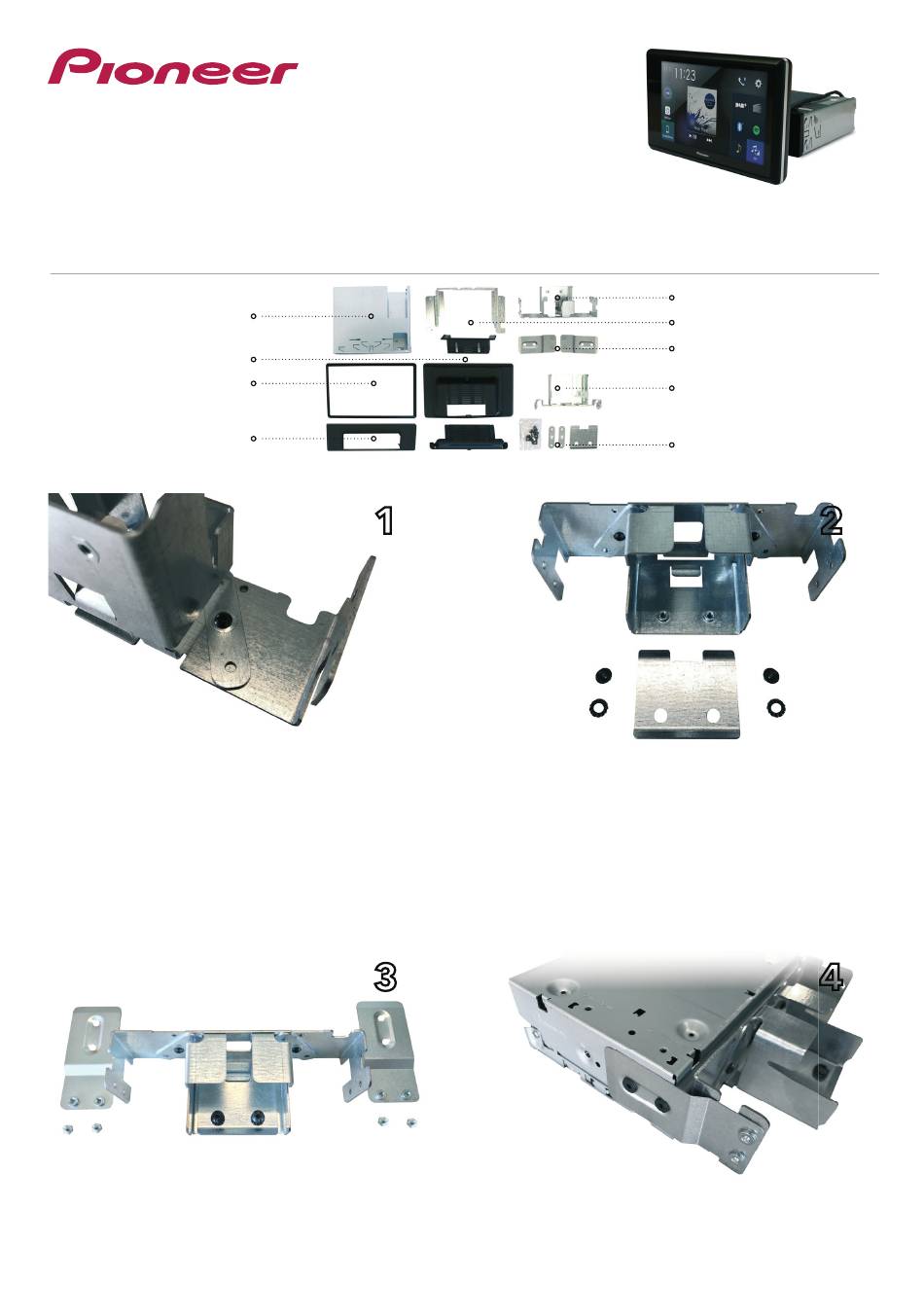

INSTALLATION KIT FOR SPH-EVO82DAB
Metal cage
Connector cover
Trim bezel
1-DIN cover
Mount the locking tabs (bulge up) onto the unit support
Install the side support with a wrench n°7 (not included)
1
3
Installation manual CA-HM-UNI-EVO.001 | Version 1.0
EN - Installation Manual
Install the sliding mecha with the supplied hardware
Once finalised, mount the complete bracket to the silver box
using the supplied hex screws
Unit bracket
Screen bracket
Side brackets
Screen adjuster
Small hardware
2
4
