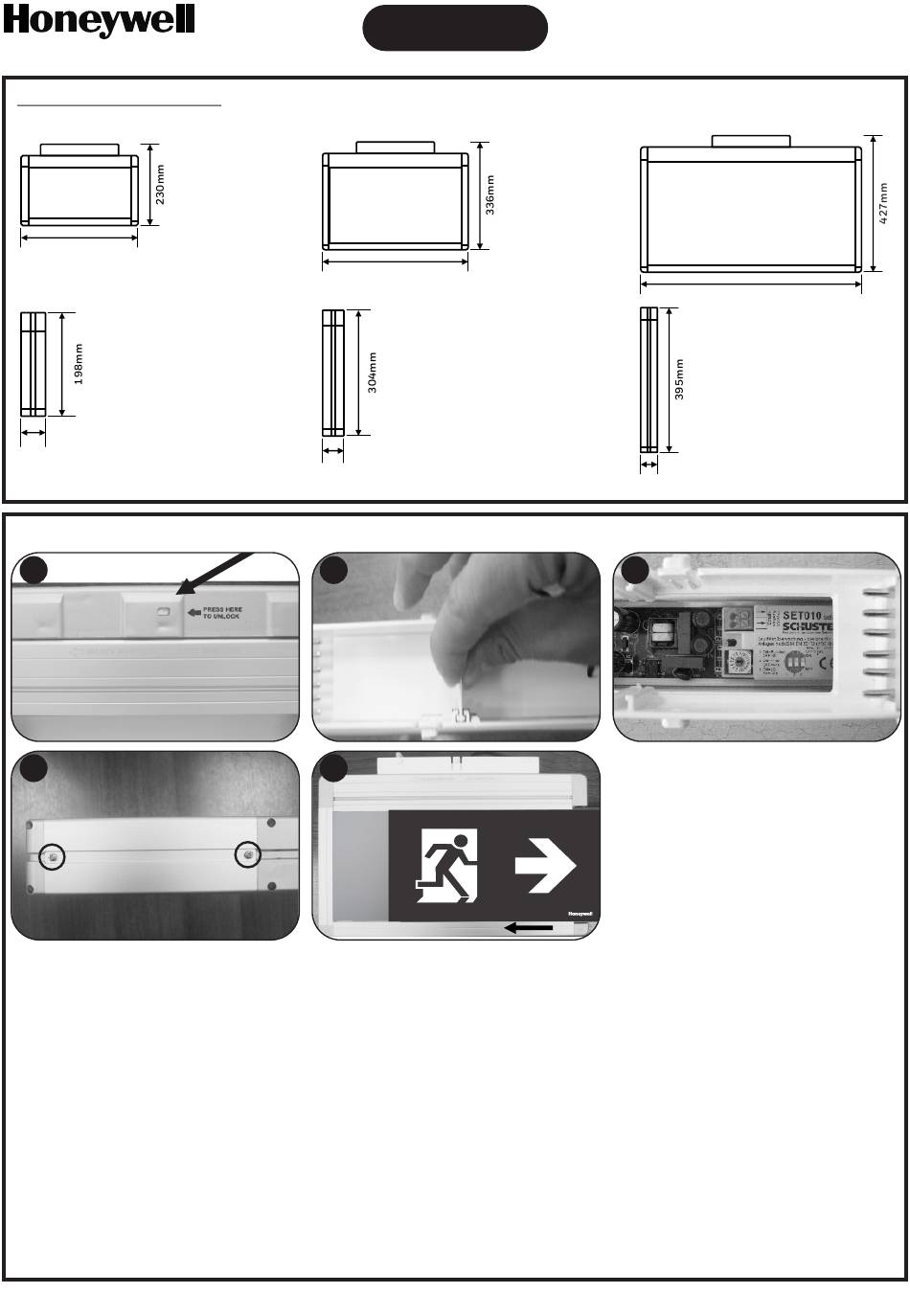

Dimensional Drawings:
MaxLED 26m
330mm
52mm
Installation:
1
4
Step 1: To dismantle the luminaire, push the lock/unlock button, slide the luminaire to the left
and pull it down.
Step 2: To gain access to the module address SET-10, lift the inner plastic cover (on top of the
luminaire).
Step 3: Set the module address. For more information about module settings see the next
page.
Step 4: To insert pictograms, first unscrew the two screws holding the side profile and remove
the profile.
Step 5: For double sided pictogram, insert the appropriate pictograms to both sides and refit
the profile. For single sided pictogram, there is one blind pictogram in the package.
Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway
MaxLED
MaxLED 47m
460mm
52mm
2
5
MaxLED 65m
700mm
52mm
3
http://www.hls-nordic.com
GB
