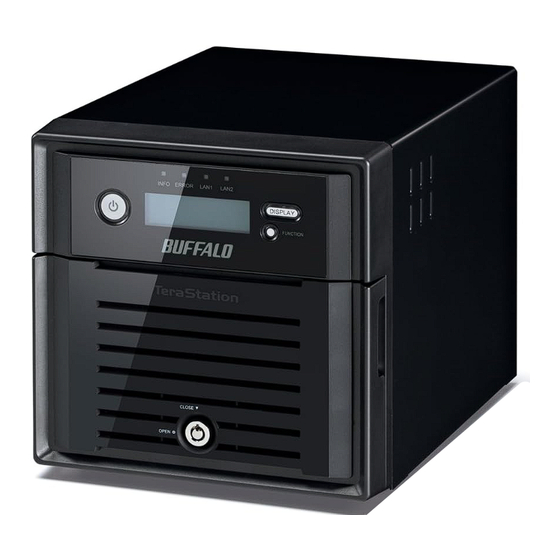

Buffalo TeraStation Series Replacement Procedure

35020114-01
Hard Drive Replacement Procedure
Hard Drive Replacement Procedure
If a drive in the TeraStation fails, the error LED will glow red. Open the front cover and check the status
LEDs. The malfunctioning drive's status LED will be glowing red. This drive may be hot-swapped. Replace
with a Buffalo OP-HD series drive of the same size.
・ Only failed drives may be hot-swapped. If you need to remove a drive that has not failed and
whose status LED is not glowing red, either shut down the TeraStation, or dismount the drive in
Dashboard. Once the TeraStation is shut down, or the drive is dismounted, then it is safe to
replace the drive.
・ If the TeraStation is off, drives may be replaced without dismounting them first.
・ Installing or removing a hard drive while the system is still running is referred to as a hot-swap.
・ The TeraStation is fragile. Handle it with care. Do not drop or bump the TeraStation.
・ Use caution when handling the unit in order to avoid personal injury.
・ Never disassemble any parts while you are replacing a hard drive unless instructed to do so in this manual. Any malfunction or damage caused by
disassembling the TeraStation will void your warranty.
・ To avoid damaging the TeraStation with static electricity, ground yourself by touching something made of metal before handling any sensitive
electronic parts.
・ Replacement drives should be Bu alo OP-HD drives of the same capacity as the originals. These drives are available from www.bu alotech.com.
・ Do not use any hard drive that has been used in another TeraStation or LinkStation, or another computer as a replacement drive. If you do, data on
the unit may be damaged or lost.
・ Do not change the order of the hard drives in the TeraStation. For example, pulling out drive 1 and replacing it with drive 2 may cause data to be
corrupted or lost.
・ In a RAID 1 con guration, the boot drive (C:) consists of the rst and second hard drives from the top. Do not replace both of these hard drives at
the same time.
・ If a hard drive is replaced while saving a le, the le can be corrupted. Be sure that the saving operation is completed before replacing the hard
drive.
If the TeraStation is on, begin from step 1. If the TeraStation is off, begin from step 7 on the back side.
1
Open NAS Navigator2.
・ In Windows, double-click the Bu alo NAS Navigator2 icon on the
Desktop.
・ In Mac OS, click NAS Navigator2 icon in the Dock.
2
Computer
3
Computer
Windows Storage Server will open in a Remote Desktop window.
Drive Failures
Hard Drive Replacement Examples
Right-click the TeraStation icon (in
Mac OS, click while holding down
the Control key), then select Open
Remote Desktop.
Enter the username and password,
then click OK.
The default settings are:
Username: Administrator
Password: password
4
In Windows Storage Server, double-click the
tray to launch Dashboard.
5
Remote Desktop
6
When the message "Removal of the drive completed." is displayed,
click OK.
>> Turn over this sheet to continue
English
Error LED
Status LED
1~2
with cover opened
icon in the system
Select Dismount Drive, then select
the hard drive to be removed and
click OK.
The failed drive will have a status
of "Error" and its status LED will
be glowing a steady red.
In this example, drive 2 has failed.
