PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

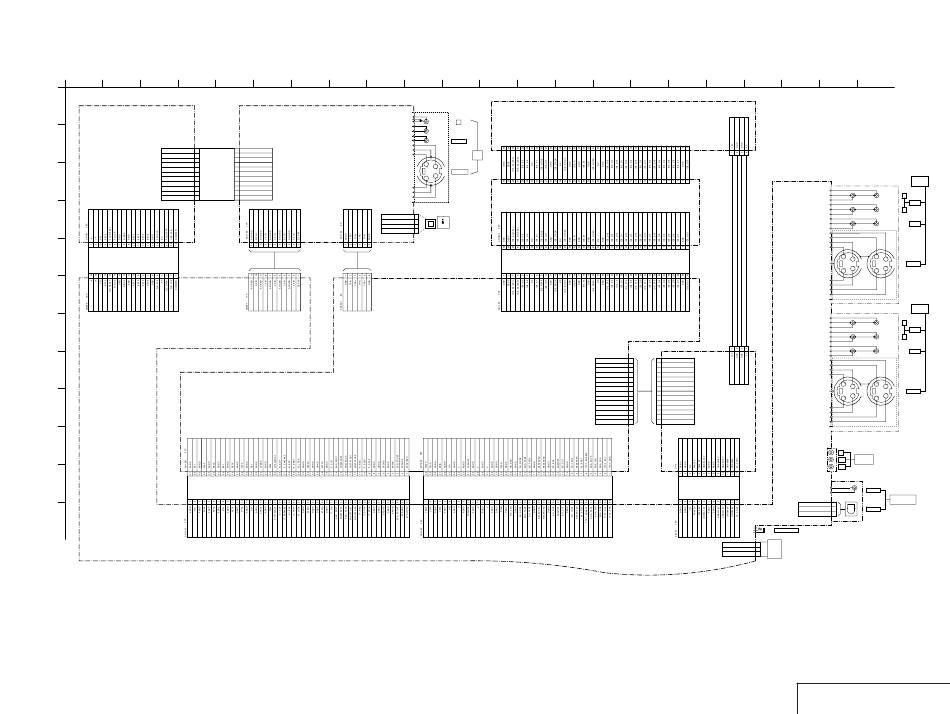

4-1. FRAME SCHEMATIC DIAGRAM

1 2 3 4 5
A
B
CN102 11P
-F 1 11
+F 2 10
FR-195 BOARD
VFL 3 9
5V 4 8
FFF-018
KEY4 5 7
FLAT CABLE
FLD RESET 6 6
FLD CS 7 5
C
GND 8 4
FLD SCLK 9 3
GND 10 2
FLD SOUT 11 1
D
E FAR-003 AL-066
FLAT CABLE HARNESS
F
G
H
I
J
K
L
16
SECTION 4
6 7 8 9 10
CN1702 11P
-F
+F
VFL1
5V
KEY4
FL-130 BOARD
FLD RESET
FLD CS
GND
FLD SCLK
GND
FLD SOUT
TPB- 1
TPB+ 2
TPA- 3
TPA+ 4
RF-133
HARNESS
RD-045 BOARD
FRA-002
FLAT CABLE
4-1
11 12 13 14
J1701
BASE UNIT
R
L(MONO)
VIDEO
LINE
2 IN
S VIDEO
CN1801
CN-177 BOARD
CN703
DV IN
FRD-002
FLAT CABLE
CN1701
FRA-003
FLAT CABLE
15 16 17 18 19
DP-090
HARNESS
AV-071 BOARD
14P CN4
UNSW6V 1 1 UNSW6V
AGND 2 2 AGND
AGND 3 3 AGND
UNSW3.3V 4 4 UNSW3.3V
UNSW3.3V 5 5 UNSW3.3V
UNSW3.3V 6 6 UNSW3.3V
DGND 7 7 DGND
DGND 8 8 DGND
SW3.3V 9 9 SW3.3V
POWER BLOCK
SW3.3V 10 10 SW3.3V
SW3.3V 11 11 SW3.3V
DGND 12 12 DGND
DGND 13 13 DGND
P_CONT 14 14 P_CONT
RP-118
HARNESS
B to B
J601
CONTROL S IN
CN102 3P
FAN 12V 1
FAN
SENS 2
GND 3
4-2
RDR-GX7
20 21 22
LINE OUT
2/1
J801
R
AUDIO
L
VIDEO
S VIDEO
LINE OUT
3/1
J802
R
AUDIO
L
VIDEO
S VIDEO
Y J805
COMPONENT
PB
VIDEO OUT
PR
CN301
COAXIAL
DIGITAL OUT
PCM/DST/
DOLBY DIGITAL
D IN 1
VCC 2 OPTICAL
GND 3
FRAME SCHEMATIC DIAGRAM
