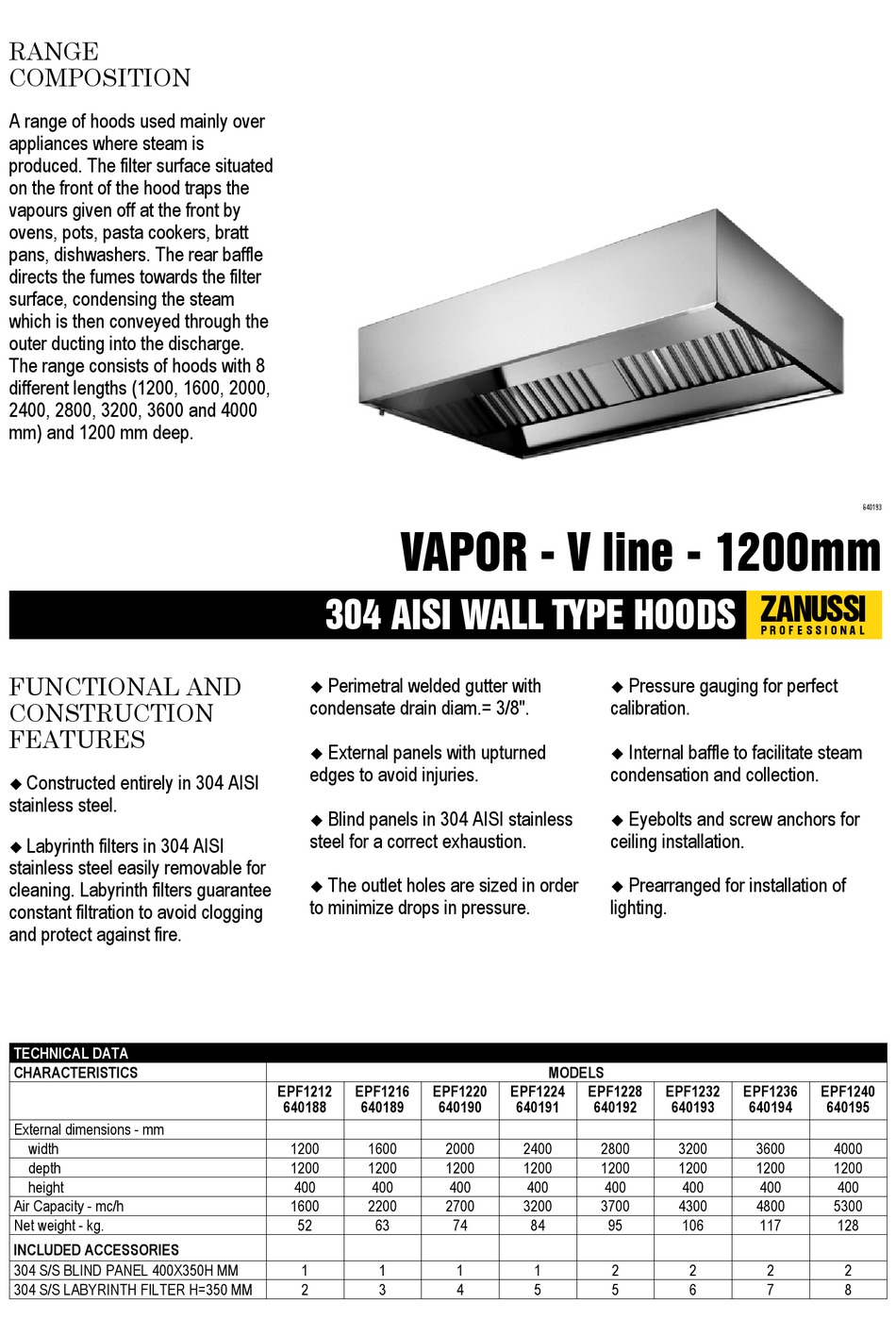

Zanussi Vapor 640188 Brochure & Specs

RANGE
COMPOSITION
A range of hoods used mainly over
appliances where steam is
produced. The filter surface situated
on the front of the hood traps the
vapours given off at the front by
ovens, pots, pasta cookers, bratt
pans, dishwashers. The rear baffle
directs the fumes towards the filter
surface, condensing the steam
which is then conveyed through the
outer ducting into the discharge.
The range consists of hoods with 8
different lengths (1200, 1600, 2000,
2400, 2800, 3200, 3600 and 4000
mm) and 1200 mm deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
Constructed entirely in 304 AISI
�
stainless steel.
Labyrinth filters in 304 AISI
�
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
TECHNICAL DATA
CHARACTERISTICS
External dimensions - mm
width
depth
height
Air Capacity - mc/h
Net weight - kg.
INCLUDED ACCESSORIES
304 S/S BLIND PANEL 400X350H MM
304 S/S LABYRINTH FILTER H=350 MM
VAPOR - V line - 1200mm
304 AISI WALL TYPE HOODS
Perimetral welded gutter with
�
condensate drain diam.= 3/8".
External panels with upturned
�
edges to avoid injuries.
Blind panels in 304 AISI stainless
�
steel for a correct exhaustion.
The outlet holes are sized in order
�
to minimize drops in pressure.
EPF1212 EPF1216 EPF1220
640188 640189 640190
1200 1600 2000
1200 1200 1200
400 400
1600 2200 2700
52 63
1 1
2 3
�
calibration.
�
condensation and collection.
�
ceiling installation.
�
lighting.
MODELS
EPF1224 EPF1228
640191 640192
2400 2800
1200 1200
400 400 400
3200 3700
74 84 95
1 1 2
4 5 5
ZANUSSI
P R O F E S S I O N A L
Pressure gauging for perfect
Internal baffle to facilitate steam
Eyebolts and screw anchors for
Prearranged for installation of
EPF1232 EPF1236
640193 640194
3200 3600
1200 1200
400 400
4300 4800
106 117
2 2
6 7
640193
EPF1240
640195
4000
1200
400
5300
128
2
8
