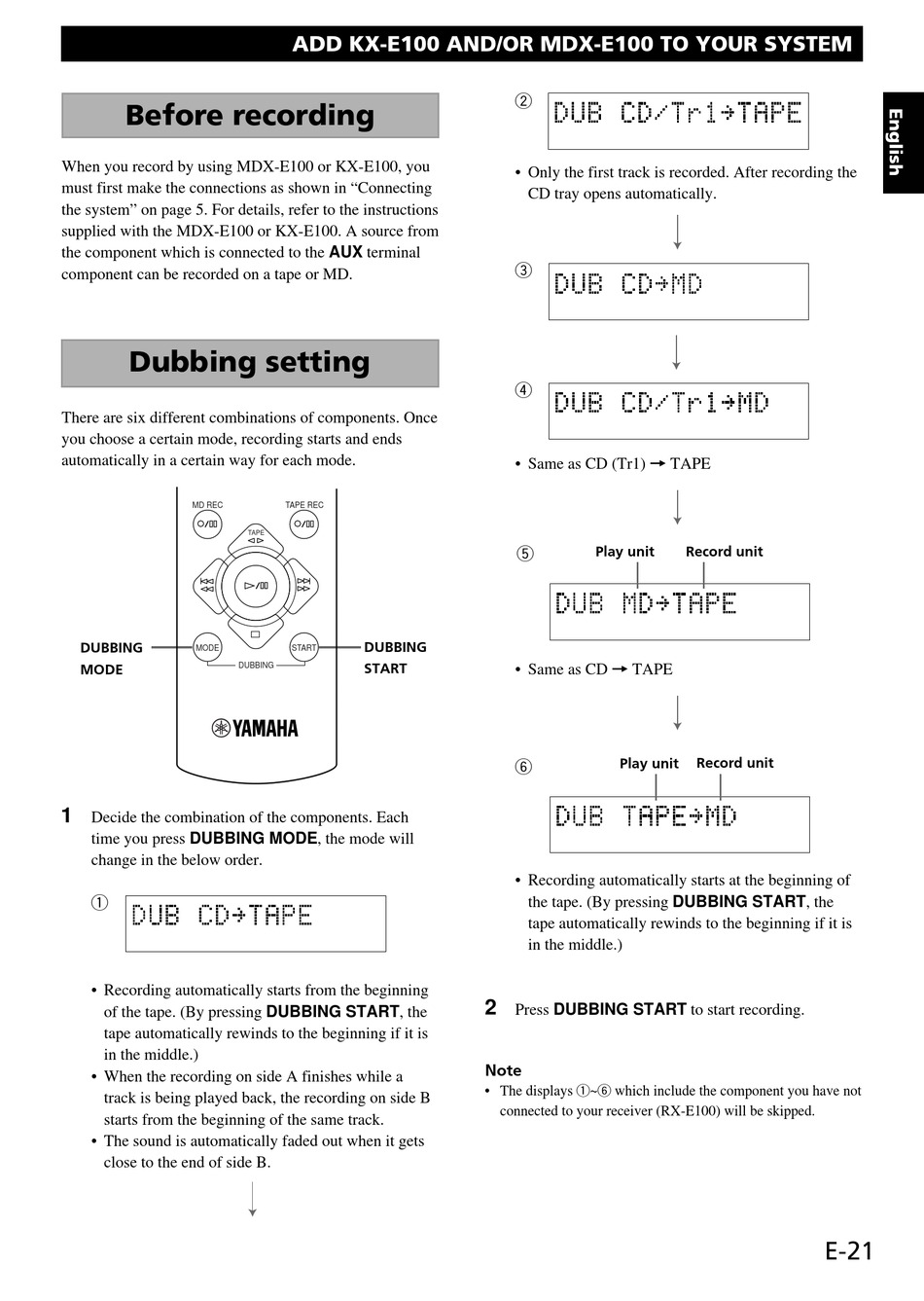

Before recording

When you record by using MDX-E100 or KX-E100, you
must first make the connections as shown in "Connecting
the system" on page 5. For details, refer to the instructions
supplied with the MDX-E100 or KX-E100. A source from
the component which is connected to the AUX terminal
component can be recorded on a tape or MD.

Dubbing setting

There are six different combinations of components. Once
you choose a certain mode, recording starts and ends
automatically in a certain way for each mode.
MD REC
DUBBING
MODE
MODE
1
Decide the combination of the components. Each
time you press DUBBING MODE, the mode will
change in the below order.
1
• Recording automatically starts from the beginning
of the tape. (By pressing DUBBING START, the
tape automatically rewinds to the beginning if it is
in the middle.)
• When the recording on side A finishes while a
track is being played back, the recording on side B
starts from the beginning of the same track.
• The sound is automatically faded out when it gets
close to the end of side B.
ADD KX-E100 AND/OR MDX-E100 TO YOUR SYSTEM
TAPE REC
TAPE
DUBBING
START
DUBBING
START
2
• Only the first track is recorded. After recording the
CD tray opens automatically.
3
4
• Same as CD (Tr1) = TAPE
5
Play unit
• Same as CD = TAPE
Play unit
6
• Recording automatically starts at the beginning of
the tape. (By pressing DUBBING START, the
tape automatically rewinds to the beginning if it is
in the middle.)
2
Press DUBBING START to start recording.
Note
• The displays 1~6 which include the component you have not
connected to your receiver (RX-E100) will be skipped.
Record unit
Record unit
E-21
