Prepare for Installation Note The images in this chapter are only for representational purposes, unless specified otherwise. The chassis' actual appearance and size may vary. Warning Statement 1071 Warning Definition IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing accidents.

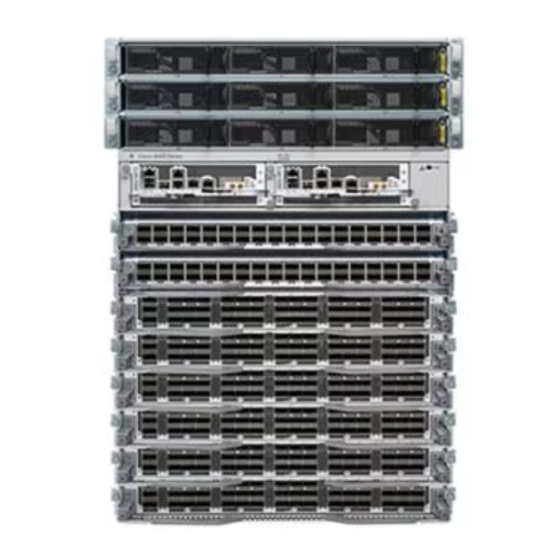

Failure to stabilize the rack may cause the rack to tip over. Compliance and Safety Information The Cisco 8000 Series Routers are designed to meet the regulatory compliance and safety approval requirements. For detailed safety information, see Regulatory Compliance and Safety Information Cisco 8000 Series Routers.
Prepare for Installation Energy Hazard Warning Statement 1055 Class 1/1M Laser Warning – Invisible Laser Radiation. Do not expose users of telescopic optics. Class 1/1M Laser Products. Warning Statement 1255 Laser compliance statement Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without exception for conformance with IEC 60825-1 Ed.
Prepare for Installation Cautions and Regulatory Compliance Statements for NEBS Cautions and Regulatory Compliance Statements for NEBS The NEBS-GR-1089-CORE regulatory compliance statements and requirements are discussed in this section. Warning The intrabuilding port(s) of the equipment or subassembly, which is the management Ethernet port, must use shielded intrabuilding cabling/wiring that is grounded at both ends.
Note Cisco 8000 Series Routers function in operating temperatures of up to 40 degrees C at sea level. For every 300 meters (1000 feet) elevation, the maximum temperature is reduced by 1 degrees C. For more details on...
Page 6
ESD wrist strap (disposable) More Hardware Components If you purchased this product through a Cisco reseller, you might receive more contents in your kit, such as documentation, hardware, and power cables. The shipped cables depend on your specification when placing an order. See the Power Supply Power Cord Specifications section for information on the available power cords.
Prepare for Installation Prepare Your Location Prepare Your Location This section illustrates how the building that houses the chassis must be properly grounded to the earth ground. Note Unless specified otherwise, the image is only for representational purposes. The rack's actual appearance and size may vary.
Figure 2: Wearing the ESD Strap Prepare Rack for Chassis Installation Install the Cisco 8800 Series Routers on a standard 19 inch, Electronic Industries Alliance (EIA) rack with mounting rails that conform to English universal hole spacing according to Section 1 of the ANSI/EIA-310-D-1992 standard.
To ensure adequate airflow, we recommended that you maintain a minimum clearance distance always, as mentioned in the following figure. Following figure shows the clearances required for installation of Cisco 8800 Series Routers. Figure 3: Clearances Required Around the Chassis...
Page 10
(7) Rear service area for the fan tray and fabric card replacement Following figure shows the clearances required for the cable management of Cisco 8800 Series Routers. Figure 4: Clearances Required Around the Chassis Door (1) Overall door width on side (in an open position)
