Panasonic CF-VCCP11U Operating Instructions

Connector Protector
OPERATING INSTRUCTIONS
保証書付き （日本国内向け）
■ この取扱説明書と保証書をよくお読みのうえ、正しくお使い
ください。そのあと保存し、必要なときにお読みください。
■保証書は必ず「お買い上げ日・販売店名」などの記入を
確かめ、販売店からお受け取りください。
© Matsushita Electric Industrial Co., Ltd. 2003
Printed in Japan

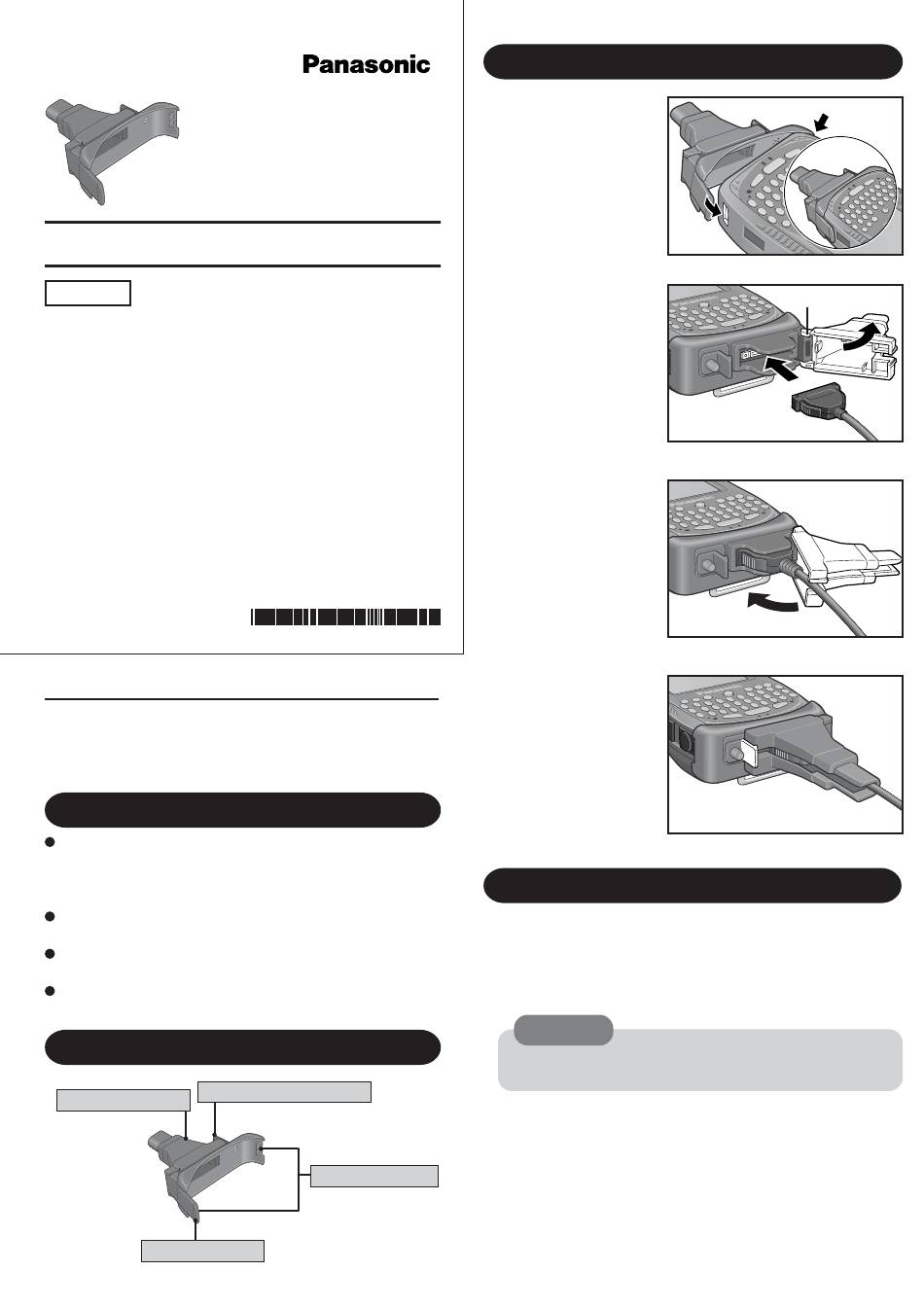

OPERATING INSTRUCTIONS
Thank you for purchasing the Connector Protector for the
Panasonic CF-P1 handheld computer series.
For details on how to use the CF-P1, refer to the Operating
Instructions accompanying the CF-P1.
Precautions
When performing the cable connections between the CF-
P1 and a peripheral device using the connector protector,
make sure that you follow the procedure described in this
Operating Instructions.
When planning to carry the CF-P1 around with you, hold
the CF-P1 part (and not the connector protector).
Be sure to read the ìPrecautionsî in the Operating Instruc-
tions accompanying the CF-P1.
Be sure to read the operating instructions of the peripheral
device to which you are going to connect to the CF-P1.

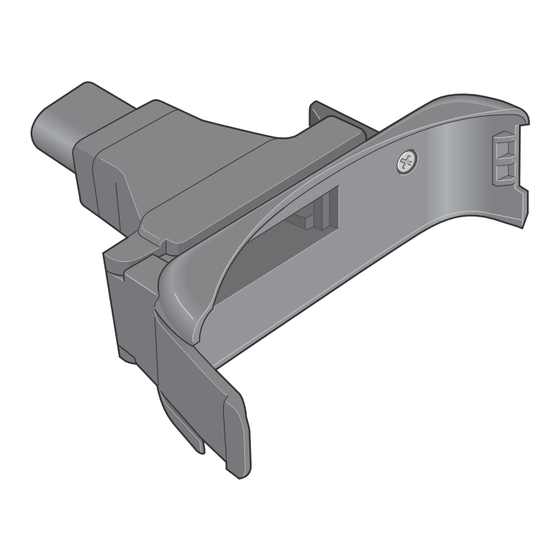

Names of the parts
Connector Cover Lock
Connector Cover
Release Lever
コネクタープロテクター コネクタープロテクター
コネクタープロテクター コネクタープロテクター コネクタープロテクター
取扱説明書
CF-VCCP11U
SS0103-0
DFQX5377ZA
Anchoring Hook
Connection Procedure
®
1
Snag the anchoring
hook in the computerís
groove in the sequence
of ① and ② .
Ensure that the hook
①
turns around
snag ② .
2
Connect the cable
connector to the CF-
P1.
① Turn (A) shown in the
figure right around its
axis, and open the con-
nector cover.
② Check the direction of
the connector, and push
it into place until it is
securely anchored.
3
Run the cable along the
groove in the connector
cover, and close the
connector cover.
4
Push the connector
cover firmly into
place until the
connector cover
lock engages with
the connector
cover.
Disconnection Procedure
1
Refer to step 2 ①
2
While pushing down the release button of the cable connec-
tor, disconnect the connector.
3
While pulling the release lever toward you, disconnect the
connector protector.
CAUTION
● Do not pull the release lever while the cable connector is
still connected. The cable may be damaged.
, and
②
②
above, and open the connector cover.
①
(A)
①
