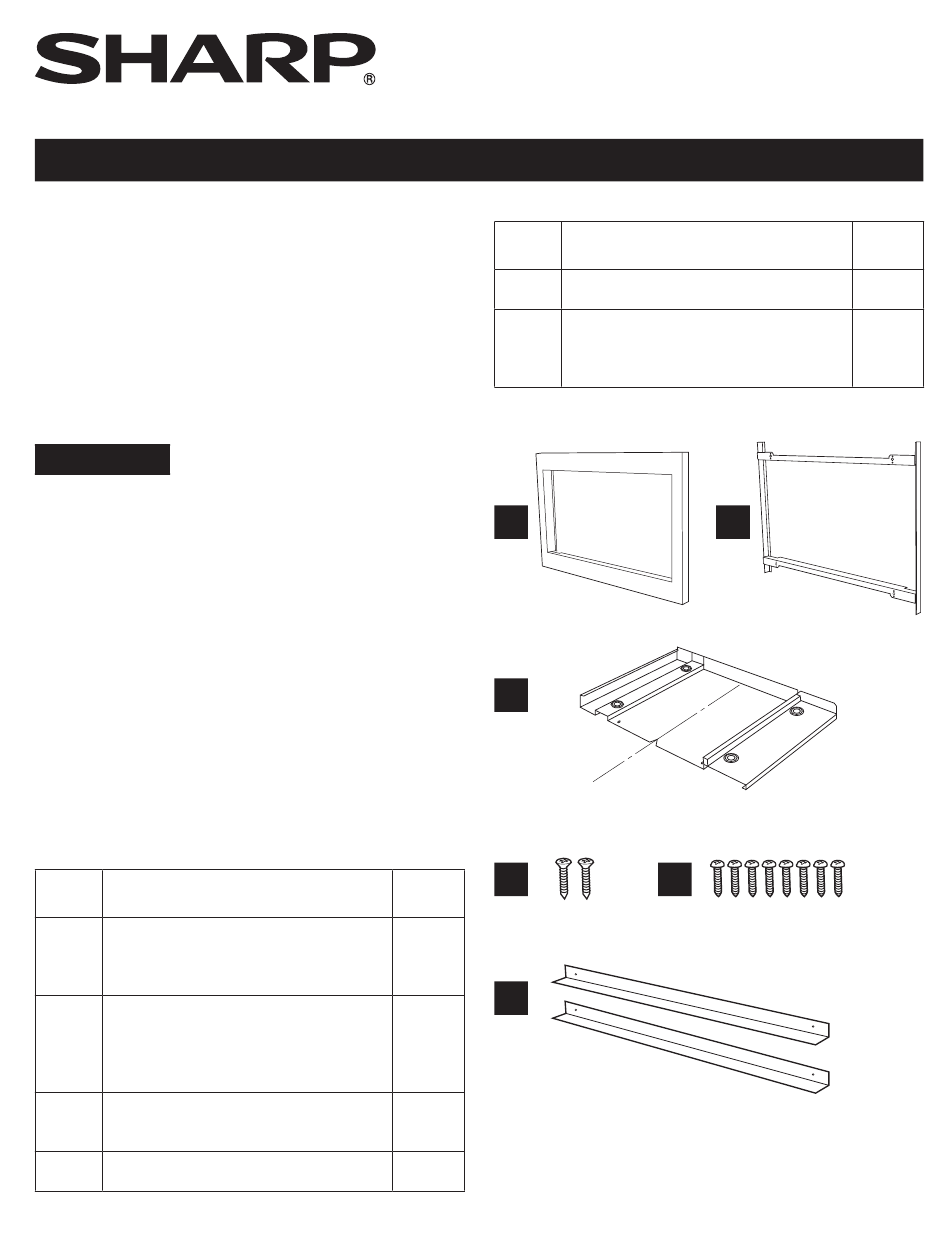

INSTALLATION INSTRUCTIONS
For Sharp Carousel
Models RK49S27F or RK49S30F
S = STAINLESS
THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE
OVENS TO BE INSTALLED ABOVE ANY ELECTRIC WALL OVEN.
PLEASE SEE THE OPERATION MANUAL REGARDING APPROVED
BUILT-IN APPLICATIONS.
IMPORTANT:
This Built-in Kit is designed for and approved only for those
Sharp Microwave Ovens specifying Built-In Kit RK49S27F
or RK49S30F. Refer to operation manual for approved
models.
IMPORTANT NOTES TO THE INSTALLER
• PLEASE READ THESE INSTRUCTIONS THOROUGHLY
BEFORE BEGINNING INSTALLATION.
• Observe all governing codes, ordinances, and safety
instructions.
• Be sure to leave these instructions with the consumer.
• Be sure to DISCONNECT THE PLUG of the microwave
oven from the electrical outlet before installing the Built-in
Kit. Remove the Carousel turntable from the oven cavity.
• Because the kit includes metal parts, due caution should
be used in handling and installation to avoid the possibil-
ity of injury.
ITEM
PART NAME
FRONT FRAME
A
RK49S27F: FDECAB233MRK0
RK49S30F: FDECAB235MRK0
BACK FRAME
RK49S27F: FDECAB234MRK0
B
RK49S30F: FDECAB236MRK0
EXHAUST DUCT ASSEMBLY
C
PDUC-B194MRP0
D
SCREW D: XTSS740P20000
Built-in Kit
®
QTY
1
1
1
2
ITEM
E
SCREW E: XOPS740P16000
AIR DEFLECTOR
F
RK49S27F: PREF-B036MRP0
RK49S30F: PREF-B037MRP0
A
C
V-cut
indicates
center of
duct
D
F
1
PART NAME
B
C L
E
QTY
8
2
Advertisement
Related Manuals for Sharp Carousel RK49S27F
Summary of Contents for Sharp Carousel RK49S27F
- Page 1 PLEASE SEE THE OPERATION MANUAL REGARDING APPROVED BUILT-IN APPLICATIONS. IMPORTANT: This Built-in Kit is designed for and approved only for those Sharp Microwave Ovens specifying Built-In Kit RK49S27F or RK49S30F. Refer to operation manual for approved models. IMPORTANT NOTES TO THE INSTALLER •...
-
Page 2: Step 3 - Frame Installation
STANDARD INSTALLATION INSTRUCTIONS STEP 1 - CABINET OR WALL OPENING • If the dimension of DEPTH (C) is more than 21" (533.4 mm), the outlet location may be any area on the rear wall. The opening in the wall or cabinet must be within the •... - Page 3 STANDARD INSTALLATION INSTRUCTIONS 4. BACK FRAME INSTALLATION: Position back frame with equal space top to bottom, side to side. Mark for 4 holes, center punch and pre-drill the cabinet with " drill bit. Secure frame with 4 SCREWS E. See Figure 7. Mounting holes Mounting holes Screw E...
- Page 4 FLUSH INSTALLATION INSTRUCTIONS STEP 1 - CABINET OR WALL OPENING NOTES • Please allow minimum 3" (76 mm) wood gap between the The opening in the wall or cabinet must be within the microwave oven cutout and the appliance cutout below following dimensions: the microwave oven.
- Page 5 FLUSH INSTALLATION INSTRUCTIONS STEP 2 - EXHAUST DUCT ASSEMBLY INSTALLATION 1. Place the EXHAUST DUCT ASSEMBLY in the center of the opening. Align the front edge of the duct with the front of the cabinet. Align the front edge of the right side of the duct with the front of the shelf.
- Page 6 FLUSH INSTALLATION INSTRUCTIONS 4. BACK FRAME INSTALLATION: Position BACK FRAME 6. FRONT FRAME INSTALLATION: Place the FRONT equal space top to bottom, side to side. Mark for 4 holes FRAME onto the BACK FRAME and align ball studs on the installed wood cleats, center punch and pre- and receivers.
- Page 8 For any other assistance or information about this kit, please call Sharp’s Customer Assistance Center at 1-800-BE-SHARP (1-800-237-4277) SHARP ELECTRONICS CORPORATION 100 Paragon Drive, Montvale, New Jersey 07645 TINSEB577MRR1 Dec 10, 2019...
