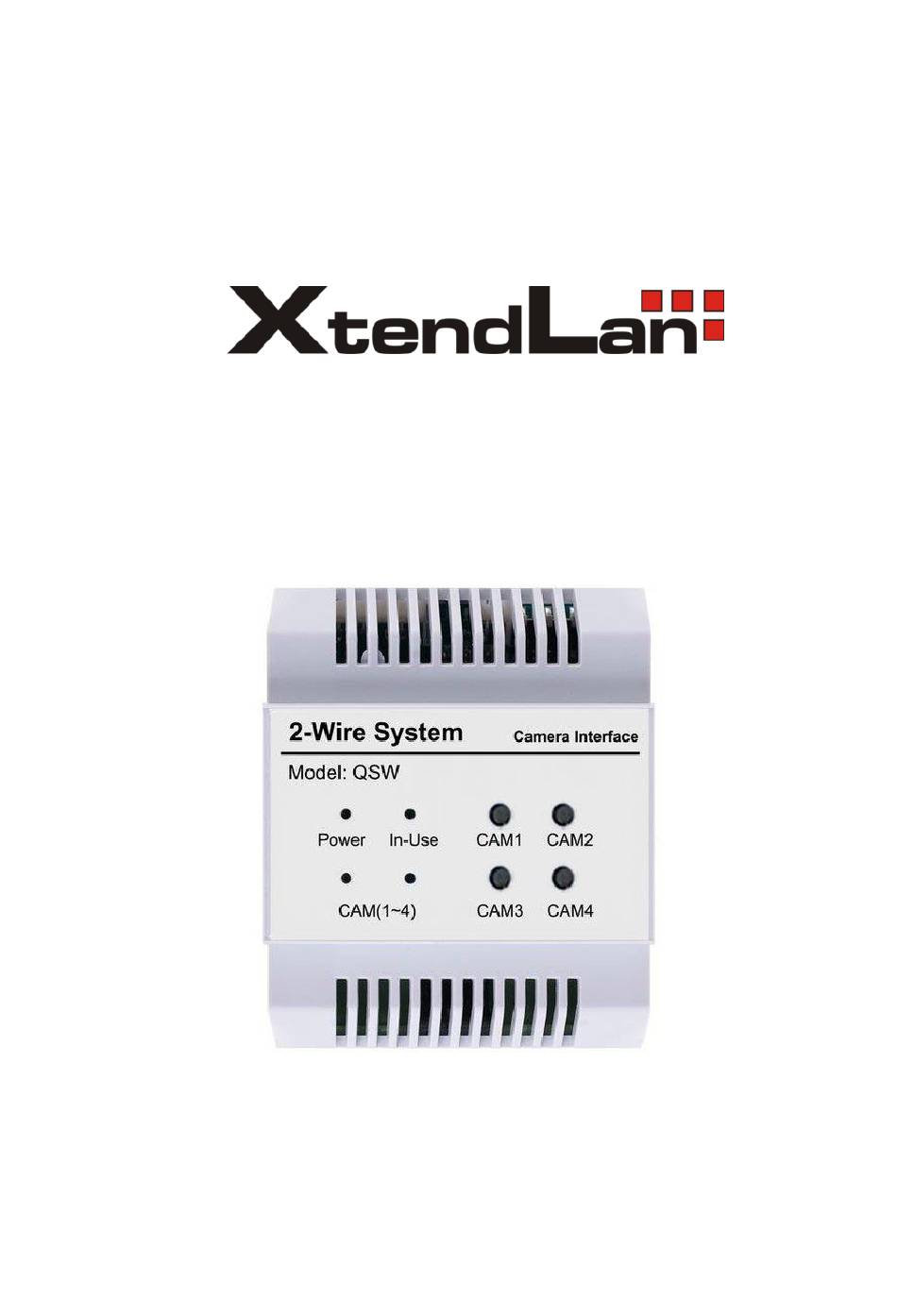

1.About QSW Unit Discription: The QSW module is designed to 2D system for the purpose of video quad splitter, four images from 4 different cameras can be displayed on screen of monitor via QSW unit. NOTE: For monitor which support split display function, it can use the split display function of QSW.
Page 3
INDICATORS: 1.Power: Working indicator, always on when the QSW work normally. 2.In-Use:Video output indicator, always on when the QSW output the video. 3.CAM(1~4):Video output indicator. In-Use CAM(1~4) Description CAM1 video output CAM2 video output CAM3 video output CAM4 video output NOTE: :It shows that the indicator ON;...
Page 4
DIP:DIP switches. Bit State Description set to the first QSW. 3 4 5 6 set to the second QSW. 3 4 5 6 DIP1~DIP2 set to the third QSW. 3 4 5 6 set to the fourthQSW. 3 4 5 6 When set to OFF, it means that the third and fourth cameras unavailable;...
3. Unit Mounting Step1: Mount the din rail to the wall with screws ; Din rail Step2: Pull down the mounting buckle,then hang the unit on din rail. Din rail Mounting Buckle...
4. Wiring Diagram 4.1 Single door station and single QSW applications: 1# Camera 2# Camera 3# Camera 4# Camera BUS(IM) BUS(DS) BUS(OUT) BUS(IN) RF CARD...
Page 7
4.2 Multi door station and two QSW applications: 1# Camera 5# Camera 2# Camera 6# Camera 3# Camera 7# Camera 4# Camera 8# Camera BUS(OUT) BUS(IN) BUS(OUT) BUS(IN) (Device Address:1) (Device Address:0) RF CARD RF CARD A B C D DBC-4A BUS(IM) BUS(DS) NOTE: The system can connect SC6V, but at this time, the DIP6 of DT-QSW...
