Summary of Contents for XtendLan IP SENSOR ESZ-162

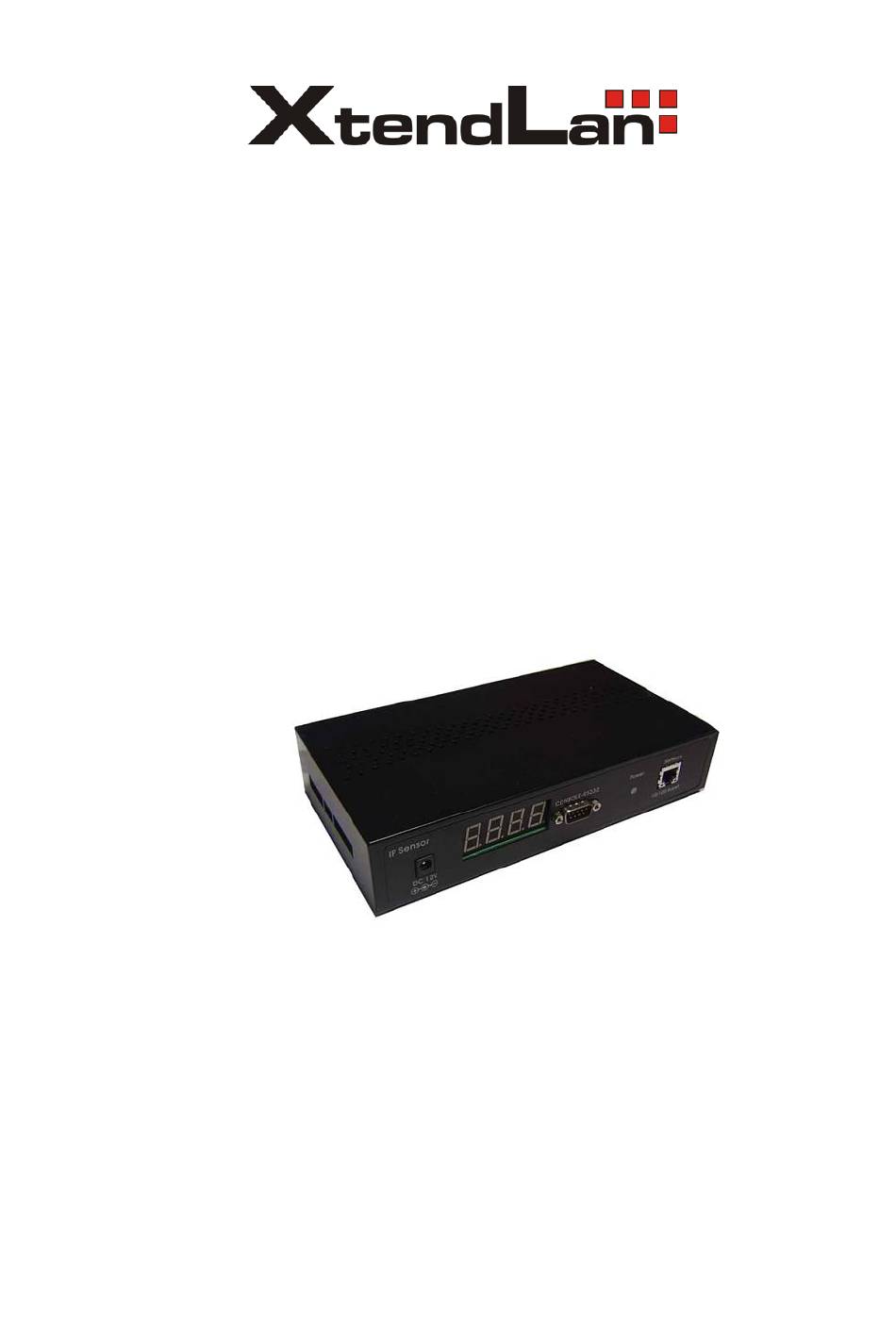

  • Page 1 ESZ-162 USER MANUAL...
  • Page 2 4. Please contact the dealer if IP SENSOR ESZ-162 works improperly. Copyright © 2006 XtendLan. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of XtendLan All other products mentioned in this document are trademarks of their respective manufactures.

  • Page 3: Table Of Contents

    Table of Content 1. INTRODUCTION ........................ 4 ......................... FEATURES ESZ-162 FUNCTION DESCRIBE ....................2. SPECIFICATION ....................... 6 ......................PACKAGE ONTENTS ..................MINIMUM YSTEM EQUIREMENTS 3. INTERFACE DESCRIPTION ..................7 4. HARDWARE & SOFTWARE INSTALLATION ............8 ....................HARDWARE INSTALLATION ....................SOFTWARE INSTALLATION 5.

  • Page 4: Introduction

    1. introduction IP SENSOR ESZ-162 is a web sensor with build-in web server which can be easy used in the industry supervise filed. With the remote net control technology, user can get the IO state of remote equipments, monitoring the voltage, temperature or working state of power supply directly in remote. User can start the fan and when the fan is not working properly it will make an alarm automatically.

  • Page 5: Esz-162 Function Describe

    ESZ-162 function describetions 1. Voltage monitoring of ESZ-162 ESZ-162 can monitor 3 standard voltage of 12V, 5V, 3V. When these 3 under monitoring voltage are beyond of the predetermined upper limit or lower limit, the buzzer will make an alarm as enable . 2.

  • Page 6: Specification

    8. Setting the buzzer User can turn off the buzzer in setup webpage, then buzzer will not alarm . User can turn off the alarm in one monitoring item, so when this monitoring item reach the alarm level , ESZ-162 will not alarm. When one or multiple monitoring item trigger the alarm, you can cancel the alarm by pressing the alarm reset button, but when these monitoring item reach the alarm level again, the buzzer will make an alarm again.

  • Page 7: Interface Description

    3. Interface Description Interface of ESZ-162 is as the figure shows: Description of each port: RJ45 Ethernet port 2. RS232 serial port LED board 4. DC 12V input Port of Fan 3 6. Port of Fan 2 Port of Fan 1 8.

  • Page 8: Hardware & Software Installation

    4. Hardware & Software installation Before you star to use IP SENSOR ESZ-162, please follow the steps below ■ Check the package to make sure the contents is complete. ■ prepare one Ethernet HUB or Router ■ Check the voltage of the power supply to make sure it is AC 110-240 volt Hardware installation Connect the ESZ-162 to HUB through network wire.

  • Page 9: Initial Setting

    ESZ-162. 2. IF user can not enter the control web page, please set the IP address of IP Sensor ESZ-162 and your computer in the same subnet. User can obtain the computer’s IP address, subnet mask, and default gateway through the following method.

  • Page 10: Read Message From Rs232 Serial Port

    *Same subnet : means the first three parts of the IP address must be the same, such as XXX.XXX.X.abc. For example, 192.168.1.100 and 192.168.1.123 are in the same subnet. 4. The default username and password of IP Sensor ESZ-162 are:...

  • Page 11: Control And Setting Throuth The Internet Explore

    6. Control and settings through the Internet Explore Type the new IP address of IP Sensor ESZ-162 in the address field and you can enter the login web page. Input the default username admin and password 12345678, or the password set by you own, click the OK and then you can enter the Web Control page.
  • Page 12 IP settings of ESZ-162 The IP settings of ESZ-162 can be modified through XtendLan Network Assistant or modify it in the webpage. Click the setup option on the left of the webpage; you can enter the IP setting webpage as the figure below shows: Please fill in the new IP address, subnet mask, default gateway etc.
  • Page 13 3. DNS Server In order to make ESZ-162 can sent state report E-mail through the Internet, you need to fill the correct DNS IP address in DNS column. Please refer to your ISP for DNS IP address. 4. DHCP If your local network has a DHCP Server, you can choose to use DHCP server to gain IP address automatically.
  • Page 14 1. DDNS IP Please fill in the IP address of DDNS Server and port number. 2. Domain Please fill in your total domain name in Your Domain column. 3. DDNS user Please fill in the DDNS domain name you applied here. 4.

  • Page 15: Network Ake Up Function

    1. set the outgoing mail server (SMTP) 2. set the incoming mail server (POP3) 3. set the username of mailbox 4. set the password of mailbox 5. set the sender name of the mailbox 6. set the mailbox to receive the incoming E-mail Change the password Click the change password button on the left of the webpage will let user to change the password of ESZ-162.

  • Page 16: Snmp Settings

    NOTICE: user need to enable the ‘network wake’ and ‘PCI wakeup’ option in BIOS settings of the PC you want to wake up. We also suggest user to select ‘former statues’ in ‘power on (manage) after power failure’ option in BIOS settings of the PC, otherwise the network wake up function will not work if the power of the PC have been turned off or the PC have been turned off abnormally.
  • Page 17 - 17 -...

  • Page 18: Monitoring Setting

    Monitoring settings Click the setup sensor button on the left of the webpage to enter the monitoring settings webpage. User can set the values of monitoring voltage, temperature and rotate speed etc. the up limit and lower limit of alarm is calculated according to the percentage of set value.

  • Page 19: External Voltage Level Monitoring

    will alarm. If the monitoring rotate speed of fan backs to the normal range or user press the reset button on the right of ESZ-162, the alarm will stop. external voltage level monitoring ESZ-162 has 16 IO ports which can be used in monitoring external voltage level. Among them, DI1-DI8 are wet contacts, can detect the input voltage level is high or low.

  • Page 20: Control And Setting Throuth Http Command

    Click the Brower button to find the corresponding update file (you can download it from our web site or ask it from the dealer), then click Update button to start update firmware. When the update is finished, you must wait one minute before you restart the IP Sensor ESZ-162. 7. Control and setting throuth HTTP Command User can read the value of ESZ-162 from HTTP command ，the format of http command as follow :...
