Installation and Operation Instructions for the following model:
UNI-MDPHM
Pendant Bracket
CONTENTS OF BOX:

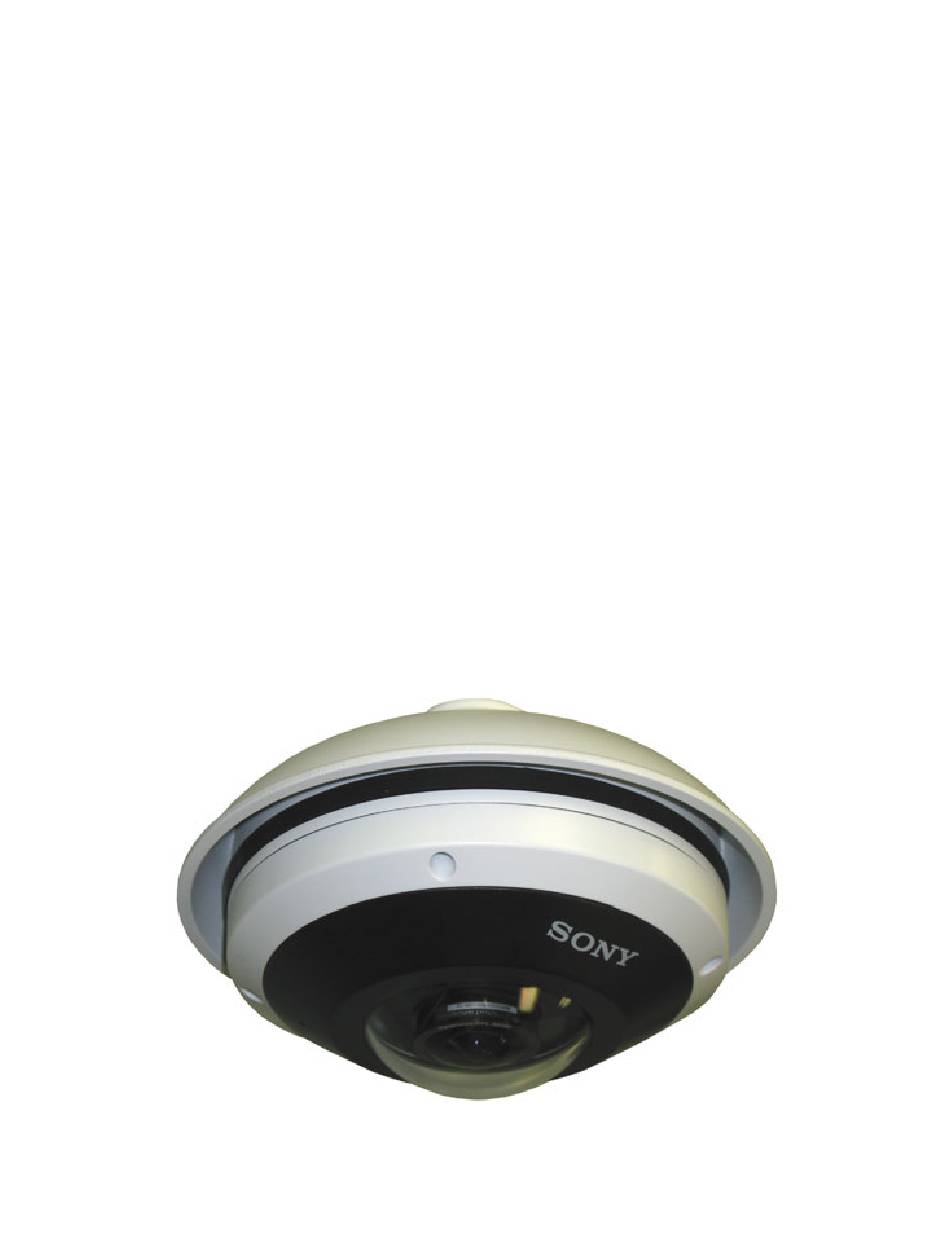

(1) Pendant top (For use with SNC-HM662 camera model)
(1) Packet assembly
(3) M3 x 10mm bolts
(3) M3 lock washers
(1) 1" conduit locknut
(1) Pole sealing grommet
(1) Housing sealing gasket
(1) Roll of teflon tape
(1) Gasket
Moog
- designed
SONY
exclusively for
81-IN6720
03062014
Advertisement
Related Manuals for Sony UNI-MDPHM
Summary of Contents for Sony UNI-MDPHM
- Page 1 Moog - designed SONY exclusively for Installation and Operation Instructions for the following model: UNI-MDPHM Pendant Bracket CONTENTS OF BOX: (1) Pendant top (For use with SNC-HM662 camera model) (1) Packet assembly (3) M3 x 10mm bolts (3) M3 lock washers (1) 1”...
-
Page 2: Important Safeguards
à presença de instruções importantes na literatura que acompanha o dispositivo. If technical support or service is needed, contact Sony at the following number: Questo simbolo del punto del exclamaton è inteso per avvertire l’utente alla presenza delle istruzioni importanti nella letteratura che accompagna l’apparecchio. - Page 3 Mount 1” NPT pendant pipe in the desired location (NOT supplied). Or use the UNI-WMB4 gooseneck wall mount bracket. Slide pole grommet onto 1” pipe. • Mount 1 "tubería colgante NPT en el lugar deseado (No suministrado). O utilice el cuello de cisne UNI-WMB4 soporte de pared. •...
- Page 4 Arrow Mark Tighten and align the arrow mark of the pendant cap Tighten 1” nut. towards the center of the area of interest. • Apriete y alinee la marca de la flecha de la tapa pendiente hacia el • Apretar tuerca de 1 ". centro de la zona de interés.
- Page 5 Attach (3) 3mm screw with lock washers to Remove cover from 360° camera using the tool the housing. provided with the camera. • Coloque el tornillo de (3) 3 mm con arandelas de seguridad • Quite la cubierta de la cámara de 360° utilizando la herramienta proporcionada con la cámara.
- Page 6 Rotate the camera counterclock wise to hold. Secure 3mm screws and lock washers. • Asegure los tornillos de 3 mm y arandelas de seguridad. • Gire la cámara hacia la izquierda para sostener. • Fixez les vis de 3mm et les rondelles de blocage. •...
