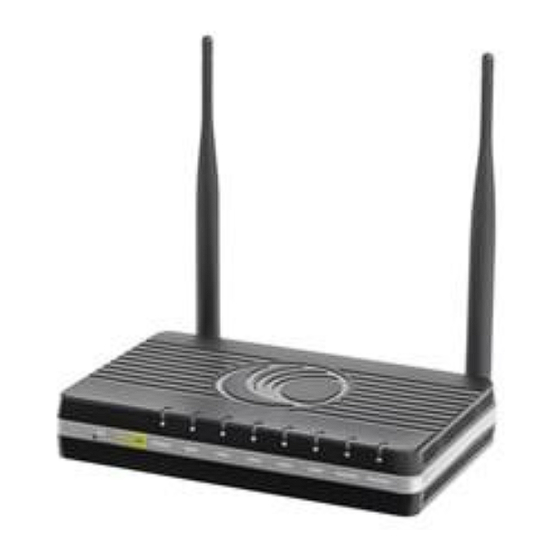

Cambium Networks cnPilot Home R200 Series User Manual

Cambium Networks cnPilot Home R200 Series User Manual

Home & small business wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
cnPilot Home & Small

Advertisement

Table of Contents
loading

Related Manuals for Cambium Networks cnPilot Home R200 Series

Summary of Contents for Cambium Networks cnPilot Home R200 Series

  • Page 1 cnPilot Home & Small...
  • Page 2 System Release V4.00 For: R200x and R201x models Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
  • Page 3 Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities). Cambium and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. © 2015 Cambium Networks, Inc. All Rights Reserved. pmp-0884 (September) Warnings, cautions and notes...
  • Page 4 The following describes how warnings and cautions are used in this document and in all documents of the Cambium Networks document set. Warnings Warnings precede instructions that contain potentially hazardous situations. Warnings are used to alert the reader to possible hazards that can cause loss of life or physical injury. A warning has the following format: Cautions Cautions precede instructions and are used when there is a possibility of damage to systems, software, or individual items of equipment within a system.
  • Page 5 Declaration of Conformity ----------------------------------------------------------------------------------------------------------------------- 16 Part 15 FCC Rules ---------------------------------------------------------------------------------------------------------------------------- 16 Class B Digital Device or Peripheral ----------------------------------------------------------------------------------------------------- 16 GNU GPL Information ----------------------------------------------------------------------------------------------------------------------- 16 Contacting Cambium Networks ---------------------------------------------------------------------------------------------------------- 17 Chapter 1: Overview ..................1 -------------------------------------------------- 17 cnPilot Home R200x/R201x ....................... 1 ---------------------- 2 cnPilot Home R200x LED Indicators and Interfaces ................
  • Page 6 pmp-0884 (September)

  • Page 7: Table Of Contents

    Contents Administration .......................... 3-71 Management ..........................3-71 TR069 ............................3-80 System Log ..........................3-83 Logout ............................3-83 Reboot ............................3-83 Chapter 4: Troubleshooting Guide ..............4- Configuring PC to get IP Address automatically ................4-2 Cannot connect to the Web GUI ....................4-2 Forgotten Password ........................
  • Page 8 pmp-0884 (September) List of Figures List of Figures Figure 1 Login Prompt – LAN Port ......................2-2 Figure 2 Login Prompt – WAN Port ......................2-2 Figure 3 Multi VLAN ..........................3-11 Figure 4 Multi WAN network ........................ 3-12 Figure 5 LAN ............................
  • Page 9 List of Tables pmp-0884 (September) List of Tables Table 1 Key Features at-a-glance ....................1-2 Table 2 cnPilot Home R200x LED Indicators ................. 1-3 Table 3 cnPilot Home R200x Interfaces ..................1-4 Table 4 cnPilot Home R201x LED Indicators ................. 1-5 Table 5 cnPilot Home R201x Interfaces ..................
  • Page 10 Table 34 Routing ..........................3-29 Table 35 Basic ..........................3-30 Table 36 Wireless security ......................3-33 Table 37 WiFI Security Setting ..................... 3-34 Table 38 WPA-PSK ........................3-35 Table 39 WPAPSKWPA2PSK ....................... 3-35...
  • Page 11 List of Tables Table 40 Wireless Access Policy ....................3-36 Table 41 WMM ..........................3-37 Table 42 WDS ..........................3-38 Table 43 WPS ..........................3-39 Table 44 Station info ........................3-40 Table 45 Advanced ........................3-41 Table 46 Wireless security ......................3-43 Table 47 SIP settings ........................
  • Page 12 Table 84 Operating mode ......................3-82 Table 85 System log ........................3-83 Table 86 Logout ..........................3-83 pmp-0884 (...
  • Page 13 List of Tables About This User Guide Thank you for choosing Cambium cnPilot Home & Small Business WiFi router with ATA and optional PoE support. This manual provides basic information about how to install and deploy the cnPilot Home R200x or the R201x WiFi routers with VoIP to the Internet.
  • Page 14 September ) pmp-0884 (...
  • Page 15 Declaration of Conformity Part 15 FCC Rules This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 Contacting Cambium Networks Support website http://www.cambiumnetworks.com/support/ Cambium main website http://www.cambiumnetworks.com/ Sales enquiries sales@cambiumnetworks.com Email support support@cambiumnetworks.com Telephone numbers For full list of Cambium support telephone numbers, see: http://www.cambiumnetworks.com/support/contact-support Address Cambium Networks 3800 Golf Road, Suite 360 Rolling Meadows, IL 60008...
  • Page 17 Overview September ) pmp-0884 (...

  • Page 18: Table 1 Key Features At-A-Glance

    Overview cnPilot Home R200x/R201x Table 1 Key Features at-a-glance Port / cnPilot cnPilot cnPilot cnPilot cnPilot Home R201W Interface Home R200 Home R200P Home R201 Home R201P 1xFE in RJ45 1xGE in RJ45 4xFE in RJ45 4xGE in RJ45 2X2 2.4GHz 802.11 b/g/n (300 2X2 2.4GHz 802.11 b/g/n Mbps) Wi-Fi...

  • Page 19: Table 3 Cnpilot Home R200X Interfaces

    Overview On (Green) Port is connected at 100Mbps The port is disconnected 1/2/3/4 Blinking (Green) Transmitting data On (Green) Port is connected with 100Mbps The port is disconnected Blinking (Green) Blinks while transmitting data On (Green) The router is powered on and running normally POWER The router is powered off On (Green)

  • Page 20: Table 5 Cnpilot Home R201X Interfaces

    Overview cnPilot Home R201x LED Indicators and Interfaces Status Explanation On (Green) Connected Disconnected On (Green) Wireless access point is ready 2.4G/5G LAN Blinking (Green) The port is passing data 1/2/3/4 On (Green) The port is connected at 100Mbps The port is disconnected Blinking (Green) The data is transmitting On (Green)
  • Page 21 Overview ON/OFF Power Switch POWER Connector for a power adapter USB interface LAN (1/2/3/4) Connectors for local networked devices Connector for accessing the Internet Hardware Installation and Setup via cnMaestro Before configuring your router, please see the procedure below for instructions on connecting the cnPilot Home device in your network.
  • Page 22 Overview If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
  • Page 23 Overview Configuration template files (to enable rapid configuration setup) are available to help get started quickly with cnMaestro at ( http://community.cambiumnetworks.com ). After loading these configuration files, you may override configuration parameter values and manage software setup via cnMaestro. Accessing Configuring cnPilot Devices via...
  • Page 24 Overview Warning Please attempt unsupported power adapters remove power during configuring updating cnPilot Home R200x/R201x device. Using other power adapters damage cnPilot Home R200x/R201x will void manufacturer warranty. Warning Changes modifications expressly approved the party responsible compliance void user’s authority operate equipment.

  • Page 25: Table 6 Voice Menu Setting Options

    Overview cnPilot Home devices may be configured by navigating the unit’s voice menu. By using your phone and dialing a sequence of commands, the device may be configured for operation. Each device configuration section may be accessed by entering a certain operation code, as shown below. Table 6 Voice Menu Setting Options Operation Menu Navigation code...
  • Page 26 Overview 1. 2. Pick up phone and press “****” to start IVR Choose “4”, and cnPilot Home R200x/R201x reports current gateway Input the new gateway and press “#” key: Use “*” to replace “.”, user can input 192*168*20*1 to set the new gateway 192.168.20.1. Gateway 4.
  • Page 27 Overview 6. Report “operation successful” if user operation is successful. 1. Pick up phone and press “****” to start IVR Firmware 2. Choose “0” and CnPilot Home R200x/R201x reports the current Firmware version Version While using Voice menu, press * (star) to return to main menu. If any changes made in the IP assignment mode, the router must be rebooted in order for the settings to take effect.
  • Page 29 Configuring Basic Settings Chapter 2: Configuring Basic Settings This chapter covers: • Two-Level Management • Web Management Interface • Configuring • Making a Call Two-Level Management This section explains how to setup a password for an administrator or user and how to adjust basic and advanced settings.
  • Page 30 Configuring Basic Settings September ) Figure 1 Login Prompt – LAN Port For administrator mode operation, please type admin/admin on Username/Password and click Login to begin configuration. For user mode operation, please type user/user on Username/Password and click Login to begin configuration.

  • Page 31: Table 7 Web Management Interface

    Configuring Basic Settings The web management interface automatically logs out the user after 5 minutes of inactivity. Web Management Interface Details Table 7 Web management interface Field Name Description Click an option in Top Navigation bar (area marked as “1”). Multiple options in the Sub- Top Navigation bar navigation bar are displayed Click the Sub-navigation bar to choose a configuration page (area marked as “2”)
  • Page 32 Configuring Basic Settings Parameter This area displays the current parameters for configuration (e.g. area marked as “3”) configuration Any time changes are made click "Save" to confirm and save the changes. On click of “Save” button, a red message will be displayed as shown below to notify a reboot.

  • Page 33: Table 9 Configuring An Internet Connection

    Configuring Basic Settings Synchronization (1- The synchronization period with NTP (1-1440 minutes), default is 60 1440m) Configuring an Internet Connection From the Network > WAN page, WAN connections may be inserted or deleted. For more information on Internet Connection setting, see Table 9 below.
  • Page 34 Configuring Basic Settings IP Protocol Version IPv4 supported WAN IP Mode Choose Internet connection mode, DHCP, PPPoE, or Bridge NAT Enable Enable or disable NAT VLAN ID Set VLAN ID DNS Mode Select DNS mode, options are Auto and Manual: 1.

  • Page 35: Table 10 Wireless > Basic Web Page (User View)

    Configuring Basic Settings Setting up Wireless Connections To set up the wireless connection, please perform the following steps. Enable Wireless and Setting SSID Open Wireless > Basic webpage as shown below: Table 10 Wireless > Basic web page (user view) Field Name Description Select “Radio Off”...
  • Page 36 Configuring Basic Settings another on virtual networks Disabled: Devices connected to the router are visible on the network to each other Enabled: Devices connected to the router via one of the Multiple SSIDs are isolated from one another on virtual networks MBSSID AP Isolation Disabled: Devices connected to the router via one of the Multiple SSIDs are visible on the network to each other...

  • Page 37: Table 11 Wireless Security Web Page

    Configuring Basic Settings Encryption Open Wireless/Wireless Security webpage to configure custom security parameters. Table 11 Wireless Security web page Field Name Description Choose the SSID from the drop-drown list for which security will be configured SSID Choice Select an appropriate encryption mode to improve the security and privacy of your wireless data packets.
  • Page 38 Configuring Basic Settings Disable: Access policy rules are not enforced Allow: Only allow the clients in the station MAC list to access Policy Rejected: Block the clients in the station MAC list from registering Add a Station MAC Enter the MAC address of the clients which you want to allow or reject Configuring Session Initiation Protocol (SIP) SIP Accounts cnPilot Home devices have 2 FXS ports to make SIP (Session Initiation Protocol) calls.

  • Page 39: Table 12 Configuring Sip Via The Web Management Interface

    Configuring Basic Settings Configuring SIP via the Web Management Interface Table 12 Configuring SIP via the Web Management Interface Procedure Open the FXS1 (FXS2)/SIP Account webpage, as illustrated above. Fill the SIP Server address and SIP Server port number (from administrator or provider) into Proxy Server Name and into Proxy Port parameters.
  • Page 40 Configuring Basic Settings Viewing the Registration Status Procedure To view the SIP account status of device, open the Status webpage and view the value of Making a Call Calling phone or extension numbers To make a phone or extension number call: •...
  • Page 41 Configuring Basic Settings Direct IP calls Direct IP calling allows two phones, that is, an ATA with an analog phone and another VoIP Device, to talk to each other without a SIP proxy. VoIP calls can be made between two phones if: •...
  • Page 42 Conference Assume that call party A and B are in a conversation. A wants to add C to the conference: Party A dials “*77” to hold the party B, when hear the dial tone, A dial C’s number, then party A and party C are in conversation.
  • Page 43 Web Configuration Chapter 3: Web Configuration This chapter guides users to execute advanced (full) configuration through admin mode operation. This chapter covers: • Login • Status • Network and Security • Wireless • • FXS1 • FXS2 • Security • Application •...
  • Page 44 Web Configuration September ) Login Procedure 1. Connect the LAN port of the router to your PC vi an Ethernet cable 2. Open a web browser on your PC and type http://192.168.11.1. 3. Enter Username admin and Password admin. 4. Click Login pmp-0884 (September) 3-16...
  • Page 45 Web Configuration Status Description This webpage shows the status information about the Product, Network, and System including Product Information, SIP Account Status, FXS Port Status, and Network Status. pmp-0884 (September)

  • Page 46: Table 16 Internet

    Web Configuration Network and Security You can configure the WAN port, LAN port, DDNS, Multi WAN, DMZ, MAC Clone, Port Forward and other parameters in this section of the web management interface. This page allows you to set WAN configuration with different modes. Use the Connection Type drop down list to choose one WAN mode and then the corresponding page will be displayed.

  • Page 47: Table 17 Dhcp

    Web Configuration Secondary DNS Address The secondary DNS of Internet port DHCP The Router has a built-in DHCP server that assigns private IP address to each local client. The DHCP feature allows to the cnPilot Home to obtain an IP address automatically from a DHCP server. In this case, it is not necessary to assign an IP address to the client manually.
  • Page 48 Web Configuration pmp-0884 (September)
  • Page 49 Web Configuration PPPoE PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a common broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet can share a common connection. PPPoE is used for most of DSL modem users.
  • Page 50 Web Configuration and Manual: • When the mode is Keep Alive, the user sets the 'keep alive redial period' values range from 0 to 3600s, the default setting is 5 minutes; • When the mode is On Demand, the user sets the 'on demand idle time' value in the range of 0-60 minutes, the default setting is 5 minutes;...
  • Page 51 Web Configuration Bridge Mode Bridge Mode under Multi WAN is different with traditional bridge setting. Bridge mode employs no IP addressing and the device operates as a bridge between the WAN port and the LAN port. Route Connection has to be built to give IP address to local service on device.
  • Page 52 Web Configuration DHCP Snooping When gateway forwards DHCP packets form LAN to WAN it will add option82 to DHCP packet, and it will remove option82 when forwarding DHCP packet from the WAN interface to the LAN interface. Local DHCP service will not allocate IP to clients of LAN port. Local Service Gateway will not forward DHCP packets between LAN and WAN, it also blocks DHCP packets from the WAN port.
  • Page 53 Web Configuration Connect Name and Service Table 20 Connect name Content Define Comment WAN Connection identifier 1～99 Service TR069 The connection supports management applications i.e. R069, WEB, SNMP and Provision INTERNET The connection solely supports internet service TR069_INTERNET The connection supports management and internet applications VOICE The connection supports voice applications, like SIP and RTP TR069_VOICE...
  • Page 54 Web Configuration Multi WAN Setting Overview Multi WAN is used to implement the distribution of different kinds of services, and device’s Multi WAN supports the distribution of data services, voice services and management services. By setting different VLANs, different kinds of data is distributed to the corresponding networks. For example, INTERNET and Other VLAN supports data transmission, VOICE VLAN supports voice transmission and TR069 VLAN supports WEB, Telnet and TR069 services transmission.
  • Page 55 Web Configuration Setting up the Internet Connection From the WAN page, a multi WAN connection can be created or deleted. See below for more information on configuring these settings. Connect Name and Service Service TR069 The connection supports management applications including TR069, WEB, SNMP and Provision INTERNET The connection supports Internet service...

  • Page 56: Table 22 Bridge Mode

    Web Configuration TR069_INTERNET The connection supports management and internet applications VOICE The connection support voice applications like SIP and RTP TR069_VOICE The connection supports both management and voice applications VOICE_INTERNET The connection supports voice and Internet applications TR069_VOICE_INTERNET The connection supports management, voice and Internet applications Other The connection support STB...
  • Page 57 Web Configuration Field Name Description Bridge Type IP Bridge Allows all Ethernet packets to pass. A PC can connect to upper network directly. PPPoE Bridge Only Allows PPPoE packets pass. The PC needs PPPoE dial-up software. Hardware IP Bridge Packets pass through hardware switch at wired speed. Does not support wireless port binding.
  • Page 58 Web Configuration Local Service The device will not forward DHCP packets between the LAN interface and the WAN interface, and it also blocks DHCP packets from the WAN port. Clients of the LAN port can retrieve IP addressing from the DHCP server in the device.
  • Page 59 Web Configuration Fast Bridge Setting Step 1 Login to the web management interface of the cnPilot Device. Navigate to Page Administration- >Operating Mode. Set Operating mode to Basic Mode. Click Save. Step 2 Open Network->WAN, Change NAT Enable to Disable. Click Save then Reboot. The device is now operating in Bridge mode.
  • Page 60 Web Configuration LAN Port NAT translates the packets from public IP address to local IP address to forward packets to the proper destination. pmp-0884 (September) 3-18...
  • Page 61 Web Configuration Field Name Description IP Address Enter the IP address of the router on the local area network. All the IP addresses of the computers which are in the router’s LAN must be in the same network segment with this address, and the default gateway of the computers must be this IP address.
  • Page 62 Web Configuration DNS Mode Select DNS mode, options are Auto and Manual: When DNS mode is Auto, the device under LAN port will automatically obtains the preferred DNS and alternate DNS. When DNS mode is Manual, the user should manually configure the preferred DNS and alternate DNS.

  • Page 63: Table 24 Dhcp Server Settings

    Web Configuration DHCP Server The router has a built-in DHCP server that assigns private IP address to each local client. DHCP stands for Dynamic Host Configuration Protocol. The router, by factory default acts a DHCP server for your network so it automatically dispatches related IP settings to any local user configured as a DHCP client. It is highly recommended that you leave the router enabled as a DHCP server if you do not have a DHCP server for your network.
  • Page 64 Web Configuration Specify the Primary DNS address provided by your ISP. If your ISP does not provide it, the router will automatically apply default DNS Server IP address: Primary DNS 202.96.134.33 to this field. Specify the Secondary DNS address provided by your ISP. If your ISP does not provide this address, the router will automatically apply default Secondary DNS Server IP of 202.96.128.86 to this field.

  • Page 65: Table 26 Mac Clone

    Web Configuration MAC Clone Some ISPs will require you to register your MAC address. If you do not wish to re-register your MAC address, you can have the router clone the MAC address that is registered with your ISP. To use the Clone Address button, the computer accessing the web management interface will have the MAC address automatically entered in the Clone WAN MAC field.

  • Page 66: Table 28 Dmz

    Web Configuration DMZ Host IP Address Enter the private IP address of the DMZ host. Field Name Description VPN Enable Enable/Disable VPN. If the VPN is enabled, user can select PPTP and L2TP mode VPN. Initial Service IP Enter VPN server IP address. User Name Enter authentication username.

  • Page 67: Table 29 Ddns Setting

    Web Configuration DDNS Setting Table 29 DDNS setting Field Name Description Dynamic DNS Provider DDNS is enabled and select a DDNS service provider. Account Enter the DDNS service account. Password Enter the DDNS service account password. DDNS Enter the DDNS domain name or IP address. Status See if DDNS is successfully upgraded.
  • Page 68 Web Configuration Field Name Description Comment Sets the name of a port mapping rule or comment IP Address The IP address of devices under the LAN port. Port Range Set the port range for the devices under the LAN port. (1-65535) Protocol You can select TCP, UDP, TCP &...

  • Page 69: Table 31 Advance

    Web Configuration Apply/Cancel After finish configurations, click apply, the number will be generated under NO. List; click Cancel to if you do not want to make the changes. Advance Table 31 Advance Field Name Description Most Nat connections The largest value which the cnPilot Home R200x can provide Mss Mode Choose Mss Mode from Manual and Auto Mss Value...

  • Page 70: Table 33 Qos

    Web Configuration Field Name Description WAN Port speed Nego Auto-negotiation, options are Auto, 100M full, 100M half-duplex, 10M half and full. LAN1~LAN4 Port Speed Nego Auto-negotiation, options are Auto, 100M full, 100M half, 10M half and 10M full. Table 33 QoS pmp-0884 (September) 3-28...
  • Page 71 Web Configuration Field Name Description QoS Enable Enable/Disable QoS function Upstream Set the upstream bandwidth Delete Selected In NO., Check the items you want to delete, click the Delete option Click Add to add a new parameter Routing Table 34 Routing Field Name Description Destination...
  • Page 72 Web Configuration Wireless Field Name Description Radio on/off Select “Radio off” to disable wireless. Select “Radio on” to enable wireless. Wireless connection mode According to the wireless client type, select one of these modes. Default is AP Network Mode Choose one network mode from the drop down list. Default is 11b/g/n mixed mode pmp-0884 (September) 3-30...
  • Page 73 Web Configuration SSID It is the basic identity of wireless LAN. SSID can be any alphanumeric or a combination of special characters. It will appear in the wireless network access list. Multiple SSID1~SSID3 CnPilot Home R200x supports 4 SSIDs. Hidden After the item is checked, the SSID is no longer displayed in the search for the Wi- Fi wireless network connection list Broadcast(SSID)
  • Page 74 Web Configuration Space-time Block Code Enabled: Multiple copies of signals are transmitted to increase the chance of STBC successful delivery Disabled: STBC is not employed for signal transmission Enabled: Allows the device to aggregate multiple Ethernet frames into a single 802.11n, thereby improving the ratio of frame data to frame overhead Aggregation MSDU (AMSDU) Disabled: No frame aggregation is employed at the router...
  • Page 75 Web Configuration Wireless Security Field Name Description Choose one SSID from SSID, Multiple SSID1, Multiple SSID2 and Multiple SSID3. SSID Choice Select an appropriate encryption mode to improve the security and privac of your wireless data packets. Security Mode Each encryption mode will bring out different web page and ask you to offer additional configuration.
  • Page 76 Web Configuration Field Name Description Security Mode This is used to select one of the 4 WEP keys, key settings on the clients should be the same with this when connecting. WEP Keys Set the WEP key. A-64 key need 10 Hex characters or 5 ASCII characters; choose A- 128 key need 26 Hex characters or 13 ASCII characters.
  • Page 77 Web Configuration Field Name Description WPA Algorithms This item is used to select the encryption of wireless home gateway algorithms, options are TKIP, AES and TKIPAES. Pass Phrase Setting up WPA-PSK security password. Key Renewal Interval Set the key scheduled update cycle, default is 3600s. WPAPSKWPA2PSK manner is consistent with WPA2PSK settings: Table 39 WPAPSKWPA2PSK Field Name...
  • Page 78 Web Configuration ordinary home users and small businesses. Wireless Access Policy: Field Name Description Access policy Wireless access control is used to allow or prohibit the specified client to access to your wireless network based on the MAC address. Policy Disable : Prohibition: wireless access control policy.
  • Page 79 Web Configuration Description WMM (Wi-Fi Multi-Media) is the QoS certificate of Wi-Fi Alliance (WFA). This provides you to configure the parameters of wireless multimedia; WMM allows wireless communication to define a priority according to the home gateway type. To make WMM effective, the wireless clients must also support WMM. pmp-0884 (September) 3-37...
  • Page 80 Web Configuration Description WDS stands for Wireless Distribution System, enabling WDS access points to be interconnected to expand a wireless network. WPS (Wi-Fi Protected Setup) provides easy procedure to make network connection between wireless station and wireless access point with the encryption of WPA and WPA2. It is the simplest way to build connection between wireless network clients and wireless access point.
  • Page 81 Web Configuration Field Name Description WPS Setting Enable/Disable WPS function WPS Summary Display the current status of WPS, including current state, SSSID name, authentication methods, encryption type and the PIN code of this AP. Generate Generate a new PIN code Reset OOB CnPilot Home R200x uses default security policy to allow other non-WPS users to access and apply.
  • Page 82 Web Configuration and then it can access the wireless AP automatically. • PBC：There are two ways to start PBC mode, user can press the PBC button directly on the device, or select PBC mode on the software and apply. Users can activate WPS connection in WPS mode through these two methods, only when the clients choose PBC access, the clients can connect the AP automatically.
  • Page 83 Web Configuration Advanced Field Name Description BG Protection Select G protection mode, options are on, off and automatic. Mode Beacon Interval The interval of sending a wireless beacon frame, within this range, it will send a beacon frame for the information of the surrounding radio network. Data Beacon Rate(DTIM) Specify the interval of transmitting the indication message, it is a kind of cut down operation, and it is used for informing the next client which is going to receive broadcast multi-cast.
  • Page 84 Web Configuration RTS Threshold Specify the packet RTS threshold, when the packet exceeds this value, the router will send RTS to the destination site consultation TX Power Define the transmission power of the current AP, the greater it is, the stronger the signal is.
  • Page 85 Web Configuration Wireless Security Table 46 Wireless security Field Name Description Choose one SSID from SSID, Multiple SSID1, Multiple SSID2 and Multiple SSID3. SSID Choice Select an appropriate encryption mode to improve the security and privacy of your wireless data packets. Security Mode Each encryption mode will bring out different web page and ask you to offer additional configuration.
  • Page 86 Web Configuration Space-time Block Code Enabled: Multiple copies of signals are transmitted to increase the chance of STBC successful delivery Disabled: STBC is not employed for signal transmission Aggregation MSDU (A- Enabled: Allows the device to aggregate multiple Ethernet frames MSDU) into a single 802.11n, thereby improving the ratio of frame data to frame overhead...
  • Page 87 Web Configuration See Advanced. Field Name Description SIP T1 The minimum scale of retransmission time Max Forward SIP contains Max Forward message header fields used to limit the requests for forwards. SIP Reg User Agent The agent name of SIP registered user Name pmp-0884 (September) 3-45...
  • Page 88 Web Configuration Max Auth The maximum number of retransmissions Mark All AVT Packets Voice packet marking to enable this item will see the mark on the voice message when the call environment changed (such as press a key during the call) RFC 2543 Call Hold Enable the Connection Information field displays the address is 0.0.0.0 in the invite message of Hold.
  • Page 89 Web Configuration SIP /RTP QoS The default value is 0,you can set a range of values is 0~63 FXS1 SIP Account Basic Set the basic information provided by your VOIP Service Provider, such as Phone Number, Account, password, SIP Proxy and others. –...
  • Page 90 Web Configuration Proxy port SIP Service port, default is 5060 Outbound Port Outbound Proxy’s Service port, default is 5060 Backup Outbound Backup Outbound Proxy’s Service port, default is 5060 Port Display Name The number will be displayed on LCD Phone Number Enter telephone number provided by SIP Proxy Account Enter SIP account provided by SIP Proxy...
  • Page 91 Web Configuration Audio Codec Type5 Choose the audio codec type from G.711U, G.711A, G.722, G.729, G.723 G.723 Coding Speed Choose the speed of G.723 from 5.3kbps and 6.3kbps Packet Cycle The RTP packet cycle time, default is 20ms pmp-0884 (September) 3-49...
  • Page 92 Web Configuration Silence Supp Enable/Disable silence support. Echo Cancel Enable/Disable echo cancel. By default, it is enabled. Auto Gain Control Enable/Disable auto gain. T.38 Enable Enable/Disable T.38 T.38 Redundancy Enable/Disable T.38 Redundancy T.38 CNG Detect Enable Enable/Disable T.38 CNG Detect gpmd attribute Enable Enable/Disable gpmd attribute.
  • Page 93 Web Configuration MWI Subscribe Enable Enable/Disable MWI Subscribe Voice Mailbox Fill in the voice mailbox phone number, Asterisk platform, for example, its default voice Numbers mail is *97 VMWI Serv Enable/Disable VMWI service. Enable/Disable DND (do not disturb). If enable, any phone call cannot arrive at the device; default is disable. Enter the speed dial phone numbers.
  • Page 94 Web Configuration Domain Name Type If or not use domain name in the SIP URI. Carry Port If or not carry port information in the SIP URI. Information Signal Port The local port of SIP protocol, default is 5060. DTMF Type Choose the DTMF type from Inbound, RFC2833 and SIP INFO.
  • Page 95 Web Configuration Proxy DNS Type Set the DNS server type, choose from A type and DNS SRV. Use OB Proxy In Dialog If or not use OB Proxy In Dialog. Reg Subscribe Enable If enable, subscribing will be sent after registration message, if not enable, do not send subscription.
  • Page 96 Web Configuration Field Name Description Tone Type Choose tone type form China, US, Hong Kong and so on. Dial Tone Dial Tone Busy Tone Busy Tone Off Hook Warning Off Hook warning tone Tone Ring Back Tone Ring back tone Call Waiting Tone Call waiting tone Min Jitter Delay...
  • Page 97 Web Configuration VMWI Ring Splash Set the VMWI ring splash length, default is 0.5s. Len(sec) Flash Time Max(sec) Set the Max value of the device’s flash time, the default value is 0.9 Flash Time Min(sec) Set the Min value of the device’s flash time, the default value is 0.1 Features and Call Forward All Forward Enable/Disable forward all calls...
  • Page 98 Web Configuration No Answer Timeout The seconds to delay forwarding calls, if there is no answer at your phone. Hold key code Call hold signatures, default is *77. Feature Conference key code Signature of the tripartite session, default is *88. Code Transfer key code Call forwarding signatures, default is *98.
  • Page 99 Web Configuration Impedance Maching Set impedance matching, default is US PBX,Korea,Taiwan(600). CID service Enable/Disable displaying caller ID; If enable, caller ID is displayed when there is an incoming call or it won’t be displayed. Default is enable. CWCID Service Enable/Disable CWCID. If enable, the device will display the waiting call’s caller ID, or it won’t display.
  • Page 100 Web Configuration Dial Plan Parameters and Settings Field Name Description Dial Plan Enable/Disable dial plan. Line Set the line. Digit Map Enter the sequence used to match input number The syntactic, please refer to the following Dial Plan Syntactic Action Choose the dial plan mode from Deny and Dial Out.
  • Page 101 Web Configuration Move Down Move the dial plan down the list Adding one Dial Plan Step 1. Enable Dial Plan Step 2. Click Add button, and the configuration table Step 3. Fill in the value of parameters. Step 4. Press OK button to end configuration. Dial Plan Syntactic Table 59 Dial Plan String...
  • Page 102 Web Configuration Match to For example: “01.”:can match ”0”, “01”, “011”, ”0111”, …….., ”01111…” <dialed:substituted> Replace dialed with substituted. For example： <8:1650>123456：input is “85551212”, output is“16505551212” Make outside dial tone after dialing “x”, stop until dialing character “y” 6 For example： “9,1xxxxxxxxxx”:the device reports dial tone after inputting “9”, stops tone until inputting “1”...
  • Page 103 Web Configuration Blacklist In this page, user can upload or download blacklist file, and can add or delete or edit blacklist one by one. Select one contact and click edit to change the information, click delete to delete the contact, click Move to phonebook to move the contact to phonebook.
  • Page 104 Web Configuration Answered Calls pmp-0884 (September) 3-62...
  • Page 105 Web Configuration Missed Calls pmp-0884 (September) 3-63...
  • Page 106 Web Configuration FXS2 The settings of FXS2 are the same as FXS1. See FXS1 on page 3-47. pmp-0884 (September) 3-64...
  • Page 107 Web Configuration Security Field Name Description Filtering Enable/Disable filter function Default Policy Choose to drop or accept filtered MAC addresses Mac address Add the Mac address filtering Dest IP address Destination IP address Source IP address Source IP address Protocol Select a protocol name, support for TCP, UDP and TCP/UDP Dest.
  • Page 108 Web Configuration Delete Delete selected item pmp-0884 (September) 3-66...
  • Page 109 Web Configuration pmp-0884 (September) 3-67 Field Name Description...
  • Page 110 Web Configuration Filtering Enable/Disable content Filtering Content Filtering pmp-0884 (September) 3-68...
  • Page 111 Web Configuration Default Policy The default policy is to accept or to prohibit filtering rules Current Webs URL List the URL filtering rules that already existed (blacklist) Filters Delete/Cancel You can choose to delete or cancel the existing filter rules Add a URL Filter Add URL filtering rules Add/Cancel...
  • Page 112 Web Configuration Application UPnP UPnP (Universal Plug and Play) supports zero-configuration networking, and can automatically discover a variety of networked devices. When UPnP is enabled, the connected device is allowed to access the network, obtain an IP address, and convey performance information. If the network has a DHCP and DNS server, the connected device can automatically obtain DHCP and DNS services.
  • Page 113 Web Configuration IGMP Proxy enable Enable/Disable IGMP function. Table 66 MLD Field Name Description MLD enable Enable/Disable MLD function (Multicast Listener Discovery) pmp-0884 (September) 3-71...
  • Page 114 Web Configuration Storage Disk Management This page is used to manage the USB storage device. Table 67 Disk Management Field Name Description Adding files to the USB storage device Delete Remove the USB storage device file Remove Disk Transfer files within a USB storage device Format Format the USB storage device Re-allocate...
  • Page 115 Web Configuration FTP Setting Field Name Description FTP Server Enable/Disable FTP server FTP Server Name Set the FTP server name Anonymous Login If or not support anonymous login FTP Port Set FTP server port number Max. Sessions Maximum number of connections Create Directory Enable/Disable create directory Rename File/Directory...
  • Page 116 Web Configuration Upload Capability Enable/Disable upload capability function pmp-0884 (September) 3-74...

  • Page 117: Administration

    Web Configuration Smb Setting Table 69 Smb setting Field Name Description SAMBA Server Enable/Disable SAMBA server Workgroup Enter the working group NetBIOS Name Network basic input/output system name Add a shared file Edit Edit a shared file Delete a shared file Add a shared file Edit Edit a shared file...

  • Page 118: Management

    Web Configuration Management Field Name Description Config file upload and Upload: click on browse, select file in the local, press the upload button download to begin uploading files Download: click to download, and then select contains the path to download the configuration file Administrator settings Table 71 Administrator settings...
  • Page 119 Web Configuration Field Name Description User type Choose the user type from admin user and normal user and basic user. New User Name You can modify the user name, set up a new user name New Password Input the new password Confirm Password Input the new password again Language...
  • Page 120 Web Configuration Allowed Remote Set the IP from which a user can login the device remotely. IP(IP1,IP2,...) Remote Telnet Enable/Disable remote telnet login Telnet Port Set the port value which is used to telnet to the device. NTP settings Field Name Description NTP Enable Enable/Disable NTP...
  • Page 121 Web Configuration Procedure Step 1. Enable Daylight Savings Time. Step 2. Set value of offset for Daylight Savings Time Step 3: Set starting Month/Week/Day/Hour in Start Month/Start Day of Week Last in Month/Start Day of Week/Start Hour of Day, analogously set stopping Month/Week/Day/Hour in Stop Month/Stop Day of Week Last in Month/Stop Day of Week/Stop Hour of Day.
  • Page 122 Web Configuration Syslog Enable Enable/Disable syslog function Syslog Level Select the system log, there is INFO and Debug two grades, the Debug INFO can provide more information. Factory Defaults Setting Description When enabled, the device may not be reset to factory defaults until this parameter is reset to Disable. Packet Trace Description Users can use the packet trace feature to intercept packets which traverse the device.
  • Page 123 Web Configuration Description Click Factory Default to restore the residential gateway to factory settings. Firmware Upgrade Description 1. Choose upgrade file type from Image File and Dial Rule 2. Press “Browse..” button to browser file Provision Provisioning allows CnPilot Home R200x/R201x to auto-upgrade and auto-configure devices which support TFTP, HTTP and HTTPs .
  • Page 124 Web Configuration • Before testing or using HTTPS, user should have https server and upgrading file and configuring file and CA Certificate file (should same as https server’s) and Client Certificate file and Private key file(HTTPS provision will be supported soon) User can upload a CA Certificate file and Client Certificate file and Private Key file in the Security page.
  • Page 125 Web Configuration Resync Periodic(sec) If the last resync was failure, CnPilot Home R200x will retry resync after the “Resync Error Retry Delay ” time, default is 3600s. Resync Error Retry Set the periodic time for resync, default is 3600s. Delay(rec) Forced Resync Delay(sec) If it’s time to resync, but CnPilot Home R200x is busy now, in this case, CnPilot Home R200x will wait for a period time, the longest is “Forced Resync...

  • Page 126: Tr069

    Web Configuration SNMP Field Name Description SNMP Service Enable or Disable the SNMP service Trap Server Address Enter the trap server address for sending SNMP traps Read Community Name String value that is used as a password to request information via SNMP from the device Write Community Name String value that is used as a password to write configuration values to the...
  • Page 127 Web Configuration Field Name Description TR069 Enable Enable or Disable TR069 CWMP Enable or Disable CWMP ACS URL ACS URL address User Name ACS username Password ACS password Periodic Inform Enable Enable the function of periodic inform or not. By default it is Enabled Periodic Inform Interval Periodic notification interval with the unit in seconds.
  • Page 128 Web Configuration Diagnosis In this page, user can do ping test and traceroute test to diagnose the device’s connection status. Table 83 Diagnosis Ping Test Enter the destination IP or host name, and then click Apply, device will perform ping test. Traceroute Test Enter the destination IP or host name, and then click Apply, device will perform traceroute pmp-0884 (September)
  • Page 129 Web Configuration test. Operating Mode Description Choose the Operation Mode as Basic Mode or Advanced Mode. pmp-0884 (September) 3-87...

  • Page 130: System Log

    System Log Description If you enable the system log in Status/syslog webpage, you can view the system log in this webpage. Description Press the logout button to logout, and then the login window will appear. Reboot Press the button to reboot CnPilot Home device. Index Troubleshooting Guide pmp-0884 (September) 3-88...

  • Page 131: Troubleshooting Guide

    Chapter 4: Troubleshooting Guide This chapter covers: • Configuring PC to get IP Address automatically • Cannot connect to the Web GUI • Forgotten Password • Fast Bridge Setting pmp-0884 (September) 4-89...

  • Page 132: Configuring Pc To Get Ip Address Automatically

    September ) Troubleshooting Guide Configuring PC to get IP Address automatically Follow the below process to set your PC to get an IP address automatically: Step 1 : Click the “Start” button Step 2 : Select “control panel”, then double click “network connections” in the “control panel” Step 3 : Right click the “network connection”...

  • Page 133: Forgotten Password

    Troubleshooting Guide Forgotten Password If you have forgotten the management password, you cannot access the configuration web GUI. Solution: To factory default: press and hold reset button for 10 seconds. Description Step 1: Login Web GUI of the device. Go to Administration-=> Operating Mode. Set Operating mode to Basic Mode. Save.
  • Page 134 Step 2: Open Network-> WAN, Change NAT Enable to Disable. Save and Reboot. Now the device works in Bridge mode. Troubleshooting Guide pmp-0884 (September)

  • Page 135: Quick Installation Procedure For Router

    Step 3: Login from WAN port. See example page Status->Basic. Troubleshooting Guide Quick Installation procedure for Router pmp-0884 (September)
  • Page 136 Power ON the wireless router using the power supply/PoE. POWER LED will glow after 5 seconds of powering ON and wait for 2 minutes to boot up device properly. Insert the Ethernet cable to any LAN port on the RJ45 port labeled LAN1 to LAN4 and connect other end of the cable to Ethernet port of PC LAN LED will turn ON after connecting the LAN cable Configure the LAN interface of your PC to acquire the IP address using DHCP.
