Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using
this product, and save this manual for future use.
This product is intended for household use and is not
intended for commercial use.
Operating & Installation Instructions

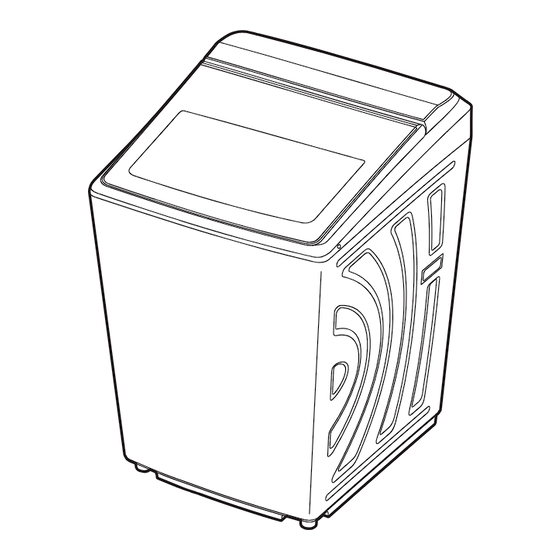

Washing Machine
NA-FS20V5SRY
(Household Use)
Contents
Safety Precautions ........................... 2
Name of Parts / Accessories ........... 4
Washing ............................................. 6
Cycle Guide ....................................... 8
Auto Tub Hygiene ........................... 14
Getting the Laundry Ready ............ 14
Washing Delicate Clothes .............. 15
Washing Comforter ........................ 16
Super Dry ........................................ 18
Door Lock ........................................ 18
About Detergent ............................. 19
Clean and Maintenance.................. 21
Installation ....................................... 23
Troubleshooting ............................. 25
Error Code ....................................... 27
Specifications ................................. 28
W9901-S2V50SRY
Model No.
17
Advertisement
Table of Contents
Related Manuals for Panasonic ECONAVI NA-FS20V5SRY
Summary of Contents for Panasonic ECONAVI NA-FS20V5SRY
-
Page 1: Table Of Contents
Door Lock ........18 About Detergent ......19 Clean and Maintenance....21 Installation ........23 Thank you for purchasing this Panasonic product. Troubleshooting ......25 Please read these instructions carefully before using Error Code ........27 this product, and save this manual for future use. -
Page 2: Safety Precautions
Safety Precautions These must be observed. The following information describes the precautions that must be observed to prevent human injury or damage to property. ■ The following expressions are used to describe and classify the degree of injury or damage that occurs with incorrect use. - Page 3 Operating Instruction can be download in the In case of power failure during washing operation: following website: When power is on again, press power On key, https://www.panasonic.com/middleeast/en/ the “Running” light flashes for 3 seconds before the original operation resume from where it is interrupted.
-
Page 4: Name Of Parts / Accessories
Name of Parts / Accessories Water supply hose (HOT) Water supply hose (COLD) Level (P.24) (P.22, 23) Softener inlet powder detergent inlet (P.20, 22) (P.20, 22) Liquid detergent/ Operation panel liquid bleach inlet (P.20) (see below for refence) Lint filter (P.21) Balance ring Power cord (P.24) Lint filter (P.21) - Page 5 Accessories Accessories Child Lock 1 Water supply ■ How to set/cancel the mode hose for COLD (Blue line) Before you begin ● Close the lid. 1 Water supply ● Turn on the washing machine. hose for HOT Press and hold the "Child Lock" key for more than 5 sec- (Red line) onds.
-
Page 6: Washing
Washing Display area (P.7) Touch control panel Before you begin ● Place clothing in tub before opening the faucet. Press key. Select wash/rinse/spin cycle (P.7) Set up completion time of washing Press Program key to select (P.7, the reserve function) cycle. - Page 7 About display area Press "Super Dry" key and the Super Dry (min) supper drying time displays. (P.18) Preset Press "Preset" key and the (number of hours cleaning completion time displays. later) (See left hand side for reference) Time Display remaining time in minutes (time in minutes) during operation.
-
Page 8: Cycle Guide
Cycle Guide Water level (L) Cycles Suitable clothes and examples Wash (min) NA-FS20V5SRY Normal Cotton, linen and cotton blend items Daily washing. T-shirts Underwear Towels Speedy Moderate dirty or fewer cloths Washing in shorter time. T-shirts Underwear Towels Delicate Wool clothes, silk underwear, etc. Be careful when washing delicate and stylish clothes. - Page 9 Standard settings Required Remarks Maximum Rinse Spin time Amount (time) (min) (approx. min) 20 k g ● You cannot customize the wash/rinse/spin cycle. ● Fixed in "Refill" for rinsing. 10 k g ● You cannot select drying only. For drying only, select (recommended) (Refill) settings of standard cycle.
- Page 10 StainMaster+ Water Program Examples of suitable clothes Maximum Water Amount Temperature Amount (Approx. °C) 30 °C Water Cotton, hemp, blend fabric warm up 30 °C 7 k g For winter days when water is very cold T-shirts Underwear Towels T shirt Underwear Towel 40 °C Wash Anti-odor laundry 40 °C...
- Page 11 Time Remarks Wash Rinse Spin Required (Min.) (Cycle) (Min.) (Approx.) Approx. ● Suitable for cold winter days. ● Soaking Indicator lights up after start; soaking time is about 39 minutes. ● Effect of odor removal differs depending on various kind and intensity of odors.
- Page 12 Prewash Program Operation (removal of water soluble stains) Standard Setting Time Program Remarks Wash Rinse Spin Water Maximum Required Amount (L) Amount (Min.) (Cycle) (Min.) (Approx.) ● Best performance Pre-Wash About 2 10 k g of pre-wash hours Daily Laundry is for 6 kg of clothes.
- Page 13 Cycle Guide (continued) ECONAVI The washing machine detects weight and water temperature of cloths and determines water level and time for washing in "Normal" or "Soak" cycle. Indicator description Note ● The ECONAVI energy saving cycle may Flashing: the indicator flashes from the beginning of cloth weight detection to the end of ECONAVI determination.
-
Page 14: Auto Tub Hygiene
Auto Tub Hygiene Auto tub hygiene function Remove soap scum and dirt grease hidden in tub with auto tub hygiene during laundering to prevent black mold from breeding. All cycles are accompanied with the smart auto tub hygiene function except Delicate. Run smart auto tub hygiene at the last spinning step. -
Page 15: Washing Delicate Clothes
Washing Delicate Clothes Be careful when washing delicate and stylish clothes. (This differs from the chemical solvent-based dry cleaning.) ● You may wash clothes of weight up to 3 k g or less. ● Please wash them with neutral liquid detergent (for wool and silk washing). Before you begin ●... -
Page 16: Washing Comforter
Washing Comforter You can wash single size blankets made of 100% synthetic fiber with this washing machine. ● Recommended washing volume: 8 k g or less. (make sure the blanket does not exceed the bottom of Balance Ring). ● Liquid detergent is recommended. Powder detergent need to be dissolved before use (please refer to P.20). -
Page 17: Wash/Rinse/Spin Cycles Individually
Wash/Rinse/Spin Cycles Individually You may combine cycles as desired, e.g. "wash & rinse" and "spin". (These cycles are not remembered.) Before you begin ● Load clothes in the tub, close the lid; open the water faucets and power on the washing machine. -
Page 18: Super Dry
Super Dry 2 Press Start/Pause key. The “Super Dry”cycle removes the moisture remaining in clothes using a current of air created of air created by ● The washing machine beeps after the rotation of the tub. You can reduce the drying time the air spin cycle ended. -
Page 19: About Detergent
About Detergent Dosage guide (detergent/softener) The water level indicator lights up > > > > > Detergent Softener (ml) Water Load of clothes Powder (spoon/ g ) Liquid (ml) Ordinary Condensed level (k g ) (20 g for every (20 ml for every (20 ml for every (6.6 ml for every 30 L of water) - Page 20 About Detergent 1 Load clothes, press Start/Pause 2 Add detergent according to water key. level and existing detergent. ● Displays water and detergent level (See diagram below for detergent adding location) according to load. (P.19) Liquid Liquid detergent detergent Powder Powder detergent detergent...
-
Page 21: Clean And Maintenance
Clean and Maintenance Lint removal Machine body (after each washing cycle) Wipe it with soft cloth. ■ Lint filter Clean it with kitchen detergent in case Hold top of the filter it is very dirty. (Do not use abrasive to detach it. - Page 22 Liquid/powder detergent and softener inlet box Remove and clean the box. Prevent mould and odour ■ Drying the tub Empty the tub. Close lid, press "On / Off" key to turn on the washing machine. Press "Super Dry" key, select "0.5hr". ...
-
Page 23: Installation
Installation screw on the back of the washing machine indicated as “COLD”, and tighten the nut clockwise with your hand. Water supply valve screw Check up the installation site. ● Do not install the washing machine at the following location: –... - Page 24 Connect power cord and ground After installation wire to your washing machine. Please remove bottom cushion (EPS), before using the ● If there is a ground terminal: washing machine. Plug the power cord into a 3-prong AC outlet. Note ● Prevent water leak: –...
-
Page 25: Troubleshooting
Troubleshooting Before requesting service, make the following checks. If the problem persists, consult the service center for instructions. Problem Check points Page ● Is there power outage? – The washing ● Is "On / Off" key pressed? – machine fails to –... - Page 26 Troubleshooting Problem Check points Page ● Is the washing machine loaded with load heavier than 5 k g or with clothes of non-synthetic fiber? ● Are clothes squeezed dry manually? If so, water removed may be less than expected. Not dry enough. ●...
-
Page 27: Error Code
Error Code Check the following if the washing machine keeps on beeping and show message "U" and a number alternately. If the problem persists, consult the service center for instructions. Indication Check points Page ● Check the water drain pipe for any of following problems: –... -
Page 28: Specifications
● Failure to end spinning in normal manner. and call Panasonic service centers suffering ● Leaking (water feed tube, drainpipe). near to you for inspection or these ●...
