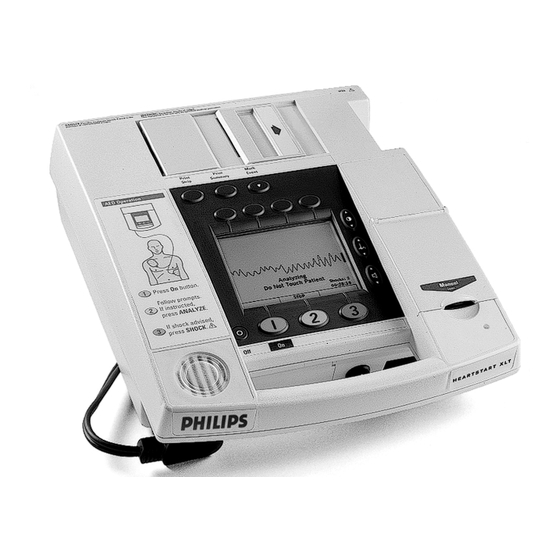

Philips HEARTSTART XLT Service Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. Heart Rate Monitor
  5. Heartstart XLT
  6. Service manual
Philips HEARTSTART XLT Service Manual

Philips HEARTSTART XLT Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
H E A R T S TA R T X LT
S e r v i c e M a n u a l
M 3 5 0 0 B /
M 5 5 0 0 B

Advertisement

loading

Related Manuals for Philips HEARTSTART XLT

Summary of Contents for Philips HEARTSTART XLT

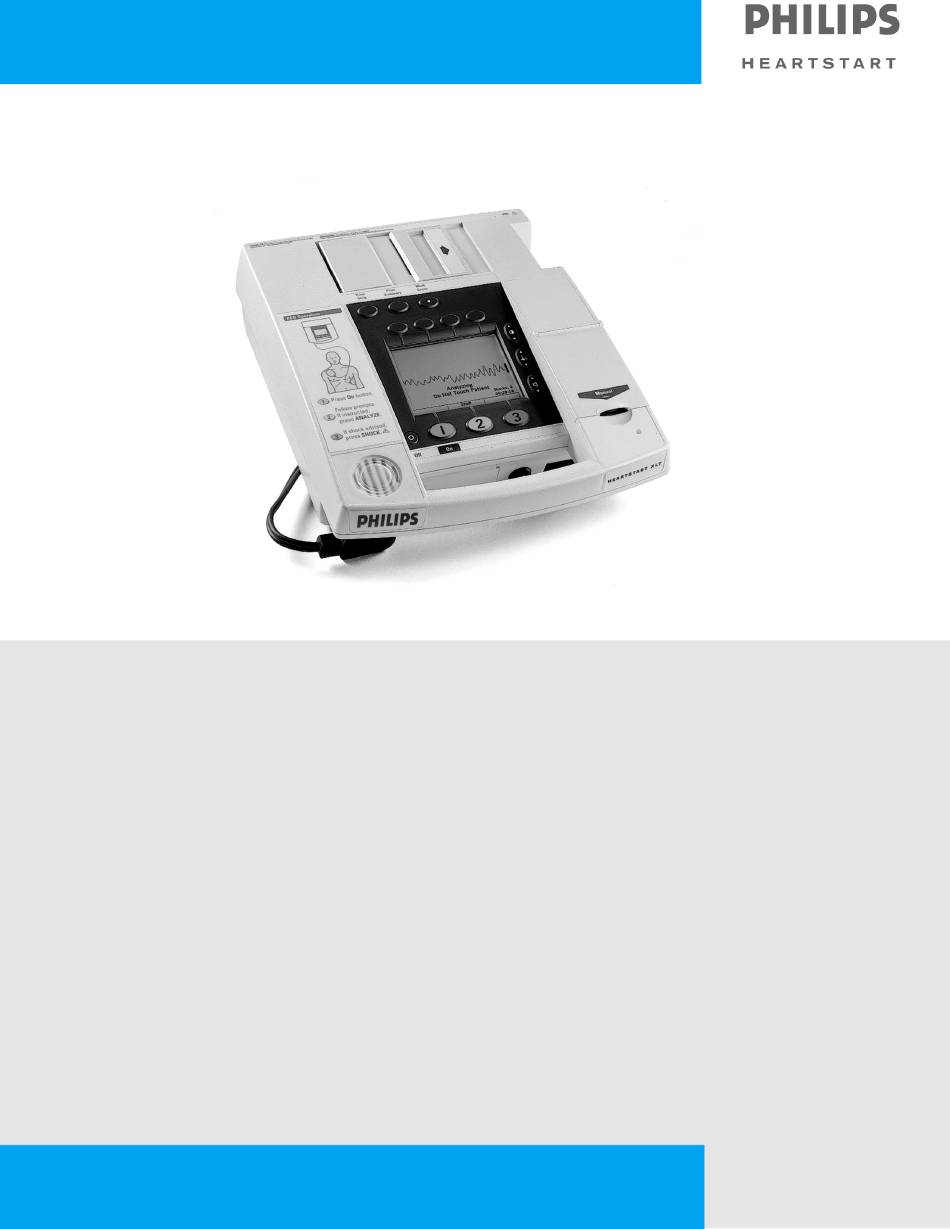

  • Page 1 H E A R T S TA R T X LT S e r v i c e M a n u a l M 3 5 0 0 B / M 5 5 0 0 B...
  • Page 3 Service Manual M3500B HeartStart XLT/ M5500B Heartstart 4000 Defibrillator/Monitor...
  • Page 4 The information in this manual applies prior to using the defibrillator. Authorized EU-representative: to the M3500B HeartStart XLT Release CAUTION Main 34 and earlier, and to the Philips Medizinsysteme Böblingen Heartstart 4000 Release Main 34 and...
  • Page 5 Conventions This manual uses the following text conventions: NOTE Notes contain additional information on servicing this product. Caution statements describe conditions or actions that can result in damage to CAUTION the equipment or loss of data. Warning statements describe conditions or actions that can result in personal injury WARNING or loss of life.
  • Page 7 Contents Introduction Overview ..........................1-1 Defibrillator/Monitor ...................... 1-1 Batteries, Power Modules, Battery Charger Adapter ............. 1-2 Installation ........................1-2 Upgrades ......................... 1-2 Preventive Maintenance ....................1-2 Repair Philosophy ......................1-3 Defibrillator/Monitor ....................1-3 Batteries, Power Modules, Battery Charger Adapter ..........1-3 Performance Verification and Safety Tests Overview ..........................
  • Page 8 Contents Pacing Test ........................2-25 Defibrillator Test (AC Power At 200 J) ................ 2-27 Defibrillator Test (Battery Power At 200 J) ..............2-28 Defibrillator Disarm Test ....................2-29 Safety Tests ........................2-30 Earth Leakage ......................2-30 Patient Lead Leakage ....................2-30 Battery Capacity Test ......................
  • Page 9 Audio ..........................3-27 Keys ..........................3-28 Battery and Power Modules ..................3-29 Data Card ........................3-31 Calling for Service - Philips HeartStart XLT ..............3-32 United States of America ....................3-32 Latin America ....................... 3-32 Canada .......................... 3-32 Other International Areas ....................3-33 Calling for Service - Laerdal Heartstart 4000 ..............
  • Page 10 Contents External Assemblies ......................4-10 Printer Assembly ......................4-11 Removal ........................4-11 Replacement ......................4-12 Printer Sliding Door ...................... 4-13 Removal ........................4-13 Replacement ......................4-13 Printer Platen ......................... 4-14 Removal ........................4-14 Replacement ......................4-14 Battery Cover ........................ 4-15 Removal ........................
  • Page 11 Contents Top Case Assemblies ......................4-30 Lithium Backup Battery ....................4-30 Removal ........................4-30 Cleaning ........................4-30 Replacement ......................4-30 Disconnecting the Control PCA ................... 4-31 From the Rest of the Unit ..................4-31 From the Display ....................4-31 Reconnecting the Control PCA ..................4-31 To the Display ......................
  • Page 12 Overview ..........................5-1 Ordering Replacement Parts ................... 5-1 Ordering Supplies and Accessories ................5-1 Key Components ........................5-1 Calling for Service - Philips HeartStart XLT ............... 5-2 United States of America ....................5-2 Latin America ......................... 5-2 Canada ..........................5-2 Other International Areas ....................
  • Page 13 Contents Mechanical Assemblies ......................5-9 Manual Door ........................5-9 Manual Keypad Assembly .................... 5-10 Other Mechanical Assemblies ..................5-12 Connectors ........................5-12 Individual Mechanical Parts ..................5-13 Labels ..........................5-14 Case Label Sets ......................5-14 Other Labels ........................5-15 Supplies & Accessories ...................... 5-16 Key Components .........................
  • Page 14 Contents Printing Functions ......................6-15 Contrast ........................6-15 Out of paper/door open ................... 6-15 Battery/Power Functions ....................6-16 Contacts/Battery Type .................... 6-16 Charging ........................6-16 Lithium Backup Battery ....................6-18 Data Card ........................6-18 Specifications Overview ..........................7-1 Specifications ........................7-1 Defibrillator ........................
  • Page 15 Contents Waveforms - 200J ......................7-11 Waveforms - 200J (continued) ................... 7-12 Waveforms - 200J (continued) ..................7-13 Symbol Definitions ......................7-14 Safety Considerations ......................7-16 Electromagnetic Compatibility ................... 7-18 Reducing Electromagnetic Interference ................ 7-18 Restrictions for Use ...................... 7-18 Immunity Level ......................
  • Page 17 Introduction This Service Manual provides the information needed to successfully service the Philips M3500B HeartStart XLT and the Laerdal M5500B Heartstart 4000 Defibrillator/Monitors. The intended users of this manual are technical per- sonnel who have been trained in the safe and proper servicing of the M3500B/ M5500B.
  • Page 18 Overview The M3500B/M5500B automatically stores critical events, such as shocks and alarm violations, in its internal memory. An Event Summary may be printed at any time. The M3500B/M5500B also enables you to store data and events on an M3510A/M5510A Data Card for downloading to the Event Review Data Management System.
  • Page 19 Overview Repair Philosophy Defibrillator/Monitor The repair philosophy of the M3500B/M5500B is subassembly replacement. Examples of subassemblies are the printer, the Control Printed Circuit Assem- bly (PCA), and selected connectors and other items. Repairs that involve replacing components on a PCA are not supported. CAUTION Individual component replacement should not be attempted outside of a fac- tory authorized repair facility.
  • Page 21 Performance Verification and Safety Tests Overview This chapter describes the tests and inspections required to verify perfor- mance of the M3500B/M5500B Defibrillator/Monitor. The information is presented in the following sequence: A list of the tests required to verify per- Test Matrix formance of the M3500B/M5500B, along with expected test results.
  • Page 22 Mandatory Testing Labels AC or DC Power module Consumables (ECG monitoring electrodes, multifunction defibrilla- tion pads, printer paper) Main fuse (on Battery PCA) Manual Door Assembly Data Card Door Assembly Battery Eject Assembly The following testing is required after an External Repair or when the out- come of the service is No Trouble Found (when the case has not been opened): Perform the Visual Inspection (page 2-12).
  • Page 23 Test and Inspection Matrix Test and Inspection Matrix The matrix in Table 2-1 summarizes performance verification tests and inspections for the M3500B/M5500B; including test name, test or inspection to perform, expected test results, and data to record. Table 2-1 Performance Verification and Safety Tests Test or Inspection to Data to Record Test Group Name...
  • Page 24 Test and Inspection Matrix Table 2-1 Performance Verification and Safety Tests (Continued) Test or Inspection to Data to Record Test Group Name Expected Test Results Perform P (pass) or F (fail) • In Diagnostic Mode, run If all responses as expected: Example: U:p User Interface the following tests...
  • Page 25 Test and Inspection Matrix Table 2-1 Performance Verification and Safety Tests (Continued) Test or Inspection to Data to Record Test Group Name Expected Test Results Perform P (pass) or F (fail) Using only the AC or DC If the measurements are as Example: DM:p Defibrillator Test - power module, enter Diag-...
  • Page 26 Test and Inspection Matrix Table 2-1 Performance Verification and Safety Tests (Continued) Test or Inspection to Data to Record Test Group Name Expected Test Results Perform P (pass) or F (fail) Indicate test results as Note: All Safety tests include Safety Tests follows: both Normal and Reverse...
  • Page 27 Test and Inspection Matrix Table 2-1 Performance Verification and Safety Tests (Continued) Test or Inspection to Data to Record Test Group Name Expected Test Results Perform P (pass) or F (fail) If readings are as expected: Pads • Source < 100 uA (Normal Condition) - ggg •...
  • Page 28 Test equipment is called out within each test procedure when needed. In addition, a digital voltmeter is also useful. A 50 ohm test load is available from Philips Medical Systems (M1781A). Table 2-2 Equipment List Equipment/Test...
  • Page 29 Test Equipment Table 2-2 Equipment List Equipment/Test Specifications Pacer tester ≤400 Ω Load impedance: Current measurement accuracy • 10 mA–50 mA: <±2 mA • 50 mA–200 mA: <±4% Rate measurement accuracy • 30–180 ppm: <±0.5% Waveform duration accuracy: • 30–180 ppm: ±1ms M3500B/M5500B Service Manual...
  • Page 30 Configuration and Diagnostic Modes Configuration and Diagnostic Modes The instructions below describe how to enter Configuration Mode and Diag- nostic Mode. Configuration Mode These instructions describe briefly how to enter Configuration Mode. See the Instructions for Use for details on configuration settings and what effect they have.
  • Page 31 Configuration and Diagnostic Modes Figure 2-1 Softkey Numbers Contrast ECG Size Volume Diagnostic Mode These instructions describe how to enter Diagnostic Mode. Once in Diagnos- tic Mode, you can: Print the System Log (see "Printing the System Log" on page 3-6). Run the Extended Self Test (see "Diagnostic Tests"...
  • Page 32 Performance Verification Performance Verification This section gives instructions for running Performance Verification tests on the M3500B/M5500B. The tests are sequenced to check more basic functions first, and then build on that to check more complex functions. We recommend you perform these tests in this sequence. If desired, you can make copies of the Test Results Matrix (page 2-3) and use it to record results.
  • Page 33 Performance Verification Functional Checks The following functional checks exercise the basic functions of the defibrilla- tor/monitor. They are intended as a broad check of the unit’s performance, and are designed to complement (not replace) the Diagnostic Tests described later. If all elements of a test pass, record that test as a PASS and return to the main diagnostic menu by pressing .
  • Page 34 Performance Verification Shock Advisory Functional Check This section describes how to check the Shock Advisory function. 1. Connect the ECG simulator to the pads cable. Set the simulator for nor- mal sinus rhythm (NSR), 1mV amplitude, at some nominal rate (e.g., 60 bpm).
  • Page 35 Performance Verification Functional Check This check only needs to be performed if SpO is installed. 1. Attach the SpO transducer to your finger. 2. Activate Manual Mode and press the SpO softkey to turn SpO 3. The SpO value displayed should be in the range of 95-100%. If the value is less than 95%, check that your finger is fully inserted into the sensor and properly positioned.
  • Page 36 Diagnostic Tests Diagnostic Tests The M3500B/M5500B includes an extensive set of diagnostic tests, which test the major hardware components of the defibrillator. The System Log These instructions describe how to print the system log, which includes the unit’s serial number, hardware configuration, and a listing of error codes. The System Log should be printed each time a Performance Verification Test is run.
  • Page 37 Diagnostic Tests Extended Self Test The Extended Self Test checks that all internal processors are operating and communicating with each other. The instructions below describe how to run the Extended Self Test. If all results are as described, the unit passes this test. Return to the main Diagnostic Test menu by pressing MAIN If there is any failure, begin troubleshooting and repairing the unit as needed.
  • Page 38 Diagnostic Tests SYSTEM Tests the integrity of the core processing system and checks the Lithium backup battery. Data Card The Data Card test writes a small file to the data card, reads it back and checks it, then erases that file. If no Data Card is present, the test result will be Not Tested.
  • Page 39 Diagnostic Tests User Interface Tests The User Interface Tests check the functions that provide information to the user, or receive inputs from the user. Each of the User Interface checks assumes the unit and the simulator are still set up as they were at the end of the previous User Interface check.
  • Page 40 Diagnostic Tests To check the display: 1. Select Display Test and press ENTER 2. The display should turn completely dark, then completely light, then a black vertical bar should scroll across the screen from left to right. 3. The display should then show Ambient Light Reading: with a number. Under bright office lighting the reading would typically be about 10 or 15.
  • Page 41 Diagnostic Tests To check the printer: 1. Select Printer Test and press . Press to end the test and ENTER CANCEL return to the main Diagnostic Test menu. 2. Verify that the test patterns on the strip are as indicated in Figure 2-4.
  • Page 42 Diagnostic Tests ECG Tests These instructions describe how to test the ECG functions. Each of the ECG tests assumes the unit and the simulator are still set up as they were at the end of the previous ECG test. If all results are as described, the unit passes that portion of the test. Return to the main Diagnostic Test menu by pressing MAIN If there is any failure, begin troubleshooting and repairing the unit as needed.
  • Page 43 Diagnostic Tests Changing settings To change the settings of Selected lead or AC Line filter, press the softkeys to highlight the parameter, then press (and release) to select ENTER it. After a few seconds the highlighted selection will begin to blink, and the softkeys will allow you change the selection to another of the values available.
  • Page 44 Diagnostic Tests To test amplifier gain: 1. Connect the ECG simulator to the pads cable. Set the simulator output for sine wave, 2 Hz or 10 Hz, 1 mV peak-to-peak. 2. Following the instructions under "Changing settings" on page 2-23, set Selected lead to Pads.
  • Page 45 Diagnostic Tests Pacing Test These instructions describe how to test the pacing function. This test only needs to be run if the Pacing option is installed. If all results are as described, the unit passes the test. Return to the main Diag- nostic Test menu by pressing MAIN If there is any failure, begin troubleshooting and repairing the unit as needed.
  • Page 46 Diagnostic Tests 7. Using the Rate button, increase the rate to 180 bpm. 8. Using the button, increase the output to 200 mA. Output 9. The Pacer should be delivering a current of 200mA +20mA. Record the delivered current indicated by the Pacer tester as "bbb". 10.
  • Page 47 Diagnostic Tests Defibrillator Test (AC Power At 200 J) These instructions describe how to test the defibrillation function when pow- ered only by the AC Power Module (no battery installed). This test is required only if the defibrillator is connected to AC power during normal use.
  • Page 48 Diagnostic Tests Defibrillator Test (Battery Power At 200 J) These instructions describe how to test the defibrillation function when pow- ered only by a fully charged battery, with no AC Power Module connected. This test is always required when performing the full Performance Verifica- tion test.
  • Page 49 Diagnostic Tests Defibrillator Disarm Test These instructions describe how to test the disarm function. If all results are as described, the unit passes the test. Return to the main Diag- nostic Test menu by pressing . If there is any failure, begin trouble- MAIN shooting and repairing the unit as needed.
  • Page 50 Diagnostic Tests Safety Tests This section covers tests of the defibrillator’s electrical safety. These safety tests only need to be performed if the customer normally uses the defibrillator with the AC Power Module connected. If the defibrillator is nor- mally used on battery power only, these tests do not need to be performed. Using the procedures called out by the manufacturer of the analyzer in use, measure and record the following data.
  • Page 51 3. Insert a charged battery. 4. If an AC or DC power module is connected, unplug the power module Mark from the HeartStart XLT. While pressing , press On to start the test. Event 5. Allow the test to proceed to completion. The test takes approximately three hours and is complete when test results print out and the device turns itself off.
  • Page 53 Troubleshooting Overview This chapter provides information for troubleshooting problems with the M3500B/M5500B. The "Troubleshooting and Repair Methodology" section of this chapter (page 3-2) provides an overview of the steps needed to isolate and repair unit problems. Repair Philosophy The repair philosophy of the M3500B/M5500B is subassembly replacement. Examples of subassemblies are the printer, the Control PCA, and selected connectors and other items.
  • Page 54 Troubleshooting and Repair Methodology Troubleshooting and Repair Methodology The M3500B/M5500B is designed to be a sealed, water resistant unit. We recommend you follow the steps below so the sealing surfaces are not dis- turbed unless absolutely necessary: Interview the User If possible, talk directly with the user who reported the problem.
  • Page 55 Initial Assessment Initial Assessment Use the following steps to isolate the problem to a particular subassembly. Attempt Power Up Assess the unit’s condition by performing the following steps. 1. Disconnect the Power Module (if connected). 2. Insert a fully charged battery into the unit. 3.
  • Page 56 Referring to Table for Supplies and Accessories, make sure the unit has: An undamaged, fully charged M3516A/M5516A battery. A new, dry roll of Philips 40457C/D printer paper. Printer paper may jam if paper is wet. Also, printer may be damaged if wet paper is allowed to dry while in contact with printer elements.
  • Page 57 Diagnosing Internal Failures Diagnosing Internal Failures The following steps will help you isolate an internal failure to a particular subassembly. Run Self Tests To run the Self Tests, perform the following steps: 1. Enter Diagnostic Mode. See "Accessing Diagnostic Mode" on page 3-6. 2.
  • Page 58 Diagnosing Internal Failures To store the configuration settings on a data card, select Save Settings to Data Card and press . When prompted with Save Settings to ENTER Data Card? press SAVE To load configuration settings from a Data Card, select Load Settings from Data Card and press .
  • Page 59 Diagnosing Internal Failures 2. Select Print Log and press ENTER 3. The printer will print the System Log strip. See Figure 3-2. 4. Check the printout to verify the printed results are consistent with the hardware in place. Verify options installed (SpO2, pacing) and the unit’s serial number (on the bottom of the case).
  • Page 60 Troubleshooting Tables Troubleshooting Tables Below are the troubleshooting tables provided. Table 3-1 "Unit Unresponsive" Table 3-2 "Error Codes" Table 3-3 "System Messages" Table 3-4 "Momentary Messages" Table 3-5 "Audio Tones" Table 3-6 "Extended Self Test Failures" Table 3-7 "Operational Problems - ECG Monitoring (Pads or Leads)" Table 3-8 "Operational Problems - SpO Monitoring"...
  • Page 61 Unit Unresponsive Unit Unresponsive Isolate the fault by following the steps in Table 3-1. Before replacing any parts, check to see if the cables and flex circuits are properly connected. See "Servicing Notes" on page 4-1. Table 3-1 Unit Unresponsive Test Result Possible Causes...
  • Page 62 Unit Unresponsive Table 3-1 Unit Unresponsive (Continued) Test Result Possible Causes Corrective Actions 4. Observe unit’s response. Unit powers up to some Main fuse open. 1. Replace Main Fuse working state. 2. Replace Power PCA and Main Fuse. Open in battery wir- 1.
  • Page 63 Error Codes Error Codes The System Log provides error codes in 5 digit hexadecimal format. Before replacing any parts, check to see if the cables and flex circuits are properly connected. See "Servicing Notes" on page 4-1. NOTE Confirm any errors by running the self-tests again, making sure that no one touches the unit during the test.
  • Page 64 Error Codes Table 3-2 Error Codes (Continued) Error Code Meaning Possible Solutions 80000 - 8FFFF IRDA failure. 1. Replace Interface PCA. 2. Replace Control PCA. 90000 - 90002 Self Test failure - RAM/ROM or Gate 1. Replace lithium battery. Array. 2.
  • Page 65 System Messages System Messages System messages remain on the display until the specified action is taken or no longer relevant. They are intended for the end user and appear in the Instructions for Use. They are duplicated here for the reference of the service person.
  • Page 66 System Messages Table 3-3 System Messages (Continued) Message Description Corrective Action Pads Cable Off The pads cable is not connected to the Check that the pads cable connector is defibrillator. locked in place. Failure on Power PCA. Replace Power PCA. Pads Off The pads are not making proper contact Make sure the pads are properly applied...
  • Page 67 System Messages Table 3-3 System Messages (Continued) Message Description Corrective Action SpO2 Noisy Signal Excessive patient movement, electrical 1. Minimize patient movement or apply the interference, or optical interference is sensor to a site with less movement. present. 2. Secure the sensor cable loosely to the patient.
  • Page 68 Momentary Messages Momentary Messages Momentary messages are temporary and only appear on the display for a few seconds. They are intended for the end user and appear in the Instructions for Use. They are duplicated here for the reference of the service person. Before replacing any parts, check to see if the cables and flex circuits are properly connected.
  • Page 69 Momentary Messages Table 3-4 Momentary Messages (Continued) Message Possible Cause Corrective Action No Data Card Present A Data Card is not in the M3500B/ Turn the M3500B/M5500B off and insert a M5500B. Data Card prior to the first event for the patient.
  • Page 70 Momentary Messages Extended Self Test Failures Should the unit report a FAIL in the Extended Self Test, resolve it using the solutions below. Table 3-6 Extended Self Test Failures Failure Possible Cause Suggested Solution Failure on Control PCA. Replace Control PCA. System CODEC IRDA...
  • Page 71 Operational Problems Operational Problems These tables describe problems that may arise while using the M3500B/ M5500B. ECG Monitoring The following table covers problems that might arise while monitoring ECG. Table 3-7 Operational Problems - ECG Monitoring (Pads or Leads) Symptom Possible Cause Suggested Solution Noisy trace - constant noise on the...
  • Page 72 Operational Problems Table 3-7 Operational Problems - ECG Monitoring (Pads or Leads) (Continued) Symptom Possible Cause Suggested Solution Leads Off Open in internal Leads ECG wiring message even though or front end, due to: ECG cable has been replaced and is properly connected to the simula- tor.
  • Page 73 Operational Problems Table 3-7 Operational Problems - ECG Monitoring (Pads or Leads) (Continued) Symptom Possible Cause Suggested Solution Poor Pads ECG signal quality. The multifunction pads are not mak- Check that the pads are properly ing proper contact with the patient. applied.
  • Page 74 Operational Problems Defibrillation and Cardioversion The following table covers problems that might arise while defibrillating or delivering synchronized cardioversion. Table 3-9 Operational Problems - Defibrillation and Synchronized Cardioversion Message or Symptom Possible Causes Suggested solution Won’t charge in Manual Mode. •...
  • Page 75 Operational Problems Table 3-9 Operational Problems - Defibrillation and Synchronized Cardioversion (Continued) Message or Symptom Possible Causes Suggested solution Won’t discharge. • Control PCA failure. Diagnose as follows: • Interface PCA failure. 1. In Diagnostic Mode, run Controls SHOCK Test and test key.
  • Page 76 Operational Problems Table 3-9 Operational Problems - Defibrillation and Synchronized Cardioversion (Continued) Message or Symptom Possible Causes Suggested solution Doesn’t deliver correct energy into Control PCA failure. Replace Control PCA. Defibrillator Analyzer or delivers no Power PCA failure. Replace Power PCA. energy at all.
  • Page 77 Operational Problems Printer The following table covers problems that might arise while printing. Before replacing any parts, check to see if the cables and flex circuits are properly connected. See "Servicing Notes" on page 4-1. Also check for damage to the printer ribbon cable where the ribbon is captured in the connectors.
  • Page 78 Operational Problems Display The following table covers problems that might arise with the LCD display. Before replacing any parts, check to see if the cables and flex circuits are properly connected. See "Servicing Notes" on page 4-1. Table 3-12 Operational Problems - Display Symptom Possible Causes Suggested solution...
  • Page 79 Operational Problems Table 3-12 Operational Problems - Display (Continued) Symptom Possible Causes Suggested solution Fails Display Test in Diagnostic Control PCA failure. Replace Control PCA. Mode (indicator LEDs). Manual Keypad failure. Replace Manual Keypad. Audio The following table covers problems that might arise with the audio tones or voice prompts.
  • Page 80 Operational Problems Keys The following table covers problems that might arise with the keypads. Before replacing any parts, check to see if the cables and flex circuits are properly connected. See "Servicing Notes" on page 4-1. Table 3-14 Operational Problems - Keys Symptom Possible Causes Suggested solution...
  • Page 81 Operational Problems Battery and Power Modules The following table covers problems that might arise with the Battery or Power Module. Refer to Figure 3-3 to identify the indicators. Refer to Table 3- 16 for the different combinations of indicator illuminations. Table 3-15 Operational Problems - Battery, AC or DC Power Modules, Battery Charger Adapter Symptom Possible Causes...
  • Page 82 Operational Problems Figure 3-3 Power Module Indicators Charge Done Indicator Charging Indicator Power Indicator Table 3-16 Power Module Indicator Matrix INDICATORS SYSTEM STATE MEANING Con- Con- CHARG- nected nected Battery in Unit Power POWER DONE to Mains M3500B/ Place? ON ? (AC/DC) ? M5500B ? R = RED G = GREEN...
  • Page 83 Operational Problems Data Card The following table covers problems that might arise with the Data Card. Table 3-17 Operational Problems -Data Card Symptom Possible Cause Corrective Action Data card is not recognized when Unit power is already on. Card is Turn power off for 2 minutes, then plugged in.
  • Page 84 Calling for Service - Philips HeartStart XLT Calling for Service - Philips HeartStart XLT For telephone assistance, call the Philips Medical Systems Response Center nearest to you, or visit our website at: www.medical.philips.com/cms. United States of America Medical Response Center...
  • Page 85 Calling for Service - Philips HeartStart XLT Other International Areas Australia France Tel: 131147 Tel: 0803 35 34 33 Germany Italy Tel: 0180 5 47 50 00 Tel: 800-825087 Netherlands United Kingdom Tel: 31 20 547 2555 Tel: 00 44 7002 432584...
  • Page 86 Calling for Service - Laerdal Heartstart 4000 Calling for Service - Laerdal Heartstart 4000 For telephone assistance, call the Laerdal office nearest to you, or visit our website at: www.medical.philips.com/cms. United States of America Laerdal Medical Corporation Tel: (800) 547-4781...
  • Page 87 This data must be recorded for both the failed assembly and the replacement assembly. Philips Medical Systems service personnel must record this information on the Customer Service Order (CSO). The Key Components that are part of the replacement assemblies are listed in Table 5-15 on page 5-20.
  • Page 88 Servicing Notes When reconnecting, align the flex carefully in its receptacle, making sure it is both centered from side to side in the connector, and oriented at 90 degrees to the connector. Be sure the flex is fully seated in the connector and the connector is properly latched.
  • Page 89 Tool Requirements The following tools are needed to perform the procedures given. Torx T10 and T15 drivers (or Torx driver kit, Philips part number 5181-1933). T15 driver shaft should be at least 2.25" long and less than 5/16" in diameter to reach down to recessed case screws.
  • Page 90 User-replaceable Parts and Accessories User-replaceable Parts and Accessories The Instructions for Use gives detailed instructions on replacing the follow- ing: Patient cables & sensors Battery Printer paper For the convenience of the service person, instructions on replacing the Man- ual Door and the Carrying Case are duplicated here. Manual Door The following instructions detail how to remove and replace the Manual Door.
  • Page 91 User-replaceable Parts and Accessories 3. Push, as shown in Figure 4-2, until the door snaps into place. Figure 4-1 Aligning the Manual Door Figure 4-2 Snapping the Door in Place M3500B/M5500B Service Manual...
  • Page 92 User-replaceable Parts and Accessories Figure 4-3 Attaching the Door Labels Top label Label Removal and Replacement...
  • Page 93 User-replaceable Parts and Accessories Carrying Case Removal To remove the carrying case from the M3500B/M5500B, follow steps 1 through 7 as shown in Figure 4-4. Note the screws are Phillips head, not Torx. Also, after loosening the captive screws (step 6), lay the unit flat and lift the defibrillator up off the mounting plates to disengage it from the 2 locating pins in the carrying case.
  • Page 94 Printer ribbon cable User-replaceable Parts and Accessories Replacement To install the carrying case on the M3500B/M5500B, follow steps 1 through 7 as shown in Figure 4-5. Slide the unit into the case as shown in step 1, then lower it onto the 2 locating pins in the case before tightening the screws in step 2.
  • Page 95 User Maintenance User Maintenance The Instructions for Use gives detailed instructions on maintaining and cleaning the M3500B/M5500B, including: Operational Checks Battery Maintenance Cleaning Instructions For the convenience of the service person, instructions on cleaning the printer printhead are duplicated here. Instructions on running the Battery Capacity Test are duplicated on page 2-31.
  • Page 96 External Assemblies External Assemblies This section describes how to remove and replace assemblies that are external to the sealed case. Not all the assemblies described here are available as replacement parts; see the "Replacement Parts" chapter. CAUTION Be sure to work in a static safe environment. The work surface and area sur- rounding it must be static free.
  • Page 97 External Assemblies Printer Assembly The following steps describe how to remove and replace the printer assembly. Removal 1. Disconnect the Power Module and remove the battery. 2. Discharge the power supply capacitors by turning the power on. You will hear a click from the speaker. 3.
  • Page 98 External Assemblies Figure 4-7 Removing the Printer Sliding Door Platen Platen Springs Hinge Pins Printer ribbon cable Replacement 1. The replacement printer ships with a grey sliding door and a grey platen installed. They must be replaced with the yellow sliding door and yellow platen that came in the printer kit.
  • Page 99 External Assemblies Printer Sliding Door Removal Turn the printer upside down on a flat surface. Orient it so that the sliding door is nearest you. Note how the 2 springs are installed on the sliding door and how the metal door limit is used to stop the travel of the sliding door (the springs are identical).
  • Page 100 External Assemblies Printer Platen Removal Open the printer. If you have just removed the sliding door, it will already be open. Note the two platen springs (they are not identical), and how they are located. Their longer ends fit into grooves in the platen; their shorter ends fit through a slot in the printer frame.
  • Page 101 External Assemblies Battery Cover The instructions that follow describe how to remove and replace the battery cover. Removal 1. If necessary, remove the unit from its carrying case. 2. Remove the battery. 3. Turn the unit upside down with the handle facing you. The battery cover is at left side of the bottom surface.
  • Page 102 External Assemblies Replacement 1. Ensure the lower edge of the battery PCA is seated in its slot in the case and that the battery spring is in its slot. Correct orientation of the Battery Eject Spring is angled slightly toward the Battery PCA, and NOT angled up out of the battery compartment.
  • Page 103 External Assemblies Main Fuse The main fuse is located on the Battery PCA, which is under the Battery Cover. Removal 1. Remove the battery cover as described under "Battery Cover" on page 4-15. 2. Pull out the Battery PCA far enough to access the fuse. 3.
  • Page 104 External Assemblies the Eject Button out of the case. The catch is located in the narrow slot in the bottom case that points to the eject button. Note the orientation of the Eject Button. 3. Pull the Battery Eject Catch up out of its slot in the case. There will be a long spring inside the catch.
  • Page 105 The case label set includes most of the labels on the top and bottom case, except those that vary with the brand under which the product is sold (Philips or Laerdal), and those that vary with product options (pacing, SpO ).
  • Page 106 Labels Figure 4-11 Case Label Locations Printer Latch Danger / Label Warning / IPX4 Label ECG/ SpO2 Printer Key label Label Blank Yellow Label AED Label OFF / ON label Patient Connector Eject Data Card Power Connector Label Label (next to patient label (next to card (next to connector) connector)
  • Page 107 Labels Branding Label Set Branding labels include the Philips or Laerdal branding, and brand-specific product name information (2 labels, found on the unit’s handle). They also include the Ambient Light Sensor cover. They are available in 3 types: Philips HeartStart XLT (worldwide) - M3500-69556.
  • Page 108 Labels Speaker Label Set The speaker label (cover) seals the speaker grille, and is designed to provide good sound transmission. It consists of a clear circular area surrounded by a yellow rectangle. Removing and Replacing Labels Removal Using a sharp tool such as a utility knife, carefully pick up one corner of the damaged label and peel the entire label off the case.
  • Page 109 Opening the Sealed Case Opening the Sealed Case Opening the sealed case safely involves 3 steps, described in the sections called out below: "Discharging the Power Supply Capacitors" (page 4-23). "Separating the Case" (page 4-25). "Discharging the Defibrillator Capacitor" (page 4-27). Discharging the Power Supply Capacitors The steps that follow describe 2 methods of discharging the unit’s power sup- ply capacitors.
  • Page 110 Opening the Sealed Case Figure 4-13 Battery Connector Location 4 Pin Battery Connector 4-24 Removal and Replacement...
  • Page 111 Opening the Sealed Case Separating the Case Dangerous voltages may be present on components and connections exposed during WARNING unit disassembly. Use extreme caution while the unit cover is removed. CAUTION Be sure to work in a static free environment. Use an electrostatic wrist band. The work surface and area surrounding it must be static free.
  • Page 112 Opening the Sealed Case 6. Turn the unit over so the display is facing up. Keep the handle closest to you. The case screws will fall out of their holes as you do this. To avoid losing any screws, apply tape over the screw holes before turning the NOTE case rightside up.
  • Page 113 Opening the Sealed Case Discharging the Defibrillator Capacitor The steps that follow describe two methods of discharging the unit’s Defibril- lator Capacitor. Always employ the Primary Method, as it will work in most cases. If there are any doubts, the Secondary Method should also be used. Always discharge the defibrillator capacitor before servicing this unit.
  • Page 114 Opening the Sealed Case Secondary Method Connect clip leads to each end of one of the Disarm Resistors. Connect the clip leads directly to the spade terminals on the Power PCA where the Defibrillator Capacitor is connected. Maintain this connection for at least 5 seconds. Repeat steps a and b using the other Disarm Resistor.
  • Page 115 Identifying Internal Subassemblies Identifying Internal Subassemblies Refer to Figure 4-17 to identify the internal subassemblies. Figure 4-17 Internal Subassemblies SpO 2 Printer Defibrillator Battery Battery connector connector capacitor (inside connector PCA cable ECG connector Printer foam shell) cable Printer bucket (Printer on other side BOTTOM...
  • Page 116 Top Case Assemblies Top Case Assemblies This section provides instructions for removing and replacing assemblies found in the top case. Lithium Backup Battery The Lithium Battery maintains the unit’s stored information on the Control PCA when the main battery is removed or depleted. A cable tie wrap and a package of ProGold wipes are included in the Lithium Battery replacement kit.
  • Page 117 Top Case Assemblies Disconnecting the Control PCA These instructions cover how to disconnect the Control PCA - from the rest of the unit, and from the display. These procedures are often needed when removing and replacing other assemblies. From the Rest of the Unit Disconnect the 4 cables that connect the Control PCA to the rest of the unit.
  • Page 118 Top Case Assemblies To the Rest of the Unit 1. Connect the speaker cable to the Control PCA. 2. Connect the printer cable. 3. Connect the 2 large ribbon cables - 1 from the Power PCA, 1 from the Interface PCA. Be sure to replace the 2 metal bails on the 2 large ribbon connectors.
  • Page 119 Top Case Assemblies Control Stack The Control Stack consists of the Control PCA, the metal shield plate to which that mounts, and the Display, which is mounted on the back of the shield plate. The steps below describe how to remove and replace the Control Stack.
  • Page 120 Top Case Assemblies Control PCA The steps below describe how to remove and replace the Control PCA. The Control PCA contains the unit’s operating software, including the data for the voice prompts. All Control PCAs are American English, part number M3500-68100.
  • Page 121 Top Case Assemblies Figure 4-20 Control PCA Screws Control PCA Metal Shield Plate Replacement 1. Slide the new tie wrap under the battery holder. 2. Place the Control PCA in its place on the metal shield. Replace the 8 screws around the edges of the PCA. Replace the 1 screw near the center of the PCA.
  • Page 122 Top Case Assemblies 7. Reload the customer’s configuration, or reconfigure via configuration menus as needed. 8. Perform Performance Verification Testing as described in "Performance Verification and Safety Tests" starting on page 2-1. 4-36 Removal and Replacement...
  • Page 123 Top Case Assemblies LCD Display Assembly The LCD is under the Control PCA, on the other side of the metal shield plate. The Control stack should be removed, then flipped over to access the LCD. CAUTION DO NOT touch the back side (interior of case side) of the display window. CAUTION See the notes on handling and connecting flex circuits ("Servicing Notes"...
  • Page 124 Top Case Assemblies The SpO PCA is located next to the ECG and SpO connectors. Removal 1. Disconnect and remove the ECG connector. See "ECG Connector" on page 4-40. 2. Disconnect and remove the SpO connector. See "SpO Connector" on page 4-42.
  • Page 125 Top Case Assemblies Figure 4-23 Disconnecting the SpO Flex Circuit From PCA to Interface PCA SpO 2 PCA Flex Circuit From SpO 2 Connector to SpO 2 PCA Replacement 1. Using isopropyl alcohol, clean the case bottom where the ferrite will be located (next to the end of the Interface PCA) and allow it to dry.
  • Page 126 Top Case Assemblies ECG Connector The ECG connector is located in the corner of the top case, next to the SpO connector. Removal 1. Disconnect and remove the Control Stack. See "Control Stack" on page 4-33. 2. Remove the plastic insulating shield over the SpO and Interface PCAs.
  • Page 127 Top Case Assemblies Replacement 1. Using the new gasket that came with the connector, install the gasket in place on the connector. Slide the cable and ferrite back through the hole in the case. 2. Align connector and gasket with notches in case and insert in hole. Make sure the gasket is in place properly, between the connector and the outside of the case.
  • Page 128 Top Case Assemblies Connector The SpO Connector is located in the corner of the top case, next to the ECG Connector. See cautions regarding handling and connection of flex circuits on page 4-1. CAUTION Removal 1. Disconnect and remove the ECG Connector. See "ECG Connector" on page 4-40.
  • Page 129 Top Case Assemblies Replacement 1. Using the new gasket that came with the connector, install the gasket in place on the new connector. Slide the connector and flex back through the hole in the case. 2. Lift up the SpO PCA.
  • Page 130 Top Case Assemblies Manual Keypad Assembly Should the Manual Keypad sustain a puncture or tear, it must be replaced in order for the unit to be water resistant. The Manual Keypad assembly consists of a heavy rubber overlay, and under that the membrane switches themselves. Both parts are adhesive-backed, and replacing them consists of peeling up the old, cleaning the surface, and sticking down the new.
  • Page 131 Top Case Assemblies 4. Flip the top case over rightside up and place it on the bottom case for sup- port. 5. Remove the Manual Door. See "Manual Door" on page 4-4. 6. Remove the rubber overlay and the membrane switches as follows: Using a sharp tool such as a utility knife, carefully pick up one corner of the rubber overlay and peel the entire overlay off the case.
  • Page 132 Top Case Assemblies Remove the 4 Torx #10 screws now visible around the edge of the keypad. See Figure 4-27. Remove the Manual Door shaft and rails. Note the orientation of the shaft between the rails. If at all possible keep the shaft captured between the rails.
  • Page 133 Top Case Assemblies Replacement 1. Prepare the case as follows: Clean off all adhesive residue from the case and manual door rails by rubbing the dry surface with your finger and ’rolling up’ the adhesive. Lightly scoring the adhesive with a rounded tool will aid removal. Solvents are ineffective, as is scraping with a sharp tool.
  • Page 134 Top Case Assemblies 3. Replace and reconnect the Interface PCA as follows: Replace the Interface PCA into position, snapping it under the retainer clip and replacing its screw. Visually check the connections to the PCA to be sure none have loosened and that all are properly aligned.
  • Page 135 Top Case Assemblies Peel the backing material off the rubber overlay. Handle carefully and touch the adhesive as little as possible. Starting with the top edge, align the overlay exactly and roll it down slowly into place. Press firmly all over, especially the edges, to adhere the new overlay into place.
  • Page 136 Top Case Assemblies Interface PCA The Interface PCA is located in the top case, under the Control Stack. When replacing the Interface PCA, the manual keypad MUST also be NOTE replaced. The screws which attach the Interface PCA to the case are UNDER the manual key overlay.
  • Page 137 Top Case Assemblies Figure 4-29 Disconnecting the Interface PCA Flex Circuit to SpO2 Cable to ECG Connector T10 Screw Flex Circuits to Manual Keypad Latch Ribbon Cable to Control PCA Metal Bail Flex Circuits to Main Key- Carefully disconnect the flex circuit from the SpO PCA to the Inter- face PCA at the Interface PCA.
  • Page 138 Top Case Assemblies Likewise disconnect the 3 flex circuits from the Main keypad to the Interface PCA. 4. Flip the top case over rightside up and place it on the bottom case for sup- port. 5. Remove the Manual Door. See "Manual Door" on page 4-4. 6.
  • Page 139 Top Case Assemblies Feed the 2 flex circuits down through the slot in the case as shown in Figure 4-28. Slide the smaller one in first, then the larger one. Peel the backing material off the new switches. Handle very carefully and touch the adhesive as little as possible.
  • Page 140 Top Case Assemblies Restore any other connections, including replacing the defibrillator capacitor and plugging the battery connector back onto the Power PCA if needed. 6. Check the membrane switches as follows: Close the case but do not install screws at this time. Replace the battery, and enter Diagnostic Mode (see "Diagnostic Tests"...
  • Page 141 Top Case Assemblies Speaker These instructions describe how to remove and replace the speaker assembly. Removal 1. Disconnect the speaker from the Control PCA. Refer to Figure 4-18 to identify the speaker connector. 2. Remove the 2 screws and clamps from the speaker. See Figure 4-30. 3.
  • Page 142 Top Case Assembly Top Case Assembly Description The top case assembly consists of the following components, all pre assem- bled into the case at the factory. Display window. IRDA and Ambient Light lenses. Main Keypad subassembly. Printer ribbon cable Should the case itself or any one of these components sustain damage, the top case assembly must be replaced.
  • Page 143 In addition, the following parts cannot be reused from the old case, and must be ordered separately and installed into the new top case: Branding Label Set (includes the Ambient Light sensor cover) Philips label set (M3500-69556) Laerdal North America label set (M3500-69557) Laerdal Other label set (M3500-69558)
  • Page 144 Bottom Case Assemblies Bottom Case Assemblies The sections that follow describe removing and replacing assemblies that reside in the Bottom Case. Battery PCA The Battery PCA is mounted in the Battery compartment, under the Battery Cover. It has a cable assembly that enters the case through a rubber gasket. Once inside the case, the cable assembly connects to the Power PCA and to the Power Connector.
  • Page 145 Bottom Case Assemblies Figure 4-31 Battery PCA connections 2 Pin connector to Power PCA 4 Pin Connector to Power Power PCA Gasket In-line Connector to Power Connector Replacement 1. Slide the wires on the new PCA into the hole in the case. 2.
  • Page 146 Bottom Case Assemblies Defibrillator Capacitor Always discharge the defibrillator capacitor before performing any service opera- WARNING tions on this unit. See “Separating the Case” on page 1-25. Removal 1. Lift the capacitor and its foam covers straight up off the Power PCA. Roll them over onto the Power PCA as shown in Figure 4-32.
  • Page 147 Bottom Case Assemblies Replacement 1. The new capacitor will come with a shorting bar connecting the two ter- minals. Disconnect the shorting bar. 2. Slide the wires through the bottom piece of foam, routing them like the original wires. 3. Plug the terminals onto the spade connectors on the Power PCA. Note the correct polarity is with the red wire near the red inductor and the white wire near the back corner of the Power PCA.
  • Page 148 Bottom Case Assemblies Power PCA The Power PCA is located in the bottom case. Removal 1. Disconnect and remove the defibrillator capacitor. See "Defibrillator Capacitor" on page 4-60. 2. Disconnect the 3 connectors from the Patient Connector to the Power PCA at the Power PCA - 2 are High Voltage spade connectors (note the correct locations before removing) and 1 is a 9 pin connector with a latch.
  • Page 149 Bottom Case Assemblies Figure 4-33 Disconnecting the Power PCA 2 Pin Connector to Battery PCA 4 Pin Connector to Battery PCA High Voltage Spade Connectors (2) 9 Pin Connector Patient Connector Power Connector (hidden) Large Ribbon Cable Replacement 1. Place the new Power PCA into position in the case. Replace the 6 T10 screws and tighten.
  • Page 150 Bottom Case Assemblies Power Connector Removal 1. Disconnect 1 connector from the Power PCA (4 conductor with latch). See Figure 4-33. 2. Disconnect 1 connector in line to the battery PCA (2 conductor with latch). 3. Unscrew the large nut on the back of the connector. 4.
  • Page 151 Bottom Case Assemblies Patient Connector Removal 1. Disconnect the 3 connectors from the Patient Connector to the Power PCA at the Power PCA - 2 are High Voltage spade connectors (note the correct locations before removing) and 1 is a 9 pin connector with a latch. See Figure 4-33.
  • Page 152 Bottom Case Assembly Bottom Case Assembly The bottom case assembly consists of the plastic case, with the Data Card Door, Battery Cover, and Battery Eject Latch mechanism all pre installed at the factory. The bottom case must be replaced only when there is damage to the case itself;...
  • Page 153 The Language Support Tool The Language Support Tool The Language Support Tool allows field service personnel to perform several tasks: 1) to set the language of the Control PCA of the defibrillator; 2) to set the default display contrast, 3) to enable the SpO option, and 4) to program in the serial number.
  • Page 154 The Language Support Tool If this is an SpO upgrade, the serial number should already be present. In this case, verify it against the factory-applied label on the bottom of the case. If this is a Control PCA replacement, program in the serial num- ber found on the factory-applied label on the bottom of the case using the softkeys as instructed on the screen.
  • Page 155 Closing the case Closing the case The following instructions describe how to close the case. 1. Recheck all connections to all PCAs. Be sure all connectors are fully seated and latched, and all metal bails are properly installed. 2. Make sure the Data Card ejector button is pressed fully in. 3.
  • Page 156 Disposing of the M3500B/M5500B Prior to disposing of the M3500B/M5500B, remove the battery. Then dispose of the device in accordance with local standards. Disposal of the device with the battery inserted presents a potential shock hazard. WARNING Disposing of the SLA Battery The M3516A/M5516A battery utilizes Sealed Lead Acid (SLA) technology.
  • Page 157 Ordering Replacement Parts To order replacement parts: In the US, call 800-447-7278. Outside the US, contact your local Philips Medical Systems office. Ordering Supplies and Accessories To order accessories and supplies: In the US, visit our Medical Systems website at: www.medical.philips.com/cms and follow the links to Supplies.
  • Page 158 Calling for Service - Philips HeartStart XLT Calling for Service - Philips HeartStart XLT For assistance call the Response Center nearest to you, or visit our website at: www.medical.philips.com/cms. United States of America Medical Response Center Tel: (800) 548-8833 Latin America...
  • Page 159 Calling for Service - Philips HeartStart XLT Other International Areas Australia France Tel: 131147 Tel: 0803 35 34 33 Germany Italy Tel: 0180 5 47 50 00 Tel: 800-825087 Netherlands United Kingdom Tel: 31 20 547 2555 Tel: 00 44 7002 432584...
  • Page 160 Calling for Service - Laerdal Heartstart 4000 Calling for Service - Laerdal Heartstart 4000 For telephone assistance, call the Laerdal office nearest to you. United States of America Laerdal Medical Corporation Tel: (800) 547-4781 International Customers Australia United Kingdom Tel: 61-3-95694055 Tel: 44-1689-876634 Norway Other International Areas...
  • Page 161 Customer cleans and decontaminates the defective unit. Customer packs the defective unit into the box and ships it to Philips. Return shipping instructions are included with the exchange unit. Table 5-1 M3500B Unit Exchange Part Numbers...
  • Page 162 Replacement Parts Tables Replacement Parts Tables These tables provide part numbers for ordering specific replacement assem- blies and parts. Electrical Assemblies Table 5-2 "Language Support Tool" Table 5-3 "Other Replacement PCAs" Table 5-4 "Other Electrical Assemblies" Table 5-5 "Individual Electrical Parts" Mechanical Assemblies Table 5-6 "Replacement Manual Door Assembly"...
  • Page 163 Electrical Assemblies Electrical Assemblies The following tables provide information about replacement electrical assem- blies. Control PCA The replacement Control PCA includes the Lithium backup battery, the bat- tery’s cable tie wrap, and the black plastic shield for the Data Card receptacle entrance.
  • Page 164 Electrical Assemblies Other Replacement PCAs These PCAs come with specific parts as noted. Table 5-3 Other Replacement PCAs Description Part Number Notes Power PCA with pacing M3500-68110 Power PCA without pacing M3500-68111 Interface PCA M3500-68120 Includes IRDA break-off PCA. Must also order Manual Keypad Assembly (Table 5-7 and Table 5- Battery PCA...
  • Page 165 Mechanical Assemblies Mechanical Assemblies The following tables provide information about replacement mechanical assemblies. Manual Door Includes 5 each of the door, and 5 each of the door label sets. Each label set contains 2 door labels (top and bottom of door) in 2 versions (for units both with and without pacing).
  • Page 166 Mechanical Assemblies Manual Keypad Assembly Each assembly below contains both the membrane switches and the rubber overlay. Table 5-7 Replacement Manual Keypad Assembly - Without Pacing Language Part Number English M3500-69510 French M3500-69511 German M3500-69512 Dutch M3500-69513 Spanish M3500-69514 Italian M3500-69515 Swedish M3500-69516...
  • Page 167 Mechanical Assemblies Table 5-8 Replacement Manual Keypad Assembly - With Pacing Language Part Number English M3500-69530 French M3500-69531 German M3500-69532 Dutch M3500-69533 Spanish M3500-69534 Italian M3500-69535 Swedish M3500-69536 Japanese M3500-69537 Norwegian M3500-69538 Finnish M3500-69539 Russian M3500-69540 Polish M3500-69541 Portuguese M3500-69542 Items marked with an asterisk ("...
  • Page 168 Mechanical Assemblies Other Mechanical Assemblies These assemblies come with specific parts as noted. Table 5-9 Other Mechanical Assemblies Description Part Number Notes Data Card Door Assembly M3500-69560 Includes door, latch, pivot/spring assembly. Battery Eject Assembly M3500-69561 Includes catch, button, spring. Top Case Assembly M3500-69550 Includes Main Keypad Assembly;...
  • Page 169 Mechanical Assemblies Individual Mechanical Parts These mechanical parts are available separately. Table 5-11 Individual Mechanical Parts Description Part Number Notes Cable Tie Wrap 1400-0577 Same tie wrap used with ECG Con- nector assembly and on Lithium Battery (included in Lithium Backup Battery kit).
  • Page 170 Case Label Sets The case label set includes most of the labels on the top and bottom case, except those that vary with the brand under which the product is sold (Philips or Laerdal). This set includes: AED Operation label...
  • Page 171 Part Number Notes Speaker Label Set (cover) M3500-69555 For proper placement see Figure 4- 12 (page 4-21). Philips Label Set - Branding Labels M3500-69556 Includes Philips branding label, Worldwide ambient light sensor label. For proper placement see Figure 4-12 (page 4-21).
  • Page 172 Approved supplies and accessories for the M3500B/M5500B are listed in . To order: In the USA, call 1-800-225-0230. Outside the USA, contact your local Philips Medical Systems Sales Office, your authorized Philips Medical Systems Dealer or Distribu- tor, or visit our website at: www.medical.philips.com/cms and follow the Supplies link.
  • Page 173 Supplies & Accessories Table 5-14 Supplies and Accessories (Continued) Part Number Description Defibrillation Pads, Pads Cables, Adapters and Test Load (gray flat connector) M3713A Multifunction Adult Plus Pads - Adult Plus multifunction defib pads (general use). M3716A Multifunction Adult Radiolucent Pads - Adult Radiolucent multifunction defib pads (special purpose - for X-ray and special procedures).
  • Page 174 Supplies & Accessories Table 5-14 Supplies and Accessories (Continued) Part Number Description ECG Cables M1733A 3-lead ECG Trunk cable, AAMI (8-pin). M1734A 5-lead ECG Trunk cable, AAMI (8-pin). M1735A 3-lead ECG Trunk cable, IEC (8-pin). M1736A 5-lead ECG Trunk cable, IEC (8-pin). M1580A 3-lead ECG Trunk cable, AAMI (8-pin) M1600A...
  • Page 175 Supplies & Accessories Table 5-14 Supplies and Accessories (Continued) Part Number Description Battery/Power Modules/ Adapter M3516A/ Sealed Lead Acid Battery. M5516A M3517A / AC power module. M5517A M3518A/ DC Power Module M5518A M3506A/ Battery charger adapter. M5506A Extension Cable M4748A Adapter extension cable Carrying Case M3509A/...
  • Page 176 Key Components Key Components Key components require tracking as indicated below. Record the Part Num- ber and either the Date Code or Serial Number for both the failed component and the replacement component. Table 5-15 Key Components Replacement Assembly Key Component Description Part Number Description...
  • Page 177 Key Components Table 5-15 Key Components (Continued) Replacement Assembly Key Component Description Part Number Description Part Number Tracking Method Mechanical Assemblies Manual Switch M3500-60220 Date Code Manual Keypad Assembly - Assembly Without Pacing (membrane English M3500-69510 switches) French M3500-69511 German M3500-69512 Dutch M3500-69513...
  • Page 178 Key Components Table 5-15 Key Components (Continued) Replacement Assembly Key Component Description Part Number Description Part Number Tracking Method Other Mechanical Assemblies Top Case Assembly M3500-69550 Main Keypad M3500-67200 Date Code Assembly Connectors Patient Connector M3500-69562 Patient Connector M3500-62601 Date Code Assembly Assembly Power Connector...
  • Page 179 Theory of Operation Overview This chapter describes the internal operation of the M3500B/M5500B. This description is at the functional-block level. The information is presented in two ways: PCA Descriptions For each Printed Circuit Assembly (PCA), a description of the major functions performed on that PCA. System Functional Descriptions For each major system function, a description of how the signal is routed through the various PCAs.
  • Page 180 PCA Descriptions PCA Descriptions The sections following provide descriptions of the functions handled by each PCA. Control PCA The Control PCA performs the following functions: System level processing. System level control and clock functions, including: Control of power up and power down sequences. Storage of configuration selections made by the user.
  • Page 181 PCA Descriptions Interface PCA The Interface PCA performs the following functions: Interconnection site for: ECG leads cable and SpO module. All front panel keys. All front panel LEDs (Manual, Sync, Pacer). Ambient light sensor and IRDA interface. ECG analog front end for ECG from 3/5-lead cables. Detecting and initial processing of front panel key presses, except for keys OFF, 1, 2, 3 which only pass through the Interface PCA and are detected and processed on the Control PCA.
  • Page 182 PCA Descriptions Battery PCA The Battery PCA provides the contacts with which the battery mates. It also has the main fuse, and it provides the function of detecting whether the installed battery is an M3516A/M5516A battery or not (see "Contacts/Battery Type"...
  • Page 183 System Level Interconnections System Level Interconnections Figure 6-1 System Interconnections M3500B/M5500B Service Manual...
  • Page 184 System Functional Descriptions System Functional Descriptions For all of the descriptions below, refer to Figure 6-2 "Signal and Data Flow". Signal and Data Flow Below is a high level block diagram representing how signals and data flow to and from the PCAs. Figure 6-2 Signal and Data Flow Theory of Operation...
  • Page 185 System Functional Descriptions ECG Monitoring Functions There are two separate ECG front ends - one for signals coming in on the pads cable, and one for signals coming in on the 3- or 5-lead ECG cable. ECG - Pads The ECG signal picked up by the disposable defibrillation pads is carried by the pads cable to the pads connector, and then to the Power PCA.
  • Page 186 System Functional Descriptions Patient impedance functions The M3500B/M5500B measures patient impedance in 2 ways: an impedance measurement before the shock, and a resistance measurement during the shock. Before the Shock The M3500B/M5500B makes a small-signal AC impedance measurement (at 32 kHz) in the steady state situation before a shock is delivered. This mea- surement (called PCI) is used to determine whether the pads are connected to the patient, or not.
  • Page 187 System Functional Descriptions Defibrillation Functions The following sections describe the defibrillation functions. Charging There are 2 events that can initiate a charging cycle: In AED Mode, when the analysis algorithm determines a shock is needed and sends a signal to another section of the Control PCA. In Manual Mode, when front panel key #2 (CHARGE) is pressed, the keypress is transferred from the key to the Interface PCA via a flex circuit.
  • Page 188 System Functional Descriptions At any time during delivery of the shock, it detects an open circuit (voltage too high for that point in the waveform) or a short circuit (current too high for that point in the waveform). Should any of these conditions be detected, the Power PCA terminates deliv- ery of the waveform and disarms the capacitor.
  • Page 189 System Functional Descriptions Pacing Functions Pacing is initiated and controlled by pressing front panel keys. These key presses are transferred from the keys to the Interface PCA via a flex circuit. The key presses are detected and processed by the Interface PCA and then passed to the Control PCA via a large ribbon cable.
  • Page 190 System Functional Descriptions Audio Functions The M3500B/M5500B has 2 types of audio output: tones, and voice prompts. Both are generated and controlled by the Control PCA, which also amplifies the signals and passes them directly to the speaker via a dedicated connector and wire pair.
  • Page 191 System Functional Descriptions Indicator Functions All panel LEDs (Manual, Sync, Pacer) are controlled by the Control PCA. The LEDs are connected into the Interface PCA via flex circuits; they are then routed to the Control PCA via a ribbon cable. M3500B/M5500B Service Manual 6-13...
  • Page 192 System Functional Descriptions Key Functions All front panel keys connect to the Interface PCA via flex circuits. Main Keys The key presses from the 4 main keys (OFF, 1, 2, 3) pass through the Interface PCA and then on to the Control PCA via a large ribbon cable. The Control PCA then interacts with the other parts of the system as needed to respond to the keypress.
  • Page 193 System Functional Descriptions Printing Functions All printing data are handled by the Control PCA. Waveforms, graphics, numeric values, and messages are all generated and formatted by the Control PCA, using either data it has or data it receives from other parts of the unit. This data is then passed to the Printer via the printer ribbon cable.
  • Page 194 Main Fuse on the Battery PCA, and then through separate wires to the Power PCA for distribution to the rest of the unit. The Battery PCA also detects whether the installed battery is a Philips approved battery or not. It does this with a microswitch on the battery PCA, which detects if a dimpled recess is present in the end face of the battery.
  • Page 195 System Functional Descriptions Figure 6-3 Power Distribution and Fusing M3500B/M5500B Service Manual 6-17...
  • Page 196 System Functional Descriptions Lithium Backup Battery The Backup Battery (located on the Control PCA) provides standby power to maintain data during times when the main battery is either absent or dis- charged and no external power is supplied. The data maintained includes the user’s configuration choices, and the system time and date.
  • Page 197 Specifications Overview This section provides: Specifications for the M3500B/M5500B, Symbol Definitions for symbols appearing on the M3500B/M5500B, Safety related information, and Electromagnetic compatibility information. Specifications Defibrillator Waveform: Biphasic Truncated Exponential. Waveform parameters adjusted as a function of patient impedance. For details of waveforms delivered, see the "Waveforms" section of this chap- ter.
  • Page 198 Specifications Table 7-1 Delivered Energy vs. Load Impedance Delivered Energy (J) Selected Energy Load Impedance (ohms) Accuracy + 2 J 10.4 10.7 10.4 + 2 J 23.4 26.2 26.9 26.2 + 4 J 46.7 52.3 53.5 52.1 +15% 65.4 73.1 75.0 72.9 +15%...
  • Page 199 Specifications AED Mode AED Energy Protocol: Fixed Energy (150 Joules). AED Shock Series: 2, 3, or 4. Shock Series Timer: off, 30, 60, 90, 120, 150, 180, or 210 seconds. Text and Voice Prompts: Extensive text and audible messages guide user through protocol.
  • Page 200 Specifications ECG Size: 2.5, 5, 10, 20, 40 mm/mV. Frequency Response: AC Line Filter: 60 Hz/50Hz. Pads ECG for Display: Monitor (.15-40 Hz)/EMS (1-30 Hz). Pads ECG for Printer: Monitor (.15-40 Hz)/EMS 1-30 Hz). Leads ECG for Display: Monitor (.15-40 Hz)/EMS (1-30 Hz). Leads ECG for Printer: Diag (.05-150Hz)/EMS (1-30)/Monitor (.15-40 Hz).
  • Page 201 Specifications SYMBOLS: Mark Triangle (for presses of the Mark key), an Alarm Bell (Alarm Limit Violations), Lightening Bolt (Shock Delivered), Vertical stripe Boundaries/Pacer/Sync Tick Marks). Event Printing: Mark Event key automatically documents events and ECG during defibrillation episodes. The Mark Event key can annotate the event with one of the following labels: Epinephrine, Atropine, Lidocaine, and Other.
  • Page 202 Specifications Noninvasive Pacing Waveform: Monophasic Truncated Exponential. Current Pulse Amplitude: 10 mA to 200 mA (5 mA increments); accuracy 10 mA - 50 mA 5 mA, 50 mA - 200 mA 10%. Pulse Width: 20 ms with accuracy +0, -5 ms. Rate: 30 ppm to 180 ppm (10 ppm increments);...
  • Page 203 Specifications General Dimensions: 4.05" (H) x 11.25" (W) x 13.65" (D). 103 mm x 286 mm x 347 mm. Weight: Standard Configuration weighs < 10 lbs (4.5 kg) including battery, full roll of paper, defibrillator patient cable, 1 set of pads, and without the car- rying case;...
  • Page 204 Waveforms - 150J Waveforms - 150J 150J, 25 ohms NOTE: Noise appearing on the following waveforms is an artifact of the measurement system. This noise is NOT part of the defibrillator waveform. 150J, 50 ohms Specifications...
  • Page 205 Waveforms -150J (continued) Waveforms -150J (continued) 150J, 75 ohms 150J, 100 ohms M3500B/M5500B Service Manual...
  • Page 206 Waveforms -150J (continued) Waveforms -150J (continued) 150J, 125 ohms (2ms/div) 150J, 125 ohms (5 ms/div) 7-10 Specifications...
  • Page 207 Waveforms - 200J Waveforms - 200J 200J, 25ohms NOTE: Noise appearing on the following waveforms is an artifact of the measurement system. This noise is NOT part of the defibrillator waveform. 200J, 50ohms M3500B/M5500B Service Manual 7-11...
  • Page 208 Waveforms - 200J (continued) Waveforms - 200J (continued) 200J, 75ohms 200J, 100ohms 7-12 Specifications...
  • Page 209 Waveforms - 200J (continued) Waveforms - 200J (continued) 200J, 125ohms (2ms/div) 200J, 125ohms (5ms/div) M3500B/M5500B Service Manual 7-13...
  • Page 210 Symbol Definitions Symbol Definitions The following table lists the meanings of each symbols shown on the M3500B/M5500B and the M3516A battery: Table 7-2 Defibrillator and Battery Symbols Symbol Definition Off. Shock hazard. Caution - See operating instructions in Instructions for Use. Power module input.
  • Page 211 Symbol Definitions The following table lists the symbols that appear on the M3500B/M5500B shipping carton: Table 7-3 Shipping Carton Symbols Symbol Definition Atmospheric pressure range. Temperature range. Relative humidity range. Recyclable paper product. Fragile. Right side up. Do not get wet. Shelf life.
  • Page 212 Safety Considerations Safety Considerations The following general warnings and cautions apply to use of the M3500B/ M5500B. Additional warning and cautions specific to a particular feature are provided in the appropriate section. The M3500B/M5500B is not intended to be deployed in settings or situations that WARNING promote use by untrained personnel.
  • Page 213 Safety Considerations Do not immerse, or pour fluids on, any portion of the M3500B/M5500B. WARNING Do not use the M3500B/M5500B in a flammable or oxygen-rich atmosphere. This WARNING can cause an explosion hazard. Avoid connecting the patient to several devices at once. Leakage current limits may WARNING be exceeded.
  • Page 214 Electromagnetic Compatibility Electromagnetic Compatibility When using the M3500B defibrillator/monitor (with or without the M3517A AC Charger), electromagnetic compatibility with surrounding devices should be assessed. A medical device can either generate or receive electromagnetic interference. Testing for electromagnetic compatibility EMC) of the M3500B with and without the appropriate accessories has been performed according to the inter- national standard for EMC for medical devices (IEC 60601-1-2).
  • Page 215 The criteria used for degradation is not specified by the standard and may vary with the manufacturer. For additional information about compliance with the EMC standards, visit NOTE our Medical Systems website at www.medical.philips.com/cms and follow the link to Regulatory. M3500B/M5500B Service Manual 7-19...
  • Page 217 Index Battery 6-4, 6-16 Battery Capacity Test AC Line Filter 2-22 Cable 2-31 AC Power Module ECG 6-7 Battery Charger See Power Module pads cables 5-22 Adapter 1-2, 1-3 Accessories 5-1, 5-16 placement 4-2 Battery Charger Kit 5- AED Mode 1-1, 3-22, 7-3 printer 4-42 Ambient Light Sensor tie wrap 5-13...
  • Page 218 Index Connector 5-12, 5-22 Defibrillator 1-1 Diagnostic test ECG 4-40 AC power test 2-5, 2- Defibrillator Disarm Patient 4-65 Test 2-29 Power 4-64 battery test 2-5, 2-28 Defibrillator Test (AC retainer clip 5-13 capacitor 4-27, 4-60, Power) 2-27 Control PCA 6-2 5-8, 5-20 Defibrillator Test defibrillator functions...
  • Page 219 Index ECG monitor 6-7 amplifier tests 2-23 Flex circuit connection 4- Label connector 4-40, 5-12 Ambient Light Sensor ECG Fault 3-13 Front End (FE) test 2-18 4-21 frequency response 7- Leads/Pads 2-23 branding label set 4- Functional Check 2-3 21, 4-57, 5-15 functional checks 2-13 ECG 2-13 case label set 4-19, 4-...
  • Page 220 Index Manual Mode 1-1, 3-22, Patient Connector 4-65, Power Module 1-2 5-12, 5-22 battery specifications Momentary message 3-16 Patient lead leakage 2-30 Monitor Failure 3-13 PCA (Printed Circuit defibrillator test 2-5, ms to Charge 2-28 Assembly) 2-27 Battery 4-58, 5-8, 5- discharging capacitors 20, 6-4 4-23...
  • Page 221 Index Printer 6-4 Replacement 1-3 Servicing cable 4-42 connectors 5-12 cable/assembly Check Printer 3-16 electrical assemblies placement 4-2 cleaning printhead 4-9 flex/internal contrast 6-15 Key Components 5-1, connections 4-1 control keys 2-19 5-20 instrument reassembly ECG functions 2-13 M3500B Unit Event Summary 7-6 Exchange Key Components 4-1...
  • Page 222 Index Stop Pacer 3-17 Top case assembly 4-56, User Interface Test 2-4 Subassembly replacement 5-12, 5-22 Audio Test 2-20 Trace, ECG 3-19 Controls 2-19 Supplies 5-1, 5-16 Troubleshooting Display Test 2-20 Symbol definitions 7-14 audio tones 3-17, 3-27 Printer Test 2-21 Synchronized battery and power User maintenance 1-2, 4-...
  • Page 224 M3500-90900 Printed in USA February 2003 Second Edition *M3500-90900*...

This manual is also suitable for:

M3500bM5500b
