Sony AXS-R7 Operating Instructions Manual

Sony AXS-R7 Operating Instructions Manual

Portable memory recorder
Hide thumbs Also See for AXS-R7:

Advertisement

Quick Links

Download this manual
Printed in Japan
Portable Memory
Recorder
取扱説明書 ̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲
Operating Instructions__________________________
Mode d'emploi ________________________________
Bedienungsanleitung __________________________
Istruzioni per l'uso _____________________________
Manual de instrucciones________________________
AXS-R7
お買い上げいただきありがとうございます。
電気製品は安全のための注意事項を守らないと、
火災や人身事故になることがあります。
この取扱説明書には、事故を防ぐための重要な注意事項と製品の
取り扱いかたを示してあります。この取扱説明書をよくお読みのうえ、
製品を安全にお使いください。お読みになったあとは、
いつでも見られるところに必ず保管してください。
© 2016 Sony Corporation
4-685-095-05 (1)
JP
GB
FR
DE
IT
ES
__________________
RU
_______________________
KZ

Advertisement

loading

Related Manuals for Sony AXS-R7

Summary of Contents for Sony AXS-R7

  • Page 1 4-685-095-05 (1) Portable Memory Recorder 取扱説明書 ̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲̲ Operating Instructions__________________________ Mode d’emploi ________________________________ Bedienungsanleitung __________________________ Istruzioni per l’uso _____________________________ Manual de instrucciones________________________ __________________ _______________________ AXS-R7 お買い上げいただきありがとうございます。 電気製品は安全のための注意事項を守らないと、 火災や人身事故になることがあります。 この取扱説明書には、事故を防ぐための重要な注意事項と製品の 取り扱いかたを示してあります。この取扱説明書をよくお読みのうえ、 製品を安全にお使いください。お読みになったあとは、 いつでも見られるところに必ず保管してください。 Printed in Japan © 2016 Sony Corporation...
  • Page 2 English Before operating the unit, please read this For the customers in the U.S.A. manual thoroughly and retain it for future This equipment has been tested and found to reference. comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide WARNING reasonable protection against harmful...
  • Page 3 For the customers in the U.S.A. SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony’s limited warranty applicable to this product. For the customers in Canada SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/pro/lang/en/ca/...

  • Page 4: Usage Precautions

    Periodic inspections are recommended to keep the unit working properly and to prolong its usable lifetime. Contact a Sony service or sales representative for more information about inspections. Usage Precautions...

  • Page 5: Location And Function Of Parts

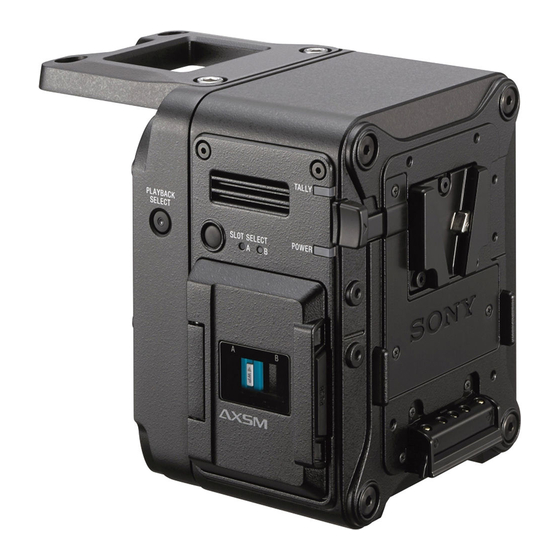

    Features Location and Function of Parts The AXS-R7 is a portable memory recorder that uses AXS memory cards (A-series only) as the recording media. It features a toggle connector for connection to camcorders, such as the PMW-F5/F55 and MPC-3610 (VENICE/ CineAltaV).
