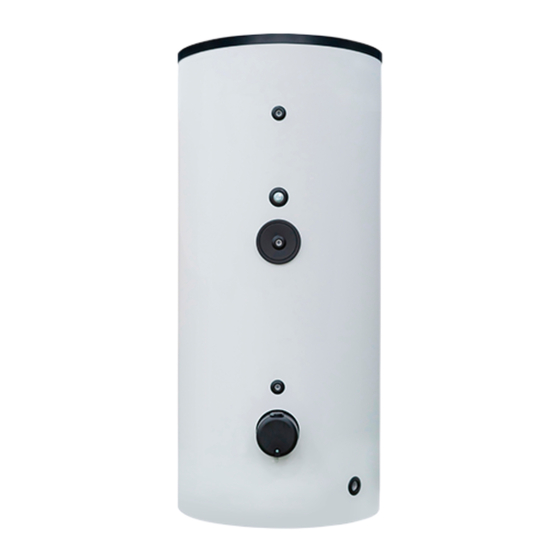

- Page 1 Air-to-Water Heat Pump Systems PAW-VP1000LDHW PAW-VP750LDHW PAW-VP380L Domestic Hot Water System for R410A and R32 Use Installation Manual Commercial System Air Conditioner 20200506-1...
- Page 3 Air-to-Water Heat Pump Systems PAW-VP1000LDHW PAW-VP750LDHW PAW-VP380L Domestic Hot Water System for R410A and R32 Use Installation Manual Origin Quick Installation Manual (English) State of the documentation: 05/2020 Software version: 0.0.0 COPYRIGHT © Polar Energi AS 2020. All rights reserved.
-
Page 4: Table Of Contents
Maintenance Procedure...................... Warranty Conditions ......................Tubing Data and Refrigerant ................Tubing data for DHW and outdoor unit combination ............4.1.1 PAW-VP1000LDHW ....................4.1.2 PAW-VP750LDHW ..................... Tubing data for cooling and heating tank ................. 4.2.1 PAW-VP380L ......................Calculation of the refrigerant charge ................ - Page 5 Contents Electrical Wiring ....................General Precautions on Wiring ..................Recommended Wire Diameter ................... Indoor unit Electric Wiring Diagrams ................6.3.1 Wiring system diagram for EX valve magnetic coil ............ 6.3.2 Wiring system diagram PACi ..................6.3.3 Wiring system diagram ECOi ..................How to connect electrical wires and sensors ..............
- Page 6 Alarm codes for indoor/outdoor units PACi R410A ............Alarm codes for indoor/outdoor units ECOi MF3 ............Electrical Heater ....................10.1 Models PAW-VP1000LDHW, PAW-VP750LDHW ..............10.1.1 Electrical connection three phase 400 V ..............10.1.2 Parts and functions ....................10.1.3 Legionella protection cycle ..................
-
Page 7: Introduction
Treated products This manual covers the following products: R32 and R410A products ● Indoor Units, and connectable outdoor units combinations DHW preparation Heating or Cooling DHW Tank PAW-VP1000LDHW PAW-VP750LDHW Buffer Heating Tank PAW-VP380L Outdoor unit R410A U-16MF3E8 U-16MF3E8 Outdoor unit R410A... - Page 8 Introduction Used symbols The text in this manual uses various notices, symbols and textual representations, which are briefly explained below. Safety-related cautions Safety-related information alerts users to hazards and provides instructions for the safe, desig- nated use of the product. This guide uses the following warnings and signs: DANGER This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.
- Page 9 Introduction Text displays ► indicates instructions in a warning. 1., 2., 3..or a, b, c ... indicate steps to be performed in the specified order. indicates the result of a work step. indicates the result of a sequence of work steps. ●...
-
Page 10: Safety Instructions
Safety Instructions Safety Instructions This Air to water system - Air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of your job to install or service the sys- tem so it operates safely and efficiently. For safe installation and trouble-free operation, you must: ●... - Page 11 Safety Instructions Special Precautions DANGER When Wiring Electrical shock can cause severe personal injury or death. Only a qualified, experienced electrician should attempt to wire this system. ● Do not supply power to the unit until all wiring and tubing are completed or recon- nected and checked.
- Page 12 Safety Instructions DANGER ► Keep the fire alarm and the air outlet at least 1.5 m away from the unit. In moist or uneven locations Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the outdoor unit.
- Page 13 Safety Instructions When Connecting Refrigerant Tubing DANGER ● When performing piping work, do not mix air except for specified refrigerant (R410A or R32, depending on the outdoor unit model) in refrigeration cycle. It causes capacity down, and risk of explosion and injury due to high pressure inside the refrigerant cycle.
- Page 14 Safety Instructions When Servicing ● Contact the sales dealer or service dealer for a repair. ● Isolate the electrical supply to the unit (power OFF), before opening the unit to check or repair electrical parts and wiring. ● Keep your fingers and clothing away from any moving parts. ●...
- Page 15 Safety Instructions Important Information regarding the Refrigerant Used Used refrigerant This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere. Refrigerant type: R410A Refrigerant type: R32 GWP*: value: 2088 GWP*: value: 675 * GWP = global warming potential * GWP = global warming potential Periodical inspections for refrigerant leaks may be required depending on European or local...
- Page 16 Safety Instructions Check of Density Limit R32 U-200PZH2E8 The refrigerant (R32), which is used in the air conditioner, is a flammable refrigerant. So the requirements for installation space of appliance are determined according to the refrigerant charge amount [mc] used in the appliance. The minimum indoor floor space compared with the amount of refrigerant is roughly as follows, in case it is installed in a living area with height factor 1.8: PAW-VP380L must be calculated as wall mounted.
- Page 17 Safety Instructions In a room where the density may exceed the limit, create an opening with adjacent rooms, or install mechanical ventilation combined with a gas leak detection device. The density is as given below. Total amount of refrigerant (kg) ≤...
- Page 18 Safety Instructions 2. The minimum indoor floor space compared with the amount of refrigerant is roughly as follows: (When the ceiling is 2.7 m high) m² m³ 229.5 216.0 202.5 189.0 175.5 Range below the density limit of 162.0 0.44 kg/m³ 148.5 (Countermeasures not needed)
-
Page 19: Main Components
Main components Main components Main components PAW-VP1000L / 750L A Turn pressure pipe 3/4" G Return pump circulation 1/2" H Magnesium anode B Return liquid pipe 1/2" C E1 and E2* sensor I Outlet DHW 1 1/4" D Adjustable levelling feet J Sensor pocket TA K Safety valve 1"... -
Page 20: Main Components Paw-Vp380L
Main components Main components PAW-VP380L A Turn pressure pipe 3/4" F Safety valve 3 bar B Return liquid pipe 1/2" G Adjustable levelling feet C Turn waterborne heating 1 1/4" H Liquid sensor E1 and E2* D Booster heater 6 kW I Sensor pocket TA E Return waterborne heating J Hot gas sensor E3**... -
Page 21: Dimensions
Main components Dimensions Tank model PAW-VP1000LDHW Tank model PAW-VP750LDHW R 2090 R 2460 2210 1855 1846 1/2” 1426 1/2” 1475 1 1/4” 1 1/4” 1305 1275 1085 Rp 1 1/4” Rp 1 1/4” Tank model PAW-VP380L R = 1900 7/8” 1/2”... -
Page 22: Main Components Paw-Vp-Rtc5B-Pac
Main components Main components PAW-VP-RTC5B-PAC Included in delivery A PAW-VP-RTC5B-PAC* D Temperature sensor E1* B CZ-RTC5B* E Temperature sensor E2* * included in delivery C Temperature sensor TA* Main components PAW-VP-RTC5B-VRF Accessories Included in delivery A PAW-VP-RTC5B-VRF* E Temperature sensor E3* B CZ-RTC5B* F Expansion valve C Temperature sensor TA*... -
Page 23: Dhw Temperature Layering
DHW Temperature layering DHW Temperature layering The water temperature distribution in the tank is not homogeneous! Due to the thermodynamic properties of the refrigerant, the water is at different temperatures across the tank volume. (Top: discharge gas cooling area Middle: condensing area Bottom subcooling area) This is expected to result in a layering of temperatures. -
Page 24: Water Piping Installation
● Align the centre of piping and sufficiently tighten the flare nut with fingers. ● Further tighten the flare nut with torque wrench in specified torque as stated in the table. Piping size (Braising tank) Model Liquid PAW-VP1000LDHW 3/4" [19.05 mm] 1/2" [12.7 mm] PAW-VP750LDHW 3/4" [19.05 mm] 1/2" [12.7 mm] PAW-VP380L 3/4"... -
Page 25: Dhw Tank Unit Installation Space
Water Piping Installation DHW Tank Unit Installation Space The DHW tank must be within the following maintenance space. 350 mm or more 400 mm 100 mm or more or more CAUTION ► The tank level must be adjusted before the piping installation can start. Use the three adjustable feet that are located under the floor tank. -
Page 26: Filling Procedure
Water Piping Installation Filling Procedure ● DO NOT turn on any heat source connected to the storage tank until it is filled, it can result in catastrophic damage. ● Ensure that all installation requirements, electrical and safety, have been met. ●... -
Page 27: Warranty Conditions
Water Piping Installation Warranty Conditions The manufacturer grants a warranty only for defects in material and workmanship on the cylin- ders of its production under normal installation, use and maintenance of the product claimed. The warranty is void if failure to respect the installation specifications listed above under “RULES OF INSTALLATION AND MAINTENANCE”. -
Page 28: Tubing Data And Refrigerant
Tubing Data and Refrigerant Tubing Data and Refrigerant Tubing data for DHW and outdoor unit combination 4.1.1 PAW-VP1000LDHW Indoor Unit Outdoor Unit PAW-VP1000LDHW U-250PE2E8A Tubing data Liquid tube [mm (inch.)] Ø 9.52 (3/8) Tubing size outer diameter Refrigerant connection pipe Gas tube [mm (inch.)]... -
Page 29: Paw-Vp750Ldhw
Tubing Data and Refrigerant 4.1.2 PAW-VP750LDHW Indoor Unit Outdoor Unit PAW-VP1000LDHW U-250PE2E8A Tubing data Liquid tube [mm (inch.)] Ø 9.52 (3/8) Tubing size outer diameter Refrigerant connection pipe Gas tube [mm (inch.)] Ø 19.05 (3/4) Liquid tube [mm (inch.)] Ø brazing 12.7 (1/2) -
Page 30: Tubing Data For Cooling And Heating Tank
Tubing Data and Refrigerant Tubing data for cooling and heating tank 4.2.1 PAW-VP380L Indoor Unit Outdoor Unit PAW-VP380L U-200PE2E8A Tubing data Liquid tube [mm (inch.)] Ø 9.52 (3/8) Tubing size outer diameter Refrigerant connection pipe Gas tube [mm (inch.)] Ø 22.22 (7/8) Liquid tube [mm (inch.)] Ø... -
Page 31: Calculation Of The Refrigerant Charge
Tubing Data and Refrigerant Calculation of the refrigerant charge How to calculate refrigerant charge Example 1: Indoor Unit: PAW-VP1000LDHW Outdoor unit: U-250PE2E8A Pre charge [kg] Total pipe length (one way): Attention: follow instruction Remove 1400 g for pipe length 7.5 m... -
Page 32: System Drawings
System drawings System drawings System PACi DHW Standard system 1:1 without water circulation Outdoor unit City Water in DHW tank Standard system 1:1 with water circulation pipe* External Pump control example: Water flow: Qmin = 1 ltr./minute Outdoor unit Water pump operation schedule: At night: ON 15 min OFF 80 min... -
Page 33: System Paci/Ecoi Dhw
System drawings System PACi/ECOi DHW Standard system with circulation pipe and temperature control system Ø15 mm max. City Water in (Field supplied) accessories A Pressure control valve if inlet city water is E Safety valve 6 or 9.5 bar (field supplied)** more than 6 bar (field supplied)* F Temperature control valve (field supplied) B Strainer (field supplied)*... -
Page 34: Way-Mixed-System With Dhw Tank And Indoor Units
City Water in Solenoid valve kit 1 Port: 2 x CZ-P160HR3 Solenoid valve kit 4 Port: CZ-P4160HR3 Two ports are required for: PAW-VP1000LDHW or PAW-VP750LDHW Accessories must be ordered separately! Two kits are required for: PAW-VP1000LDHW or PAW-VP750LDHW Accessories must be ordered separately! Continued on the next page DHW PAW-VP - Installation manual –... - Page 35 External expansion valve PAW-VP-VALV-280 Required for: PAW-VP1000LDHW or PAW-VP750LDHW Accessories must be ordered separately! The discharge pipe must be kept as short as possible, max 50 m to the DHW tank and con- nected at the first branch of the outdoor unit.
-
Page 36: System U-16Mf3E8 With Dhw
System drawings System U-16MF3E8 with DHW 3- Way-Mixed-System with DHW tank and indoor units, with circulation pipe and temperature control system Ø15 mm City Water in (Field supplied) accessories A Pressure control valve if inlet city water is G Water pipe inlet/outlet VP1000L/750 (35 mm) more then 6 bar (field supplied) H Expansion valve PAW-VP-VALV-280 (op- B Strainer (field supplied)*... -
Page 37: System Paci And Paw-Vp380L
System drawings System PACi and PAW-VP380L Room heating (and cooling) system with multiple outdoor units and 380L tanks, controlled via outdoor unit U-250 Radiator This system solution has no limitations on capacity or functionality. To increase capacity, in- crease the number of PAW-VP380L tanks. The system solution can be used for heating and cooling. -
Page 38: System Paci And Paw-Vp380L Cooling/Heating
System drawings System PACi and PAW-VP380L Cooling/Heating Room heating (and cooling) system with multiple outdoor units and 380L tanks (Field supplied) accessories A Expansion tank (field supplied) H E1 sensor B Water pipe return/turn tank 35 mm (field H E2 sensor supplied) I Air separator (field supplied) C TA valve control valve water flow DN35... -
Page 39: Electrical Wiring
Electrical Wiring Electrical Wiring General Precautions on Wiring 1. Before wiring, confirm the rated voltage of the unit as shown on its nameplate, then carry out the wiring closely following the wiring diagram. 2. A power supply should be provided exclusively for each unit, complete with circuit breaker and over current protection. -
Page 40: Recommended Wire Diameter
Circuit breaker Model name Power supply supply cables L1/N/PE (minimum capacity) PAW-VP750LDHW 3-phases 380/400/420 V 2.5 mm 16 A PAW-VP1000LDHW 3-phases 380/400/420 V 2.5 mm 16 A PAW-VP380L 3-phases 380/400/420 V 2.5 mm 16 A Control wiring (B) Inter-unit (between outdoor and indoor units) control wiring... - Page 41 Electrical Wiring Wiring system diagram Single-phase model connections RTC5B Tank controller Power supply Outdoor unit (1-phase) INV unit 220–240 V~, Power supply 50/60 Hz 220–240 V~, Ground 50/60 Hz Ground Ground Remote controller (CZ-RTC-5B) Shielded wire Ground Ground This equipment must be properly earthed. 1.
-
Page 42: Indoor Unit Electric Wiring Diagrams
Electrical Wiring Indoor unit Electric Wiring Diagrams 6.3.1 Wiring system diagram for EX valve magnetic coil PAW-VP-VALV-280 DHW PAW-VP - Installation manual - 2020-05... -
Page 43: Wiring System Diagram Paci
Electrical Wiring 6.3.2 Wiring system diagram PACi PACi PZ2 /PZH2 PACi R32 Water tank Refrigerant Refrigerant Refrigerant Water temperature Liquid Condensing Discharge temperature Set temperature temperature temperature temperature Optional Optional Item Description Position Set temperature thermistor Middle Tank Liquid temperature thermistor Heat exchanger outlet (heating mode) Condensing temperature thermistor Heat exchanger outlet (heating mode) - Page 44 Electrical Wiring Wiring system diagram PACi (cont.) PACi PE2 /PE1 /PEY PACi R410A Water tank Refrigerant Refrigerant Refrigerant Water temperature Liquid Condensing Discharge temperature Set temperature temperature temperature temperature Optional Optional Item Description Position Set temperature thermistor Middle Tank Liquid temperature thermistor Heat exchanger outlet (heating mode) Condensing temperature thermistor Heat exchanger outlet (heating mode)
-
Page 45: Wiring System Diagram Ecoi
Electrical Wiring 6.3.3 Wiring system diagram ECOi Expansion valve ex. PAW-VP-VALV-280 Water Refrigerant Refrigerant Refrigerant Water set temperature Liquid Condensing Discharge temperature Optional temperature temperature temperature thermistor thermistor thermistor Optional * Please check, if the EXCT jumper is plugged in correctly. Item Description Position... -
Page 46: How To Connect Electrical Wires And Sensors
Electrical Wiring How to connect electrical wires and sensors 6.4.1 How to connect wiring to the terminal Strip 10 mm Insulation tape Shield mesh Shield mesh Proceed as follows: 1. A screwdriver is inserted with a rocking motion to the stop. 2. -
Page 47: How To Connect Temp Sensors Ta, E1, E2, E3 To The Tank System
Electrical Wiring 6.4.2 How to connect temp sensors TA, E1, E2, E3 to the tank system Terminal PAW-VP-RTC5B-PAC Note Remember that the E2 sensor is required. Important When using PAW-VP-RTC5B-PAC together with DHW tank remove jumper for E2-E2 and connect the sensor E2. -
Page 48: How To Mount The E1, E2 And E3 Sensors On The Pipes
Electrical Wiring 6.4.3 How to mount the E1, E2 and E3 sensors on the pipes Maximum contact Cover the thermistor and the pipe with aluminum tape, then the aluminum tape with thermal insulation. Most sensitive point of the thermistor Installation of temperature sensors To prevent condensation entering the termi- Hold the temperature sensor so that the nals on the electrical lines, the following must... -
Page 49: How To Use With Terminal Paw-Vp-Rtc5B-Pac
Electrical Wiring 6.4.4 How to use with Terminal PAW-VP-RTC5B-PAC 6.4.5 How to use with Terminal PAW-VP-RTC5B-VRF PAW-VP-RTC5B-VRF PAW-VP-RTC5B-VRF PAW-VP1000LDHW PAW-VP380L PAW-VP750LDHW DHW PAW-VP - Installation manual - 2020-05... -
Page 50: Solenoid Valve Kit - For 3-Way Eco-I System
Electrical Wiring Solenoid Valve Kit – For 3-Way ECO-i System 6.5.1 Wiring ● Connect the 9P connector coming from the solenoid valve kit through the power inlet of the PAW-VP-RTC5B-VRF to the 9P connector (red) of the Solenoid Valve Control PCB (sold separately) (Fig. 6-1). ●... -
Page 51: P4160Hr3
Electrical Wiring 6.5.2 CZ-P4160HR3 Note The wire should be fixed with the clamp inside the indoor unit. Do not route the wire through a tube together with the remote-control line and inter-unit opera- tion line. Recommended wire size 6-core cable, 0.5 mm or more (300 V or more) Grounding should be done between the indoor unit and solenoid valve kit. -
Page 52: Recommended Wire Length And Wire Diameter
Electrical Wiring 6.5.4 Recommended Wire Length and Wire Diameter Tab. 6-1: Solenoid valve kit Type Power supply Time delay fuse or circuit capacity 4160 2.5 mm², Max. 130 m 10–16 A Tab. 6-2: Control wiring Type Inter-unit (between relay kit and solenoid valve kit) control wiring 4160 0.75 mm (AWG #18), Max. - Page 53 Electrical Wiring Procedure Solenoid valve relay kit 1. Connect the power supply wire to the solenoid valve kit, using the wire shown in Tab. 6-1 (Fig. 6-4). 2. Connect the solenoid valve kit to the solenoid valve 3-Way connect relay kit, using the wire shown in Tab. 6-2 (Fig. 6-3, wire (supplied) Fig.
-
Page 54: Installation To The Solenoid Valve Relay Kit
Electrical Wiring 6.5.6 Installation to the Solenoid Valve Relay Kit Install the solenoid valve relay kit into the indoor unit and fix it using a Philips-head screwdriver. DANGER ► Do not install outside the building and the area where the water is splashed. Failure to do so could result in product or property damage. -
Page 55: Connecting The Refrigerant Tubing
Connecting the Refrigerant Tubing Connecting the Refrigerant Tubing Use soldering method Many of conventional split system air conditioners employ the flaring method to connect refrig- erant tubes which run between indoor and outdoor units. In this method, the copper tubes are soldering at tank end. -
Page 56: Installation Of Refrigerant Pipe
Expansion valve Expansion valve shall be installed, when: PAW-VP-VALV-280 ● ECOi setup for 3 ways system PAW-VP1000LDHW ● Expansion valve ECOi setup when cooling and heating PAW-VP750LDHW demand is needed PAW-VP380L DHW PAW-VP - Installation manual – 2020-05... -
Page 57: How To Make Settings
How to make Settings How to make Settings Detailed Settings for Indoor Unit The settings must be made after switching on the power supply but before regular operation! 8.1.1 Setting Procedure for Remote Controller Model CZ-RTC5B 20:30 (THU) ] START CZ-RTC5B Operating procedure 1. - Page 58 How to make Settings 3. Select the “Code no.” by pressing the button. Change the “Code no.” by pressing button (or keeping it pressed). 4. Select the “Set data” by pressing the button. Select one of the “Set data” by pressing button.
-
Page 59: Detailed Setting Procedure For Remote Controller Model Cz-Rtc4
How to make Settings 8.1.2 Detailed Setting Procedure for Remote Controller Model CZ-RTC4 This allows the system address, indoor unit address, and other settings to be made for the individual or group-control indoor unit to which the remote controller used for detailed settings is connected. -
Page 60: Detailed Setting Procedure For Remote Controller Model Cz-Rtc2
How to make Settings How to make settings on outdoor unit 8.1.3 Detailed Setting Procedure for Remote Controller Model CZ-RTC2 Proceed as follows: 1. Press and hold the buttons simultaneously for 4 seconds or longer. 2. Press the temperature setting buttons to select the item code to change. -
Page 61: Detailed Settings For Indoor/Outdoor Unit Cz-Rtc5B/Rtc4/2
How to make Settings 8.1.4 Detailed settings for indoor/outdoor unit CZ-RTC5B/RTC4/2 The new value must be set during the commissioning. 8.1.5 Setting Flow Chart The system is in a fault-free state so that a safe commissioning can take place. All valid rules have been followed. -
Page 62: Dn" Code Setting List
8.1.6 "DN" code setting list Important All settings are necessary, otherwise faultless operation is not possible. Please follow the se- quence described above! M PAW-VP1000LDHW; PAW-VP750LDHW – U-16MF3E8 (VRF) Indoor Unit Tank detailed settings; Remote controller CZ-RTC5B Parameter Default New value... - Page 63 How to make Settings Important All settings are necessary, otherwise faultless operation is not possible. Please follow the se- quence described above! M PAW-VP1000LDHW; PAW-VP750LDHW – U-250PE2E8A (PACi R410A) Indoor Unit Tank detailed settings; Remote controller CZ-RTC5B Parameter Default New value...
- Page 64 How to make Settings Important All settings are necessary, otherwise faultless operation is not possible. Please follow the se- quence described above! M PAW-VP380L – U-200PZH2E8 (PACi R32) Indoor Unit Tank detailed settings; Remote controller CZ-RTC5B Parameter Default New value Explanation Check and adjust "DN"...
-
Page 65: Monitoring Operations (Sensor Info)
How to make Settings Monitoring operations (Sensor info) 8.2.1 How to open the sensor menu Proceed as follows: Press the button to scroll thrugh see each menu. Sensor info. 20:30 (THU) Unit no. Code no. Data If you wish to see the next screen instantly, press 0026 button. -
Page 66: Monitoring Operations (Sensor Info) Ecoi
How to make Settings 8.2.3 Monitoring operations (Sensor info) ECOi "DN" Description Remarks Indoor unit intake temp. (TA) °C Indoor unit heat exchanger temp. E1 (E1) °C — Indoor unit heat exchanger temp. E3 °C Indoor unit Discharge air temp. (BL) °C Discharge air temp. -
Page 67: Error Codes Paci & Ecoi
Error Codes PACi & ECOi Error Codes PACi & ECOi Alarm codes for indoor/outdoor units PACi R32 Wired remote Error group Symptoms Possible causes / Remedy controller display Serial communica- Failure in receiving serial signal from remote Faulty remote controller tion errors Missetting controller’s indoor unit Disconnection/Contact failure of remote controller wiring... - Page 68 Error Codes PACi & ECOi Alarm codes for indoor/outdoor units PACi R32 (continued) Wired remote Error group Symptoms Possible causes / Remedy controller display Activation of protec- Faulty wiring connections of (ceiling) indoor unit panel tive device Activation of float switch wiring Faulty drain pump Drainage failure Contact failure of float switch wiring...
-
Page 69: Alarm Codes For Indoor/Outdoor Units Paci R410A
Error Codes PACi & ECOi Alarm codes for indoor/outdoor units PACi R410A Wired remote Error group Symptoms Possible causes / Remedy controller display Serial communica- Failure in receiving serial signal from remote Faulty remote controller tion errors Missetting controller’s indoor unit Disconnection/Contact failure of remote controller wiring CHK(check) pins on the indoor unit control PCB are short circuited Settings of system address, indoor unit ad-... - Page 70 Error Codes PACi & ECOi Alarm codes for indoor/outdoor units PACi R410A (continued) Wired remote Error group Symptoms Possible causes / Remedy controller display Activation of protec- Faulty wiring connections of (ceiling) indoor unit panel tive device Indoor unit fan motor trouble Indoor unit fan motor locked Indoor unit fan motor layer short Contact failure in thermostat protector circuit...
-
Page 71: Alarm Codes For Indoor/Outdoor Units Ecoi Mf3
Error Codes PACi & ECOi Alarm codes for indoor/outdoor units ECOi MF3 Wired remote Error group Symptoms Possible causes / Remedy controller display Serial commu- Remote controller is detecting error signal Indoor unit does not respond to remote controller. <E01> nication errors from indoor unit. - Page 72 Error Codes PACi & ECOi Alarm codes for indoor/outdoor units ECOi MF3 (continued) Wired remote Error group Symptoms Possible causes / Remedy controller display Thermistor fault Outdoor thermistor is either open or Compressor 1 discharge temperature sensor has failure. (DISCH1) damaged Compressor 2 discharge temperature sensor has failure.
-
Page 73: Electrical Heater
Electrical Heater Electrical Heater 10.1 Models PAW-VP1000LDHW, PAW-VP750LDHW The three above mentioned models are delivered with an additional electric heater as standard. The heating is available according to the requirements of the customer. For example as: Anti-legionella heating, Additional heating, or both. -
Page 74: Legionella Protection Cycle
Electrical Heater 10.1.3 Legionella protection cycle Please observe all local and national regulations and requirements regarding legionella, valid in your application and installation area. ● It is recommended that no less than once per week, the heating element must be activated until the minimum temperature in the tank is reached at 63 degrees. - Page 75 Electrical Heater Example with 3 Phase heater – Timer controlled T=Timer K1=Relay Heater F1=control fuse F2=main fuse F3=mainfuse F4=main fuse ● All electrical components must be housed within an electrical enclosure (field supplied). ● The synchronization of the timers (remote control and external clock) is absolutely necessary.
-
Page 76: Model Paw-Vp380L
Electrical Heater 10.2 Model PAW-VP380L For the above mentioned heating or cooling tank, the electrical auxiliary heater is an optional component and must be ordered separately on request. It can be useful, for example, when particularly low outside temperatures are expected or to compensate for maintenance interruptions. -
Page 77: Electrical Connection
Electrical Heater 10.2.2 Electrical Connection Connection for 3 Phase (Star) 400 V AC power supply Bridge connection Controller connections 400 V AC supply Heater 1 Remove cable between N-L2 Heater 3 Heater 2 Connection for 3 Phase (Triangle) 230 V 3 phase AC power supply Bridge connection Heater 1 Heater 2... -
Page 78: Start-Up And Service
Electrical Heater 10.3 Start-up and Service 10.3.1 Operation Keys and Displays The heater and protecting box equipped with the temperature controller is a simple unit serving to control the heating process. The unit controls the heater or set of the electric heaters which are supplied from the power supply 230 V AC (1or 3 phase) or 400 V AC (3 phase). - Page 79 Electrical Heater Also, the other information can be seen on the display. All reminders and their description are specified in the following table: Information Acoustic Alarm diode Description displayed alarm Flashing Variable Lack or failure of the sensor. Alarm switches off automatically after repair of the failure.
-
Page 80: Menu Diagram
Electrical Heater 10.3.2 Menu diagram The way of moving through the menu is shown in the following diagram. 3 sec 5 sec 3 sec Change of values Range 0–1 3 sec Change Change of values of values Range 15–160 °C Range 1–10 °C Important Return from the setting mode is executed automatically after approximately 5 seconds from the... -
Page 81: Operational Menu
Electrical Heater 10.3.3 Operational Menu The operational menu is available when the controller operates in the switched on mode (ON). One pressing of or push-button during displaying the temperature causes entering the SETTINGS OF TEMPERATURE mode. Keeping the push-button pressed for 3 seconds while the temperature displaying causes entering the SETTINGS OF HYSTERESIS. -
Page 82: Checks Before Contacting Service
Electrical Heater 10.4 Checks Before Contacting Service 10.4.1 Factory pre-installed Back-up Heater Trouble shooting Before you contact your dealer, check following points: Symptom Cause Remedy Press ON/OFF operation button on Power failure or after power remote controller again. Air-to-Water unit does not failure Operation button is turned Switch on breaker if power is turned off. -
Page 83: A Appendix
Please check and follow local regulations! For the United Kingdom, please follow the Water Supply Water Fitting Regulation, WRAS requirements. For use with PAW-VP1000LDHW-1 or PAW-VP750LDHW-1 the optional PAW- G3KITL may be utilised to fulfil the local regulation. Components supplied with the unit in a separate accessory kit* (PAW-G3KITL) for site fitting: ●... -
Page 84: Alternative Discharge
Appendix Alternative Discharge Discharge pipes should be in metal and dedicated to the unvented cylinder. The pipe should have a continuous fall and should terminate in a safe and visible place. Downward discharges at low level, i.e. up to 100 mm above external surfaces such as car parks, hard standings, grassed areas etc. -
Page 85: Installation, Commissioning And Service Record Sheets
Appendix Installation, Commissioning and Service record sheets The code of practice for the installation, commissioning & servicing of mains pressure hot water storage Installation, Commissioning and Service Record Log Book Customer details Name Address TEL No. Important 1. Please, keep the Log Book in a safe place for future reference. 2. - Page 86 Appendix APPLIANCE & TIME CONTROL DETAILS Manufacturer Model Capacity litres Serial no. Type Unvented Time control Programmer Time switch COMMISSIONING PROCEDURE INFORMATION Primary settings (indirect heating only) IS THE PRIMARY A SEALED OR OPEN VENTED SYSTEM? SEALED OPEN WHAT IS THE MAXIMUM INDIRECT HEAT SOURCE FLOW TEMPERATURE? °C ALL MAINS PRESSURISED SYSTEMS WHAT IS INCOMING STATIC COLD WATER PRESSURE AT THE INLET TO THE...
- Page 87 Appendix SERVICE INTERVAL RECORD It is recommended that your hot water system is serviced regularly and that your service engineer completes the appropriate Service Interval Record below. SERVICE PROVIDER Before completing the appropriate Service Interval Record below, please ensure you have carried out the service as described in the manufacturer’s instructions and in compliance with all relevant codes of practice.
