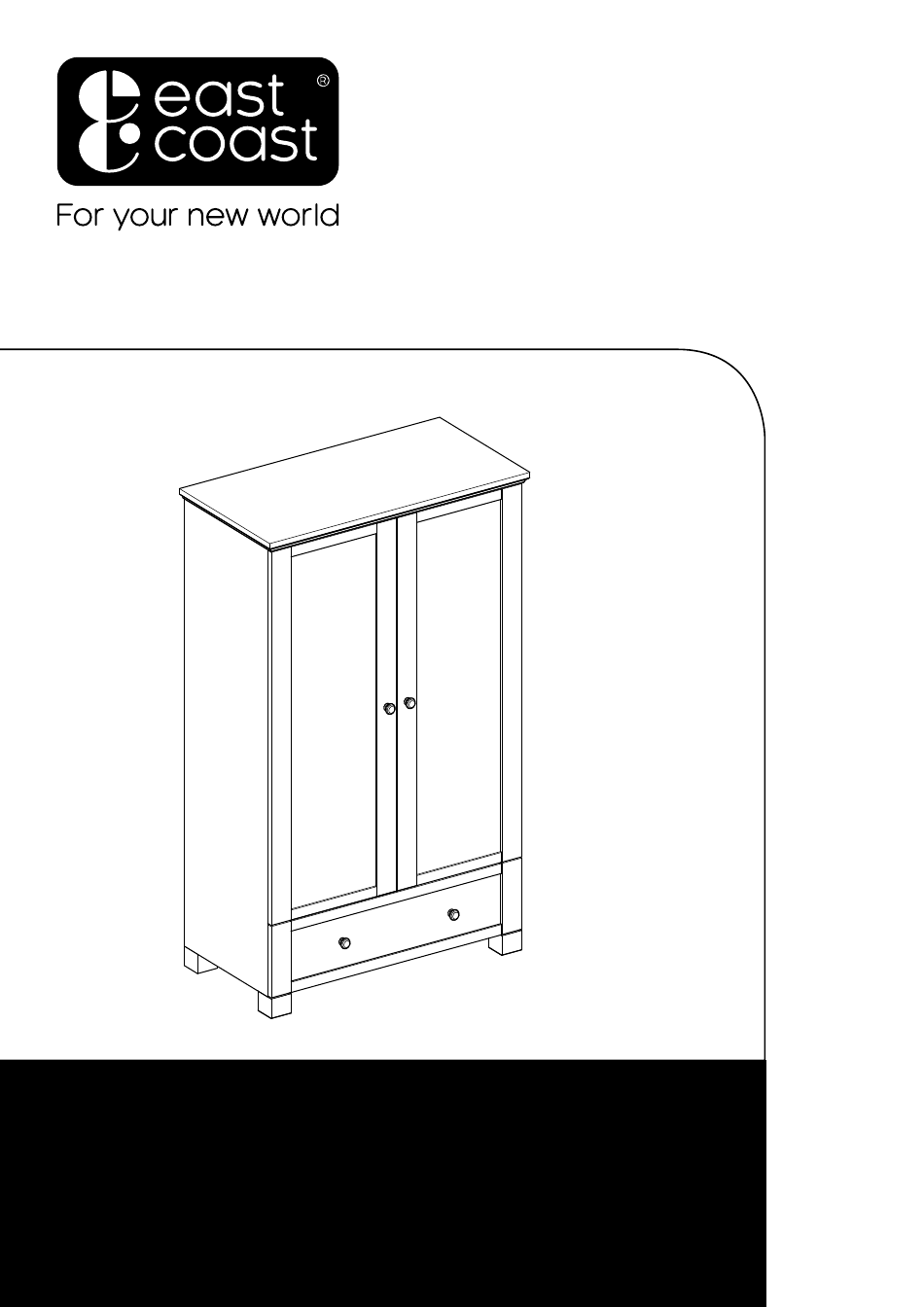

- Page 1 Montreal Wardrobe Assembly and care instructions...
- Page 2 RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts: Top panel Door x 2 Large back panel x 2 Small back panel x 2 Upper shelf Rear frame x 2 Side panel x 2 Lower shelf Rear crossbar Drawer Back Right Drawer Side Front Crossbar x 2 Clothes rail Drawer Base Left Drawer Side...
- Page 4 Assembly 1: Front Crossbar x 2 Top panel Rear crossbar NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of each crossbar. (Total 12 dowels) Assembly 2: Medium Bolt (27mm) x 2 Rear frame Medium Bolt (27mm) x 2 Lower frame...
- Page 5 Assembly 3: Cam Pin x 4 Side panel NOTE: Repeat for second Side panel Assembly 4: Medium Bolt (27mm) x 4 Side panel Large Bolt (70mm) x 3...
- Page 6 Assembly 5: Medium Bolt (27mm) x 2 Rear crossbar Front Crossbar Front Crossbar Cam Nut x 2 NOTES: Ensure that the Front crossbars have the large holes in its ends facing downward. Attach the Crossbars by inserting Cam Nuts, making sure that the arrow on one of the screwdriver slots points to the nearest edge of the part.
- Page 7 Assembly 7: Side panel Cam Nut x 2 NOTE: Ensure all dowels are located in the correct holes in the second Side panel Assembly 8: Medium Bolt (27mm) x 3 Large Bolt (70mm) x 3 Medium Bolt (27mm) x 5 NOTE: Fit the bolts as shown then stand the wardrobe up on a level surface for the remaining assembly steps...
- Page 8 Assembly 9: Medium Bolt (27mm) x 2 Short Woodscrew x 14 Slot at top edge Small back panel Short Woodscrew x 16 Large back panel Short Woodscrew x 14 Large back panel Short Woodscrew x 16 Small back panel NOTES: Fit the two Medium bolts before attaching the Back panels.
- Page 9 Assembly 10: Long Woodscrew x 4 Right Drawer Side Drawer Front Drawer Base Long Woodscrew x 4 Drawer Back Left Drawer Side Assembly 11: Door Medium Woodscrew x 6 Small Bolt (24mm) x 3 Handle Handle x 2 Hinge x 3 NOTE: Repeat for second door...
- Page 10 Assembly 12: Screw B Screw A Door Side panel With the wardrobe in its final position, the doors can be fitted. Locate screw A on the hinge in the slot on the hinge plate attached to the Side panel. The doors can be adjusted to fit by adjusting screws A and B in the rear part of each hinge to alter the angle and fit of each door in its frame.
- Page 11 Assembly 13: The Wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Screw (15mm) Screw (25mm) Washer x 2...
-
Page 12: Care And Maintenance
Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 5002_V2 eastcoastnursery.co.uk...
