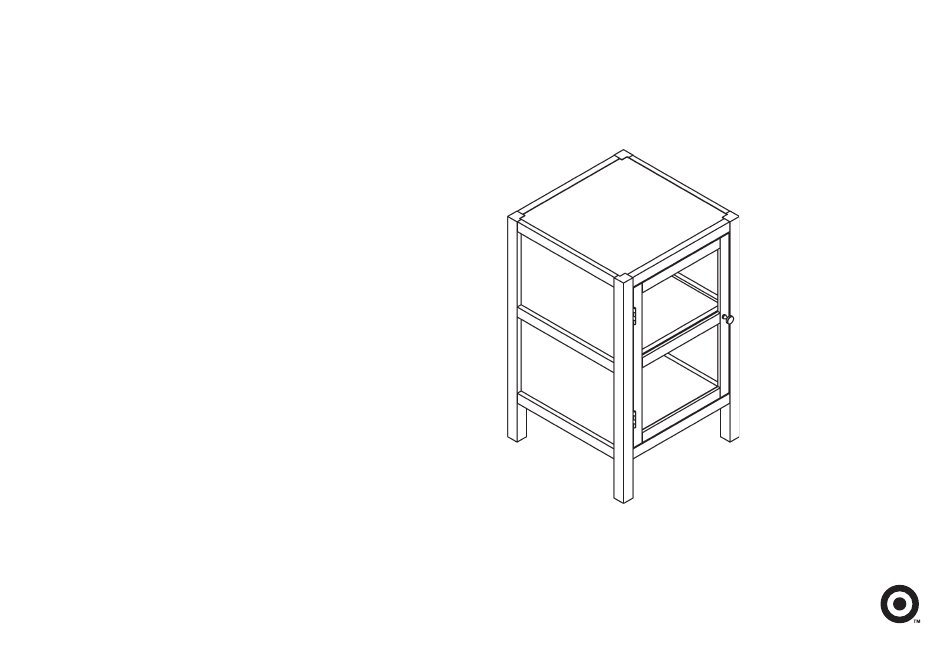

- Page 1 # FKVS1DCBGY (stone gray) dpci # 249-16-7740 tcin # 53289611 style # FKVS1DCBWH (shell) dpci # 249-16-2727 tcin # 53289610 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-10 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 12 (H2) x 8 (H3) x 8 (H4) x 4 (H5) x 4 wooden dowel cam bolt bolt lock washer (H6) x 4 (H7) x 10 (H8) x 1 (H9) x 2 (H10) x 1 washer small pan head screw magnet catch large pan head screw knob...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel fixed shelf back panel door... -
Page 6: How To Use The Cam Lock System
how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°... - Page 7 step 1: attach top panel, fixed shelf, and bottom panel to right side panel. (H1) x 6 (H2) x 4 (H3) x 4 wooden dowel cam bolt (H4) x 2 (H5) x 2 (H6) x 2 (H13) x 1 bolt lock washer washer allen wrench...
- Page 8 step 2: attach left side panel. (H1) x 6 (H2) x 4 (H3) x 4 wooden dowel cam bolt (H4) x 2 (H5) x 2 (H6) x 2 (H13) x 1 bolt lock washer washer allen wrench 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 10 step 4: attach door. (H12) x 4 flat head screw (H8) x 1 (H9) x 2 magnet catch long pan head screw (H11) x 1 (H10) x 1 knob bolt knob If planning to install the door, opening to If planning to install the door opening to the left, use right side pre-drilled holes the right, use left side pre-drilled holes for magnet.
- Page 11 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
- Page 12 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 13 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
