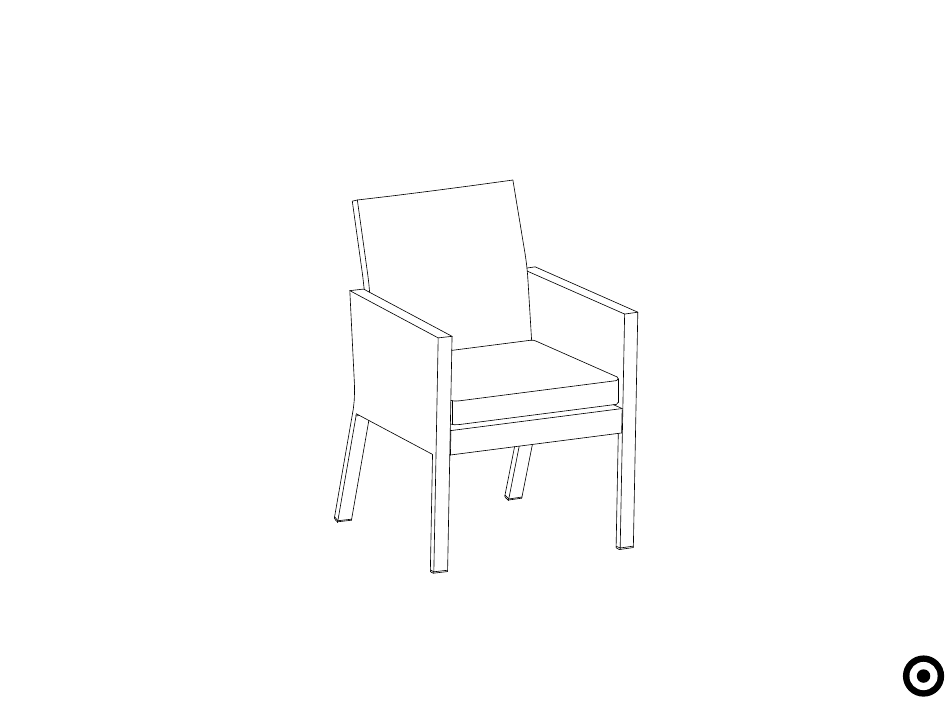

- Page 1 Howell upholstered dining chair style # FCS60615-1 dpci # 009000586 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. -
Page 3: Warranty
This Chair comes with a one year limited warranty against original manufacture defects. If you experience trouble with your chair, please call the customer service number below. Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. - Page 4 table of contents introduction hardware parts list assembly 7-10 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part E)×8 (Part F)×16 (Part G)×1 M6*20mm bolt with washer M6*30mm bolt with washer allen wrench ATTENTION: THE HARDWARE KIT IS FOR 4 CHAIRS.
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY right armrest left armrest chair seat chair back... - Page 7 step 01: (Part F)×2 (Part G)×1 M6*30mm bolt with washer allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly. 1.
- Page 8 step 02: (Part E)×1 (Part G)×1 M6*20mm bolt with washer allen wrench 1. Attach the chair back (D) to the right armrest (A) by lining up the bolt holes on the end of the chair back (D) with the corresponding bolt holes on the right armrest (A). 2.
- Page 9 step 03: (Part F)×2 (Part G)×1 (Part E)×1 M6*30mm bolt with washer M6*20mm bolt with washer allen wrench 1. Attach the left armrest (B) to the chair seat (C) and chair back (D) by lining up the bolt holes on the end of the chair seat (C) and chair back (D) with the corresponding bolt holes on the left armrest (B).
- Page 10 step 04 1. Tighten all the bolts. Please lift the chair back up when tightening the bolts. 2. Turn the chair to upright position onto a flat level surface. Put the cushion on the chair. You are now ready to enjoy your new chair.
