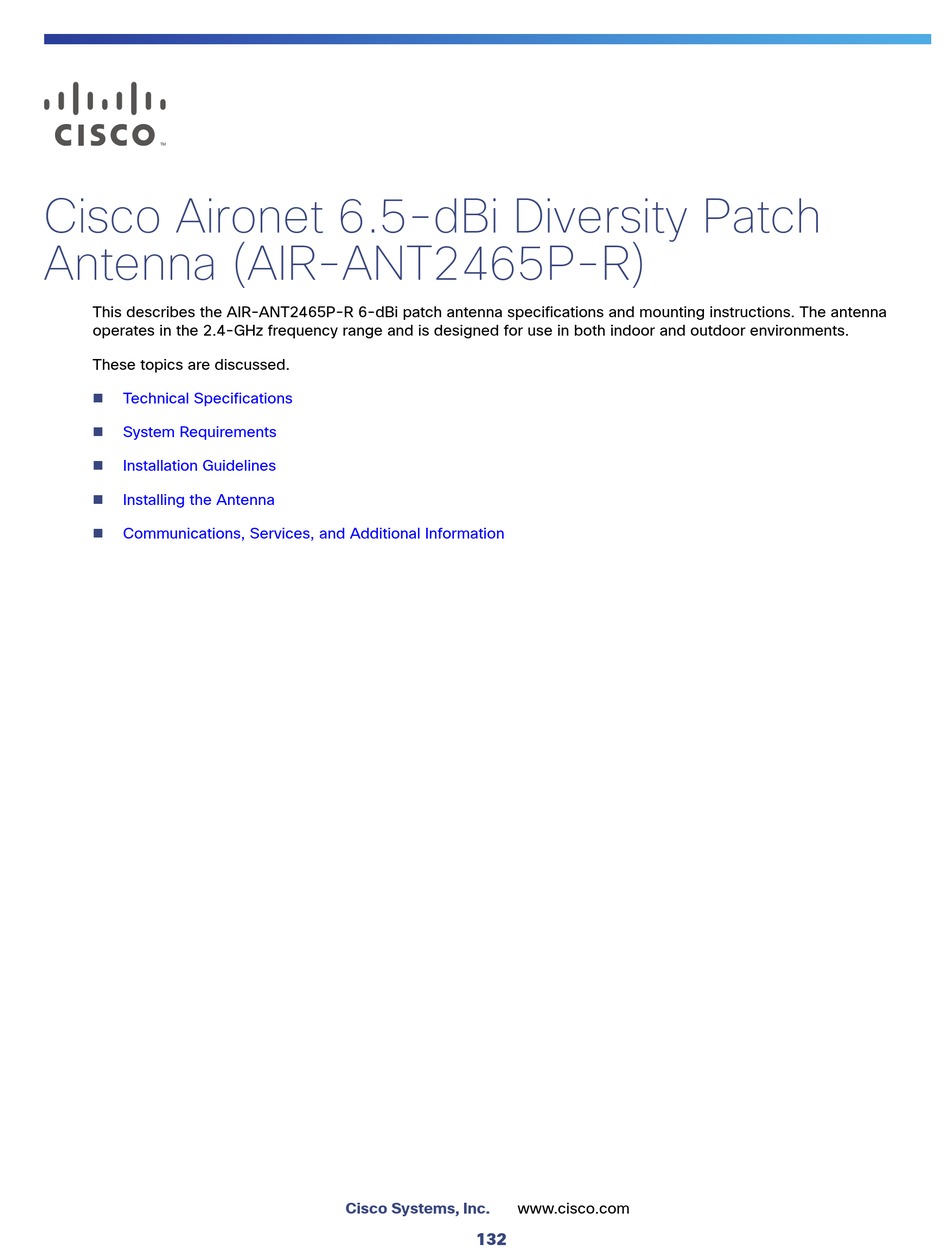

Cisco Aironet 6.5-dBi Diversity Patch
Antenna (AIR-ANT2465P-R)
This describes the AIR-ANT2465P-R 6-dBi patch antenna specifications and mounting instructions. The antenna
operates in the 2.4-GHz frequency range and is designed for use in both indoor and outdoor environments.
These topics are discussed.
Technical Specifications
System Requirements
Installation Guidelines
Installing the Antenna
Communications, Services, and Additional Information
Cisco Systems, Inc.
www.cisco.com
132

Advertisement

Table of Contents
loading

Related Manuals for Cisco Aironet AIR-ANT2465P-R

Summary of Contents for Cisco Aironet AIR-ANT2465P-R

  • Page 1 Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R) This describes the AIR-ANT2465P-R 6-dBi patch antenna specifications and mounting instructions. The antenna operates in the 2.4-GHz frequency range and is designed for use in both indoor and outdoor environments. These topics are discussed.

  • Page 2: Technical Specifications

    Left Antenna Azimuth and Elevation Pattern Right Antenna Azimuth and Elevation Pattern System Requirements This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any 2.4-GHz Cisco Aironet radio device that utilizes an RP-TNC connector.

  • Page 3: Safety Precautions

    If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
  • Page 4 Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R) Installation Guidelines If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call your local power company. They will remove it safely.

  • Page 5: Installing The Antenna

    Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R) Installing the Antenna Installing the Antenna You can install the antenna on any flat indoor or outdoor vertical surface. Hardware for mounting the antenna on drywall is provided. If you intend to install your antenna on another surface, you must provide the appropriate hardware.

  • Page 6: Communications, Services, And Additional Information

    After the cable is attached to the antenna, ensure that the connections are sealed (if outdoors) to prevent moisture and other weathering elements from affecting performance. Cisco recommends using a coax seal (such as CoaxSeal) for outdoor connections. Silicon sealant or electrical tape are not recommended for sealing outdoor connections.
  • Page 7  Consult the dealer or an experienced radio/TV technician for help. Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product. The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system.
  • Page 8 IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
